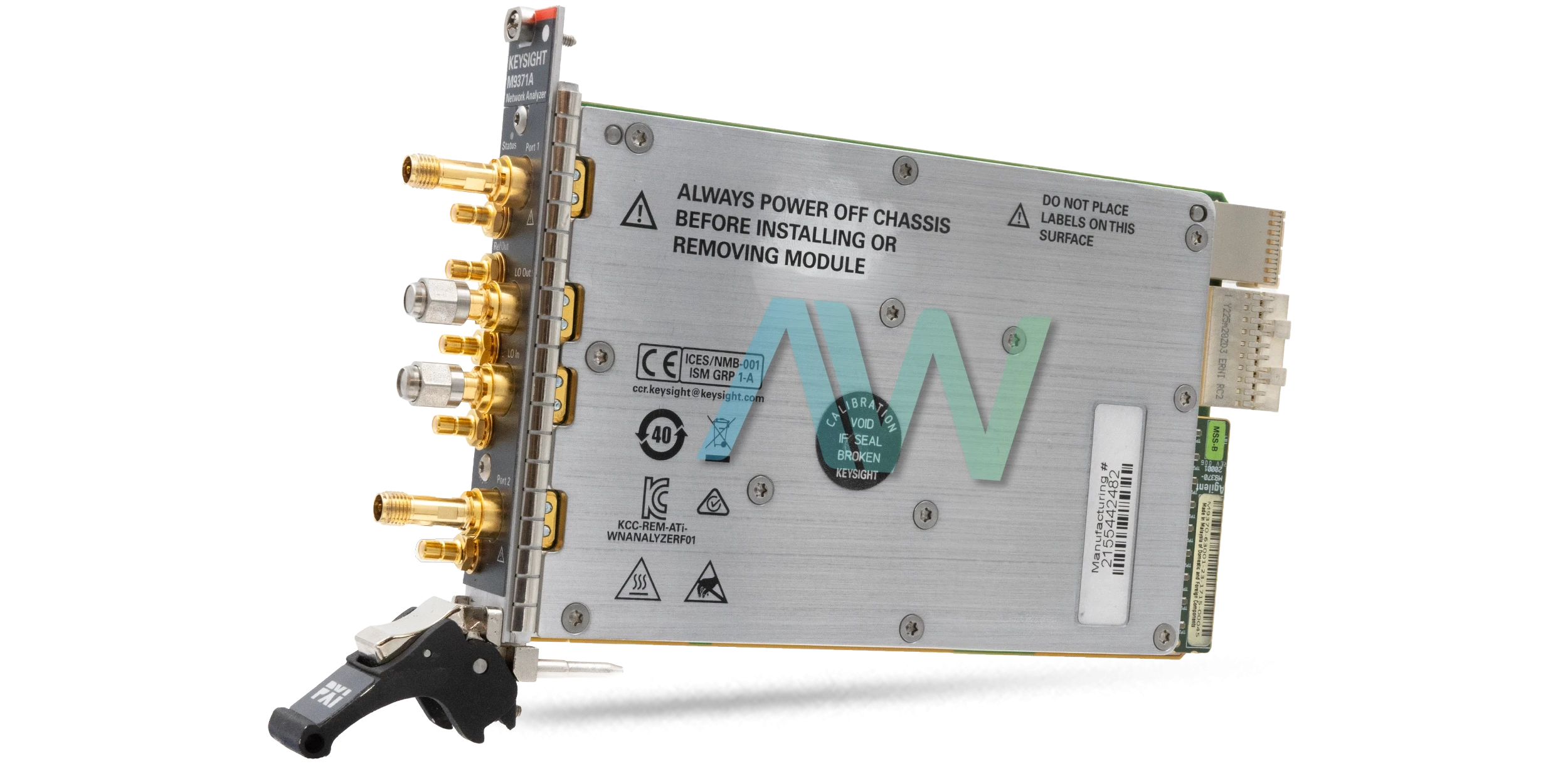

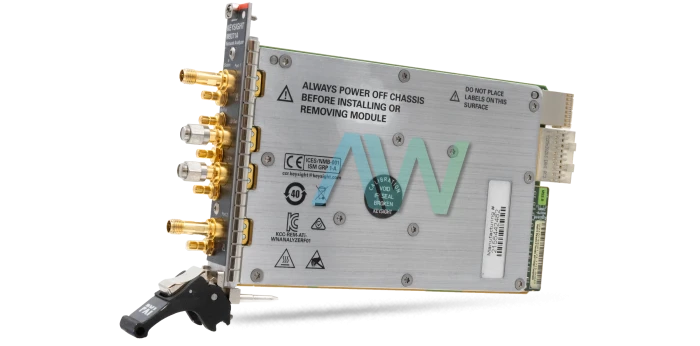

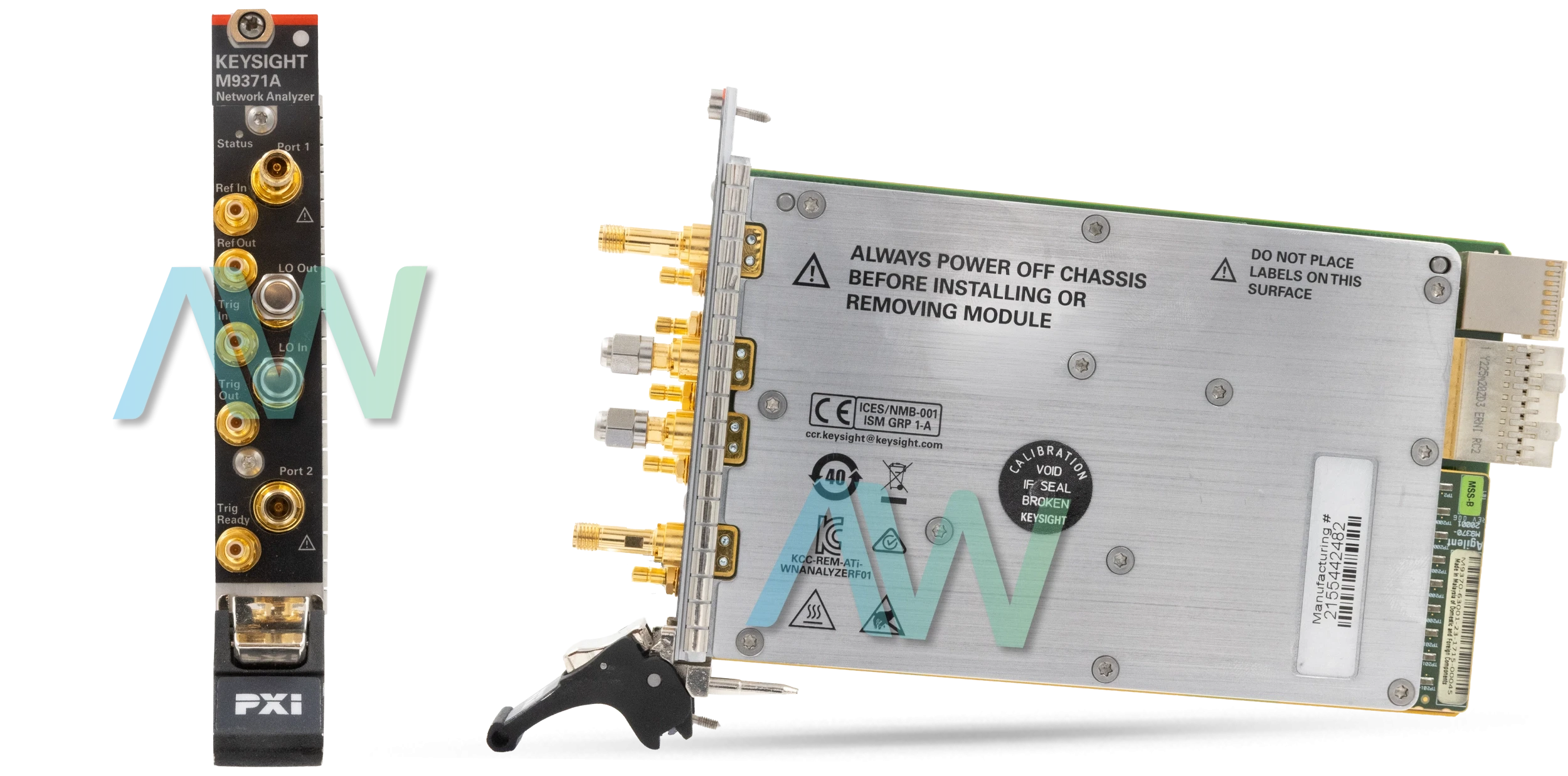

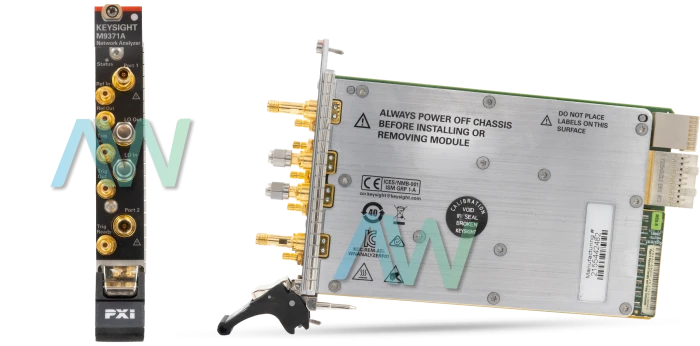

Keysight M9371A PXIe Vector Network Analyzer
The Keysight M9371A is a Vector Network Analyzer. The M9371A is developed by Agilent/HP/Keysight Technologies. The M9371A is designed for fast and precise measurements. The M9371A can be used to measure the frequency and impedance of a network. The M9371A is programmed with LabVIEW for various functions. However, other tools can be used to program the M9371A, such as MATLAB, C/C++, C#, and VB.NET. The M9371A module is compatible with Windows OS.
The M9371A is a part of the M937xA Series of PXIe Vector Network Analyzers. The M937xA Series of Analyzers are used to check component specifications. These modules can also confirm design simulations to verify the systems and their components work properly together. To be precise, the M9371A is used to measure S-parameters. The M9371A is ideal for wireless manufacturing tests. The Keysight M9371A also deals greatly with aerospace/defense depot maintenance level testing and handset component testing. The M9371A allows fast and accurate calibrations. The frequency range for the M9371A PXIe Vector Network Analyzer is 300 kHz to 6.5 GHz. The M9371A comes with one PXIe slot.
The M9371A is compatible with hybrid PXI slots. The M9371A PXIe Vector Network Analyzer has a maximum power dissipation of 23 Watts. The Keysight M9371A requires a warm-up time of 60 minutes. The M9371A is designed to support a fast data interface. The software support in the PXIe Vector Network Analyzer provides context-sensitive help and complete documentation. Moreover, some code examples are provided that can be used for a quick setup.
Model | M9371A |
---|---|
Manufacturer | Keysight Agilent HP |
Series | PXI Vector Network Analyzers |
Type | PXIe Vector Network Analyzer |
Frequency Range | 300 kHz to 6.5 GHz |
Calibration Interval | 1 year |
OS | Windows 7 or Windows Vista, SP1&2 or WIndows 10 (32 & 64 bit) |
Memory | 8 GB recommended, 1 GB minimum |
Slots | 1 PXIe slot |
DImensions | 0.784 x 5.06 x 8.37 in. |
Weight | 2 lbs. |
Warranty | 2-3 Year Warranty |
M9371A Manual | User Manual and Maintenance Manual Available for Download |
Pricing | Contact a Sales Representative for a quote. |
