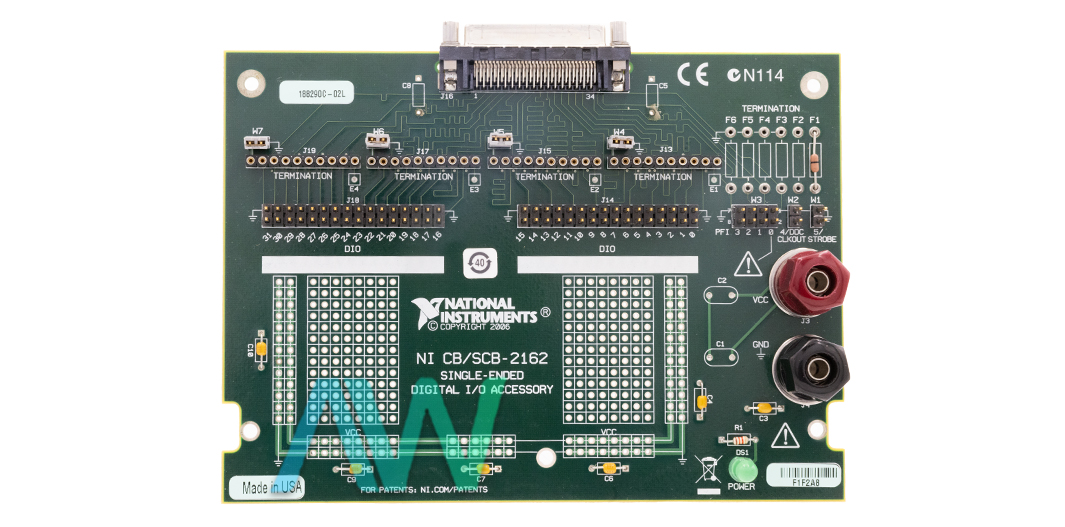

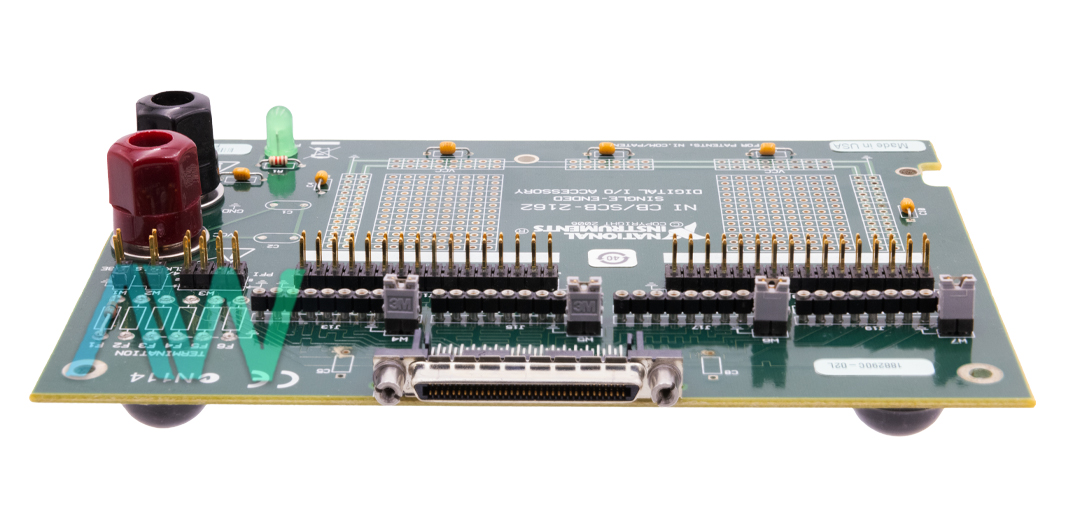

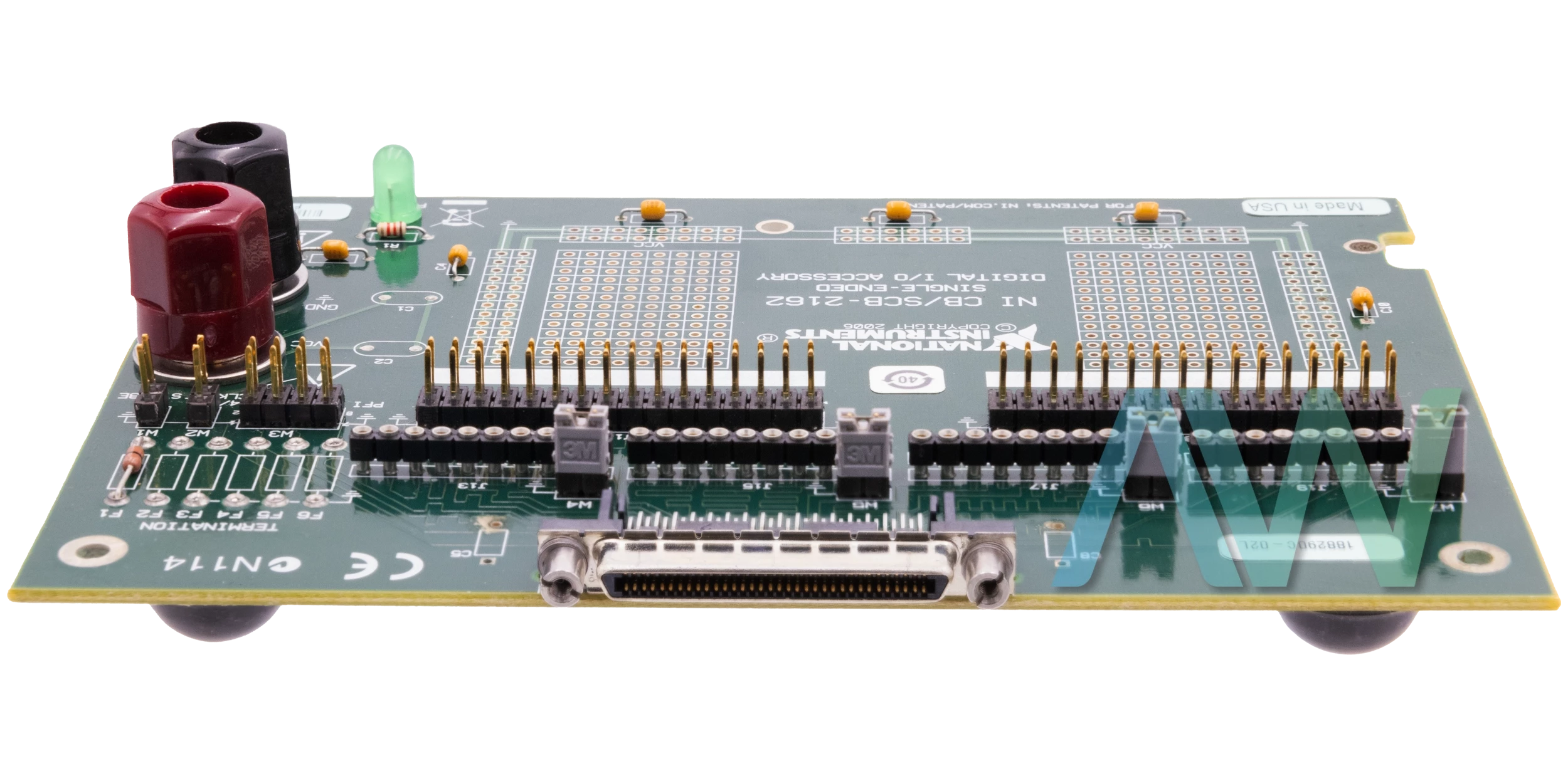

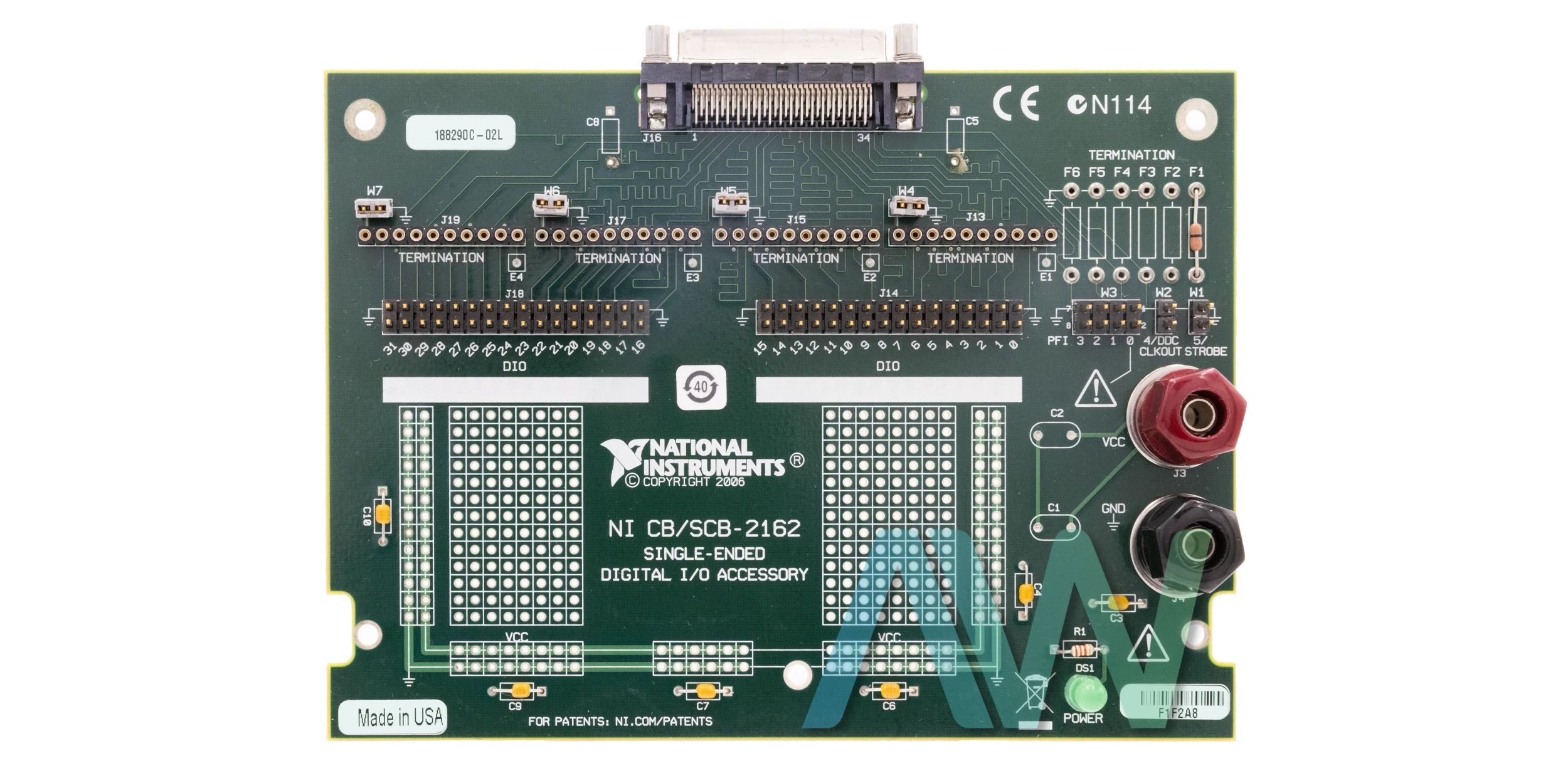

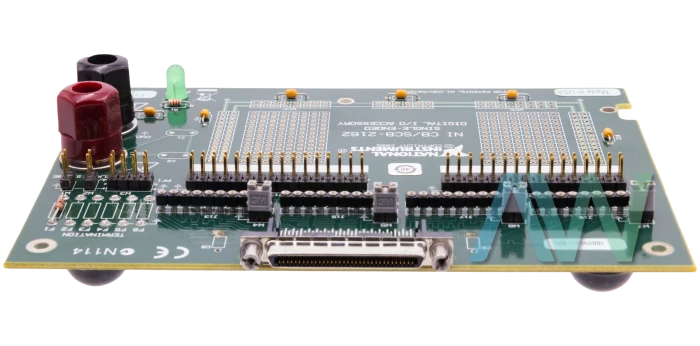

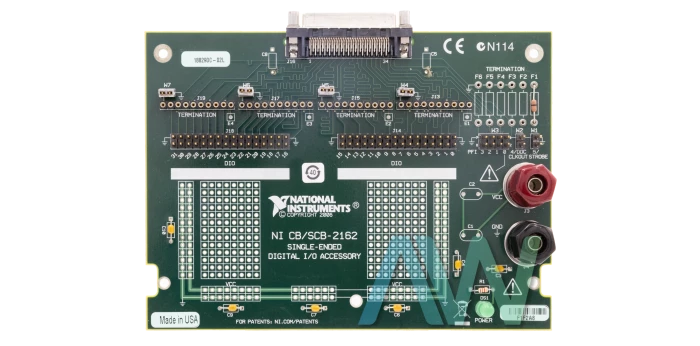

National Instruments CB-2162 Digital I/O Accessory
The National Instruments CB-2162 (Part Number: 778592-01) is a prototyping board and connector block designed for National Instruments Digital Waveform Generator/Analyzer Modules. This Digital I/O Accessory offers easy termination of control and digital I/O channels. The NI CB-2162 can also be used for the development and interfacing of prototyping circuits and for establishing a connection between different devices for debugging and testing. This prototyping board has 32 DIO channels, 6 control I/O channels, and 2 resistors.
The prototyping area of the CB-2162 contains 48 Vcc, 48 ground, and 208 unconnected solder pads. This Digital I/O Accessory comes with a 68-pin DDC connector, 76 header pins, 4 termination sockets, and 2 banana-type connectors. This connector block can also be deployed in a shielded enclosure for better EMC performance. The NI CB-2162 requires a maximum DC power supply of 12V and a minimum external DC power supply of -5 V.
| Model | CB-2162 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778592-01 |
| Type | Digital I/O Accessory |
| Compatible Models | NI Digital Waveform Generator/Analyzer Modules |
| DIO Channels | 32, single-ended |
| Control I/O Channels | 6, single-ended |
| Resistors | 2 |
| LED Type | 5 mm diffused LED, green, 10 mA forward current |
| Dimensions | 3.94 x 5.51 in. |
| Weight | 1 lb. |
| Warranty | 2-3 Year Warranty |
| CB-2162 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
