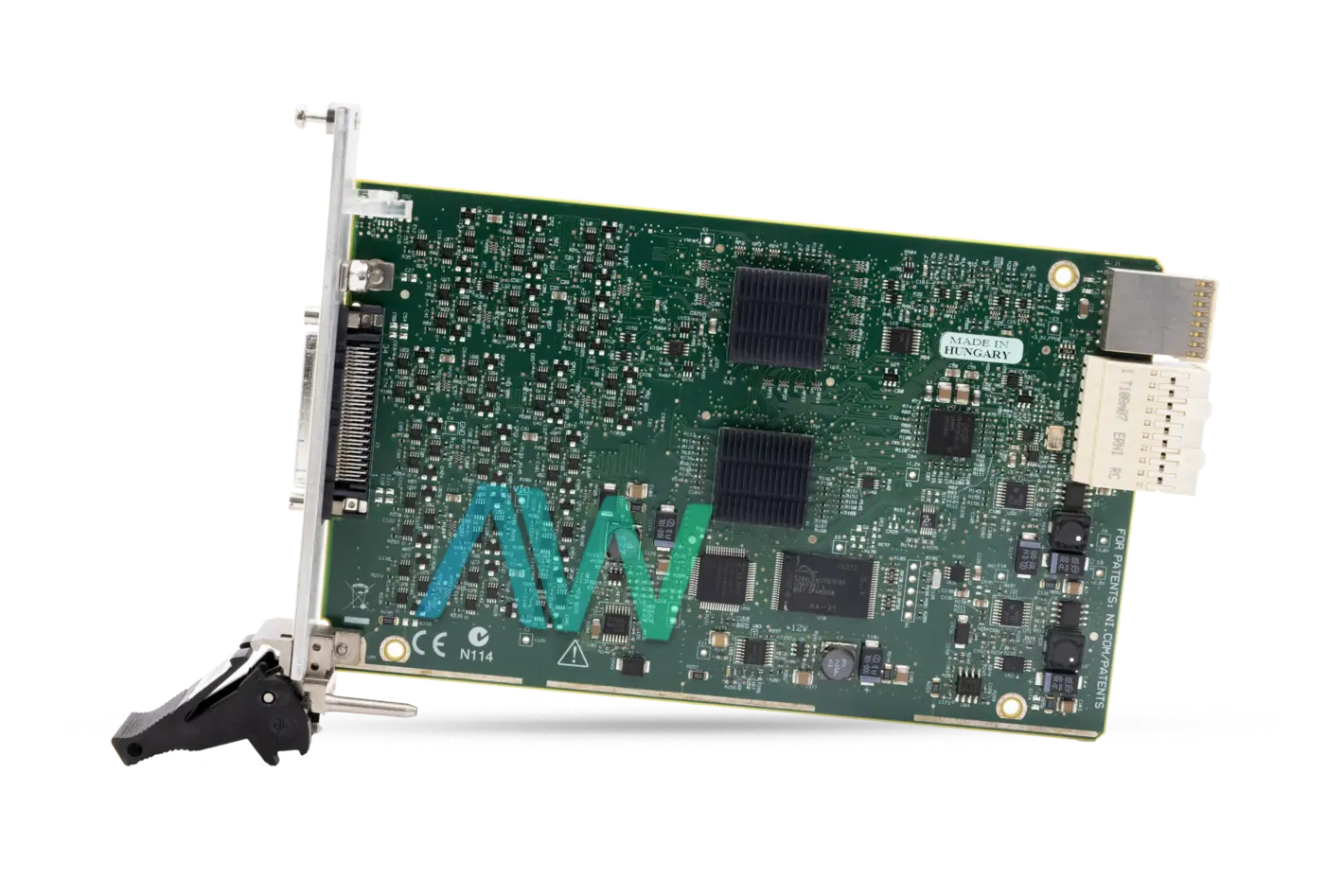

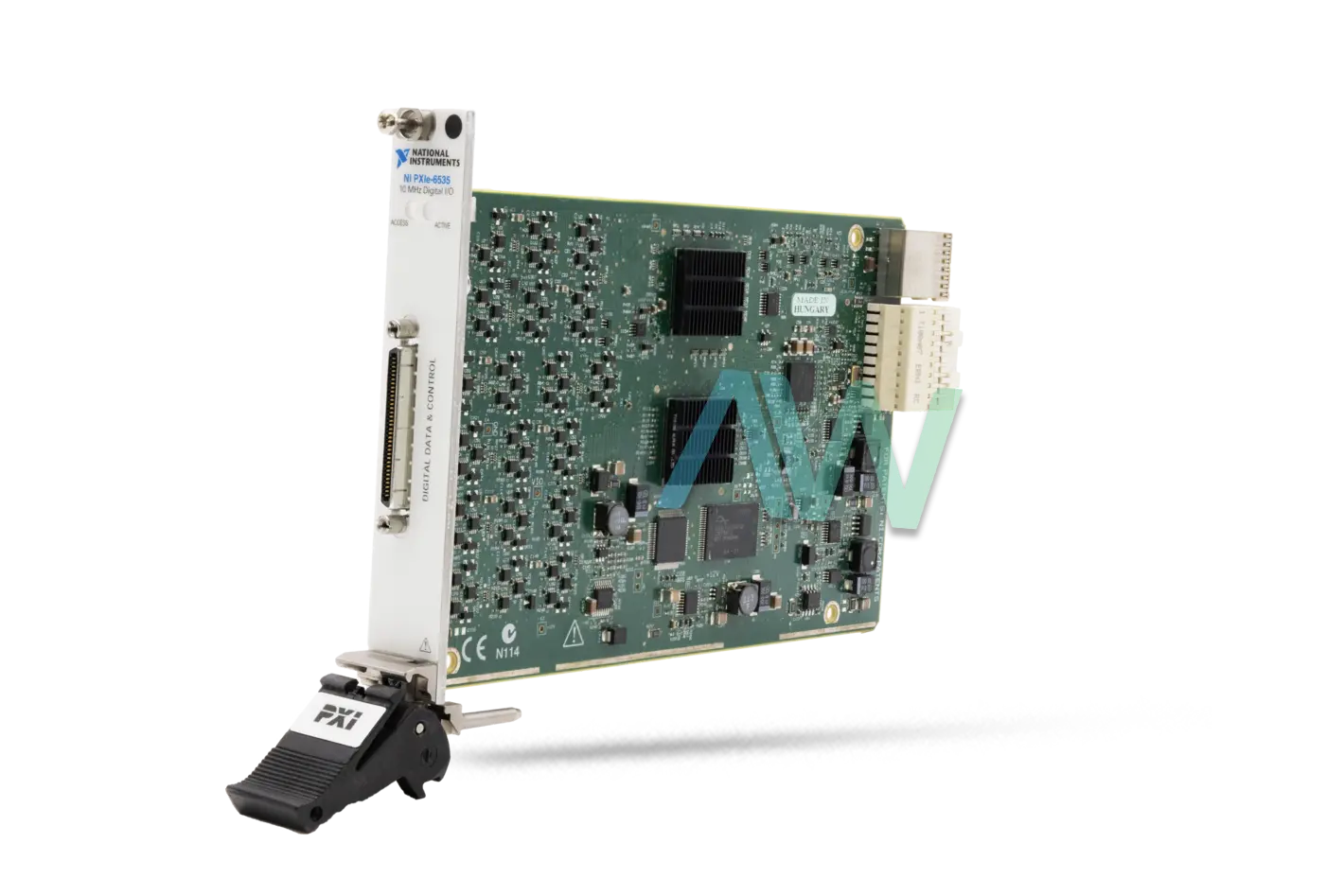

PXIe-6535 National Instruments PXI Digital I/O Module | Apex Waves | Image PXIe-6535 National Instruments PXI Digital I/O Module | Apex Waves - Wiring Diagram ImagePXIe-6535

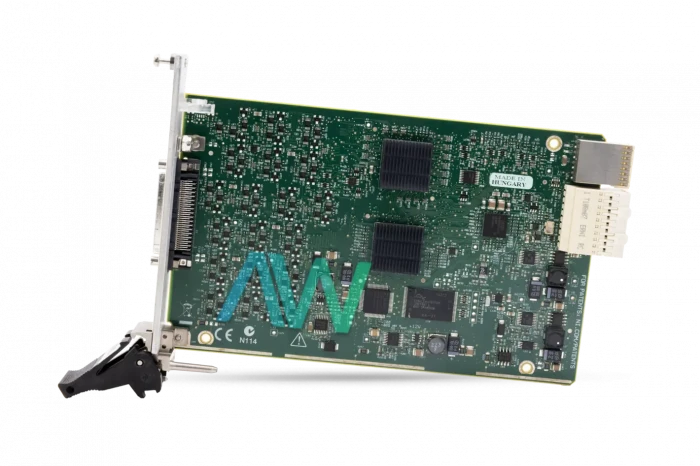

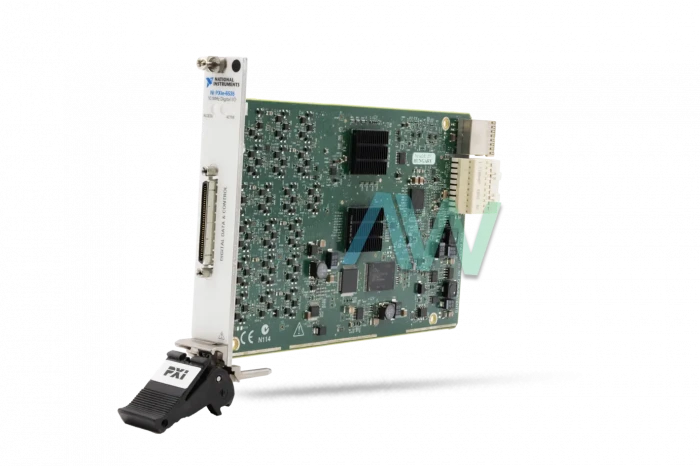

PXIe-6535 National Instruments PXI Digital I/O Module | Apex Waves | Image
PXIe-6535 National Instruments PXI Digital I/O Module | Apex Waves - Wiring Diagram Image
PXIe-6535 New

PXIe-6535

4.7/5 | 11 ratings

Modular Systems > National Instruments > DIO Series

Part Number PXIe-6535
Manufacturer/Brand National Instruments
Description: PXIe-6535, 32-Channel, 10 MHz PXI Digital I/O Module
In Stock | Ships 3-5 Days
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments PXIe-6535 PXI Digital I/O Module

The 32 Channel 10 MHz, 40 MB/s PXIe-6535 (Part Number: 780695-01) is a Digital I/O Module. The NI PXIe-6535 can transmit information constantly through a PXI Express bus. This module is the perfect way to interface with many digital applications needing a large quantity of channels for digital I/O, such as memory testing, handshaking, pattern generation, high-speed functional digital tests, and more. This PXI Digital I/O Module offers selectable voltage levels and directional control per computerized line channel.

The maximum clock rate of the PXIe-6535 is 10 MHz. There are selectable voltage levels with 2.5, 3.3, and 5 V TTL logic and exclusively arranged pins for input or output. With both synchronous and asynchronous timing modes, handshaking, and software API designed around the NI-DAQmx driver, the NI PXIe-6535 module has the adaptability to meet the prerequisites of semiconductor, consumer electronics, and communication applications.

The NI PXIe-6535 highlights an enhanced design, offering higher signal integrity and impedance matching. This PXI Digital I/O Module has several timing modes. The first is pattern I/O or test clock (synchronous), which allows the user to exchange designs utilizing an inside or outer clock signal. The next mode is called burst handshaking (synchronous). This mode enables the module to handshake a NI PXIe 6535 module and the peripheral instrument while a synchronous exchange is occurring to optimize the transfer rate. There is additionally a change detection mode, which can obtain information when a change takes place on at least one digital line. Next, there is the handshaking I/O (offbeat) mode, which has the capability to exchange designs when the PXIe 6535 module and the peripheral instrument are prepared. Lastly, there is an on-demand (unstrobed or static I/O) mode, which can obtain or create information via software-timed orders.

ModelPXIe-6535
Part Number780695-01
ManufacturerNational Instruments
TypePXI Digital I/O Module
Bidirectional Digital Channels32
Digital Input Voltage Range-1 V to 6 V
Output Voltage Range0 V to 5 V
Dimensions8.42 x 0.79 x 5.14 in.
Weight5.1 oz.
WarrantyOne Year Warranty
PXIe-6535 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-6535 Frequently Asked Questions



Question: What is the maximum clock rate of the PXIe-6535?



Answer: The maximum clock rate of the PXIe-6535 is 10 MHz.



Question: What are the digital I/O logic levels for the NI PXIe-6535?



Answer: The digital I/O logic levels for the NI PXIe-6535 are 2.5V, 3.3V.



Question: What does the PXIe 6535 need to operate?



Answer: The PXIe 6535 needs a cable and a connector block to operate.



Question: How many digital input channels does the NI PXIe-6535 have?



Answer: The NI PXIe-6535 does not have any digital input channels.


PXIe-6535 Technical Specifications:

Manufacturer:National Instruments
Model:PXIe-6535
Part Number:780695-01
Type:PXI Digital I/O Module
Repair Evaluation:$150
