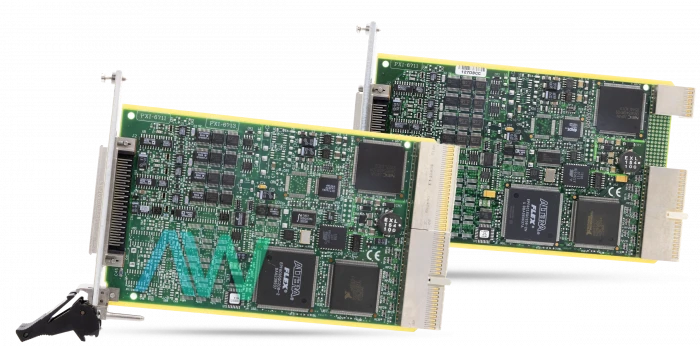

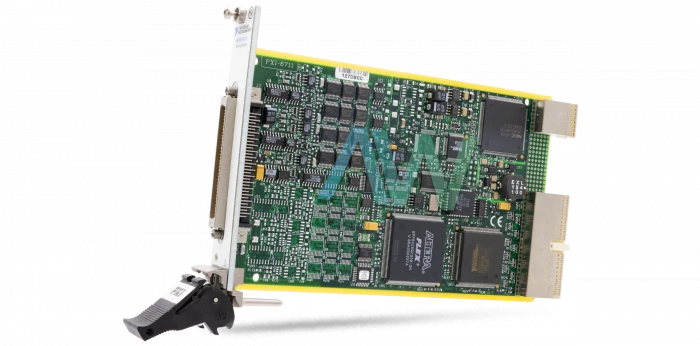

PXI-6711 National Instruments Analog Output Module | Apex Waves | ImagePXI-6711 National Instruments Analog Output Module | Apex Waves | ImagePXI-6711 NewPXI-6711 | Legacy, Refurbished and New Surplus
PXI-6711 National Instruments Analog Output Module | Apex Waves | Image
PXI-6711 National Instruments Analog Output Module | Apex Waves | Image
PXI-6711 New
PXI-6711 | Legacy, Refurbished and New Surplus

PXI-6711

4.7/5 | 5 ratings

Modular Systems > National Instruments > Analog Output Devices

Part Number PXI-6711
Manufacturer/Brand National Instruments
Description: PXI-6711, 1 MS/s, PXI Analog Output Module
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

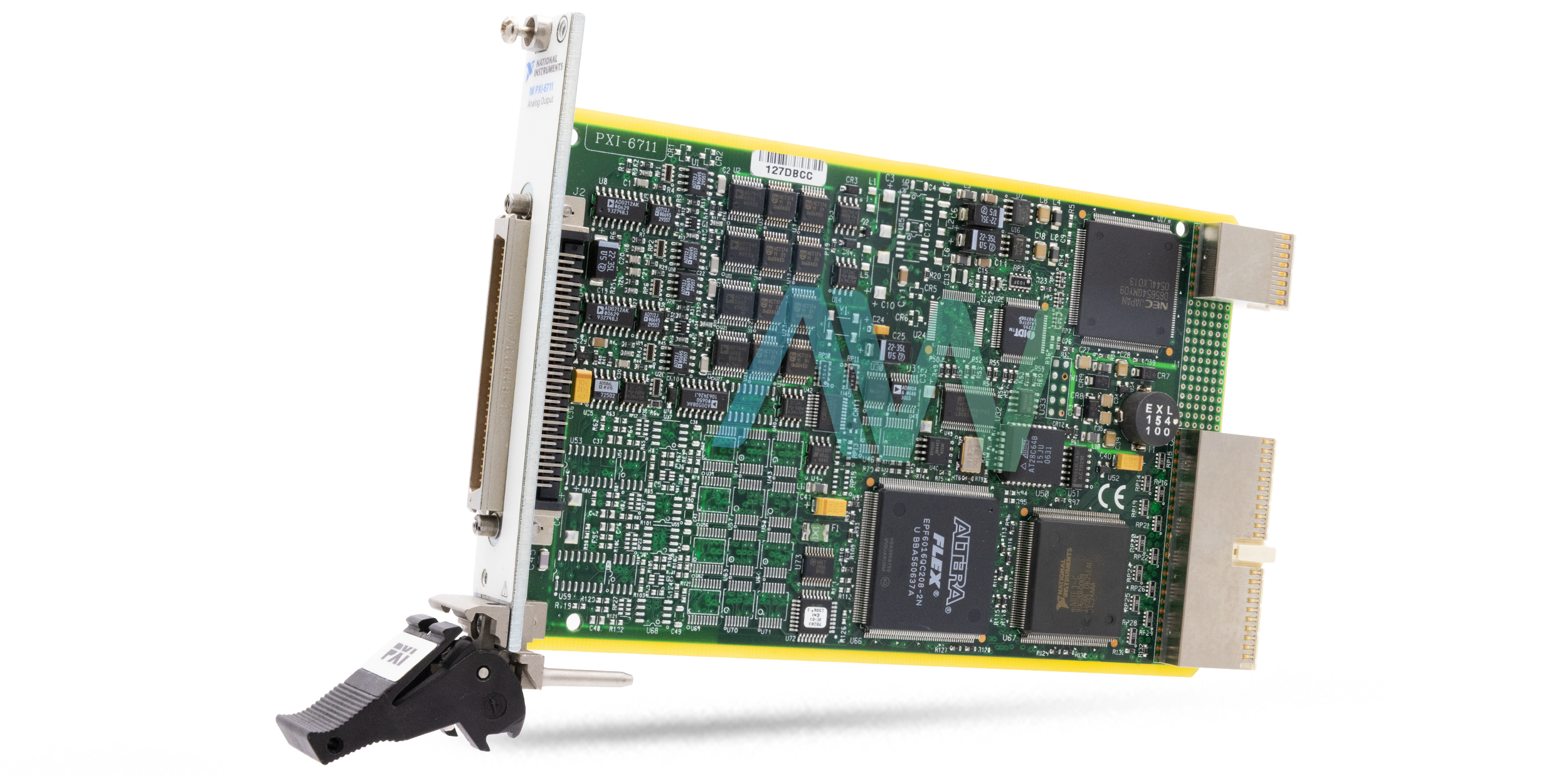

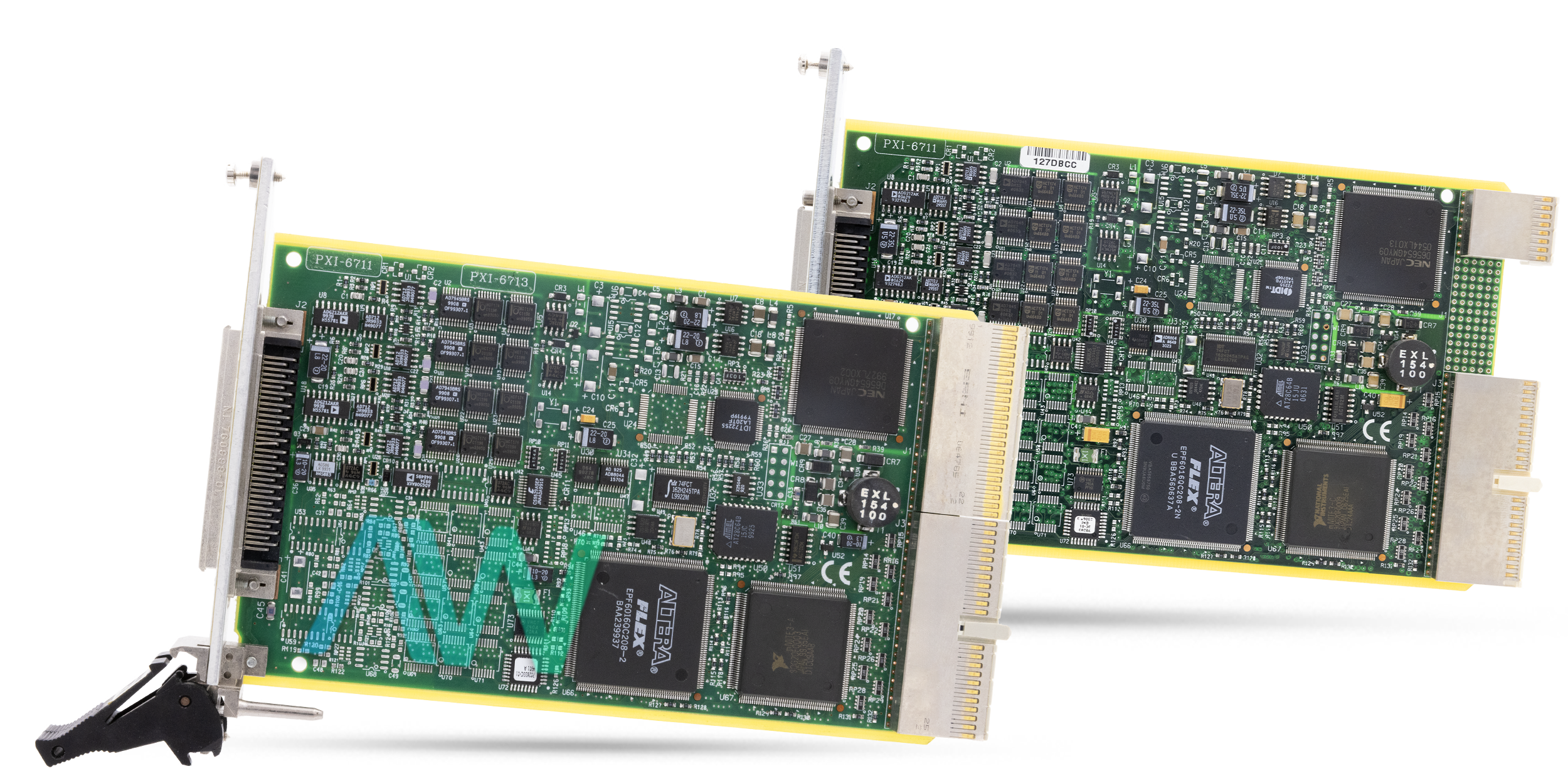

National Instruments PXI-6711 PXI Analog Output Module

The PXI-6711 (Part Number: 777794-01) can supplant a few types of instruments, including stand-alone proportional integral derivative (PID) controllers, low-speed subjective waveform generators, and capacity generators. The user can control every datum point for each channel to characterize normal waveforms, such as square, sine, or saw-tooth, and complex waveforms, including stimulus-response, power supply control, high-speed, deterministic control, and sensor/signal recreation. Also, the gadget gives eight 5 V TTL/CMOS computerized I/O lines, two 24 bit, 20 MHz counter/timers, and digital triggering and outer timing abilities.

With this module, the user can associate every D/A converter (DAC) to the inward reference of 10 V or to the outer reference signal associated with the outside reference (EXTREF) stick on the I/O connector. This signal connected to EXTREF ought to be inside ±11 V. The user can configure each channel to utilize either inside or outside reference (the default reference esteem determination is inner reference). The PXI-6711 Analog Output Module contains eight lines of advanced I/O for universal use. The user can independently configure each line for either input or output. At framework startup and reset, the computerized I/O ports are altogether high impedance.

The DAQ-STC gives an exceptionally adaptable interface to associating timing signals to different gadgets or outer hardware. The PXI-6711 module utilizes the RTSI bus to interconnect timing signals amongst gadgets, while the Programmable Function Input (PFI) sticks on the I/O connector to interface the gadget to outer hardware. These associations are intended to empower the PXI-6711 to both control and be controlled by different gadgets and circuits.

Apex Waves will continue to Buy, Sell, and Repair EOL NI Hardware in perpetuity. While the PXI-6711 entered the NI Maintenance phase on March 31, 2022, it will remain available with Apex Waves. Request your quote today!

ModelPXI-6711 (777794-01)
ManufacturerNational Instruments
TypePXI Analog Output Module
Analog Output Channels4
Maximum Update Rate1 MS/s
Analog Output Resolution12 bits
Analog Output Voltage Range-10 V to 10 V
Warranty2-3 Year Warranty
PXI-6711 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-6711:

1858.6, 185860-02, 185860B-02, 185860C-02, 185860D-02, 185860F-02, 185860G-02, 185860H-02, 185860J-02, 185860K-02L, 185860L-02L, 777794-01


Associated NSNs for the PXI-6711:

5998-01-513-2155 (5998015132155), 5998-01-513-2155 (5998015132155)

National Instruments PXI-6711 Frequently Asked Questions



Question: How are the data points set for the PXI-6711?



Answer: On the PXI-6711, you control each data point for each channel to define what you need.



Question: How many digital I/O lines are on the NI PXI-6711?



Answer: The NI PXI-6711 has eight 5 V TTL/CMOS digital I/O lines.



Question: Does the PXI-6711 have external clocking capabilities?



Answer: Yes, the PXI-6711 has digital triggering and external clocking capabilities.
