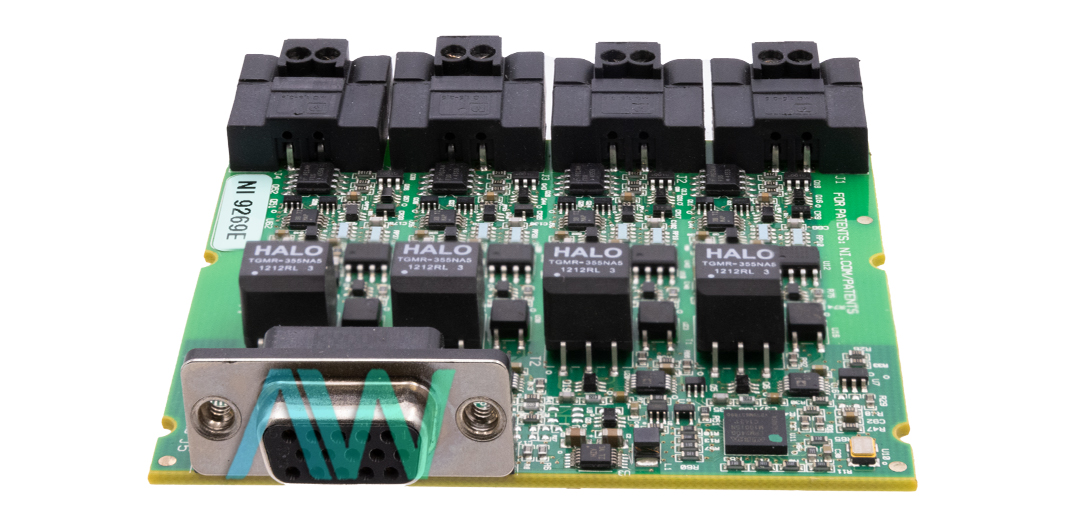

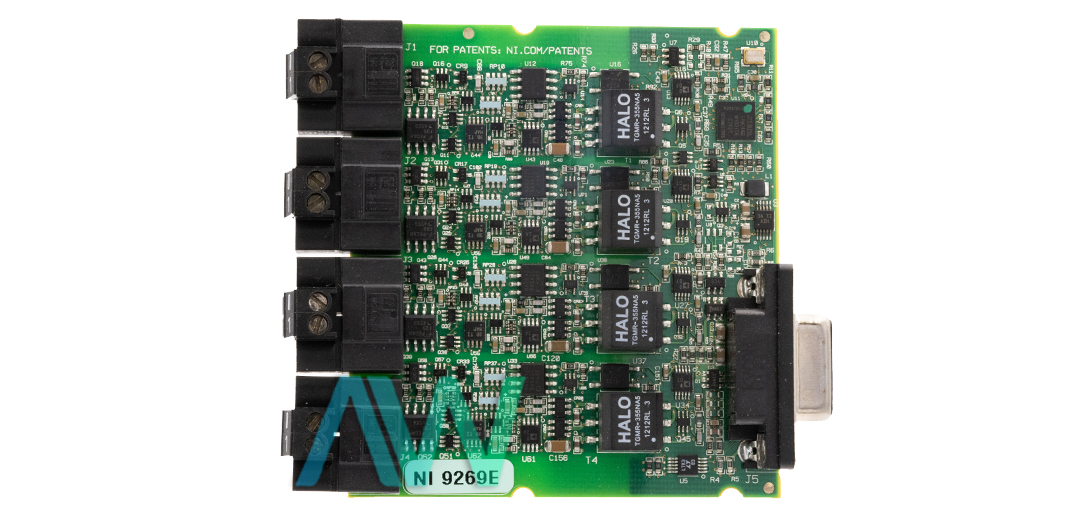

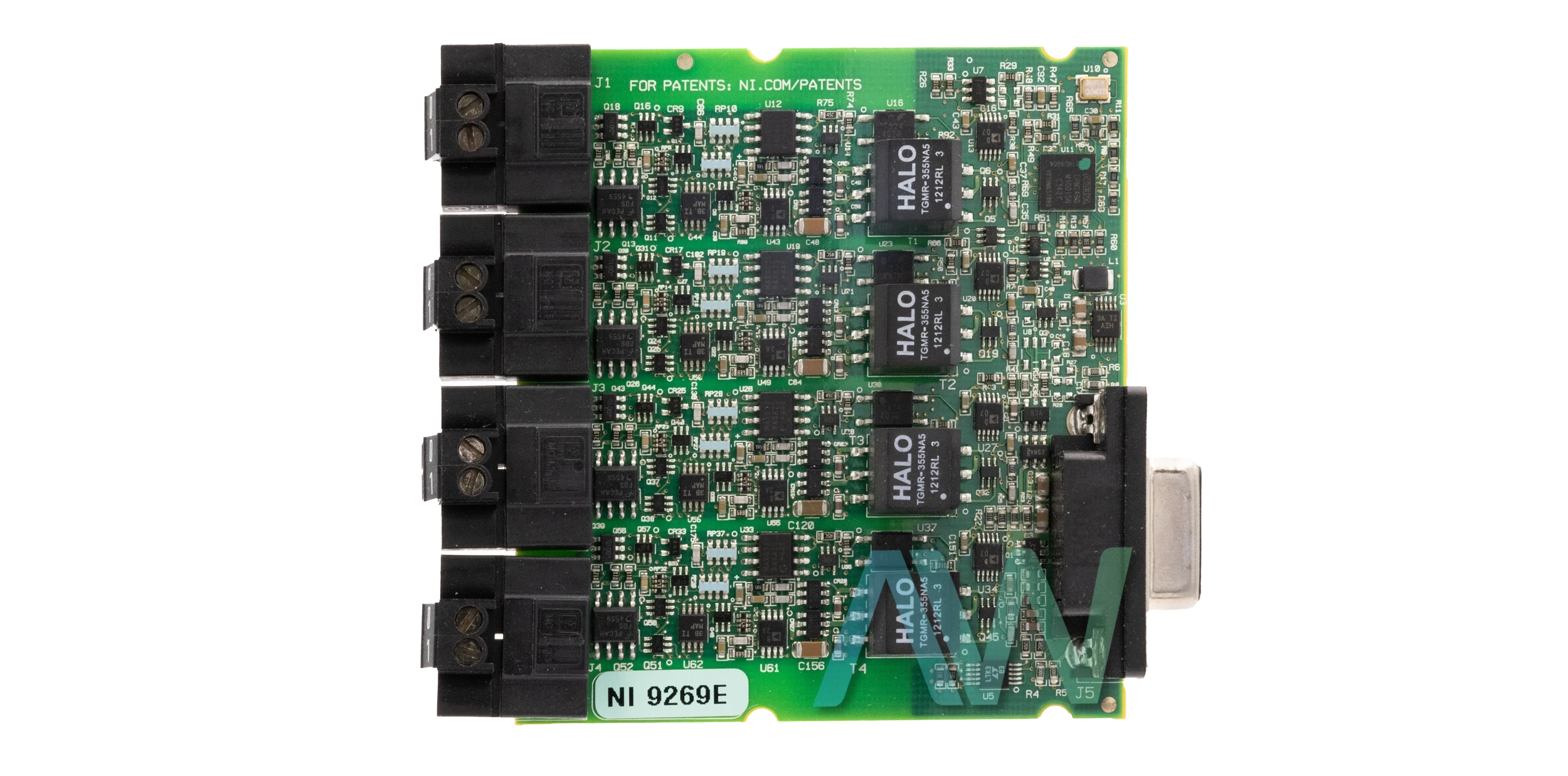

National Instruments 781120-01 Voltage Output Module
Part Number 781120-01 is the identifying part number for the National Instruments sbRIO-9269 Voltage Output Module. The 781120-01 features 4 analog output channels that connect to an R-2R type DAC with a resolution of 16 bits. Each channel can operate within a voltage range of ±10 V and can drive a maximum current of ± 10 mA.
Note that the maximum output current of all channels cannot exceed ± 20 mA. However, by cascading the four voltage output channels, a maximum output voltage range of ±40 V can be achieved. During both power-on and
power-down, the output is set to the high impedance state. The startup voltage is 0 V (there is a glitch for 5 µs peaking at –900 mV) whereas the output impedance is 100 mΩ.
The 781120-01 weighs 1.7 oz and has a power consumption of up to 1 W from the chassis in active mode and up to 120 μW in sleep mode. On the other hand, the thermal dissipation reaches a maximum of 1.4 W in active mode
and a 77 mW max in sleep mode. The module supports screw-terminal wires of sizes 12 to 24 AWG. Furthermore, the torque on the screw terminals should range from 0.5 to 0.6 Nm.
The module has a recommended operating and storage temperature ranges of -40 to 85 °C. Likewise, the operating and storage humidity ranges are 10 to 90% RH and 5 to 95 % RH respectively. Furthermore, it is
necessary to understand that these devices are to be used within a maximum altitude of 2000 m and only in indoor settings. For outdoor use, it should be installed inside a suitable enclosure.
The 781120-01 module has been designed to comply with the electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, and CSA 61010-1. Furthermore, the module has safety features such as short-circuit protection
and overvoltage protection which are incorporated to ensure the safety of the module as well as connected loads. For safe operation, the voltages between channel-to-channel and channel-to-earth should be 250 Vrms continuous.
| Model | 781120-01 |
|---|---|
| Model Name | sbRIO-9269 |
| Part Type | Voltage Output Module |
| Analog Output Channels | 4 |
| DAC Type | R-2R |
| Analog Output Resolution | 16 bits |
| Maximum Update Rate | 100 kS/s/ch |
| Maximum Current Drive | 10 mA |
| Power Consumption | 1 W maximum (in active mode) and 120 µW (in sleep mode) |
| Maximum Voltage Range | ± 40 V |
