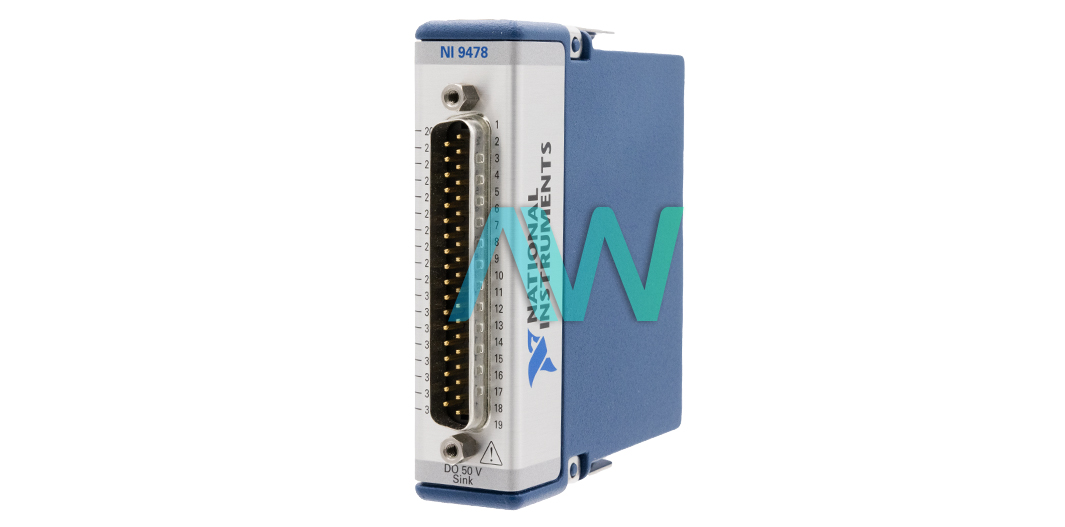

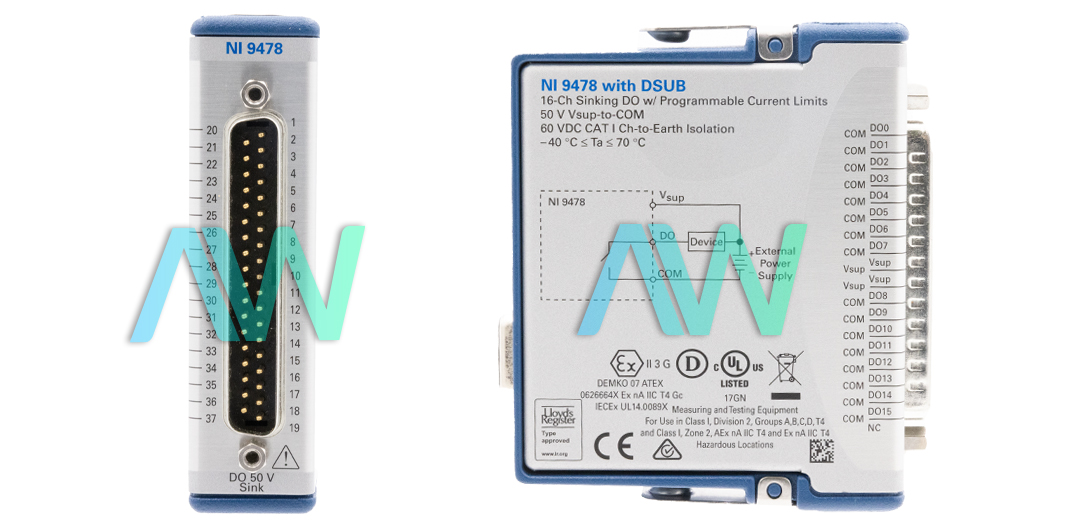

National Instruments NI-9478 C Series Digital Module
The National Instruments NI-9478 (Part Numbers: 779940-01 and 779940-02) C Series Digital Module is a 16-channel, 50 μs module that is supported in all CompactDAQ and CompactRIO systems. There are two part numbers for this module with the same specifications. The only difference is part number 779940-02 has conformal coating, while part number 779940-01 does not. The NI 9478 has current limits that the user can program for added system protection, making the module well-suited for solenoid and valve control applications. Depending on how the channels are configured, the NI 9478 module has the capacity to sink up to 16 A of current per module. The digital I/O logic levels of this module are 12V, 24V, 48V.
This module is engineered for users to achieve direct connectivity to a broad spectrum of industrial equipment, including motors, solenoids, and relays. The NI-9478 Digital Module is compatible with LabVIEW FPGA. When this software is installed, it allows the user to establish digital communication protocols, generate pulses, and create user-defined high-speed counter/timers. The NI 9478 features 50 g shock, and 5 g vibration. This C Series Digital Module offers flexibility of use, since the user can move it from CompactDAQ to CompactRIO, and vice versa without needing to modify the module.
The National Instruments NI-9478 C Series Digital Module is also optimized to interact with various industrial logic levels and signals, making it a high-performance device that guarantees high measurement accuracy for applications, and a module that is perfectly suited for industrial deployment.
| Model | NI-9478 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 779940-01 and 779940-02 |
| Type | C Series Digital Module |
| Digital Output Channels | 16 |
| Digital I/O Logic Levels | 12V, 24V. 48V |
| Maximum Update Rate | 50 us |
| Front Connector | D-Sub |
| Weight | 5.2 oz. |
| NI-9478 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for NI-9478:
National Instruments NI-9478 Frequently Asked Questions
Question: Are any accessories required for the NI 9478?
Answer: Yes, the NI 9478 requires the NI 9923 Screw Terminal Block.
Question: What is the channel-to-earth isolation for the NI-9478?
Answer: The channel-to-earth isolation for the NI-9478 is 60 VDC, CAT I.
Question: What is the continuous current for the NI 9478?
Answer: The continuous current for the NI 9478 is 1.2 A/ch.
Question: Which type of outputs does the NI-9478 have?
Answer: The NI-9478 has sinking outputs.
