NI-9375
NI-9375, 32-Channel, DSUB or Spring Terminal Connectors, C Series Digital Module
Actual item may vary if no part number is provided on quote request.
✔ 2 Year Warranty Included
✔ Free Domestic Ground Shipping
✔ NIST Calibration Available
Expert Insights for the NI-9375
"The NI-9375 is an industrial digital I/O interface that is perfect for switches and transducers. It uses 24 V logic levels and isolation between the input and output banks. This device has 32 channels and is compatible with 6 V to 30 V signals. This module can either be used alone or combined with a rugged CompactRIO chassis for remote or desktop testing."
- Chris B.
LabVIEW Trained
In-House Technician
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Carol Zimme**** Verified Buyer
" Very responsive and helpful, competitive pricing. Good source! "
July 2025
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Expert Insights for the NI-9375
"The NI-9375 is an industrial digital I/O interface that is perfect for switches and transducers. It uses 24 V logic levels and isolation between the input and output banks. This device has 32 channels and is compatible with 6 V to 30 V signals. This module can either be used alone or combined with a rugged CompactRIO chassis for remote or desktop testing."
- Chris B.
LabVIEW Trained
In-House Technician

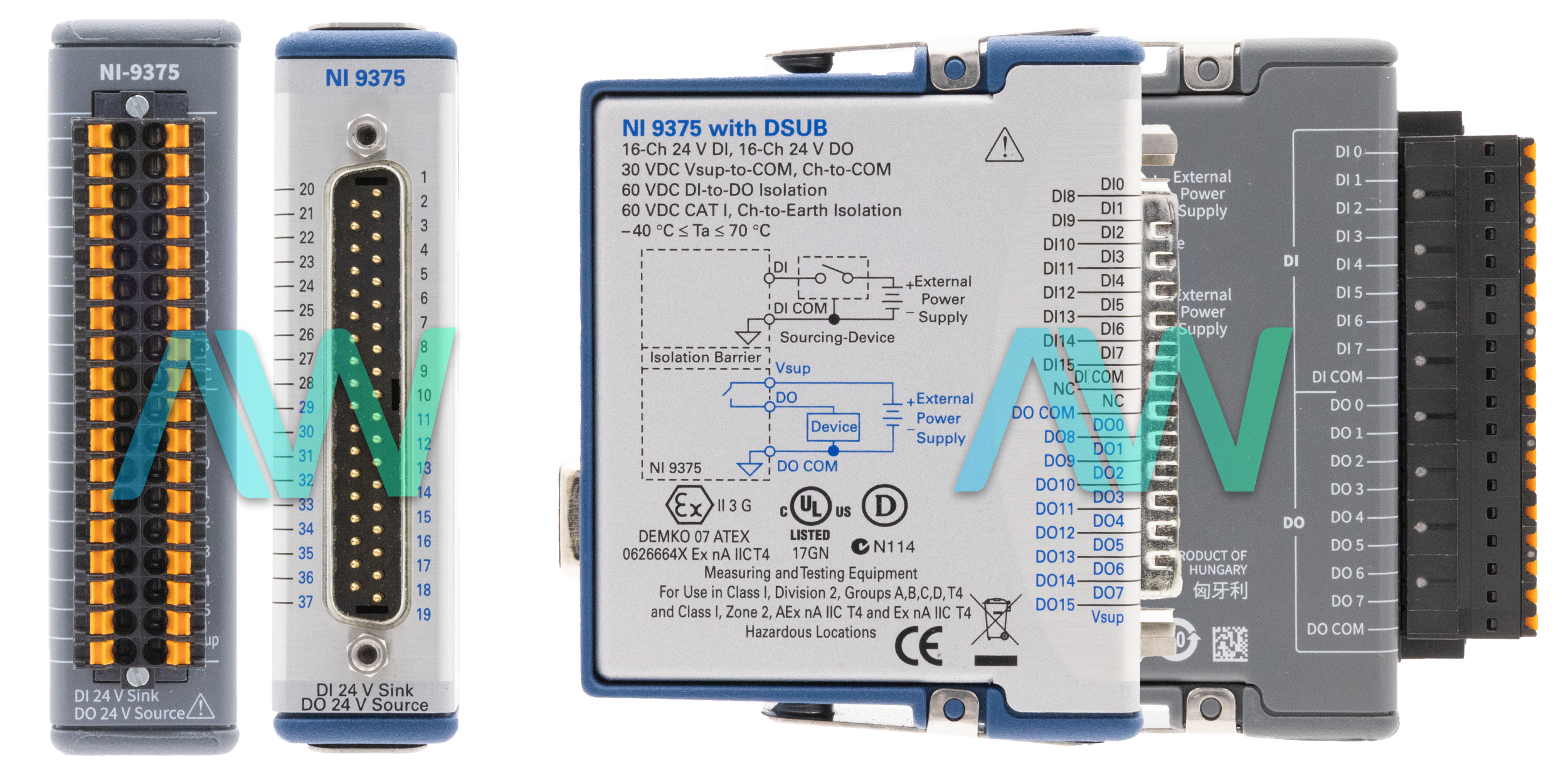

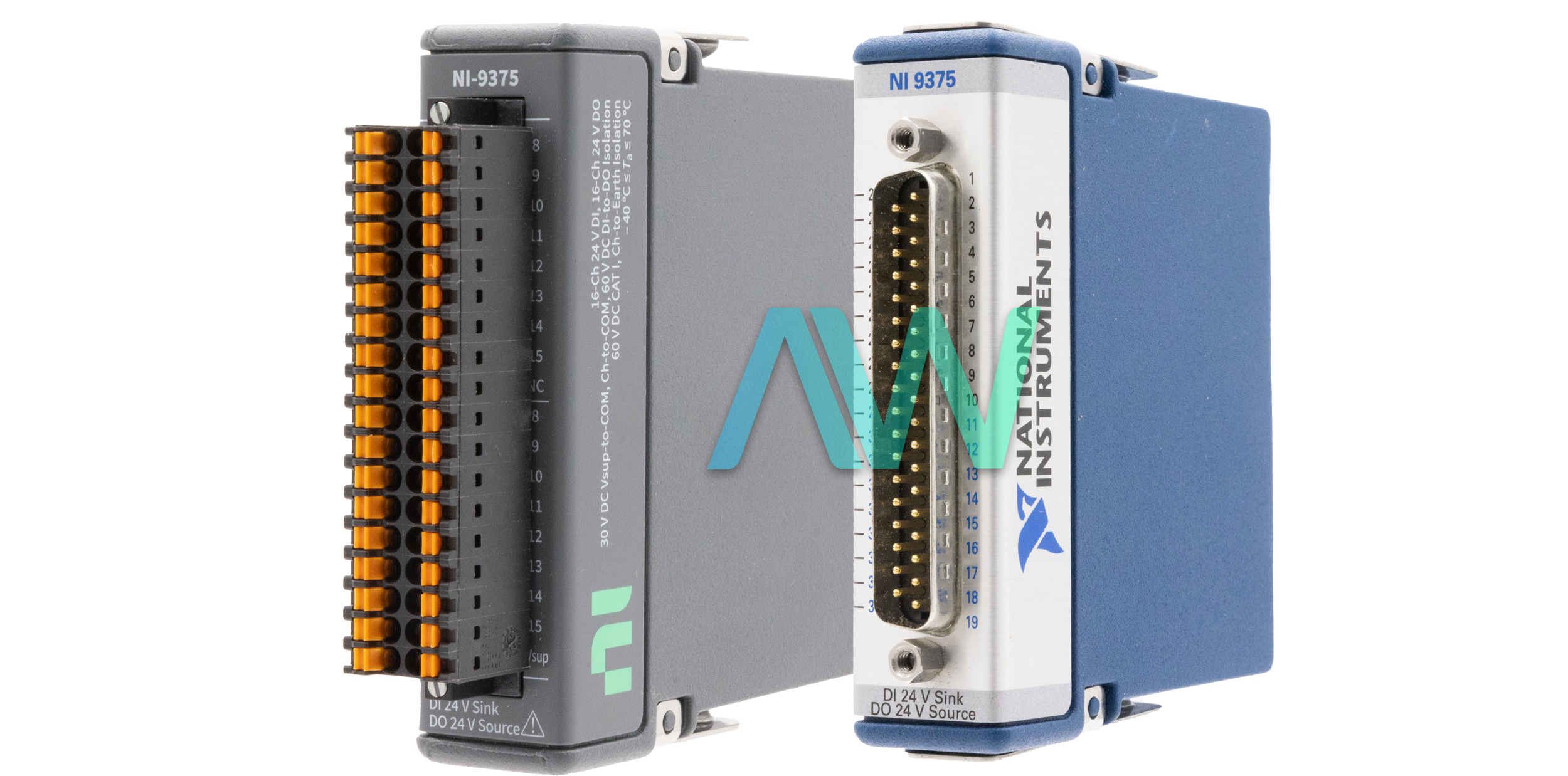

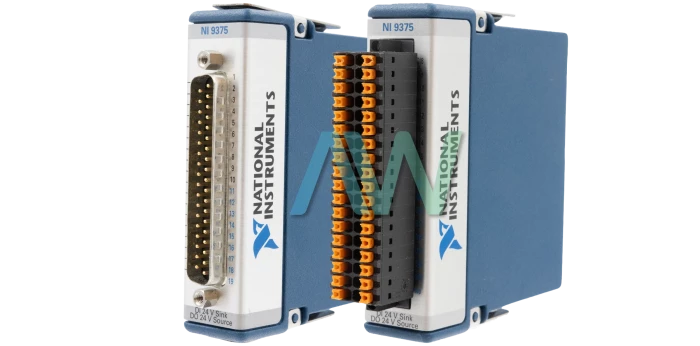

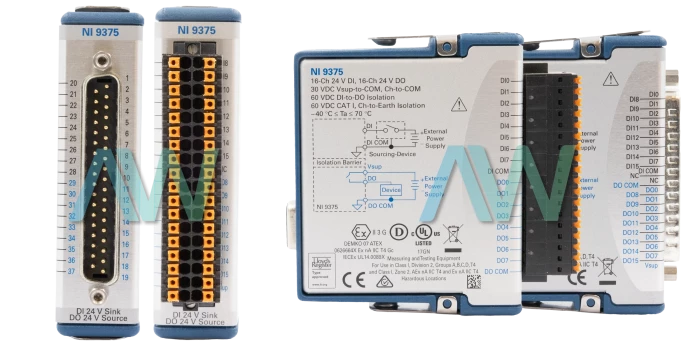

National Instruments NI-9375 C Series Digital Module
The NI-9375 (Part Numbers: 785192-01, 781030-01, 781030-02, and 199270A-01L) is a C Series Digital Module and a mix of computerized input, advanced yield that works with NI CompactDAQ or CompactRIO hardware platforms. Part number 785192-01 has a Spring Terminal front connector and 250 Vrms Ch-Earth Ground Isolation, while part numbers 781030-01 and 781030-02 have D-Sub front connectors and 60 VDC Ch-Earth Ground Isolation. Part number 781030-02 is the only configuration of the NI-9375 that is conformal coated.
It has 16 digital input and 16 digital output channels. The 16 digital input channels are compatible with 24 V logic levels, while the digital output lines are compatible with 6 V to 30 V signals, depending on the external power supply. Although the advanced information and computerized yield lines share a similar planning motor, take note that the advanced yield line has a maximum spread postponement of 500 μs. The NI-9375 offers 60 V of isolation between the information and yield banks and highlights 1,000 Vrms withstand separation from channel to earth ground. It works with modern rationale levels and signals for guide association with a wide exhibit of mechanical switches, transducers, and different gadgets.
The NI-9375 C Series Digital Module returns the present estimation amounts when the counter is analyzed. The estimation esteems are comprised of the high and low circumstances of the beat in the quantity of ticks of the 100 MHz counter timebase. The module has a power consumption level of 450 mW maximum when in active mode, and it consumes 25 μW maximum when in sleep mode.
The Spring Terminal fitted model of the NI device weighs 5.8 oz, while the D-SUB fitted model weighs slightly less at 5.3 oz. It has recommended operating and storage temperature ranges of -40 °C to 70 °C and -40 °C to 85 °C respectively. The thermal dissipation of the module at 70 °C is a maximum of 1.5 W in active mode and a maximum of 0.6 W when in sleep mode.
| Model | NI-9375 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 785192-01, 781030-01, 781030-02, 199270A-01L |
| Type | Digital Module |
| Digital Input Channels | 16 |
| Digital Output Channels | 16 |
| Maximum Update Rate | 7 us |
| Front Connector | D-SUB or Spring Terminal |
| Digital I/O Logic Level | 12 V, 24 V |
| Supported Hardware Platform | C Series |
| Current Flow Direction | Sinking Input, Sourcing Output |
| Enclosed? | Yes |
| Operating Temperature | -40 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Weight | Spring Terminal- 5.8 oz D-SUB- 5.3 oz. |
| NI-9375 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for Pricing |
Associated part numbers for NI-9375:
National Instruments NI-9375 Frequently Asked Questions
Question: What is the NI-9375 wiring compatibility?
Answer: The wiring compatibility is with 2- and 3-wire sourcing-output devices.
Question: Which accessories are suggested for use with the National Instruments NI-9375 module?
Answer: For the D-SUB versions of the module, the NI-9923 or another 37-pin D-SUB connector is suggested. For the spring-terminal version, the NI-9940 backshell for 36-position connector block is suggested.
Question: What is the update/transfer time of the NI 9375 module?
Answer: The update/transfer time of the Digital Module is 7 μs maximum.
Question: What is the power consumption from chassis requirements for the NI-9375?
Answer: The power consumption from the chassis is 450 mW maximum in active mode and 25 μW maximum in sleep mode.
