National Instruments cFP-AI-100 Analog Input Module for Compact FieldPoint

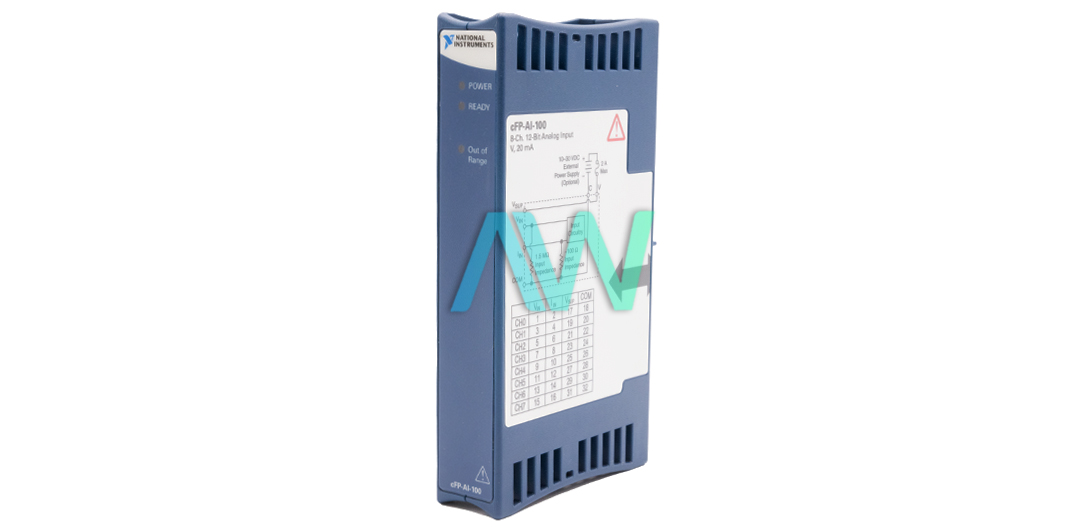

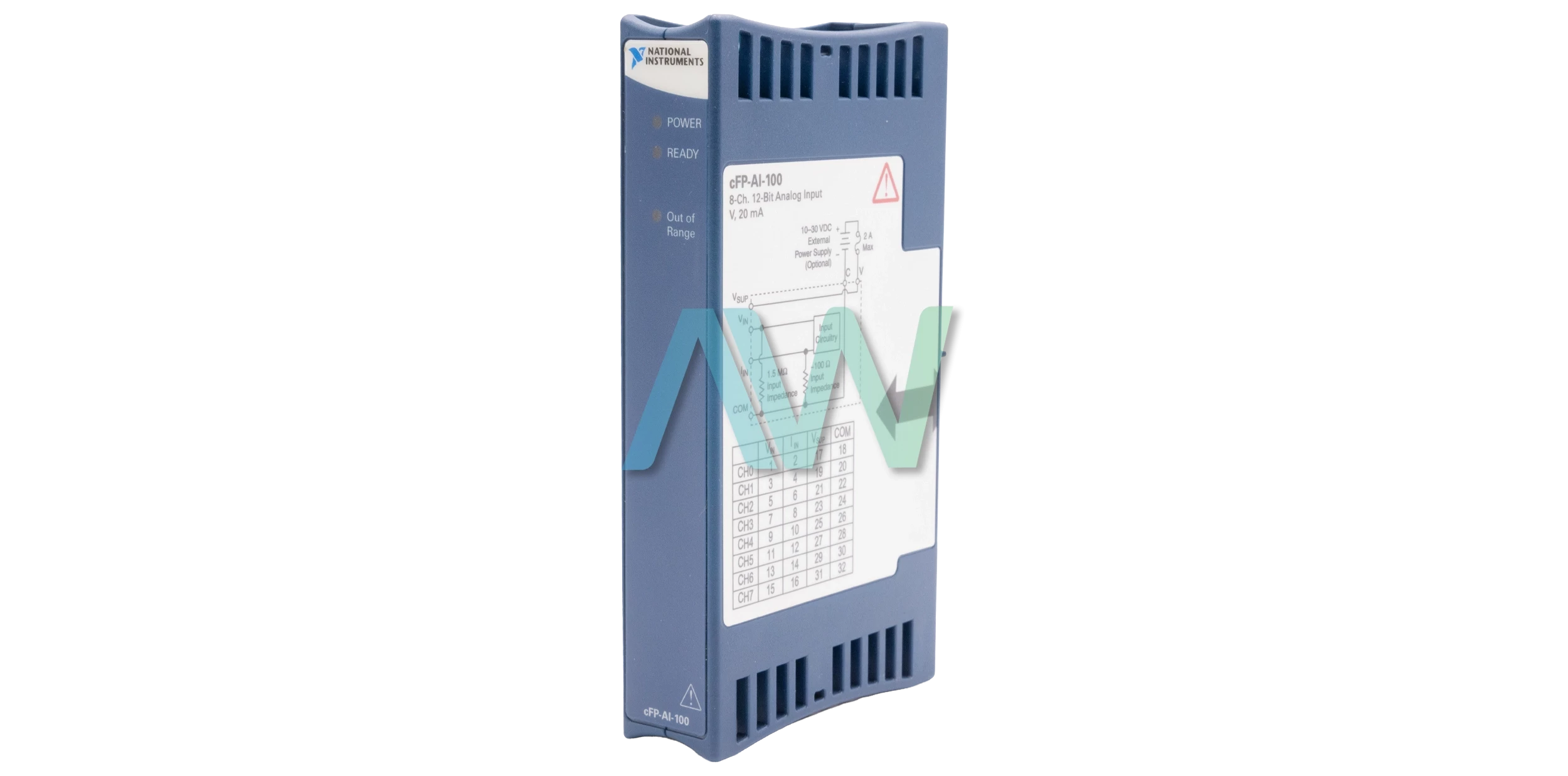

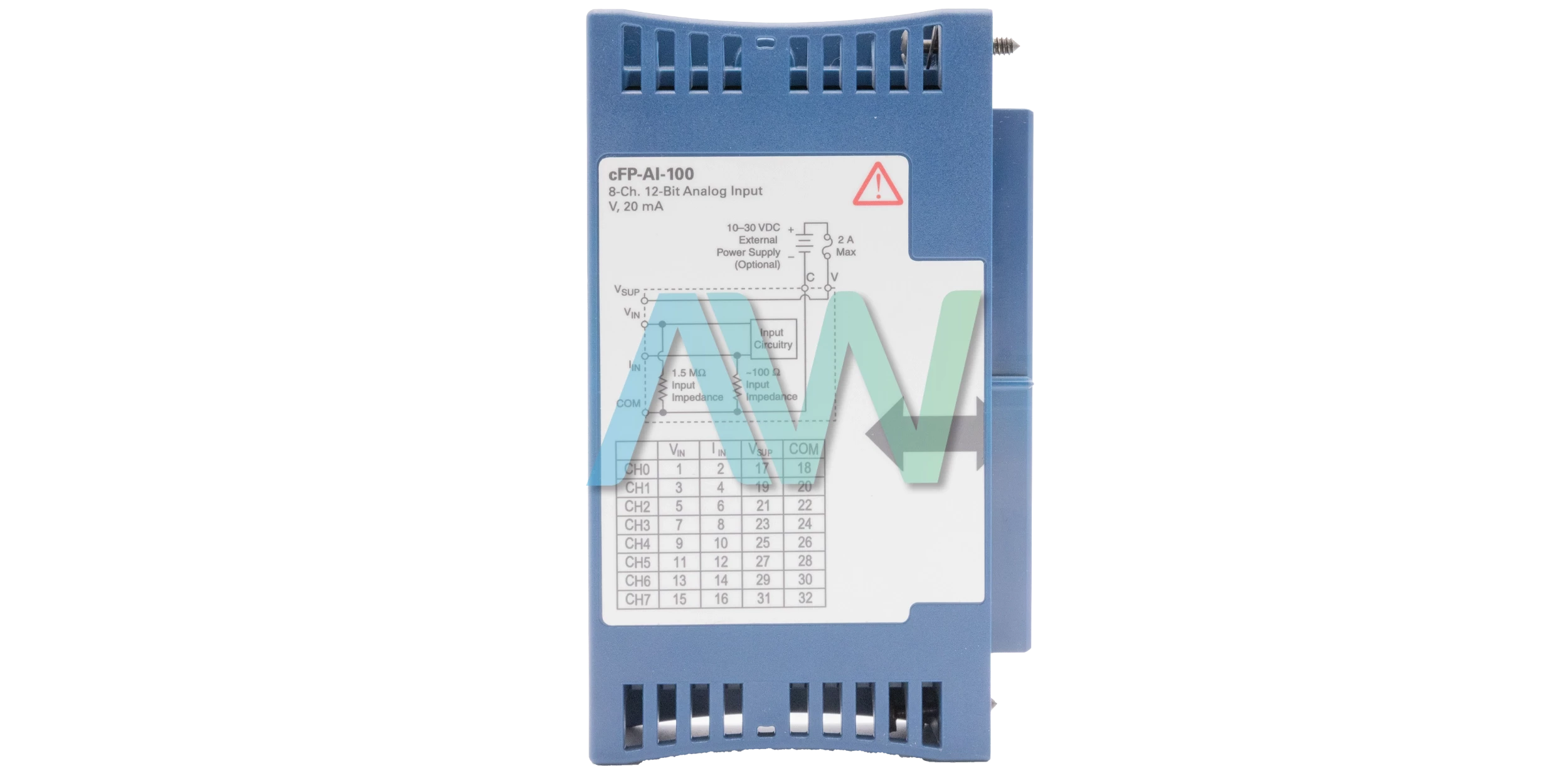

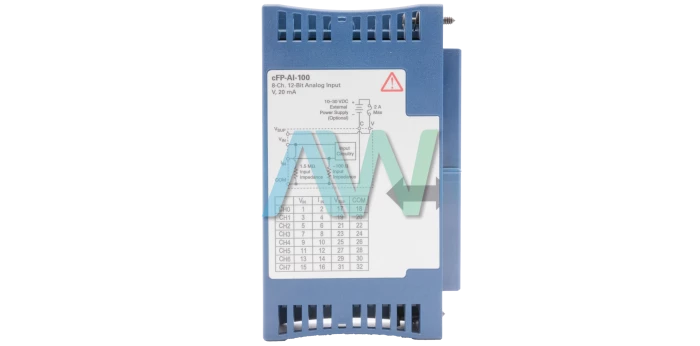

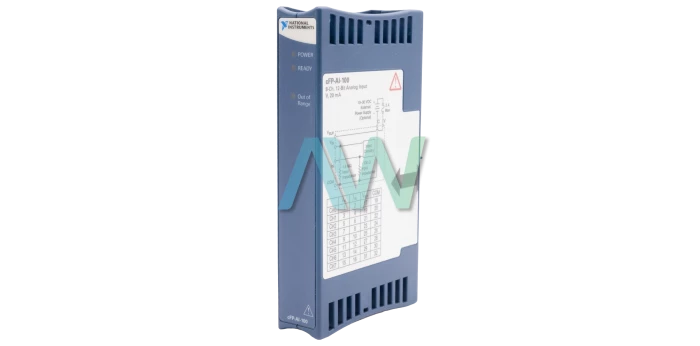

The National Instruments cFP-AI-100 (Part Number 777318-100) is an 8-channel, 12-bit, current and voltage analog input module. This module measures signals after the onboard linearization of signal returns and scales values to the user’s monitoring or control applications.
This analog input module features 11 input ranges and offers 250 Vrms CAT II channel-to-ground isolation on a continuous basis. Its 11 input ranges are 0–1 V, 0–5 V, 0–15 V, 0–30 V, ±1 V, ±5 V, ±15 V, ±30 V, 0–20 mA, 4–20 mA, and ±20 mA. It also allows hot swapping of the I/O modules. All eight channels share one common ground reference. The common ground reference remains isolated from other modules installed in your FieldPoint system. The NI cFP-AI-100 can measure current from various sources: 0 to 20 mA, 4 to 20 mA, and ±20 mA. In this module, current flows into the lin terminal, passes through a 100Ω resistor, and leaves the circuit through the C or COM terminal. The current entering through the lin terminal is read as positive, while the current passing out of the terminal is read as negative. The over-ranging feature incorporated in this model allows it to achieve measurements slightly beyond the nominal values.
The NI cFP-AI-100 comes with successive approximation 12-bit A/D converters (analog-to-digital converters). This analog input module offers a 360 Hz update rate on all channels. This module has two Green LED indicators to show the power and readiness status of the device. There is also one red indicator provided as the "out of range" indicator.
The analog input module weighs 115 grams. The NI device has recommended operating and storage temperature ranges of -40°C to 70°C and -55°C to 85°C, respectively; a non-condensing relative humidity range of 10 to 90%; and random and sinusoidal operating vibrations of 5 grms and 5 g, respectively, all at a frequency range of 10 Hz to 500 Hz.
The cFP-AI-100 is no longer available from National Instruments, but the analog input module will remain available in perpetuity from Apex Waves for either repair services or purchase.
| Model | cFP-AI-100 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777318-100 |
| Type | Analog Input Module for Compact FieldPoint |
| Input Channels | 8 |
| Resolution | 12 Bits |
| Update Rate | 360 Hz (All Channels) |
| Dimensions | 4.3 x 4.3 x 3.6 in. |
| Weight | 145 grams |
| cFP-AI-100 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for cFP-AI-100:
National Instruments cFP-AI-100 Frequently Asked Questions
Question: Does the cFP-AI-100 have a noise filter?
Answer: No, the Analog Input Module does not have a noise filter.
Question: Would the NI cFP-AI-100 be good for fuel-cell testing?
Answer: This module is used to measure voltages in high-voltage level applications like battery-pack monitoring, fuel-cell testing, and transducer measurements.
Question: Does the cFP-AI-100 include any type of onboard diagnostics?
Answer: Yes, the analog input module does include onboard diagnostics to help provide support during installation and usage.
Question: Will the NI cFP-AI-100 measure milliampere current signals?
Answer: Yes, the Analog Input Module will measure milliampere current signals, as well as millivolt, low voltage, and medium voltage signals.
