cFP-AI-118
Modular Systems > National Instruments > Compact FieldPoint
| Description: | cFP-AI-118, 8-Channel, Isolated, Analog Input Module for Compact FieldPoint |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

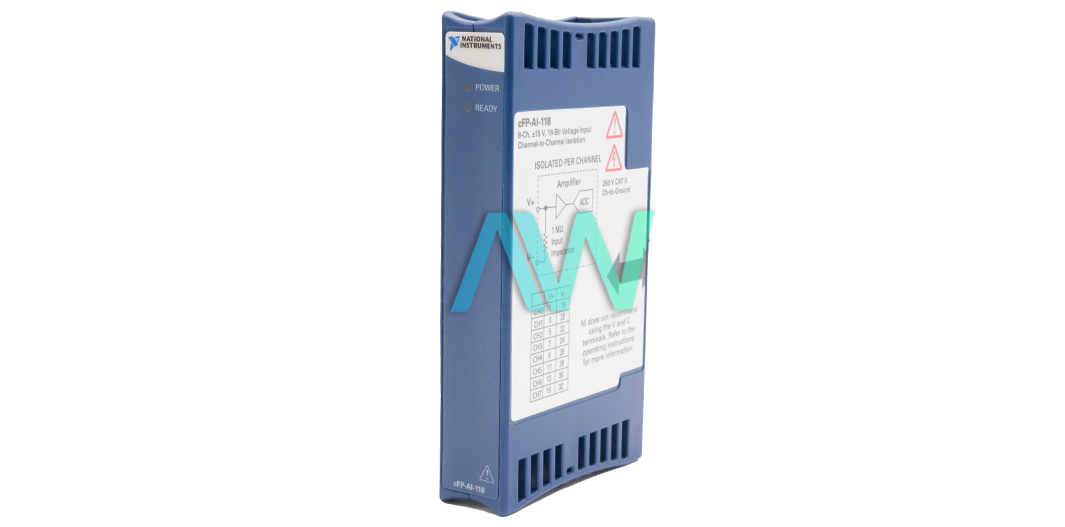

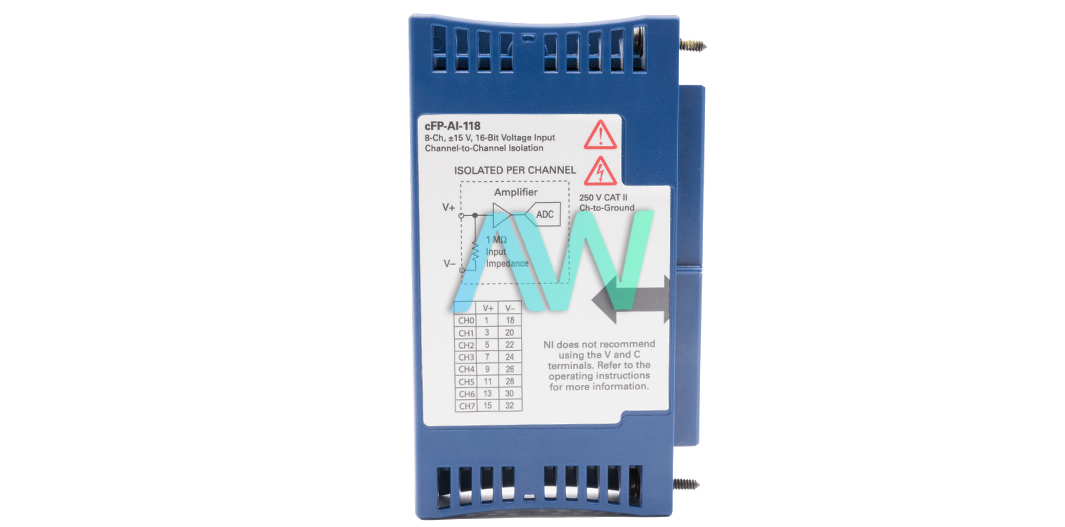

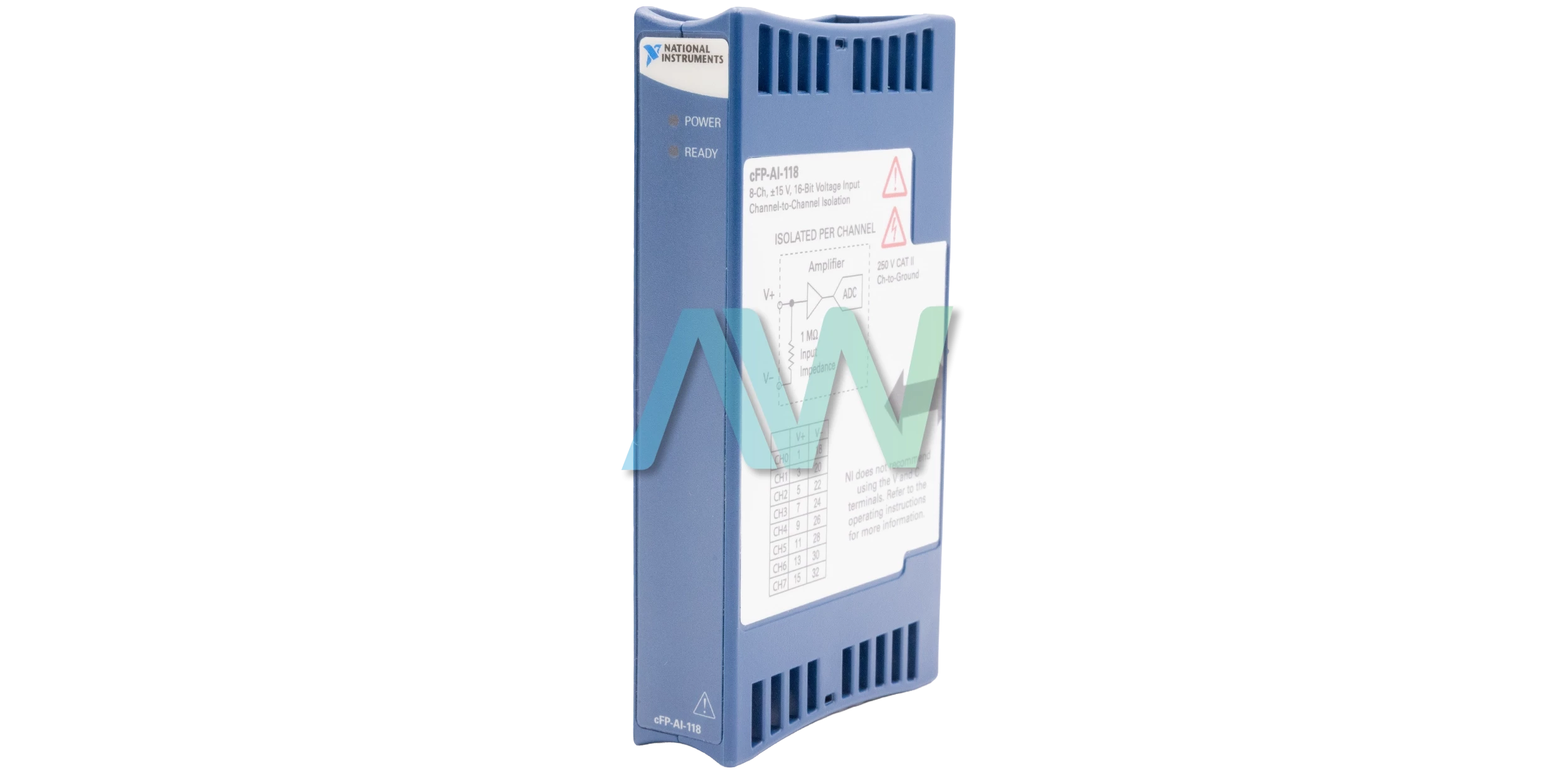

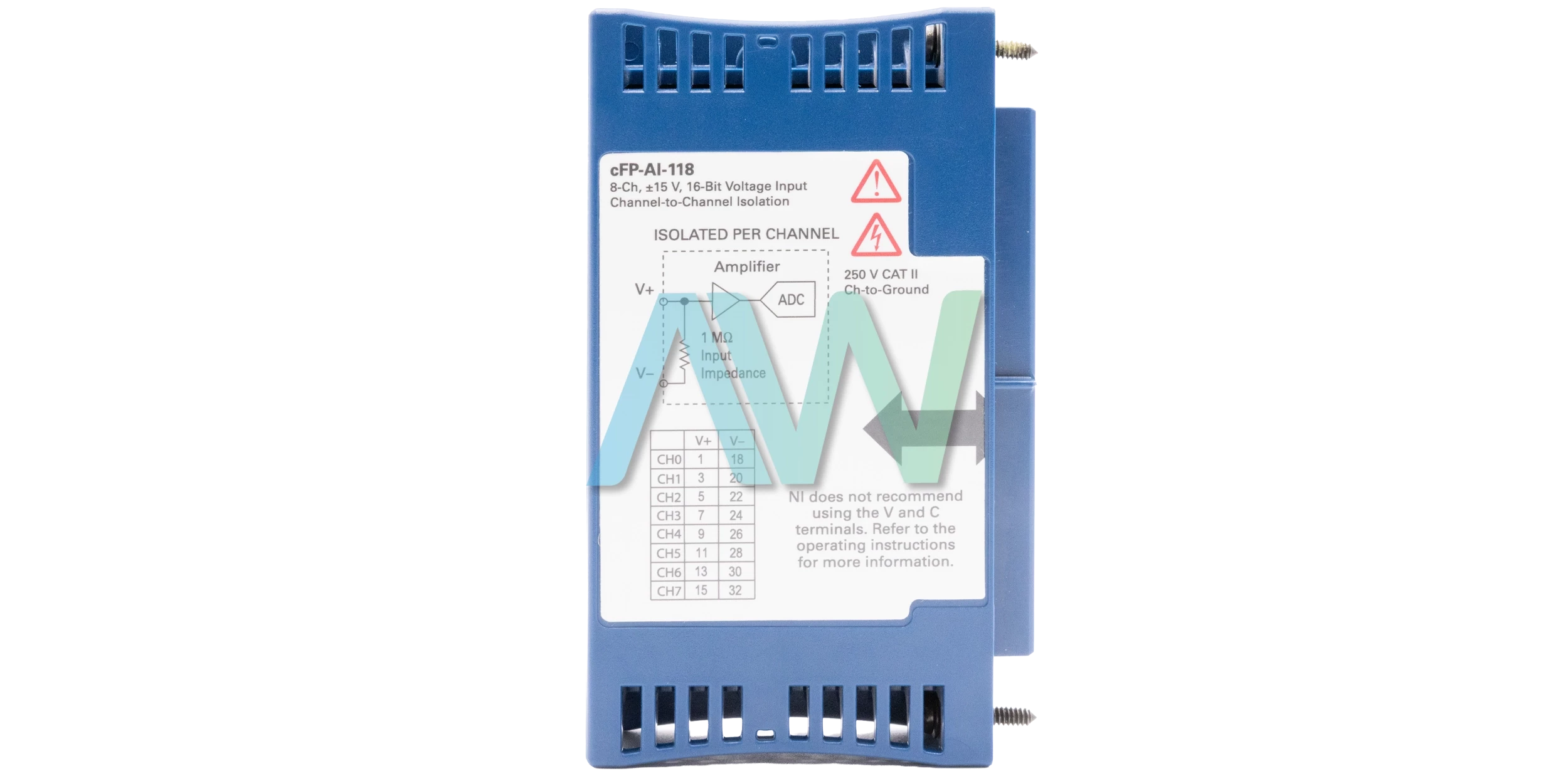

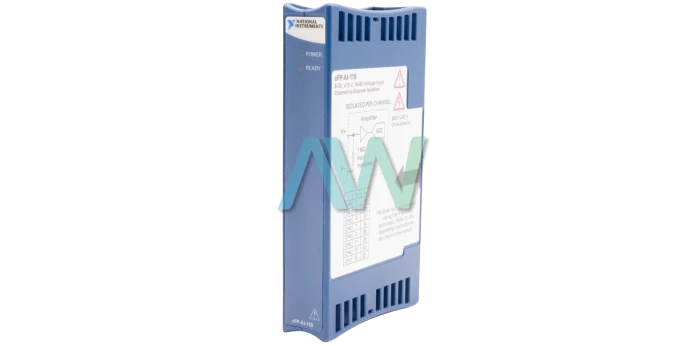

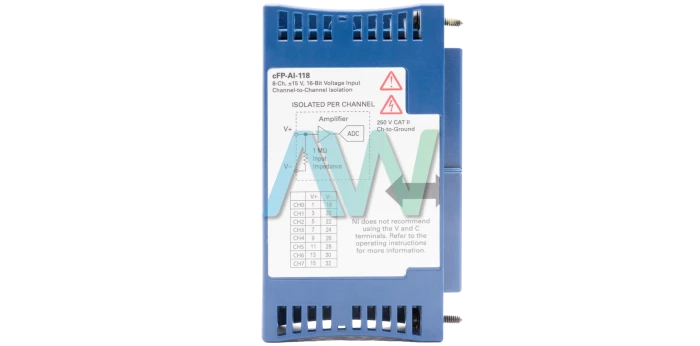

National Instruments cFP-AI-118 Analog Input Module for Compact FieldPoint
The National Instruments cFP-AI-118 (Part Number: 777318-118) is an Analog Input Module for Compact FieldPoint. This model comes featured with eight differential analog input channels, eight different voltage input ranges, 16-bit resolution, and 10 Hz digital filter. The NI cFP-AI-118 offers simultaneous sampling on all channels. This Analog Input Module offers 250 Vrms CAT II channel-to-ground isolation on a continuous basis and 100 Vrms CAT I continuous channel-to-channel isolation. Since this module is hot swappable, it can easily be installed on a live Compact FieldPoint backplane.
The sinc filter incorporated in this module offers 55 dB of rejection. The user can configure each channel for no rejection or for 10 Hz filtering in software. This filter can minimize 50/60 Hz noise distortion from AC power lines surrounding the NI cFP-AI-118. With no filtering, this module offers 10.42 kHz update rate. However, with filtering enabled on any of its channels, 3.45 kHz update rate can be achieved. This module is designed with a modern architecture in which the controller accesses the module memory instantly, reducing jitter significantly. Thus, it is an ideal model for industrial environments where actuators and sensors often work at different voltage levels but with common ground loops.
The cFP-AI-118 Analog Input Module consumes 1.125 watts of power and requires 30 minutes for a complete warmup. This module is designed for indoor installation and operations only. However, for outdoor use a sealed enclosure can be considered for their mounting.
| Model | cFP-AI-118 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777318-118 |
| Type | Analog Input Module for Compact FieldPoint |
| Input Channels | 8 |
| Resolution | 16 bits |
| Input Bandwidth | 3 kHz minimum |
| Dimensions | 5.00 x 2.89 x 0.94 in. |
| Weight | 4.1 oz. |
| Warranty | 2-3 Year Warranty |
| cFP-AI-118 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the cFP-AI-118:
190999A-02, 190999B-02, 190999C-02L, 777318-118
National Instruments cFP-AI-118 Frequently Asked Questions
Question: How do I get a sample rate of 10 kHz from the cFP-AI-118 module?
Answer: In order to receive sample rates that large on the cFP-AI-118, you need an RT controller.
Question: What is the all-channel sample rate of the NI cFP-AI-118?
Answer: The all-channel sample rate with a 10 Hz filter the rate is 3.45 kHz. Without filtering, it is 10.42 kHz.
Question: How is the cFP-AI-118 able to have such reduced jitter?
Answer: The cFP-AI-118 was designed using a new architecture where the controller obtains access to the module memory immediately, significantly reducing jitter.
cFP-AI-118 PDF Manuals
CFP AI 118 FIELDPOINT OPERATING INSTRUCTIONS.PDF
FIELDPOINT SAFETY AND RADIO FREQUENCY INTERFERENCE READ ME FIRST.PDF
USING FIELDPOINT AND COMPACT FIELDPOINT SAFELY IN HAZARDOUS LOCATIONS 5BNOTE TO USERS5D.PDF
