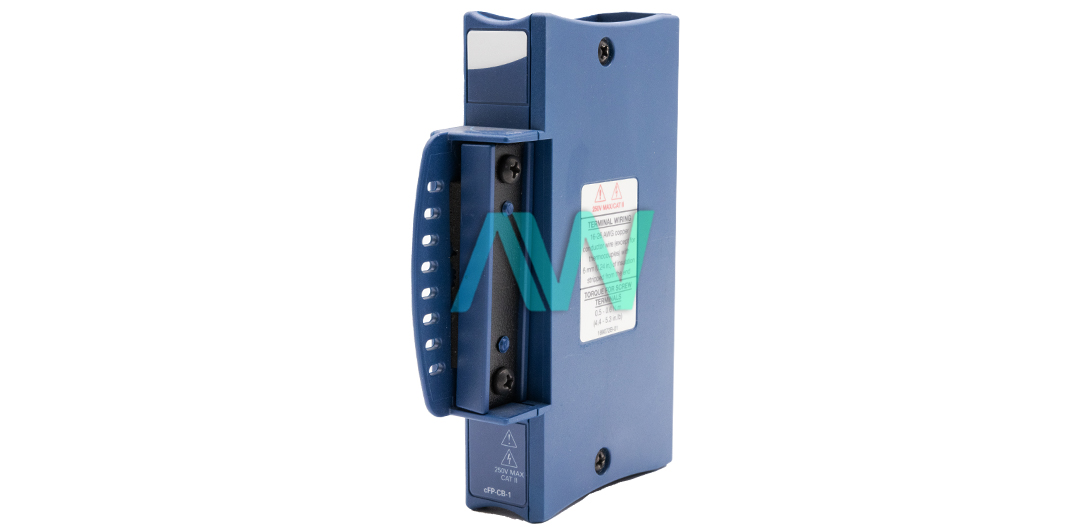

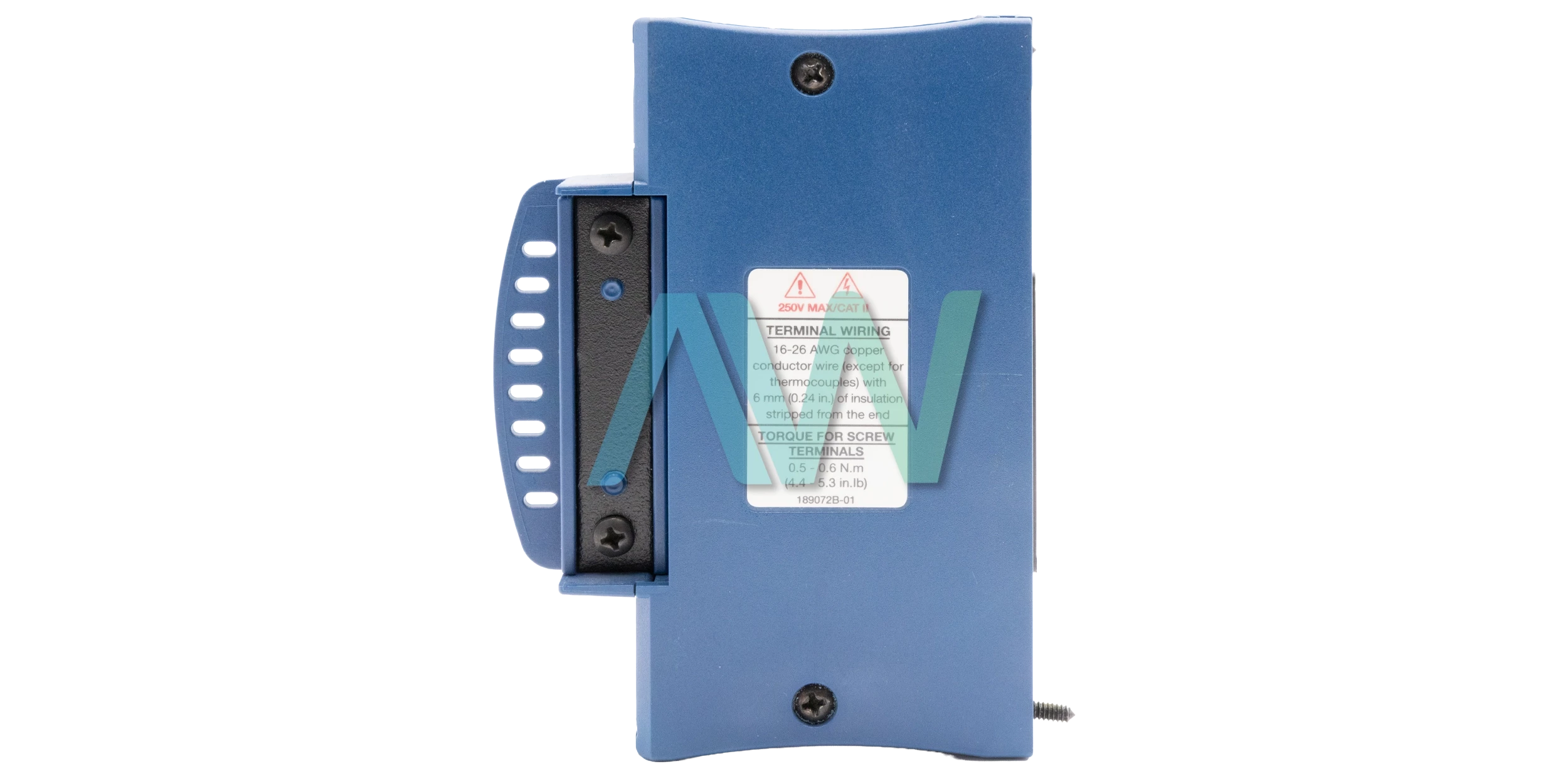

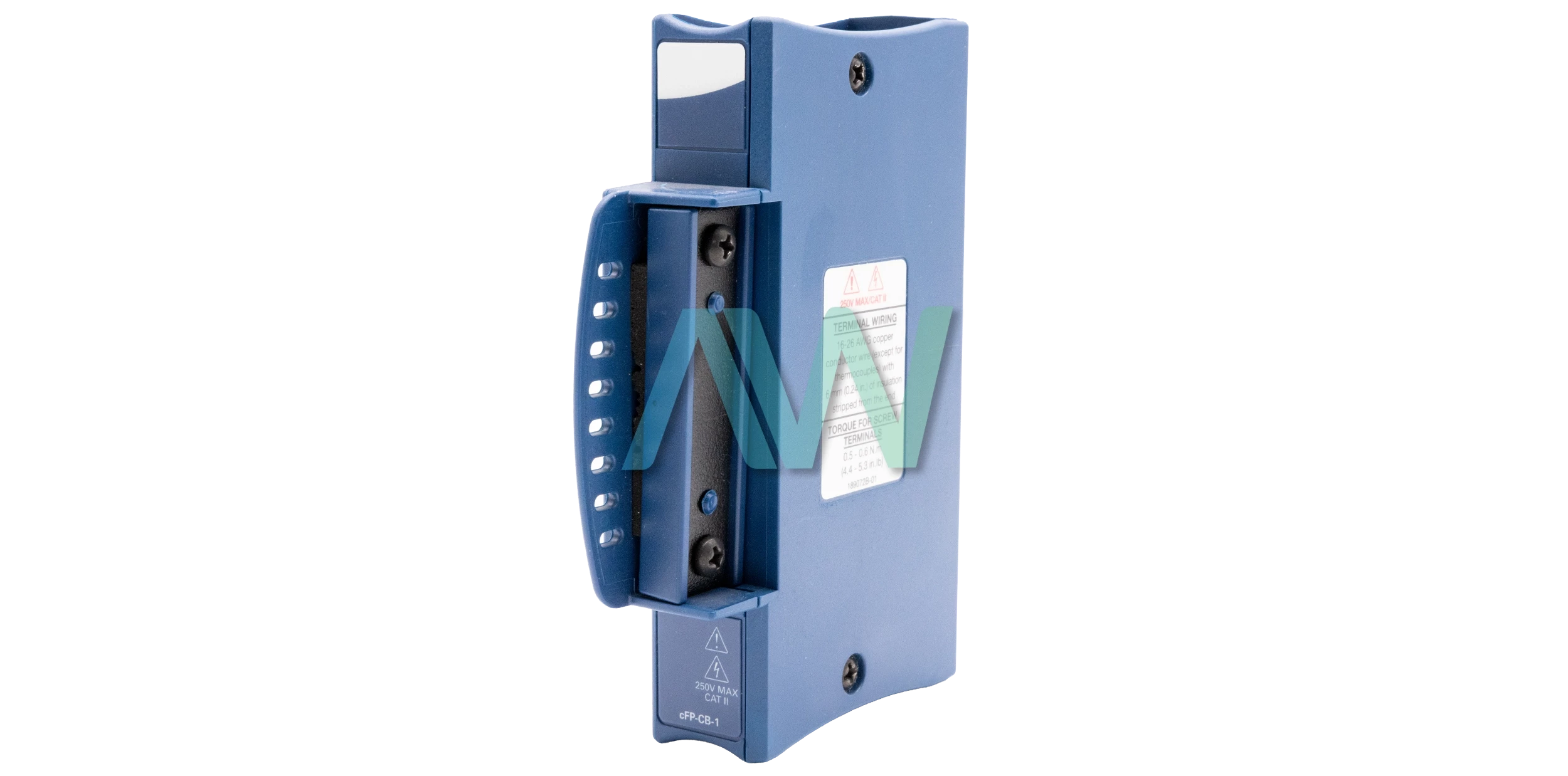

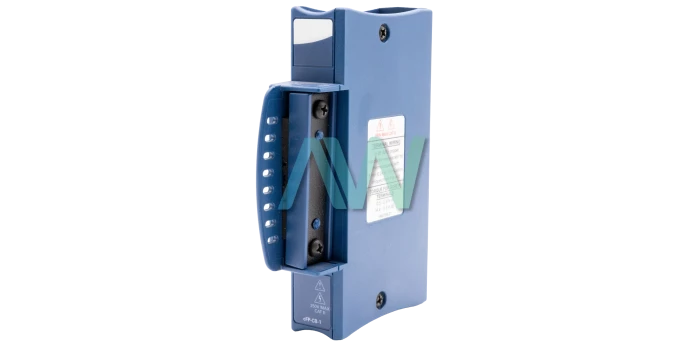

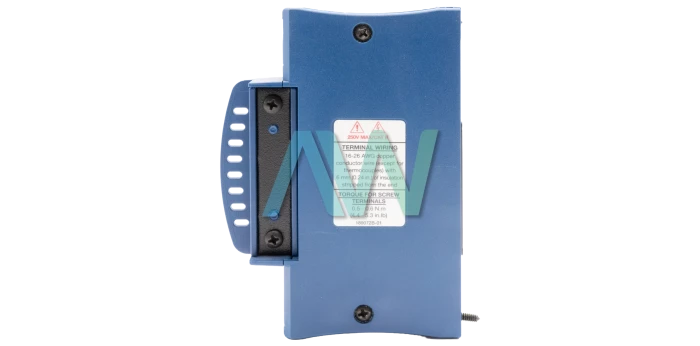

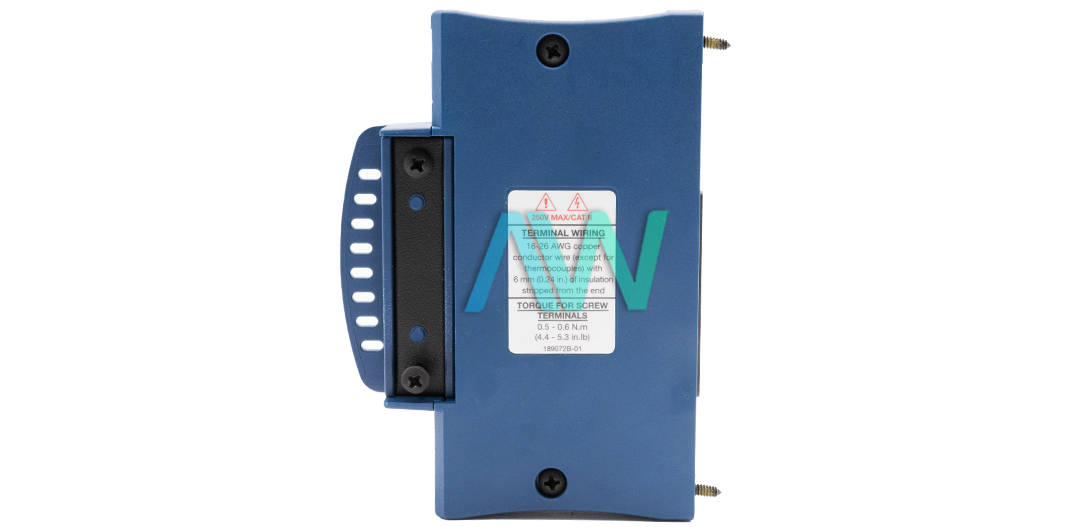

National Instruments cFP-CB-1 Integrated Connector Block for Compact Fieldpoint
The cFP-CB-1 (part number: 778618-01) is an integrated connector block for wiring to Compact FieldPoint I/O. If it mounts to the backplane, then the cFP-CB-1 interfaces with sensors and actuators. The device is general-purpose and is designed to withstand hazardous voltage operation. The module's isothermal construction minimizes temperature gradients. Its terminals are wired with 16 to 26 AWG copper wire (the only exception is when it's with a sensing device), with 6 mm of insulation stripped from the end.
Compact FieldPoint thermocouple input modules can gauge the temperature of the terminals on the cFP-CB-1 Connector Block. The modules utilize this estimation, called the cool junction temperature, to make up for the thermoelectric voltages generated at these intersections. For the most precise chilly junction compensation, scattering by nearby modules (or different wellsprings of warmth sources) can cause mistakes in thermocouple estimations by warming the terminals—the device is equipped with 36 screw terminals. The cFP-CB-1 is outlined with a similar development to keep the terminals at a similar temperature. The NI device has a recommended operating temperature range of -40 to 70 °C and a storage temperature range of -55 to 85 °C. It has a maximum current of 4 A for its V and C terminals and 2 A for its other terminals.
A cFP-CB-1 Integrated Connector Block is required for each Compact FieldPoint I/O module. This model has tension discharge and coordinated depressions for link ties, as well as easy wiring with terminals with shading coding for voltage associations and normal associations. It is equipped with a 37-pin I/O connector. The device weighs 7.1 oz. and has a maximum cable diameter of 8 mm.
The cFP-CB-1 is no longer available from National Instruments, but the Integrated Connector Block will remain available for purchase and repairs with Apex Waves. We stock, buy, and sell end-of-life hardware in perpetuity.
| Model | cFP-CB-1 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778618-01 |
| Type | Integrated Connector Block |
| Screw Terminals | 36 |
| For Use With | cFP-BP-x Compact FieldPoint Backplanes |
| Operating Temperature | -40 to 70 degrees Celsius |
| Maximum Cable Diameter | 8 mm |
| Terminal Wiring | 16-26 AWG |
| Screw Terminal Torque | 0.5–0.6 N ⋅ m (4.4–5.3 lb ⋅ in.) |
| Cold-Junction Accuracy | 0.15 °C (Typical), 0.3 °C (Maximum) |
| Operating Temperature Range | –40 to 70 °C |
| Storage Temperature Range | –55 to 85 °C |
| Weight | 7.1 oz. (201 g) |
| cFP-CB-1 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for cFP-CB-1:
National Instruments cFP-CB-1 Frequently Asked Questions
Question: How do you measure current using the NI cFP-CB-1?
Answer: To measure current using the connector block, you must attach signals to the backplane for routing to their corresponding cFP module.
Question: Can the cFP-CB-1 be used to take thermocouple measurements?
Answer: Yes, it has a built-in CJC and can be used to take thermocouple measurements.
Question: I would like to use the cFP-CB-1 Connector Block in a high-vibration environment. Is it secure enough to do this?
Answer: Yes, the integrated connector block features both a built-in strain relief bar and a separate wire tie connector, designed to help secure the devices for high-shock and vibration applications.
