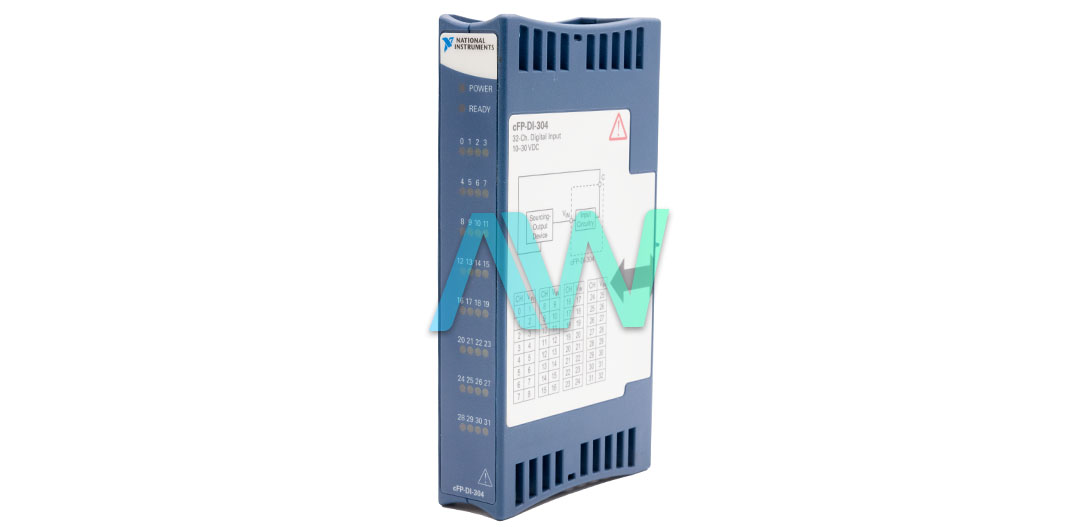

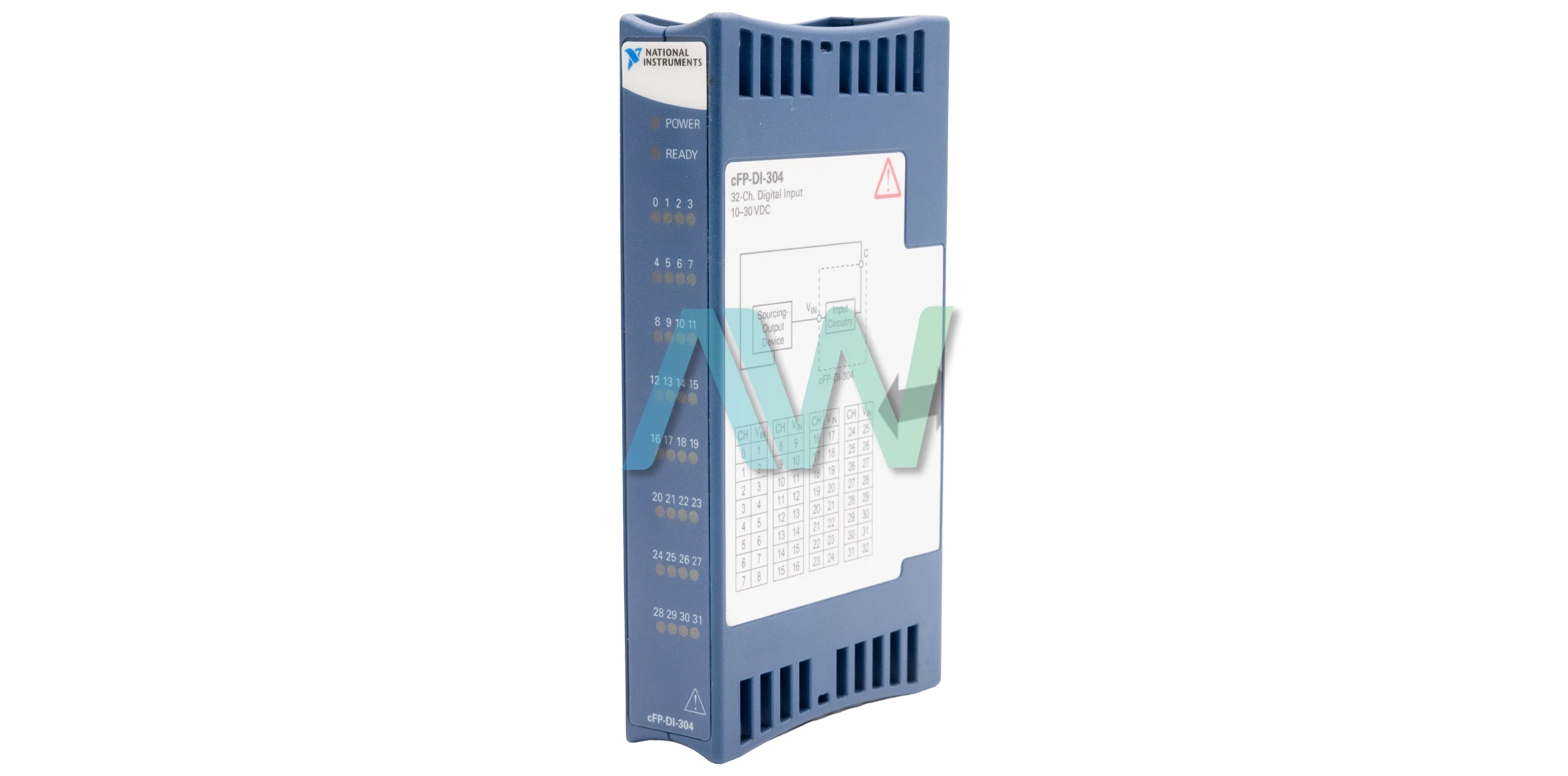

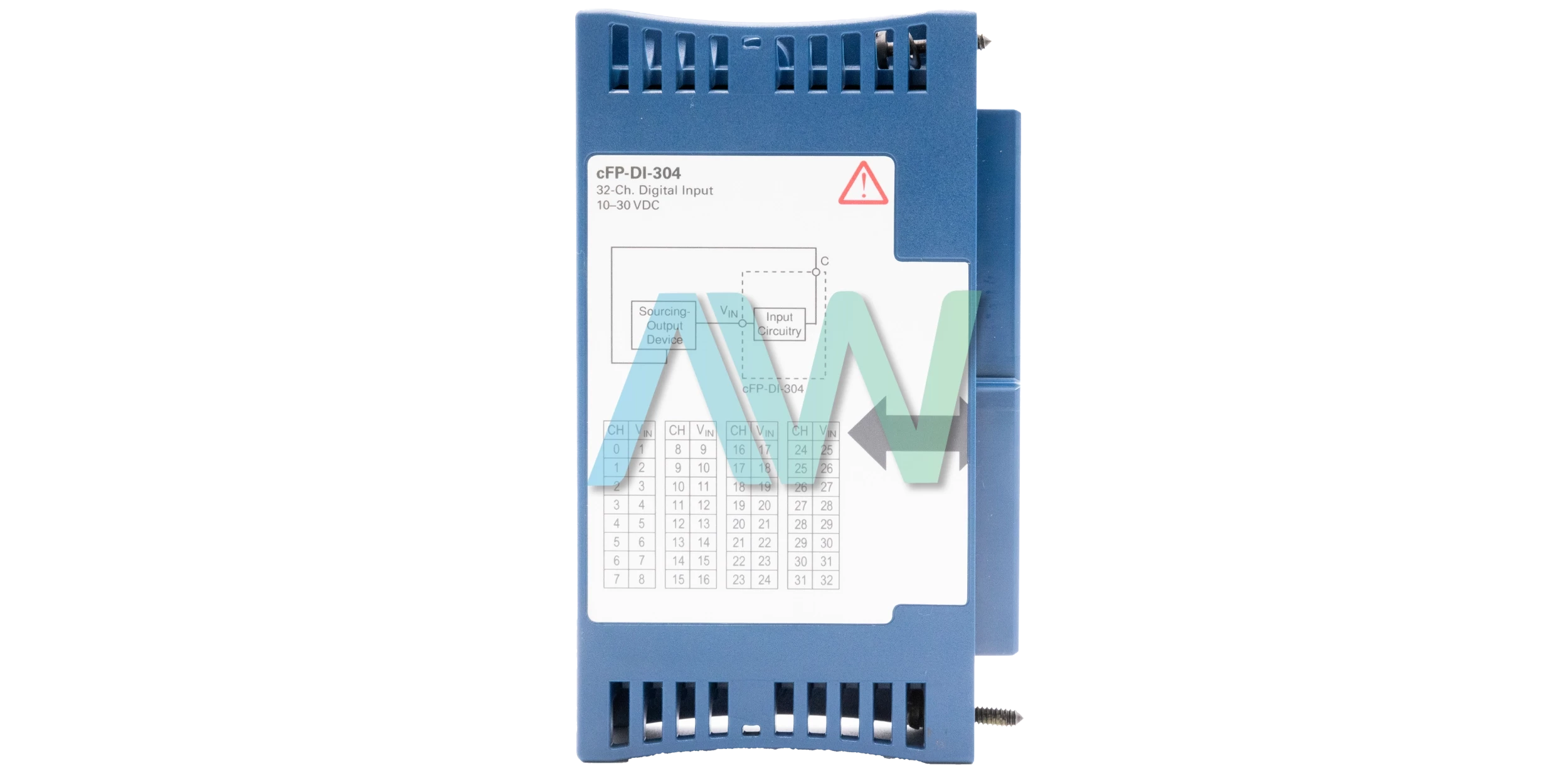

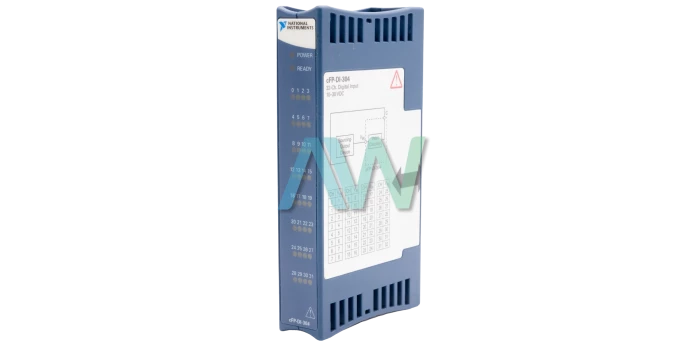

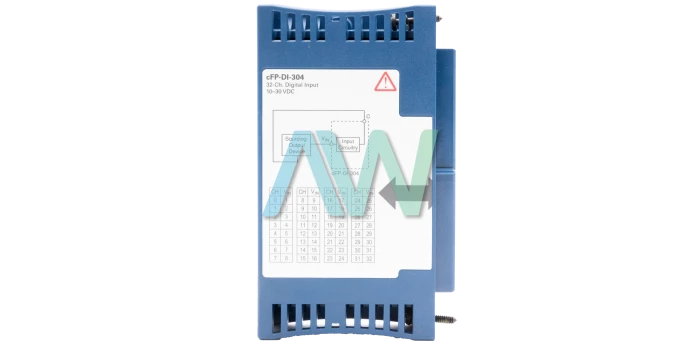

National Instruments cFP-DI-304 Digital Input Module for Compact FieldPoint
The cFP-DI-304 (part number: 777318-304) is a digital input module for Compact FieldPoint developed by National Instruments. This module is used to monitor voltage levels of the signals. The module is compatible with cFP devices. The module is interfaced with the Compact FieldPoint backplane. The cFP-DI-304 offers isolation between modules. This feature protects the Compact FieldPoint system/controller from high voltages. The cFP-DI-304 is used to monitor and acquire 24 VDC digital signals from industrial devices, such as limit switches, relay contacts, and proximity sensors.
The cFP-DI-304 Digital Input Module features 32 digital input channels. The impedance of the digital inputs is 30 kΩ. The input channels of the module are the sinking type. The module works over a range of 0–30 VDC. This module can withstand a transient voltage of 2300 Vrms for 5 seconds. The cFP-DI-304 has an indication light on each input channel. The input module has two additional indication lights for POWER and READY status. The required power of the cFP-DI-304 is 1 watt.
The cFP-DI-304 module is compatible with modules having 24 VDC power. To protect the module from damage, the cFP-DI-304 is equipped with a current-limiting feature. The module can update all channels at a rate of 1 kHz. The complete data throughput is based on network speed and software. The device should be externally calibrated at least once a year. It is equipped with a 68-position VHDCI female I/O connector.
The cFP-DI-304 weighs 6.81 oz. It has recommended operating temperature ranges of -40 to 70°C and -40 to 65°C with the system mounted upright and the system mounted in other orientations, respectively; a storage temperature range of -40 to 85 degrees Celsius; a non-condensing humidity range of 10 to 90% RH; and random and sinusoidal operating vibrations of 5 grms and 5 g, respectively, at a frequency range of 10 to 500 Hz.
| Model | cFP-DI-304 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777318-304 |
| Type | Digital Input Module for Compact FieldPoint |
| Input Channels | 32 |
| Input Range | 10 to 30 VDC |
| All Channel Update Rate | 1 kHz |
| Required Power | 1 W from network module/backplane |
| Weight | 6.81 oz. |
| cFP-DI-304 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a quote |
Associated part numbers for cFP-DI-304:
National Instruments cFP-DI-304 Frequently Asked Questions
Question: Where do I physically connect the NI cFP-DI-304 to the other equipment for current flow?
Answer: If you need to be able to connect directly to the Digital Input Module, you can connect two sinking I/O. The ground is going to be connected to one of the C terminals on the connector block for the cFP-DI-304. Where you connect the C terminal will depend on which connector block you are using.
Question: Does the NI cFP DI-304 feature dielectric withstand?
Answer: The Digital Input Module features dielectric withstand with 2300 Vrms for 5 second
Question: Can you safely use the cFP-DI-304 in areas where hazardous voltages may be present?
Answer: The Digital Input Module can be safely used with the cFP-CB-1 connector block in applications where hazardous voltages are present.
