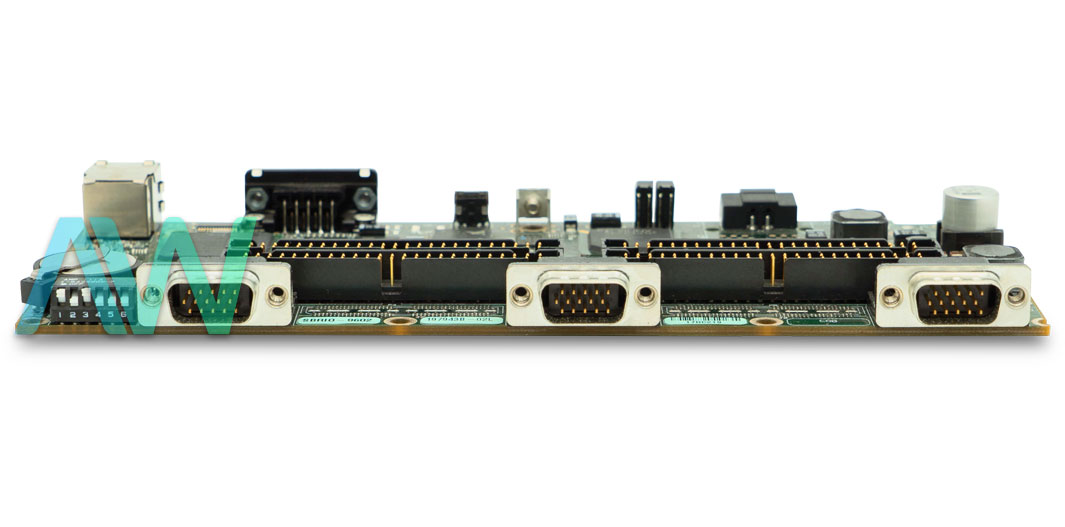

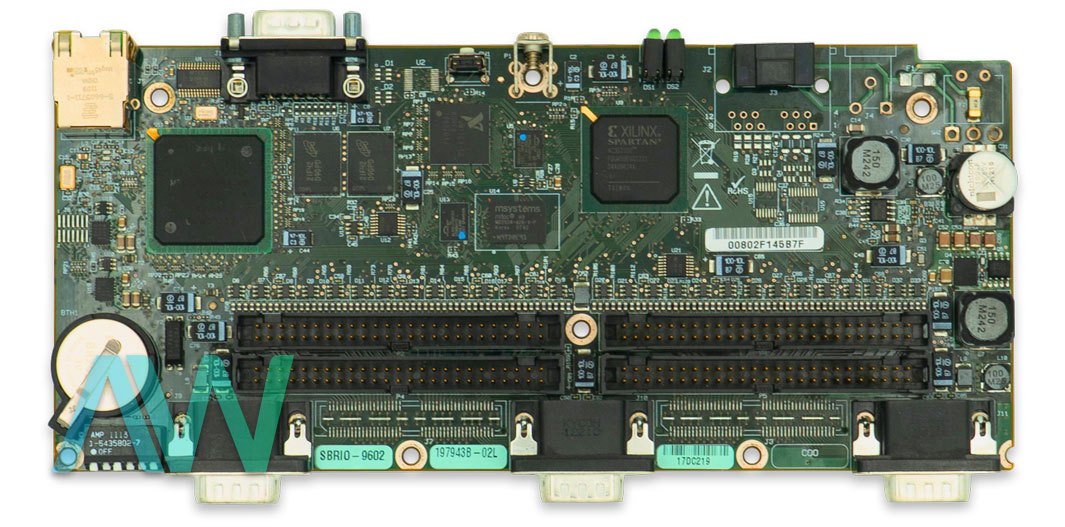

National Instruments 780461-01 CompactRIO Single-Board Controller

National Instruments part number 780461-01 is an identifying part number for the sbRIO-9602 a CompactRIO Single-Board Controller with 110 DIO channels and 720 kbits of embedded RAM. This model features a 400 MHz CPU, digital I/O, and a 2M gate FPGA. The NI 780461-01 is known for its powerful configuration, consisting of a user-configurable FPGA and a real-time processor, all integrated on a single PCB. It includes 1 serial port, 1 Ethernet port, three connectors for C Series modules, and 110 3.3 V digital input/output lines, making it ideal for high-volume applications.

The controller offers 256 MB of internal nonvolatile storage and 128 MB of DRAM. Its FPGA has two million gates. This National Instruments 780461-01 Single-Board Controller features built-in HTTP and FTP servers for remote access from a PC over the internet. It requires an external power supply operating within 19 V to 30 VDC. The FPGA can be configured for custom I/O timing, inline signal processing, and high-speed control via a LabVIEW FPGA Module. The network compatibility of the 780461-01 is IEEE 802.3, with an ethernet interface of 10BaseT and 100BaseTX Ethernet

The serial port can connect peripheral devices like a keyboard and mouse. Designed for harsh industrial environments, it operates within a temperature range of -20 to 55 °C. All 3.3 V digital I/O lines are connected directly to the FPGA.

National Instruments has declared obsolete status for the 780461-01, however, it is still available for purchase and repairs at the Apex Waves website.
