National Instruments - CompactRIO Controllers - cRIO-9805 National Instruments - CompactRIO Controllers - cRIO-9805 - WiringcRIO-9805 NewcRIO-9805 | Legacy, Refurbished and New Surplus
National Instruments - CompactRIO Controllers - cRIO-9805
National Instruments - CompactRIO Controllers - cRIO-9805 - Wiring
cRIO-9805 New
cRIO-9805 | Legacy, Refurbished and New Surplus

cRIO-9805

4.8/5 | 19 ratings

Modular Systems > National Instruments > CompactRIO Controllers

Part Number cRIO-9805
Manufacturer/Brand National Instruments
Description: cRIO-9805, 4 Port, 9 V to 30 V, Ethernet Expansion Module for CompactRIO
Request for Availablility
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for pricing & lead time:

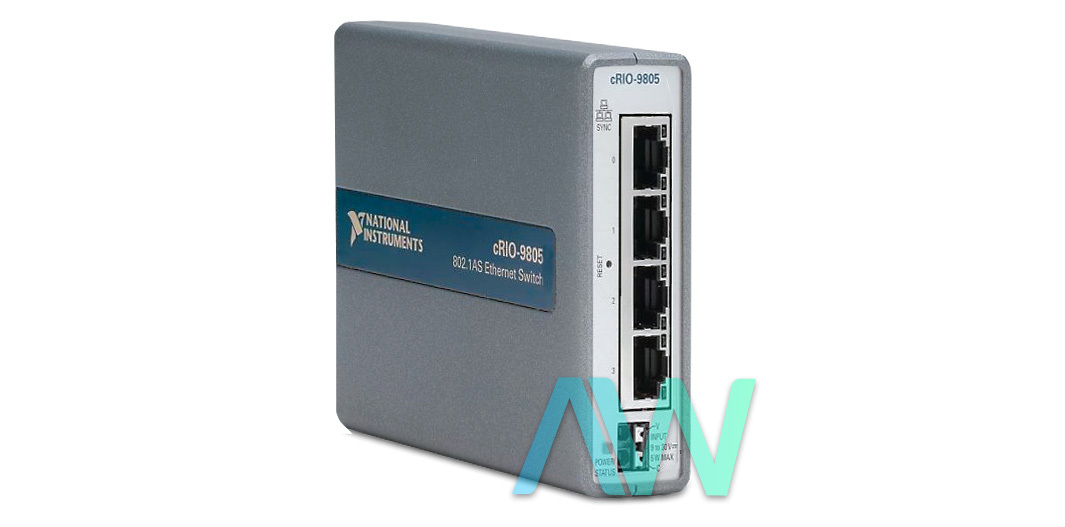

National Instruments cRIO-9805 Ethernet Switch Expansion Module

The cRIO-9805 (part number: 786993-01) is an Ethernet Expansion Module for CompactRIO from National Instruments. The module comes equipped with 4 internally switched ports and a PTP of IEEE 802.1AS. The power supply of the cRIO-9805 has a voltage of 9 V to 30 V, with a max power consumption of 5 W. The CompactRIO system from National Instruments employs additional ports that are capable of 802.1AS network synchronization to carry out a range of control and measurement operations for industrial control and automation systems.

National Instruments CompactRIO Ethernet Expansion modules are frequently used in situations where it is essential to send data to and from the system through a network. Ethernet extension modules are utilized to connect CompactRIO systems to a LAN or the internet, as well as with other hardware or devices. The cRIO-9805 supports a DHCP + Link-Local Network IP configuration as well as TCP/IP and UDP network protocols. The ethernet communication rates of the module are auto negotiated, and measure 10 (Base-T), 100 (Base-TX), or 1000 (Base-TX) Mbps. When it comes to the timing and synchronization features of the cRIO-9805 Ethernet Expansion Module, the IEEE 802.1AS protocol is over a full duplex 1000 Base-TX. The cabling distance is, at maximum, 100 m/segment.

The cRIO-9805 is able to be mounted with either a panel mounting kit or a DIN rail mounting kit. Additional accessories that are optional for the module include the CAT-5E Ethernet cables / cable assemblies (available in 0.3M, 1M, 2M, 5M, or 10M). The dimensions of the cRIO-9805 are 1.18 in. × 3.47 in. × 4.21 in, and it weighs 14.3 oz.

ModelcRIO-9805
ManufacturerNational Instruments
Part Number786993-01
TypeEthernet Expansion Module
Network IP ConfigurationDHCP + Link-Local
Communication Rates10/100/1000 Mbps
Maximum Cabling Distance100 m/ Segment
Timing ProtocolIEEE 802.1AS
Weight14.3 oz
Dimensions1.18 in. × 3.47 in. × 4.21 in
WarrantyThree Year Warranty
cRIO-9805 ManualManual and PDFs available for download

National Instruments cRIO-9805 Frequently Asked Questions



Question: What is the network synchronization accuracy of the cRIO-9805?



Answer: The network synchronization accuracy of the cRIO-9805 is <1 μs. WIth optimized configuration, the accuracy becomes <100 ns.



Question: How many hops per Ethernet line does the cRIO-9805 have?



Answer: The cRIO-9805 has a maximum of 15 hops per line.



Question: What is the gauge of the power wiring for the cRIO-9805?



Answer: The cRIO-9805 has a power wire gauge of 24 AWG - 16 AWG.



Question: How is the power supply of the cRIO-9805 connected?



Answer: The cRIO-9805 uses screw flanges to connect to the power.
