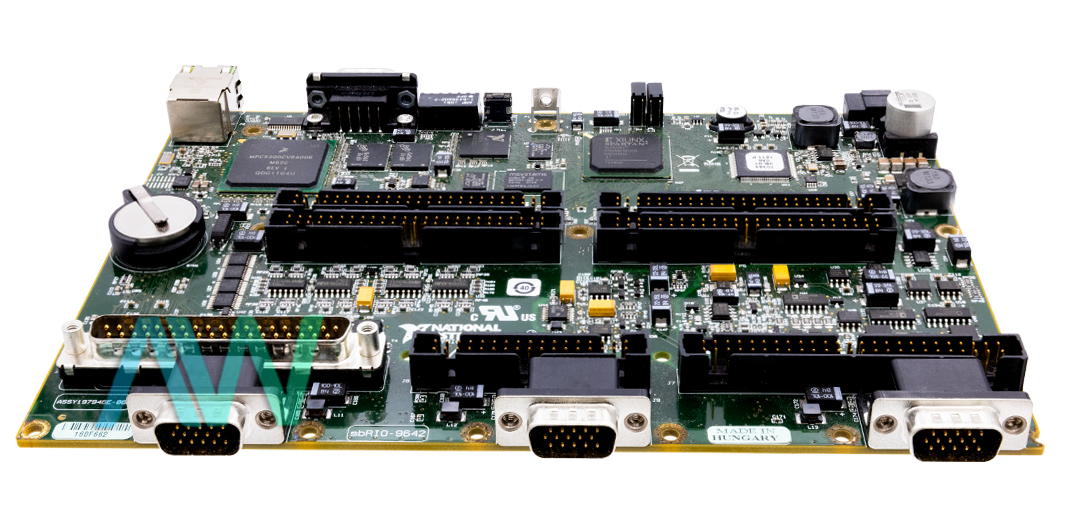

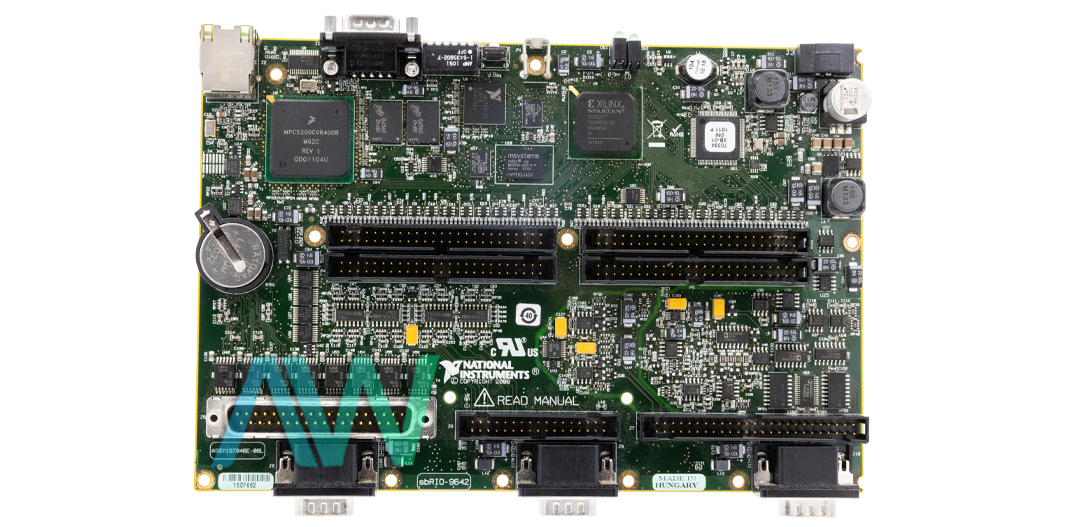

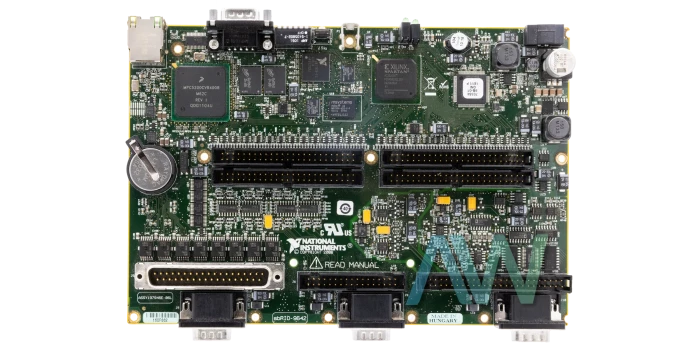

National Instruments sbRIO-9642 CompactRIO Single-Board Controller
The sbRIO-9642 is a CompactRIO Single-Board Controller. National Instruments is the manufacturer of the sbRIO-9642 Controller. The NI sbRIO-9642 is associated with the family of single-board controllers released by NI. The sbRIO-9642 CompactRIO Single-Board Controller is designed with analog and digital input/output channels.
The NI sbRIO-9642 is equipped with a high-performance processor. The sbRIO-9642 contains a 266 MHz central processing unit (CPU). The NI sbRIO-9642 Controller is built with a 1M Gate FPGA controlling chip. The sbRIO-9642 is fabricated with 64 MB of Dynamic Random Access Memory (DRAM) storage. The NI sbRIO-9642 can easily be utilized for high-volume OEM applications. The sbRIO-9642 provides reliable and flexible performance for OEM applications. The NI sbRIO-9642 is a part of the C Series input/output modules offered by NI.
The National Instruments sbRIO-9642 CompactRIO Single-Board Controller is assembled with three different kinds of connectors, including non-closed input/output instruments, an Ethernet port, and a serial port. The sbRIO-9642 Controller is configured with 32 analog inputs and 4 analog outputs with 16-bit resolution for both the inputs and outputs. The sbRIO-9642 is featured with 110 digital I/O lines with 3.3 V. The NI sbRIO-9642 Controller is produced with 32 digital inputs and outputs with 24 V voltage for the digital inputs and outputs. The NI sbRIO-9642 CompactRIO Single-Board Controller functions in the operating temperature range from -20 °C to 55 °C.
sbRIO-9642 Obsolete Status has been announced by National Instruments, but the CompactRIO Single-Board Controller will still be available for purchase and repairs by Apex Waves.
| Model | sbRIO-9642 |
|---|---|
| Manufacturer | National Instruments |
| Type | CompactRIO Single-Board Controller |
| Processing Speed | 266 MHz |
| DRAM | 64 MB |
| Storage | 128 MB |
| FPGA | 1M Gate |
| Analog Inputs | 32 |
| Analog Outputs | 4 |
| sbRIO-9642 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
