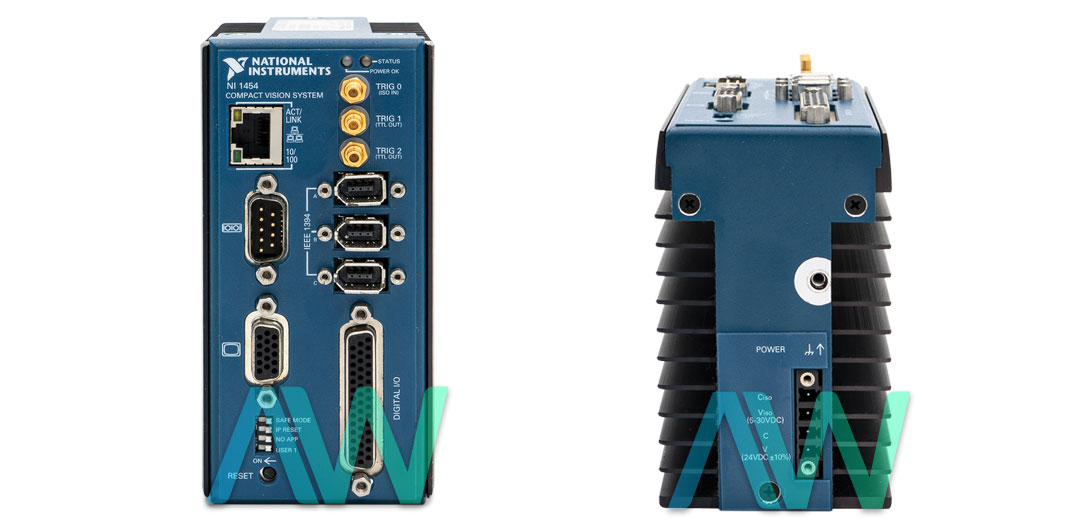

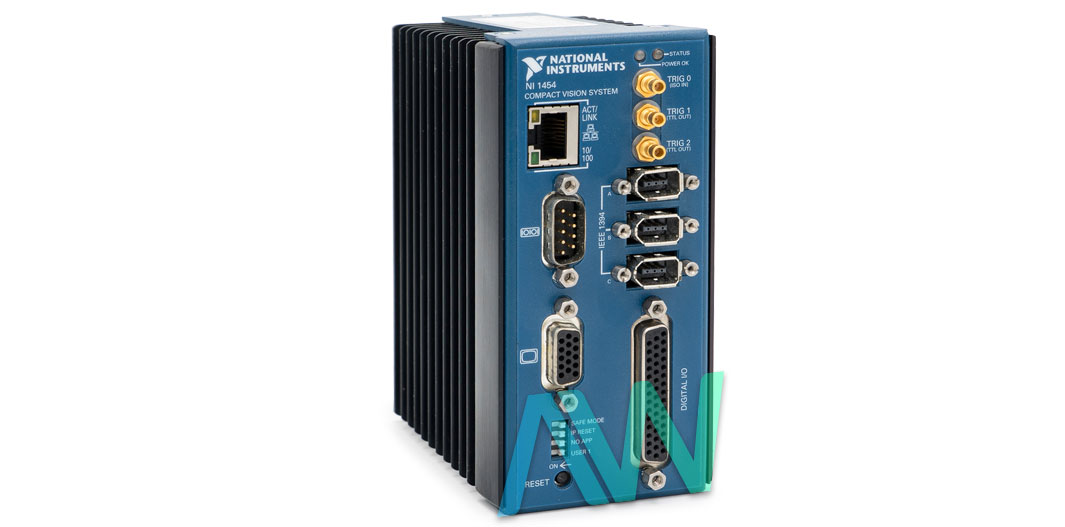

National Instruments 778638-01 Compact Vision System

Part Number 778638-01 is the identifying part number for the National Instruments CVS-1454 Compact Vision System. It is a part of the NI CVS-1450 Series of devices that are used for acquiring, processing, and displaying images from IEEE 1394 cameras. The device can be configured by connecting it to a host computer through an Ethernet connection. Furthermore, the device also ships with the NI Vision Acquisition Software that includes the NI-IMAQdx driver.

The 778638-01 features a 400 MHz Intel Celeron processor and a 128 MB SDRAM. Likewise, it also comes with a nonvolatile storage of 64 MB. Similarly, it features 10BaseT and 100BaseTX Ethernet interfaces that are compatible with the IEEE 802.3 standard. Note that the maximum cabling distance for the module is 100m per segment. The 778638-01 also features 2 TTL input channels with a maximum pulse rate of 2 MHz. It can detect pulses with a minimum duration of 500 ns. During the power-on state, the inputs are set in a high-impedance state. On the other hand, there are 10 TTL output channels with an output voltage range of 0 to 5 V and a maximum pulse rate of 2 MHz. In addition to the TTL inputs, the device also contains 13 isolated (current sinking) inputs and 4 isolated (current sourcing) outputs.

Furthermore, there are 3 IEEE 1394 ports with an IEEE1394a camera interface. The bus speed can be either 100, 200, or 400 Mbps. When cameras are excluded, the device draws 12 W (typical) power which can reach 22 W (max). The 778638-01 measures (4 in. × 5 in. × 2.5 in.) in physical dimensions and weighs 1 kg. The recommended temperature range for the operation of the 778638-01 is 0 °C to 55 °C in a vertical mounting position and 0 °C to 45 °C in other positions. On the other hand, it can be stored at a wider range of –20 to 85° C. The device is recommended for indoor use only at a relative humidity of 10 to 90% RH and within a maximum altitude of 2000m.

Part Number778638-01
Model NameCVS-1454
Part TypeCompact Vision System
ProcessorIntel Celeron 400 MHz
SDRAM128 MB
Nonvolatile Storage64 MB
Network Interface10BaseT and 100BaseTX Ethernet
TTL Input/Output Channels2 input channels, 10 output channels
Optically Isolated Input/Output Channels10 input channels, 13 output channels
Number of IEEE 1394 Ports3
