CVS-1459

4.7/5 | 19 ratings

Modular Systems > National Instruments > CVS-1450 Series

Part Number CVS-1459
Manufacturer/Brand National Instruments
Description: CVS-1459, USB3 Vision Camera Interface, Compact Vision System
Request for Availablility
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments CVS-1459 Compact Vision System

The NI CVS-1459 (Part Number: 785275-01) is a durable Compact Vision System. This USB3 Vision Camera System is designed to endure severe conditions. Thus, it can be considered a viable solution for OEM vision applications, industrial inspection, and vision-guided robotics. This model offers a broad range of network connectivity capabilities for many types of machine vision applications.

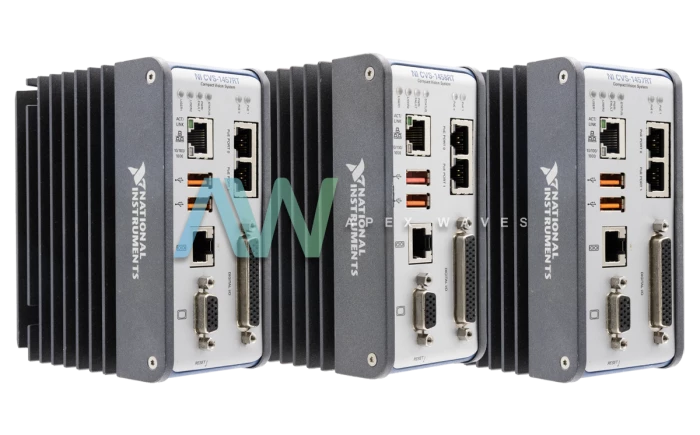

The advanced features of the NI CVS-1459 enable the user to coordinate their inspection outcomes with industrial I/O. The front panel of this vision system contains 2 USB 2.0 ports, 1 RJ50 serial port, 1 VGA connector, 2 USB3 Vision ports, and a standard Ethernet connector. Moreover, a set of LEDs is provided to keep the user updated about the system’s health. To accommodate 8 isolated inputs and a set of 8 digital isolated outputs, a 44-pin digital I/O port is also provided on the front panel of the National Instruments CVS-1459.

The availability of two standard USB3 ports enables this device to receive images directly from two separate USB3 enabled cameras. These USB ports can also be used for routine USB peripheral devices, such as keyboards, a mouse, flash drives, and more. The National Instruments CVS-1459 Compact Vision System comes equipped with a powerful 1.91 GHz Quad-Core Intel Atom Processer. The VGA port provided on this machine vision system can be used to acquire video output on an external monitor. The two USB3 ports provided in this model can also be used with off-the-shelf cameras.

ModelCVS-1459
ManufacturerNational Instruments
Part Number785275-01
TypeCompact Vision System
Camera Interface TypeUSB3 Vision
USB Ports4
Ethernet Ports1
Processor Core1.91 GHz Quad Core Intel Atom
Controller OSWindows Embedded Standard 7
Warranty2-3 Year Warranty
CVS-1459 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for CVS-1459:

154553D-02L, 154553E-02L, 154557A-01L, 154557A-99L, 154557B-01L, 155983A-01L, 155983B-01L, 156843A-03L, 156843B-03L, 783922-01, 785275-01

National Instruments CVS-1459 Frequently Asked Questions



Question: Does the NI CVS-1459 need a power supply for operation?



Answer: The NI CVS-1459 needs a power supply to power the system and the isolated outputs.



Question: Which type of Ethernet cable should be used with the CVS-1459?



Answer: A CAT 5e or CAT 6 1000Base-T Ethernet cable is necessary to reach 1,000 Mbps Ethernet performance with the CVS-1459.



Question: Which modes can the serial port operate in on the NI CVS-1459?



Answer: The serial port on the NI CVS-1459 has two modes: RS-485/422 mode or RS-232 mode.



Question: What does it mean when the CVS-1459 displays the message “No Camera Found?”



Answer: When the CVS-1459 displays the message “No Camera Found,” the user should first confirm the camera is correctly linked and powered. Then, confirm the camera is compatible with the USB3 Vision specifications.
