Part Number 777744-01
Manufacturer/Brand National Instruments
Description: 777744-01, 2 AO, 16 AI, 32 Digital I/O Lines, 24 Bits, PCI-6025E Multifunction DAQ
Request for Availablility
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


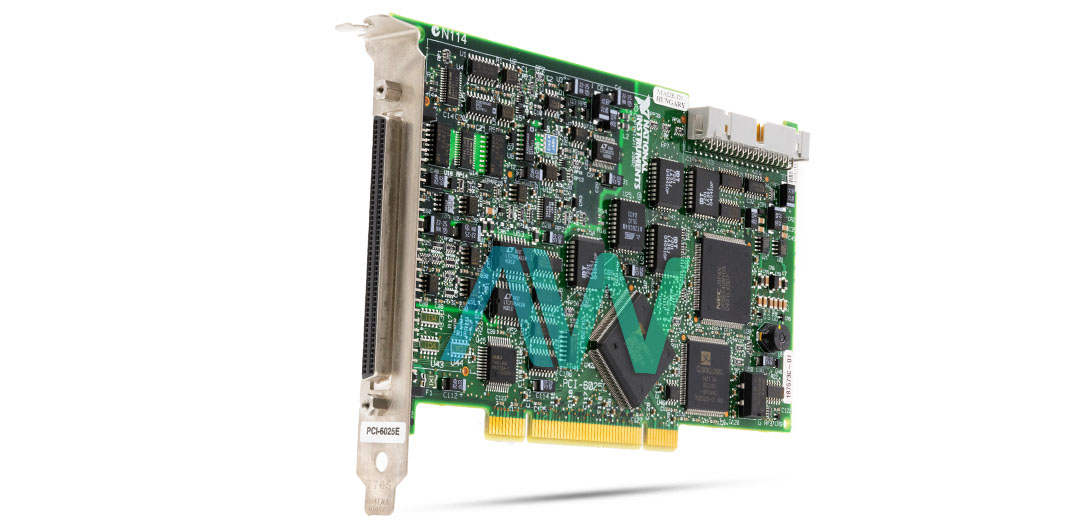

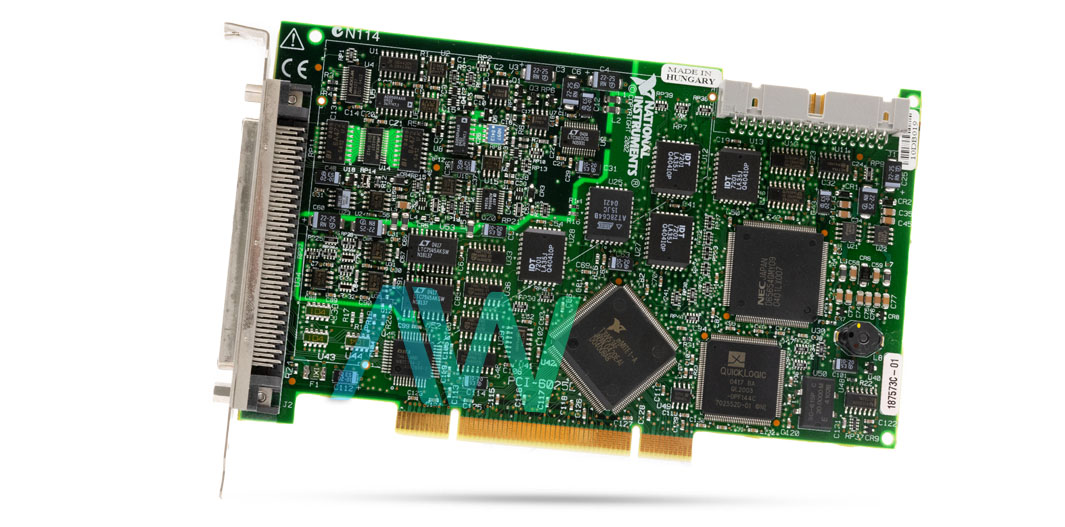

National Instruments 777744-01 Multifunction I/O Device

The 777744-01 is the part number for the PCI-6025E, a multifunctional I/O device from National Instruments. It is meant to serve a variety of applications, such as research, design verification/testing, factory testing, and laboratory automation. It includes two analog output channels, sixteen analog input channels (eight differential), thirty-two digital I/O lines, and two 24-bit counters. The device comes with the NI-DAQmx driver and configuration tool for streamlined setup and measurement procedures, and it connects via a 100-pin connector.

To handle time-related tasks, this device makes use of the National Instruments DAQ-STC system timing controller. Three timing groups are included into the DAQ-STC, which manages general-purpose counter/timer operations, analog input, and analog output. These sets consist of three 16-bit and seven 24-bit counters, with a timing resolution of up to 50 ns. Advanced applications like as equivalent time sampling, buffered pulse generation, and smooth sampling rate modifications are supported by this technology.

A noteworthy characteristic is the Real-Time System Integration (RTSI) bus, which facilitates the effortless synchronization of numerous measurement functions with a single trigger or timing event. The RTSI bus in PCI systems routes timing and trigger signals amongst up to five DAQ devices via a ribbon wire. Up to seven DAQ devices can be connected in PXI systems by using the PXI backplane.

The 777744-01 provides a smooth interface between a SCXI system and many sensors, including strain gauges, thermocouples, RTDs, voltage sources, and current sources, to acquire analog signals. It also makes it easier to generate or acquire digital signals for control and communication.

The 777744-01 device supports three input modesᅳnonreferenced single-ended (NRSE), referenced single-ended (RSE), and differential (DIFF).. Up to 16 channels in single-ended mode and up to 8 channels in differential mode are available in these combinations. To maximize the resolution of the 12-bit analog-to-digital converter (ADC), each channel can be configured with a different gain (0.5, 1.0, 10, or 100).

The 777744-01 provides two channels with an analog output that has a fixed bipolar range of ±10 V. Two's complement format is used to understand the data from the digital-to-analog converter (DAC). Eight general-purpose digital I/O lines, which can be configured as inputs or outputs via software, are also included in the device..

Part Number777744-01
Model NamePCI-6025E
Part TypeMultifunction I/O Device
Analog Input16 channels (8 differential)
Sampling Rate200 kS/s
Analog Output2 channels
Digital I/O32 lines
Counter/TimersTwo 24-bit counters
Input RangeBipolar, programmable gain (0.5, 1.0, 10, 100)
Timing Resolution50 ns
