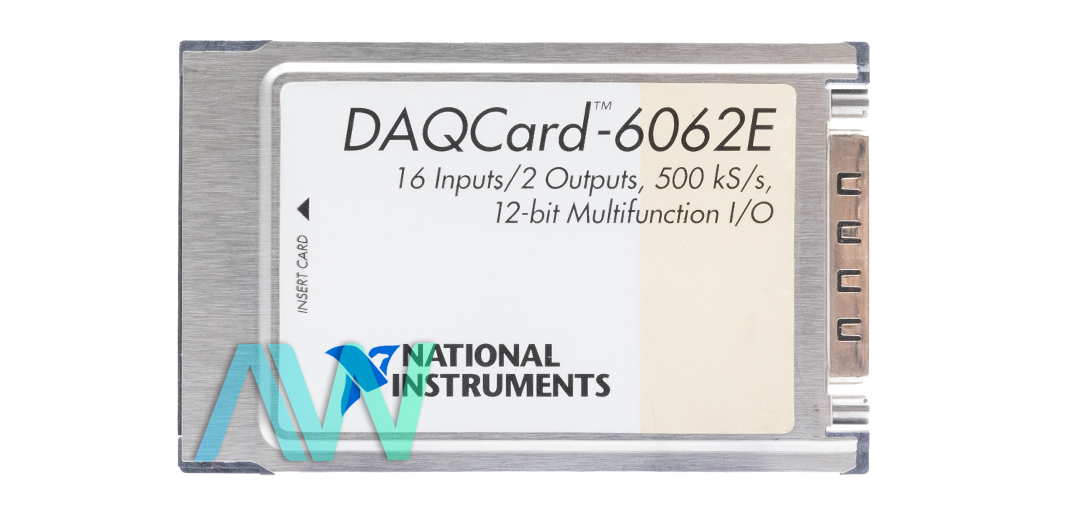

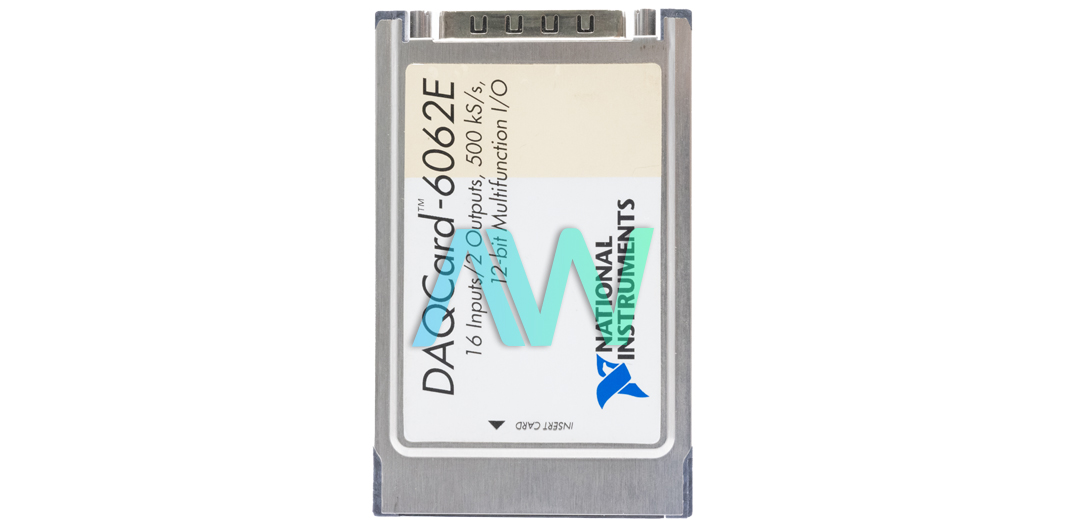

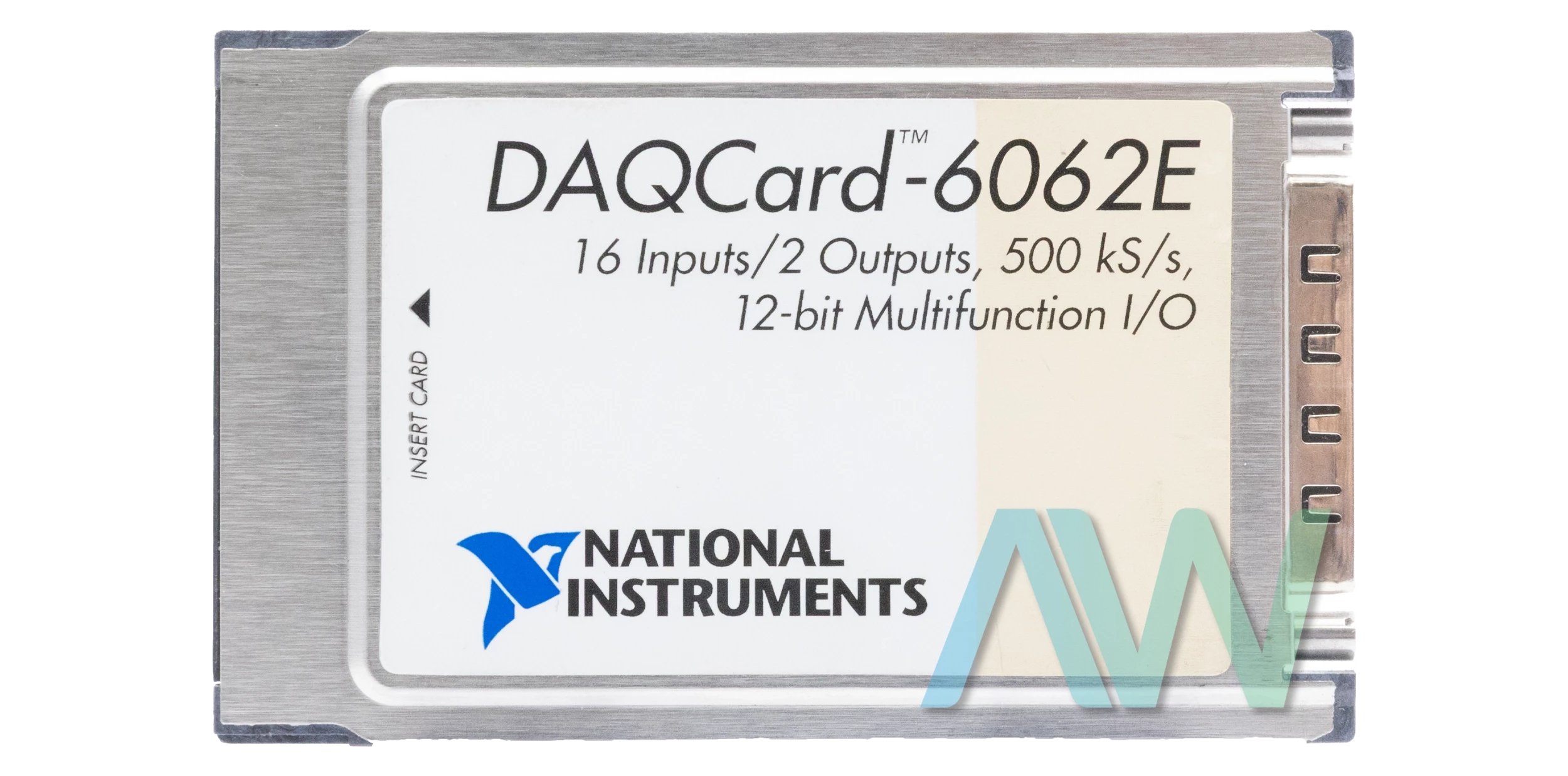

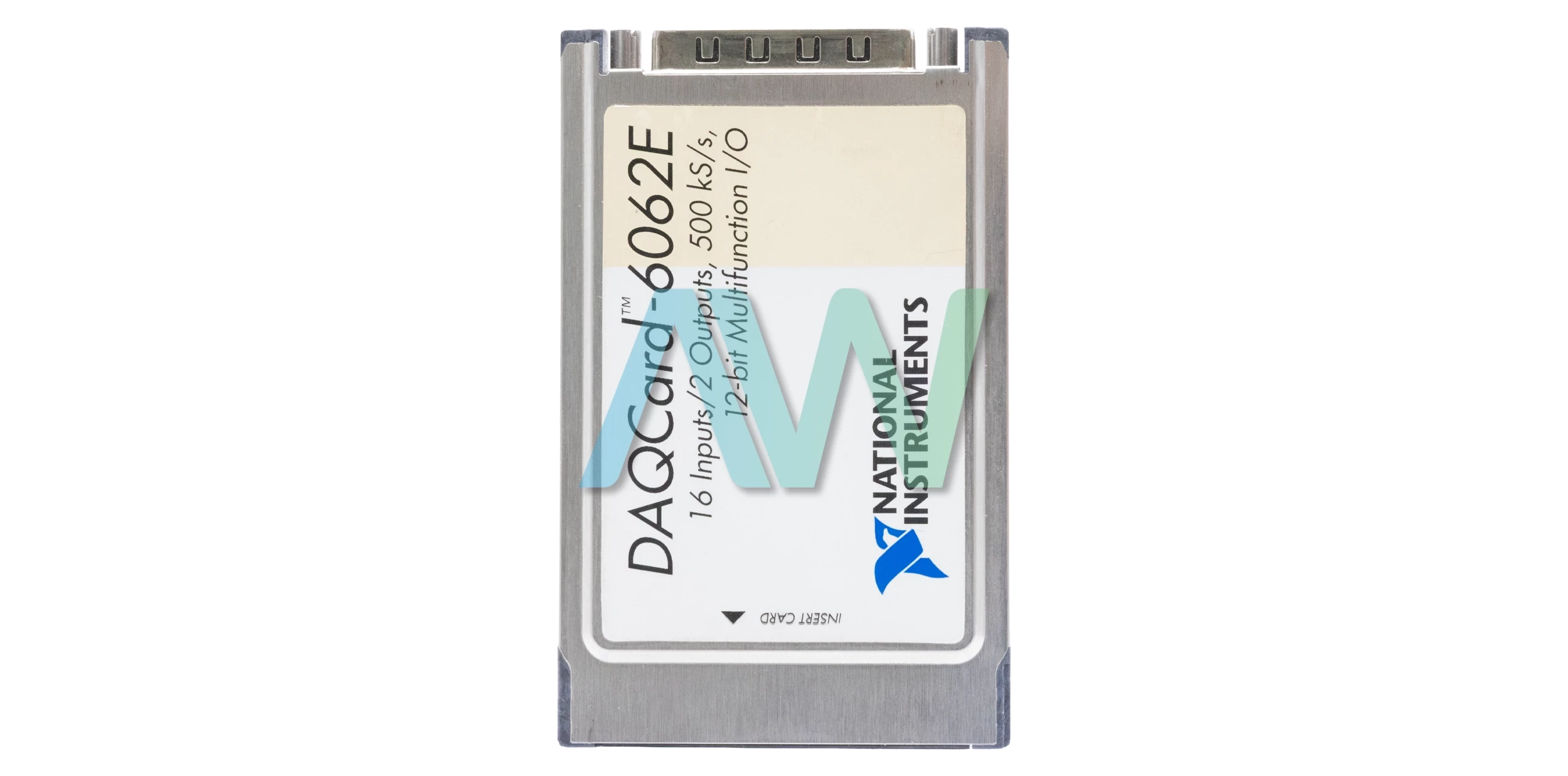

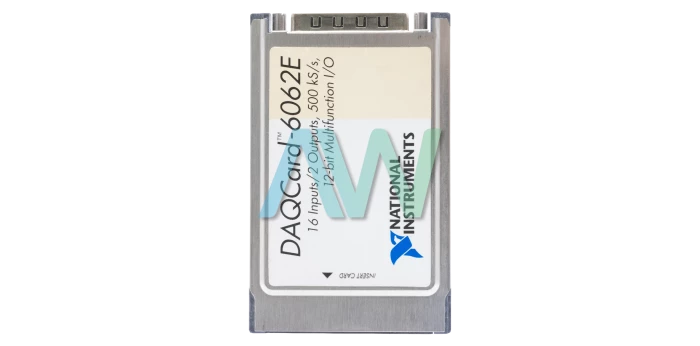

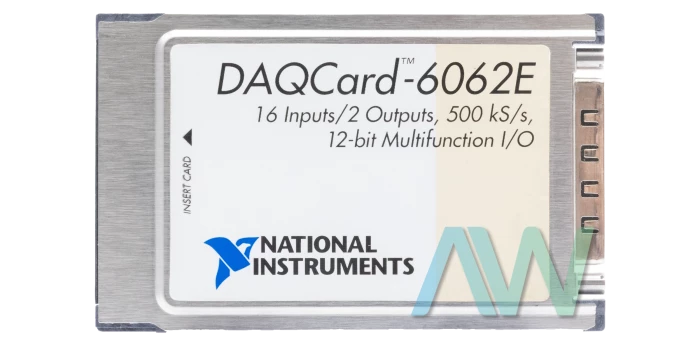

National Instruments DAQCard-6062E Multifunction I/O Device

The DAQCard-6062E is a Multifunction I/O Device with numerous functionalities developed by National Instruments. The NI DAQCard-6062E can be purchased with the part number 777976-01. This Multifunction I/O Device can be operated with NI-DAQmx drivers. The DAQCard-6062E is used with different types of software such as LabVIEW, VI-Logger, and Measurement Studio. The device is used on Windows NT/2000/XP operating systems. The DAQCard-6062E is also compatible with some other software like C, C++, and Visual Basic.

The National Instruments DAQCard-6062E belongs to the E Series family of DAQ devices. This Multifunction I/O Device is designed as a compact device that is feasible to use in cases where space allocation is the key issue. The NI DAQCard-6062E functions like the PCI and PXI products but is instead designed for the PCMCIA bus. The DAQCard-6062E is a Type II PC card. This device is composed of 8 differential or 16 single-ended analog input channels. The DAQCard-6062 has similar functions and properties to the DAQCard-6036E, except the resolution and sampling rate.

The DAQCard-6062E has 12-bit resolution for the analog output and analog input channels. The input voltage range is available in the range between ±0.05 to ±10 V. This Multifunction I/O Device has a maximum sampling rate of 500 kS/s. The output rate is 850 kS/s for the output voltage range of ±10 V. The NI DAQCard-6062E is built for analog as well as digital triggering functions. There are 8 digital lines of TTL standard associated with a DAQCard-6062E device. The DAQCard-6062E is prepared with two timers for recording time sequences during operations.
