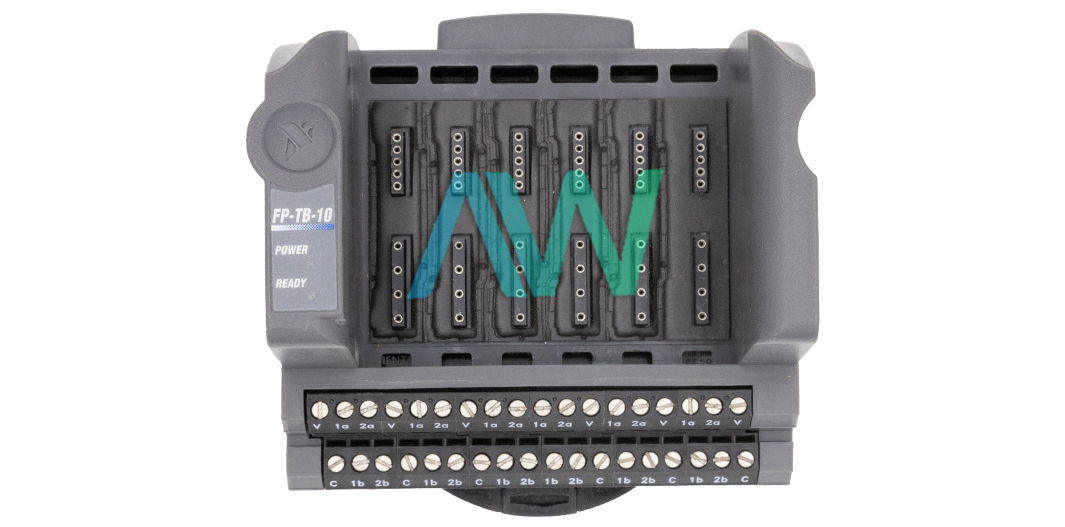

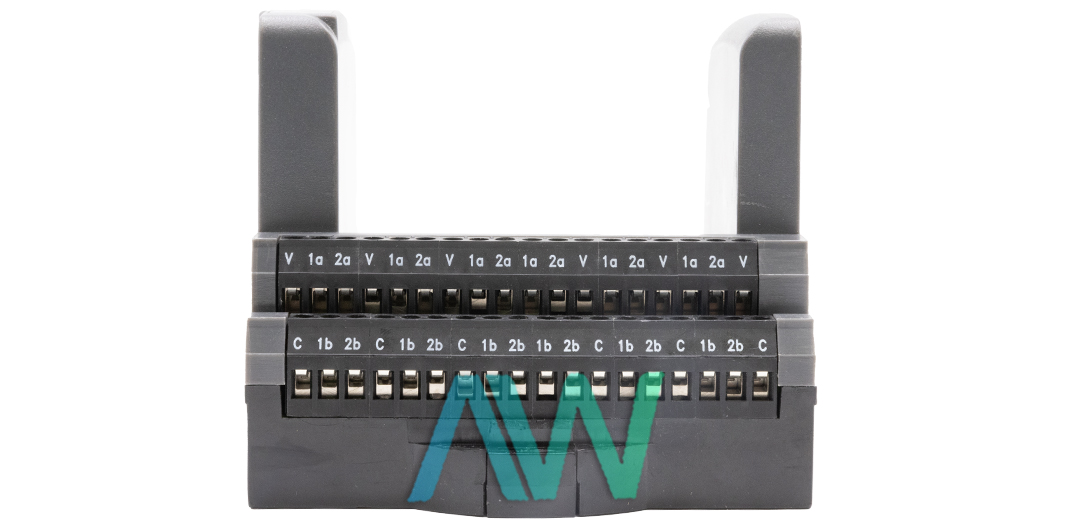

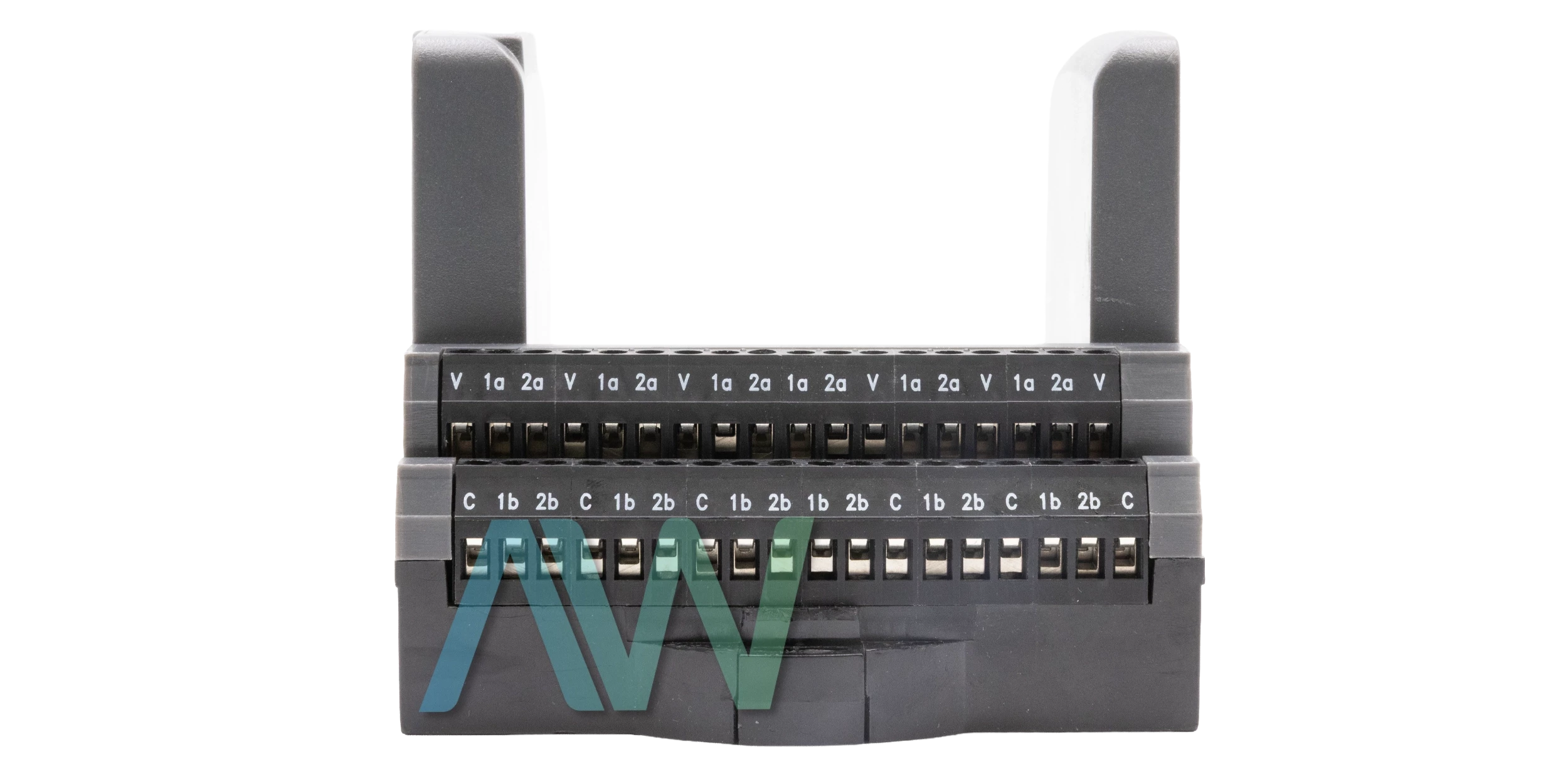

National Instruments 777519-10 FieldPoint Terminal Base

National Instruments part number 777519-10 is an identifying part number for the FP-TB-10 FieldPoint Terminal Base. This base has 36 terminals and requires 200 mW of power. The NI 77519-10 is designed to accommodate up to 6 dual-channel I/O modules. Each dual-channel module used with the base is isolated and operates independently. These modules can function alongside any of the eight or sixteen standard channel modules within the same FieldPoint bank. The device supports 2 differential or 2 single-ended analog input modules with 12-bit resolution.

The analog input modules have voltage and current input impedances of 2.2 MΩ and 133 Ω, respectively. Additionally, it includes 2 single-ended analog output modules with an output impedance of 10 Ω and an output drive capability of 10 mA. The 77519-10 Terminal Base offers dual insulation for operating voltages up to 250 Vrms, providing protection for field wiring against voltages up to 2500 Vrms. It consumes 150 mW of power, with specific power requirements of 375 mW for analog inputs, 1100 mW for analog outputs, 60 mW for discrete inputs, and 70 mW for discrete outputs.

 It supports a measurement resolution of 12 bits, equivalent to 1 part in 4096. It can be conveniently clipped or securely mounted onto standard 35 mm DIN-rails or panels, enhancing its usability across various applications. This terminal base offers a practical solution for applications requiring channel-to-channel isolation. It supports hot plug-and-play functionality, allowing modules to be swapped or inserted without powering down the network. This feature enables seamless installation of dual-channel modules without interrupting the FieldPoint system's operation. When a module is replaced with another, the NI 777519-01 automatically updates and configures the new module's settings, ensuring continuous operation and ease of maintenance.
