NI-5792

4.8/5 | 11 ratings

Modular Systems > National Instruments > FlexRIO

Part Number NI-5792
Manufacturer/Brand National Instruments
Description: NI-5792, 200 MHz, Receiving RF Adapter Module for FlexRIO
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

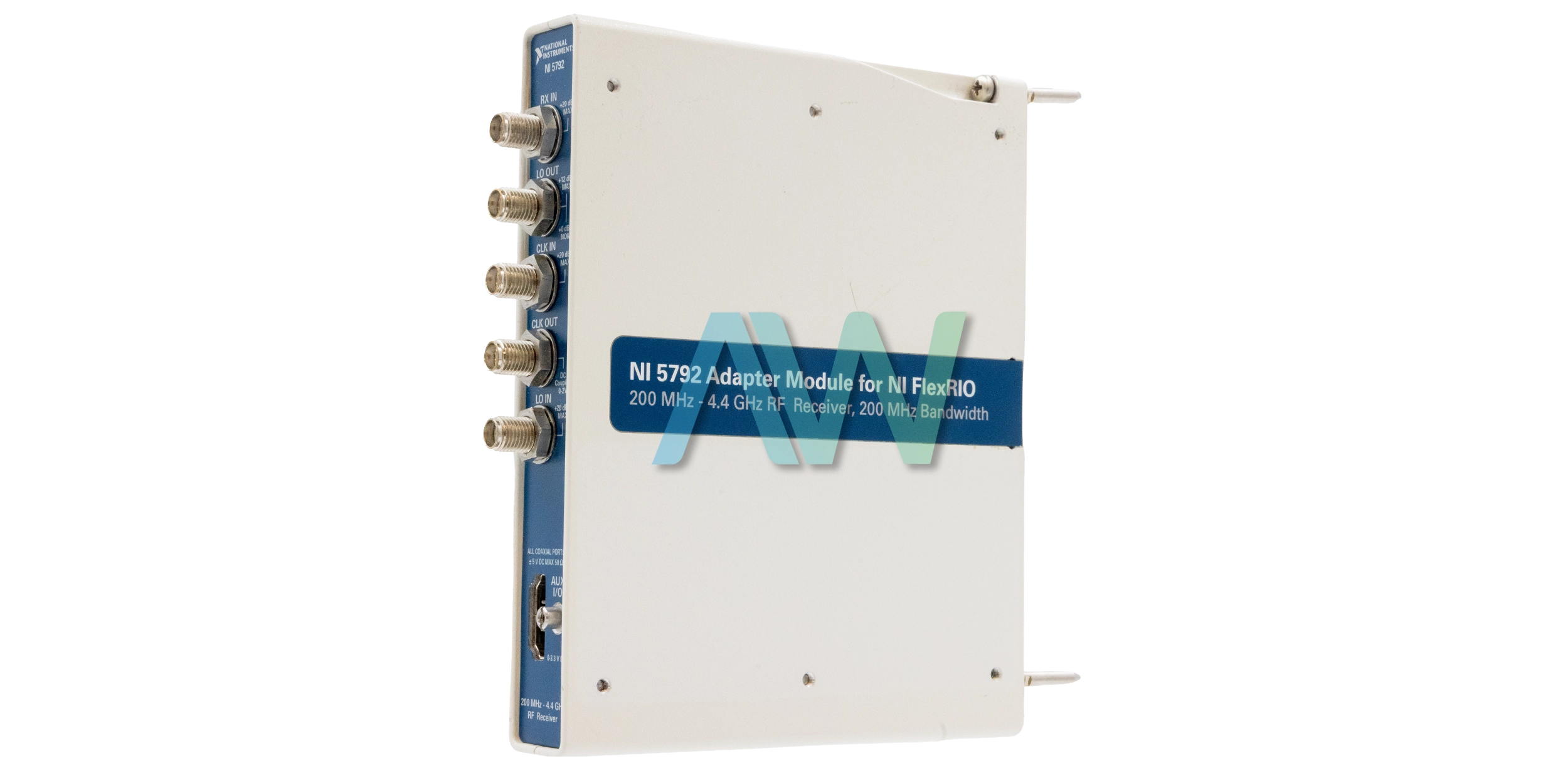

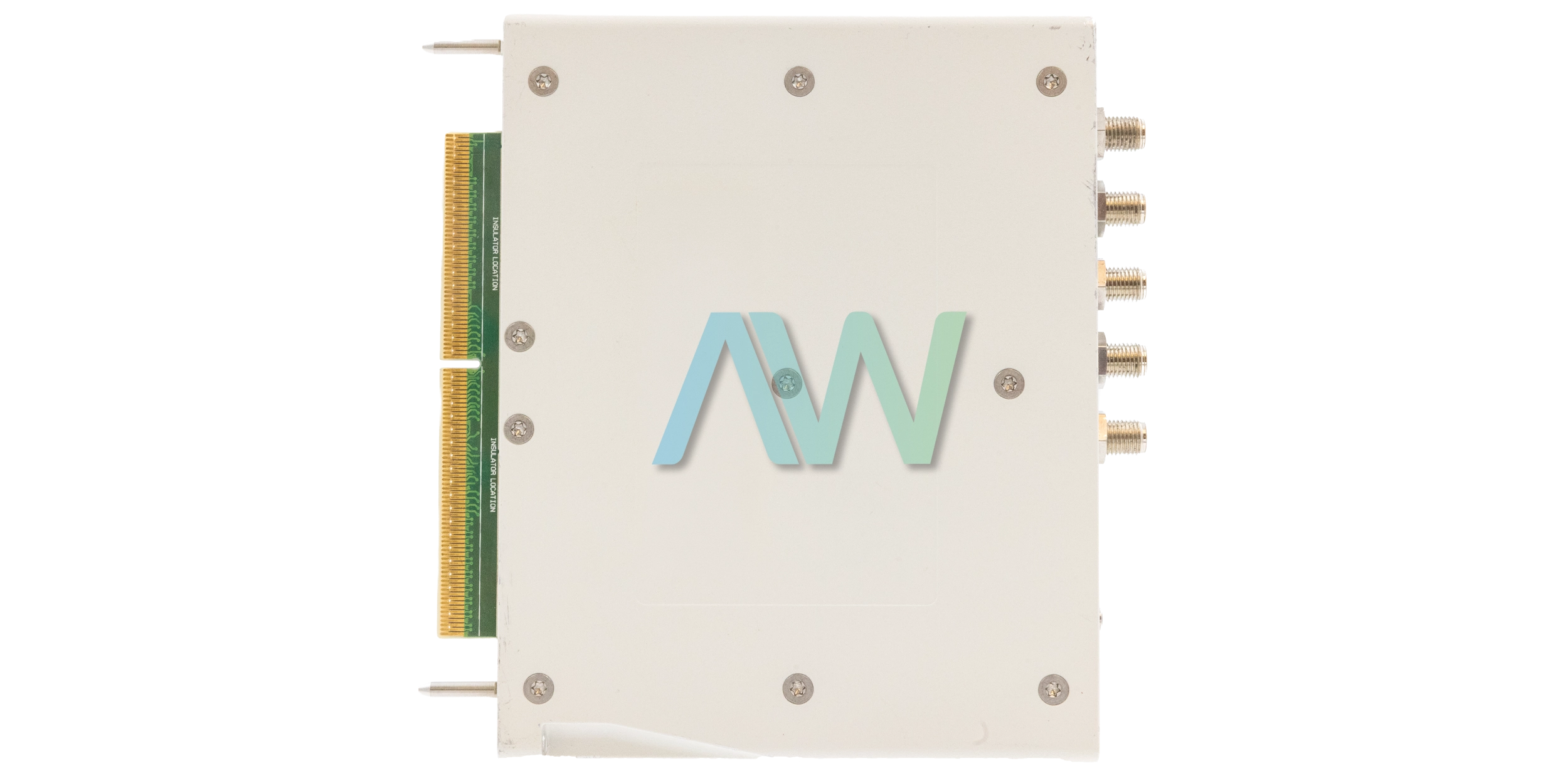

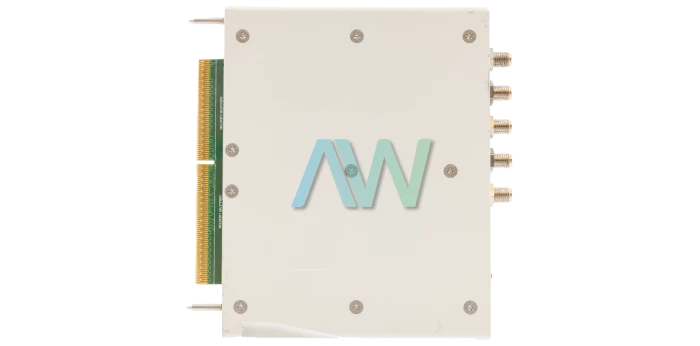

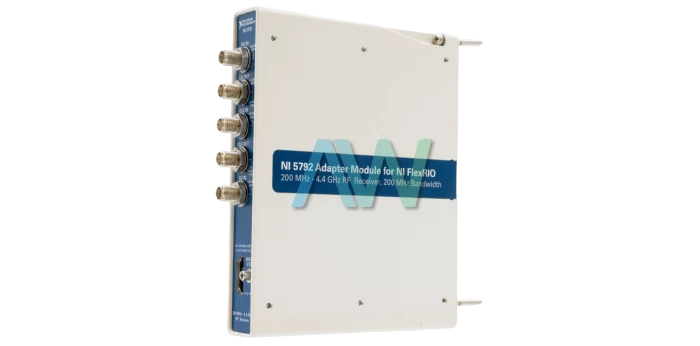

National Instruments NI-5792 RF Adapter Module for FlexRIO

The National Instruments NI-5792 (Part Number: 782511-01) RF Adapter Module for FlexRIO gives a nonstop frequency range from 200 MHz to 4.4 GHz. This module includes a single stage, coordinate change engineering that gives high transmission capacity in the little frame factor of a FlexRIO connector module. The installed synthesizer, which is the local oscillator (LO), sets the inside frequency for procurement and generation. The user can send out it to different modules for Multi Input, Multi Output (MIMO) synchronization. Users can also import the LO from an outer connector, empowering synchronization of as many as eight NI-5792 modules.

The direct access to raw ADC and DAC information on the NI-5792 FlexRIO RF Adapter Module gives a definitive adaptability in advanced signal processing, information storage and streaming, and custom calculation plan for software defined radio (SDR), signal insight (SIGINT), storage to and from circle, MIMO, beamforming, and other elite inner RF applications.

The NI-5792 comes with a CLIP function that produces one sample for every time cycle at a default test rate of 250 MHz. Users can set a lower test rate by utilizing an outside Sample Clock. This CLIP gives access to I and Q information for one RF receiving channel. The CLIP additionally gives a User Command interface to normal setups of the base-band timing, programmable attenuators, receive amplifier, get channels, LO channels, and RF way which incorporates the capacity to import and fare the LO. The baseband timing can be designed utilizing settings like Internal Sample Clock, Internal Sample Clock to an outside Reference Clock through the CLK IN connector, and internal Sample Clock.

ModelNI-5792
ManufacturerNational Instruments
Part Number782511-01
TypeRF Adapter Module for FlexRIO
RF Generator Frequency Range200 MHz to 4.4 GHz
Maximum Input Power20 dBm
RF Analyzer Instantaneous Bandwidth200 MHz
Dimensions5.1 x 0.8 x 4.7 in.
Weight14.6 oz.
WarrantyOne Year Warranty
NI-5792 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments NI-5792 Frequently Asked Questions:



Question: Which front panel connectors are available on the NI-5792?



Answer: The NI-5792 has RX IN, LO OUT, CLK IN, CLK OUT, and LO IN front panel connectors.



Question: What does NI 5792R refer to?



Answer: NI 5792R refers to the NI 5792 Adapter Module and the NI FlexRIO FPGA Module, while NI 5792 refers to only the NI 5792 Adapter Module.



Question: Which software can be used with the NI 5792?



Answer: The NI 5792 can be used with NI LabVIEW and LabVIEW FPGA software.



Question: What is the input noise density of the NI-5792?



Answer: The input noise density of the NI-5792 is -151 dBm/Hz.

  NI-5792 PDF Manuals
