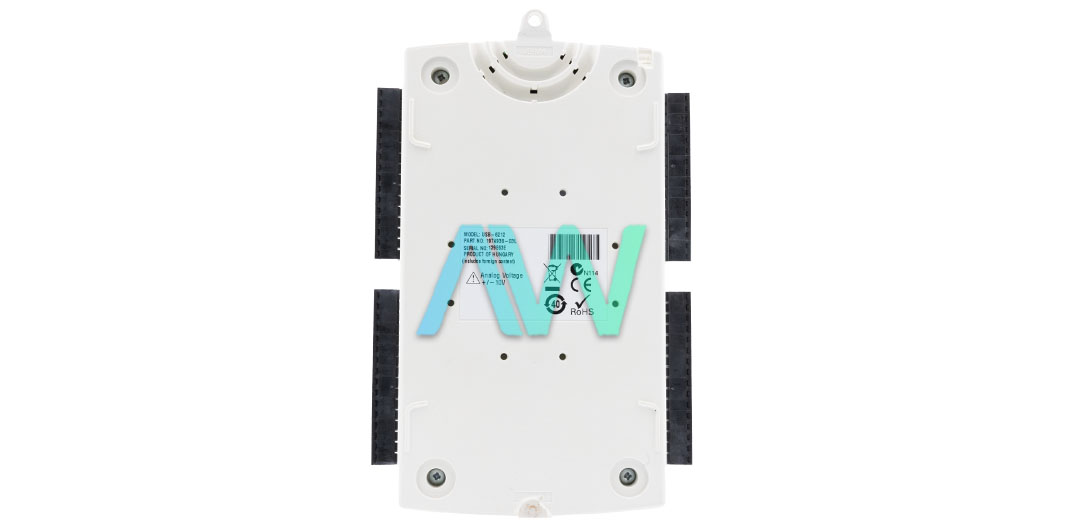

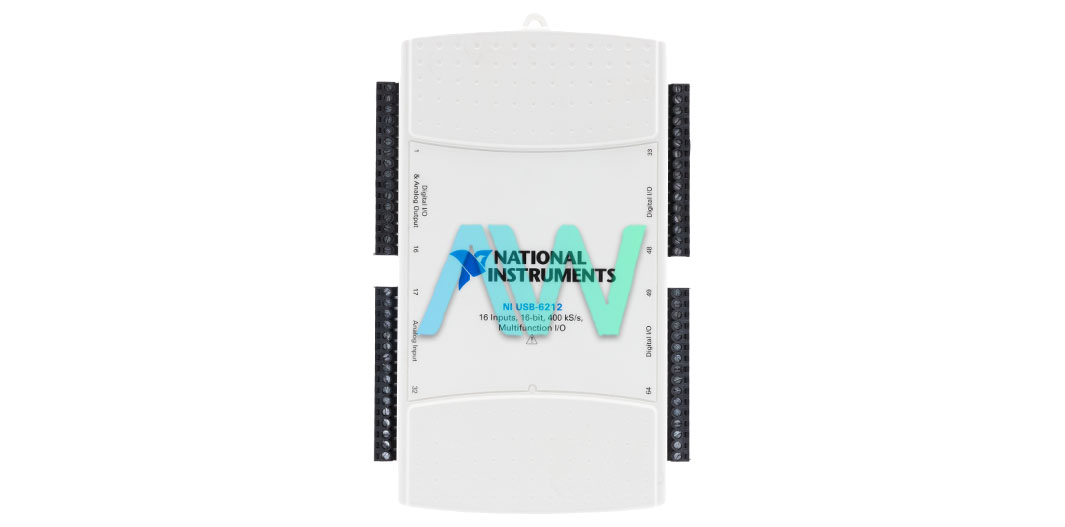

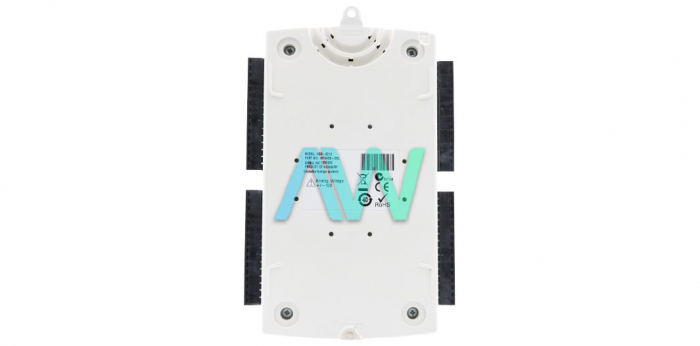

National Instruments 780107-01 Multifunction DAQ

The part number 780107-01 from National Instruments is the identifying part number for the USB-6212 Multifunction DAQ. The 780107-01 Multifunction USB powered DAQ module features 16 single ended or 8 differential analog input channels with a 16 bit resolution and DC coupling and high input impedance. The maximum sampling rate is 400 kS/s, which allows for fast data acquisition. The input range can be set to can be set from 0.2 up to 10 volts of both negative and positive ranges.

The Multifunction DAQ features two analog output channels, also with 16 bit resolution, capable of updating at a maximum rate of 250 kS/s per channel. These outputs have a range of -10 volts to 10 Volts are DC coupled with an output impedance of 0.2 Ω and can provide a driving current of up to ± 2 mA. This allows for precise control of external devices and systems. This module features 24 digital I/O channels which are user programmable and can be configured as inputs or outputs.

The 780107-01 features with two 32 bit counters or timers that support various measurement functions, including edge counting, pulse width measurement, and frequency generation. These counters can support frequencies of up to 20 MHz. This module is capable of streaming signal via USB and can transfer data via programmable I/Os allowing efficient communication and data transfer

Designed to operate in an environment with an ambient temperature range of 0 degrees Celsius to 45 degrees Celsius. This module is compact and portable with a dimension of 23.5 cm × 11.2 cm × 6.4 cm with a BNC connector or 16.9 cm × 9.4 cm × 3.1 cm with a screw terminal allowing it to be installed easily and perform maintenance tasks with ease. The module also is very light as it only weighs approximately 950 g (33.5 oz) with a BNC connector and 206 g (7.2 oz) with a screw terminal. The 780107-01 Multifunction DAQ is IEC, UL, and CE certified making it a great choice for use in industrial environments with demanding conditions.
