National Instruments PCI-6289 Multifunction DAQ

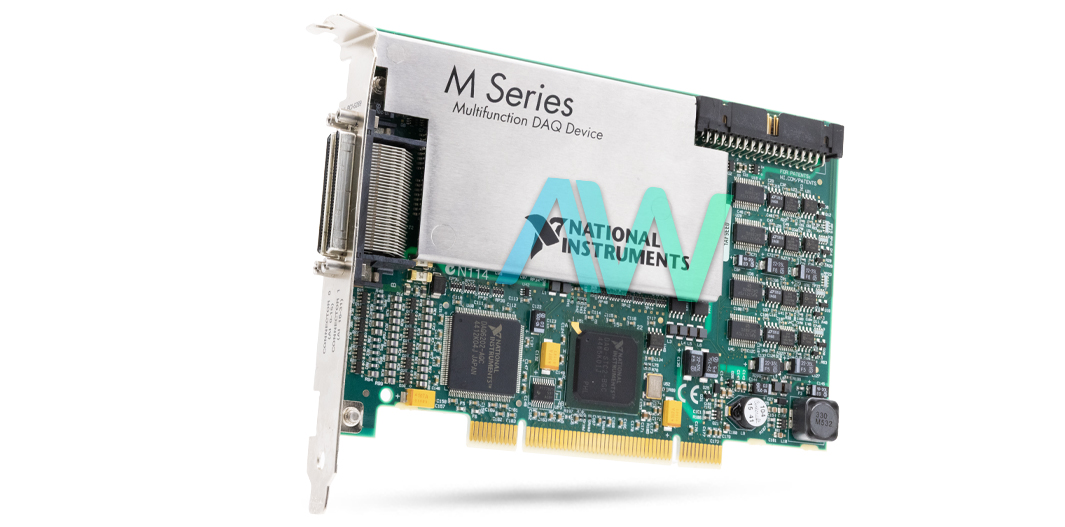

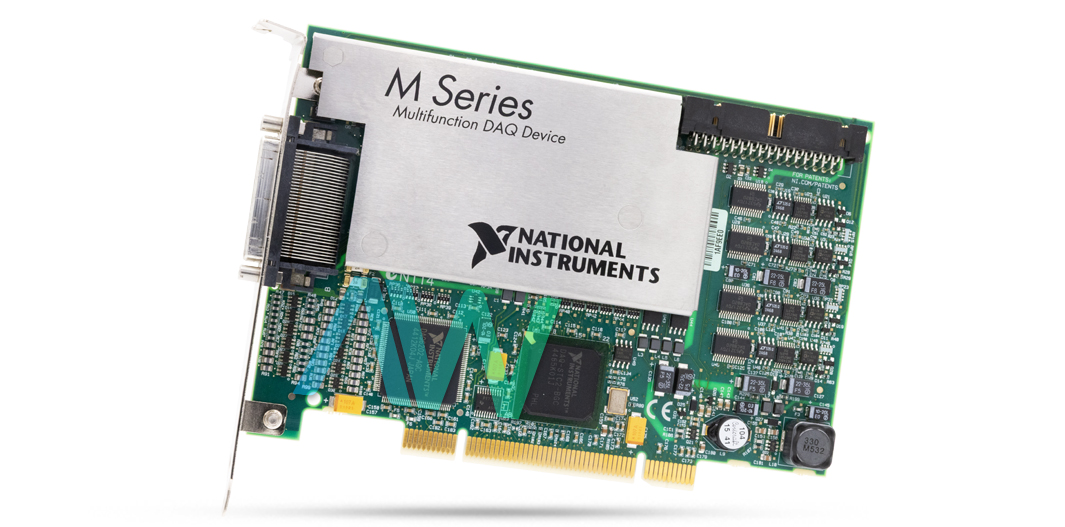

The National Instruments PCI-6289 (Part number: 779111-01) is a rapid M Series Multifunction Data Acquisition Module. This device has 32 single-ended analog input channels with each channel having a sample rate of 625 kS per second maximum, with an input FIFO size of 2,047 samples. There are also 16 differential analog input channels with each channel having an operating speed of up to 500 kS/s. The NI PCI-6289 has the functional analog to digital 18-bit resolution. The timing precision of the sample rate is around 50 ppm. There is a DC coupling system in analog inputs. The timing resolution is 50 nanoseconds. The variable input voltage range is from ±0.1 V to ±10 V. The input impedance is > 10 GΩ. The NI PCI 6289 is capable of handling input current up to ±100 pA.
The National Instruments PCI 6289 consists of 4 analog output channels. The range of the sampling rate is 1.25 MS/s up to 2.86 MS/s for these channels. The timing precision and timing resolution are the same as the analog input channels. These channels can operate at a digital to analog converting resolution of 16-bits. The PCI 6289 has 48 digital I/O lines, and 2 counter/timer I/O lines with a 32-bit resolution and a frequency of 80 MHz. It has 1 frequency generator with base clocks of 10 MHz and 100 kHz, and a base clock accuracy of 50 ppm. The device is equipped with 2 68-pin VHDCI I/O connectors.
The output analog channels have the capacity to drive the current to ±5 mA. They are eligible to provide protection against overvoltage and overcurrent. The overvoltage range protection is ±25 V, while the overcurrent protection is 20 mA. The maximum output voltage level is similar to the maximum input voltage level; this figure is about ±11 V. The National Instruments PCI-6289 is capable of transferring data through the PCI bus and generating analog output waveforms. In analog output waveform mode, these waveforms can be periodic or non-periodic. It transfers data through the PCI bus using direct memory access (DMA), interrupts, or programmed I/O. The device weighs 0.37 lbs., and measures 4.2 x 6.1 in. in physical dimensions.
| Model | PCI-6289 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779111-01 |
| Series | M Series |
| Type | Multifunction DAQ |
| Analog Input Channels | 32 (18-Bit, 625 kS/s) or 16 differential |
| Analog Output Channels | 4 (16-Bit, 2.8 MS/s) |
| Digital Input/Output | 48 |
| TIming I/O | 2 Counter/Timer I/O (32 bits, 80 MHz) |
| Frequency Generator Channels | 1 |
| I/O Connectors | 2 68-pin VHDCI |
| Power Requirements | +5 V, +3.3 V, +12 V, -12 V -- 0.03 A, 0.78 A, 0.40 A, 0.06 A |
| Dimensions | 4.2 in. × 6.1 in. |
| Weight | 0.37 lb. |
| Driver Software | NI-DAQmx, NI-DAQmx Base |
| PCI-6289 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-6289:
National Instruments PCI-6289 Frequently Asked Questions
Question: Can you use different sampling rates for different channels on the PCI-6289?
Answer: Only one analog input task can take place on the Multifunction DAQ at a time, so it is not possible to have different sampling rates.
Question: Which accessories are required for the PCI-6289?
Answer: The PCI-6289 requires a connector block, such as the BNC-2090A Rack-mountable accessory (Part Number: 779556-01), SCB-68A Noise Rejecting, Shielded I/O Connector Block (Part Number: 782536-01), TBX-68, 68-pin screw terminal connector block (Part Number: 777141-01), BNC-2110 Noise Rejecting, Shielded BNC Connector Block (Part Number: 777643-01), CB-68LPR I/O Connector Block (Part Number: 777145-02), or CB-68LP Low-Cost, Unshielded I/O Connector Block (Part Number: 777145-01). The other required accessory is a multifunction cable, which has many options to choose from.
Question: Does the device need to be calibrated?
Answer: Yes, the NI PCI-6289 has a 2 year calibration interval.
Question: What is the required driver software?
Answer: The required driver software for the PCI-6289 is NI-DAQmx.
