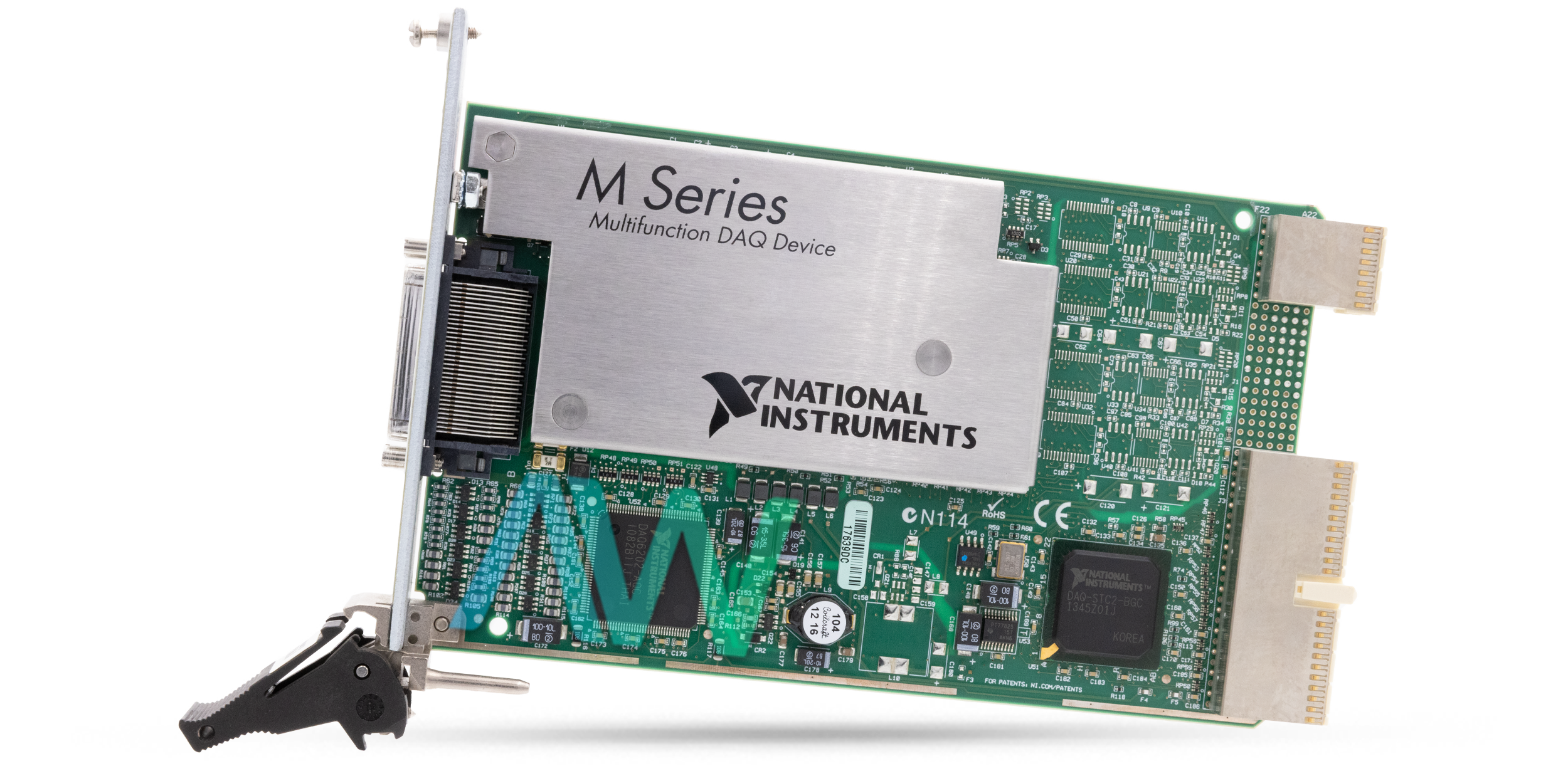

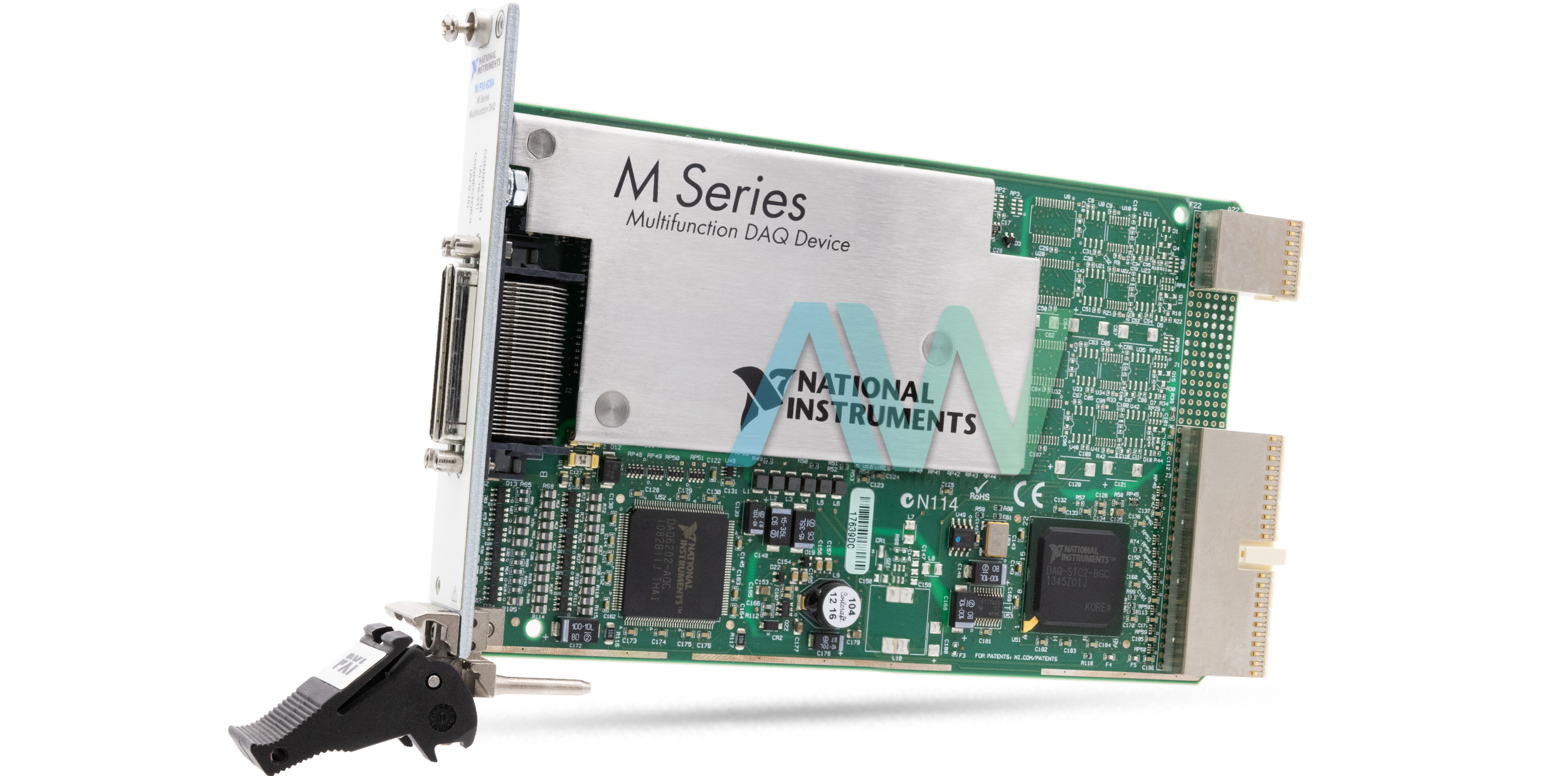

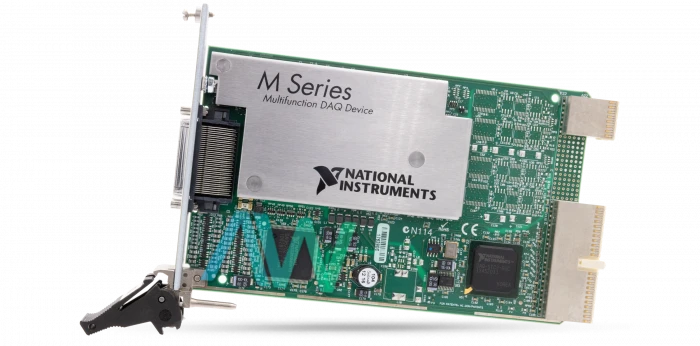

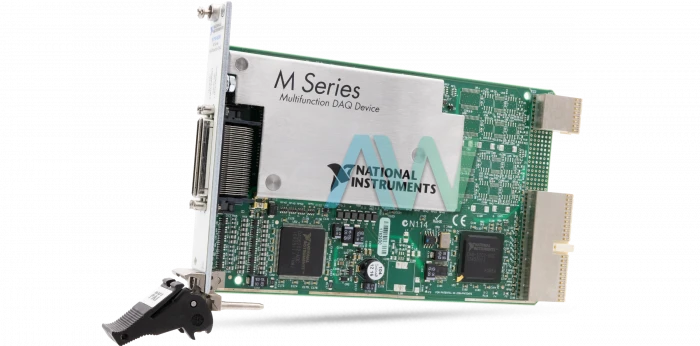

National Instruments PXI-6284 PXI Multifunction I/O Module

With the NI PXI-6284 (Part Number: 779122-01), PXI Multifunction I/O Module, the user can modify the scale that enables the counter to count a signal that is speedier than the greatest time base of the counter. This M Series module offers 8X and 2X prescaling in each counter (the pre-scaling capacity can be incapacitated). Every pre-scaler consists from a little, straightforward counter that counts to eight (or two) and rolls-over. This counter can run more quickly than the bigger counters, which essentially check the inverses of the smaller counter. Consequently, the pre-scaler acts as a frequency divider in the source and produces a frequency that is one-eighth (or half) of what it is tolerating.

The PXI-6284 Multifunction I/O Module offers a duplicate count prevention (or synchronous counting mode) that guarantees that a counter returns correct data in applications that use a slow or non-periodic outside source. Duplicate count prevention applies just to buffered counter applications, such as estimating the frequency or period. In such buffered applications, the counter should store the number of times an outside source pulses between rising edges on the gate signal.

The NI PXI-6284 also offers a digital isolation function. Unlike analog isolators, digital isolators do not present any analog error in the estimations taken by the gadget. The A/D converter, utilized for analog input, is on the isolated side of the gadget. The analog data sources are digitized before they are sent over the isolation barrier. Likewise, the D/A converters, utilized for analog output, are on the isolated side of the gadget.

ModelPXI-6284 (779122-01)
ManufacturerNational Instruments
SeriesM Series
TypePXI Multifunction I/O Module
Analog Input Channels32
Analog Input Resolution18 bits
DimensionsStandard 3U PXI
Weight8.1 oz.
WarrantyOne Year Warranty
PXI-6284 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-6284 Frequently Asked Questions



Question: How many bidirectional digital channels are on the NI PXI-6284?



Answer: There are 48 bidirectional digital channels on the NI PXI-6284.



Question: What is the analog input FIFO buffer size of the PXI-6284?



Answer: The PXI-6284 has an analog input FIFO buffer size of 2,047 samples.



Question: How many I/O connectors are on the PXI-6284?



Answer: There are two 68-pin VHDCI I/O connectors on the PXI-6284.



Question: What is the sample rate of the NI PXI-6284?



Answer: The sample rate of the NI PXI-6284 is 625 kS/s for one channel and 500 kS/s for all channels.
