National Instruments PCIe-8362 Device for PXI Remote Control

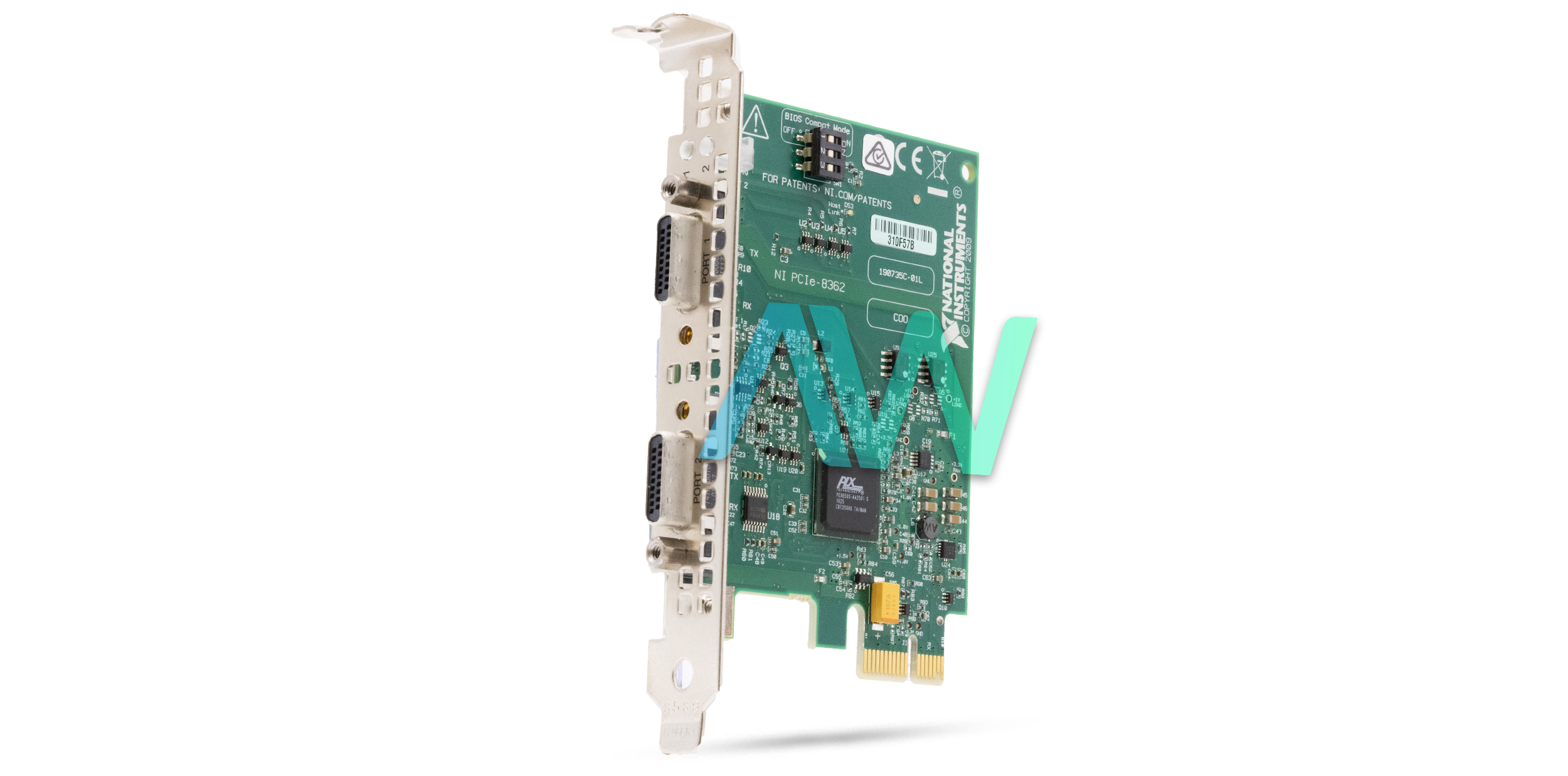

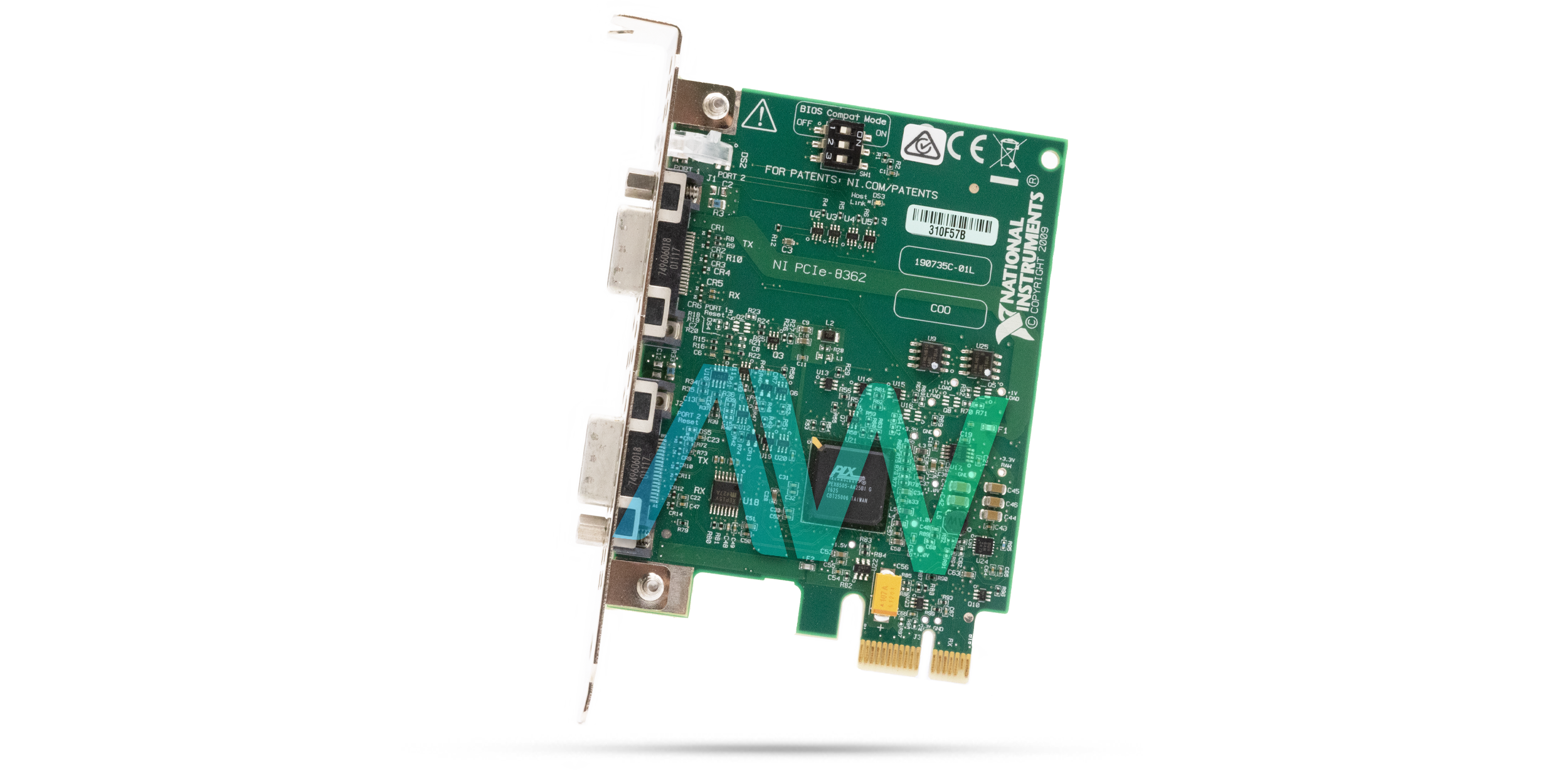

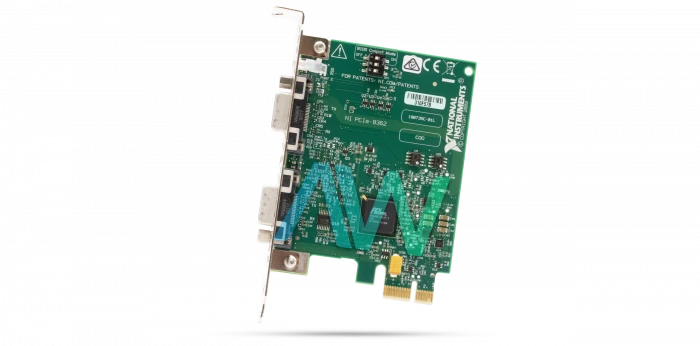

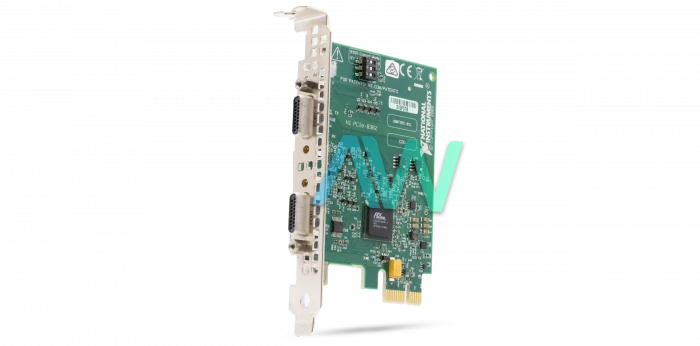

The National Instruments PCIe-8362 (Part Number: 779502-01) is an MXI-Express Remote Controller for gadgets or frameworks by means of PCI, wired from a PC with a PCI Express space. The PCIe-8362 is fully compatible with the PCI Express specification, revision 1.0a. When using a PXI framework control, the user can also utilize the PXIe-8362 module to connect due a copper link to a PCI Express x1 controller. This association is directly for arranging applications and controllers. With NI remote controllers, PXI modules can be utilized as though they were PCI gadgets introduced specifically on the PC. The NI PCIe-8362 device gives several PCI Express links, individually. The connections have x1 ("by one") path widths. The PCIe-8362 module incorporates a scaffold that changes over the PCI Express connect to the PCI bus utilized as a part of PXI. Along these lines, all PXI modules show up as PCI sheets inside the PC itself.

The user can utilize a solitary NI PCIe-8362 to control two PXI frameworks at the same time. The user can also join many different NI PCIe-8361 or PCIe-8362 devices in a PC with various PCI Express openings to add a PXI frame to a system. The NI PCIe-8362, for instance, has two MXI-Express x1 ports. This enables the device to interface to two targets at the same time, otherwise called a star design or star topology. Likewise, if different PCI or PCI Express openings are accessible in the host PC, extra PXI or PXI Express undercarriage can be associated by introducing extra NI MXI-Express x1 boards to accomplish a similar star topology. The NI device is equipped with an 18-pin PCI Express x1 DSUB cable connector. It has a sustained throughput of up to 100 MB per second.

The PCIe-8362 weighs 0.11 lb, and measures 3.91 x 2.8 in. in physical dimensions. The NI device has recommended operating and storage temperature ranges of 0 to 55 °C and -40 to 70 °C respectively, non-condensing operating and storage humidity ranges of 10 to 90% RH and 5 to 95% RH respectively. It is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, and CSA 61010-1.
