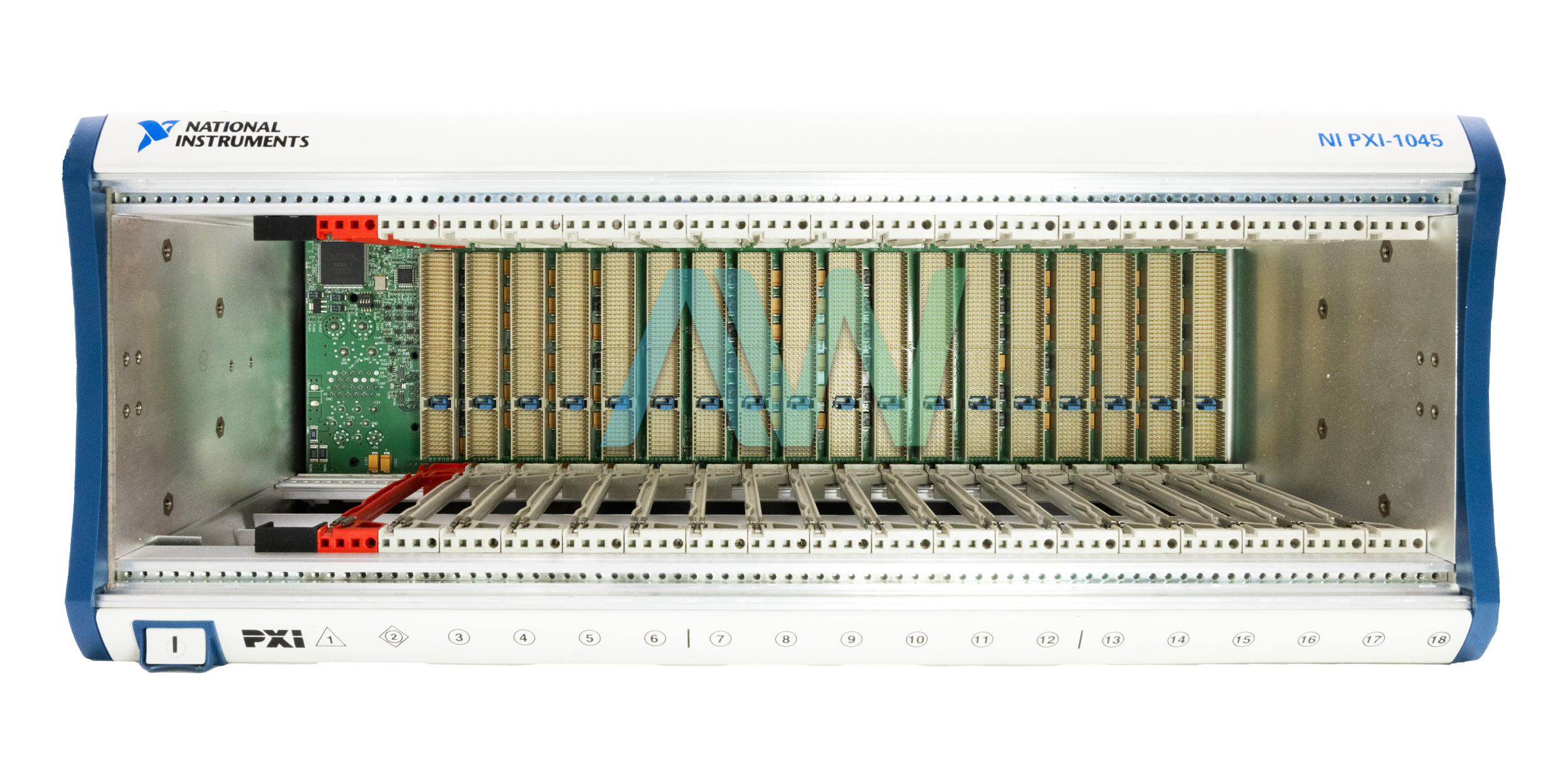

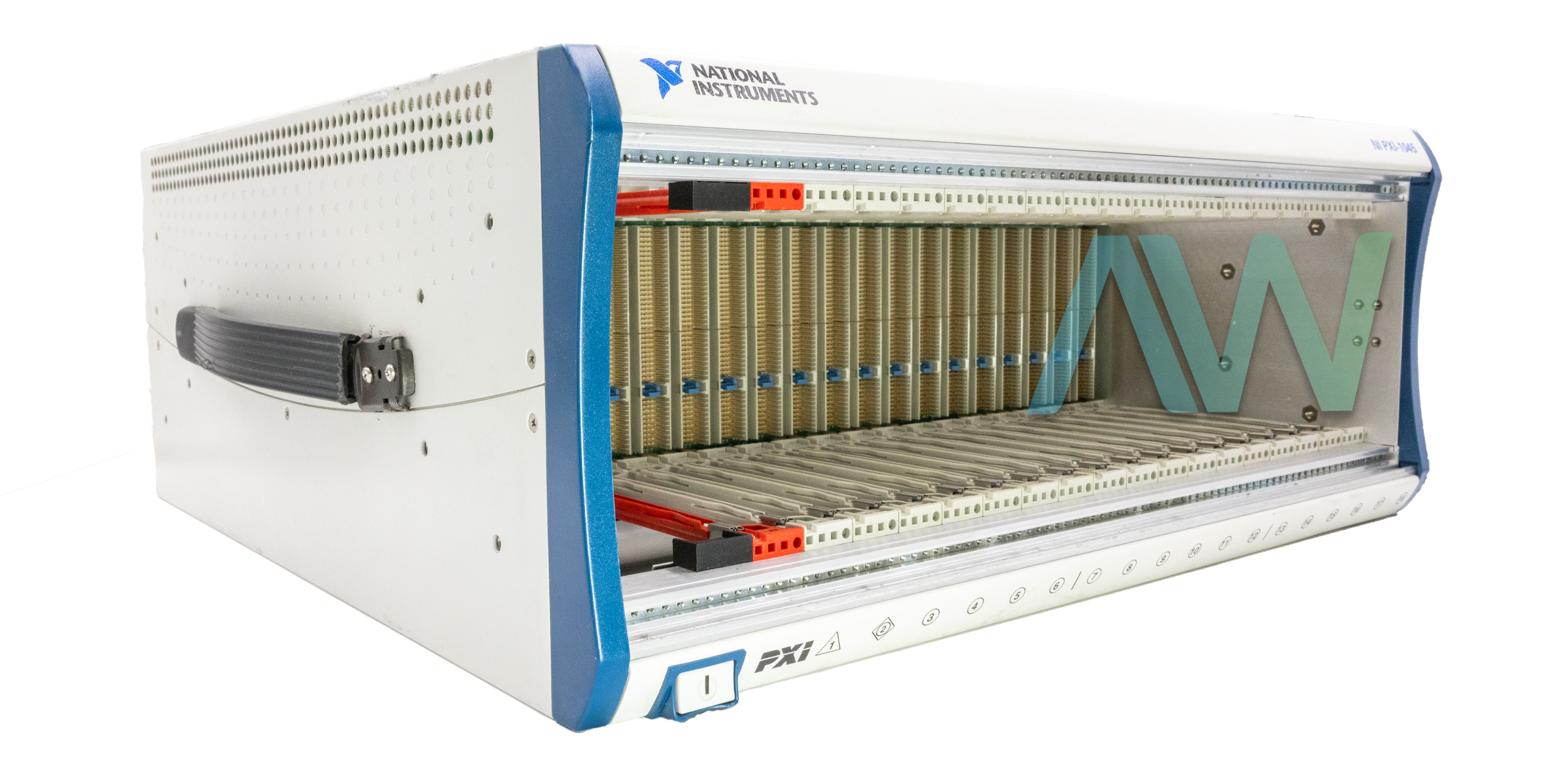

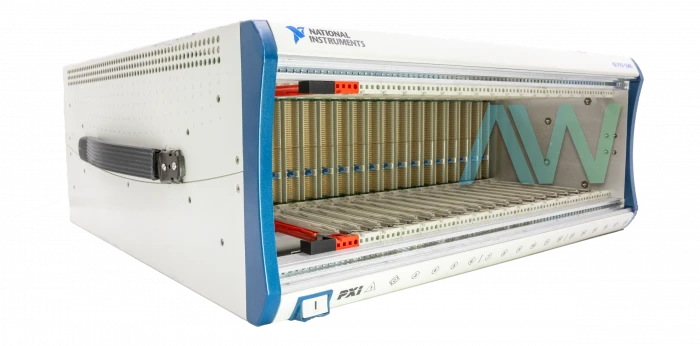

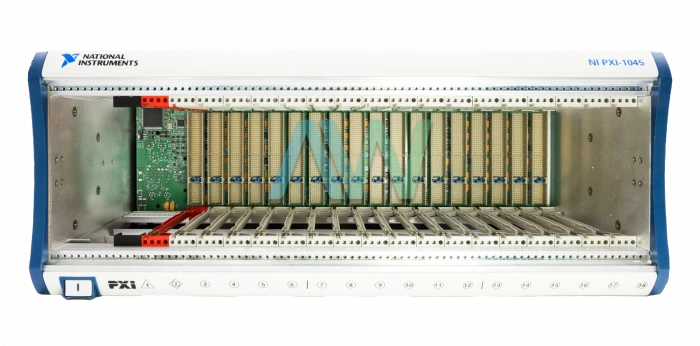

National Instruments PXI-1045 PXI Chassis

The National Instruments PXI-1045 (Part Numbers: 778645-01, 778644-01, 778644-02) is a high performance 18-slot Chassis intended for an extensive variety of applications, including automated testing, numerous-device synchronization, and other types of systems with a high-channel-count. Part number 778644-01 is a rack mounting kit for the front of the chassis, while part number 778645-02 is a rack mounting kit designed for the rear of the chassis. By automatically designing the trigger routing modules on the chassis backplane, triggers can be directed between gadgets easily. This CompactPCI-compatible Chassis includes a low-jitter 10 MHz reference clock for gadget synchronization. The device has a maximum system bandwidth of 132 MB per second. For importing or exporting framework reference clocks, the NI PXI-1045 incorporates two BNC I/O connectors on the back of the chassis.

A low-jitter 10 MHz framework reference clock is provided to every peripheral slot of the PXI-1045 Chassis. The user can utilize the interior framework reference clock, with a skew of under 250 ps between slots to synchronize different gadgets and perform one of a kind phase connected estimations. The PXI-1045 Chassis operates on the NI PXI chassis software. The software can be configured with the NI Measurement & Automation Explorer (MAX) tool. This software configuration tool allows the user to configure PXI systems with ease because it is not necessary to manually install initialization files. MAX enables users to save PXI trigger lines on the chassis backplane, therefore stopping devices from double-driving trigger lines. The device has a 10MHz REF IN and OUT BNC connector.

The PXI 1045 has three fans which offer 25 W cooling capacity in every slot when set to low or 24 W when the fan speed is on high. The NI PXI-1045 highlights an AUTO/HIGH fan-speed selector that gives a HIGH fan setting to amplify cooling and an AUTO fan setting to limit acoustic discharges. When it is set to AUTO, the PXI-1045 Chassis screens air consumption temperature and changes fan speed. This PXI Chassis also has an AC power supply, which can be replaced with NI part number 778647-01. The device weighs 27.8 lb and has the dimensions 6.97 x 17.54 x 17.12 in. User manuals and additional manuals for the PXI-1045 can be found under the "Manuals & PDFs" tab.

PXI-1045 Mature Status has been announced by National Instruments, but the PXI Chassis will still be available for purchase and repairs by Apex Waves.

ModelPXI-1045
ManufacturerNational Instruments
Part Number778645-01, 778644-01, 778644-02
TypePXI Chassis
HTS Code8473305100, 8302500000 (For Part Numbers 778644-02 ,778644-01), 8473305100 (For Part Number 778645-03), 8473301180 (For Part Number 780973-01)
Slots18
Slot Cooling Capacity25 W
Maximum System Bandwidth132 MB/s
Dimensions6.97 in. x 17.54 in. x 17.12 in.
Weight27.8 lb.
WarrantyThree Year Warranty
PXI-1045 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-1045:

200071B-01, 200071C-01, 279397A-01, 778645-01, 778645-03, 778645-31, 778645-32, 780973-01, 781807-01, 186126B-11, 186126B-12, 186126B-13, 186126C-13, 1881.93, 188193B-02, 188193C-02, 188193D-02, 188193F-02L, 188193H-02L, 188342A-01, 188342B-01, 188342C-01, 188342C-02, 188370A-01, 188370B-01, 188370C-01L, 18910.6, 189105B-01, 189105C-01, 189105D-01, 189105F-01, 189105G-01, 189105H-01, 189105J-01, 189105K-01L, 189105L-01L, 189106C-01, 189106D-01, 189106F-01, 189106G-01, 189106H-01, 189106H-01L, 189106J-01L, 189106K-01L, 189106L-01L, 189196C-01, 191933A-01, 191933B-01, 191933C-01L, 191933C-02L, 191933D-01L, 19250.1, 192501A-01, 192501C-01, 192501D-01, 192539C-01, 192591A-01, 192591B-01


Associated NSNs for the PXI-1045:

5975-01-549-9989 (5975015499989), 5975016081798, 5975-01-608-1798 (5975016081798)

National Instruments PXI-1045 Frequently Asked Questions



Question: Which accessories can be used with the PXI 1045?

Answer: AN IEC power cord is required for use with the PXI 1045. Optional accessories include a replacement power supply and fan shuttle, a front rack-mount kit, a back rack-mount kit, chassis filler panels, and fan filters.



Question: What is the maximum clock skew between slots on the PXI-1045 Chassis?

Answer: The maximum clock skew between slots on the PXI-1045 Chassis is 250 ps.



Question: How many slots does the NI PXI-1045 have?

Answer: There are 18 PXI slots on the NI PXI-1045 (1 system controller slot and 17 peripheral slots). There are three system controller expansion slots to the left of the system controller slot as well.



Question: Which types of modules are compatible with the NI PXI 1045?

Answer: CompactPCI (PICMG 2.0 R 3.0) and PXI modules are compatible with the NI PXI 1045.



Question:  What is the max power consumption of the PXI-1045 chassis itself?

Answer: The PXI-1045 has an empty chassis power draw of about 89 W.



Question: Can the PXI-8250 be used with the PXI-1045 chassis?

Answer: Yes, the PXI-1045 is compatible with the PXI-8250.
