PXI-PCIe8362

5/5 | 18 ratings

Modular Systems > National Instruments > MXI-Express x1 Series

Part Number PXI-PCIe8362
Manufacturer/Brand National Instruments
Description: PXI-PCIe8362, 1-Slot, MXI-Express Kit
Request for Availablility
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for pricing & lead time:


National Instruments PXI-PCIe8362 MXI-Express Kit

The National Instruments PXI-PCIe8362 (Part Number: 779503-03) is a kit that allows the user to control CompactPCI and PXI systems from their PCI Express-equipped and enabled desktop computers or server PCs. This kit utilizes a high-bandwidth, completely transparent, cable-based MXI-Express link comprising of a PCI Express board (available on the host machine) connected through an MXI-Express cable to a PXI module installed in slot 1 of any compatible PXI chassis. This kit comes equipped with the PCI Express board that has 2 x 1 PCI Express links. This model is superior to its predecessor model, the NI PXI-PCIe8361, where a single PCI Express link is provided. With this model, the user can utilize both links to separate PXI chassis. Thus, a net of 160 MB/s stable throughput can be achieved.

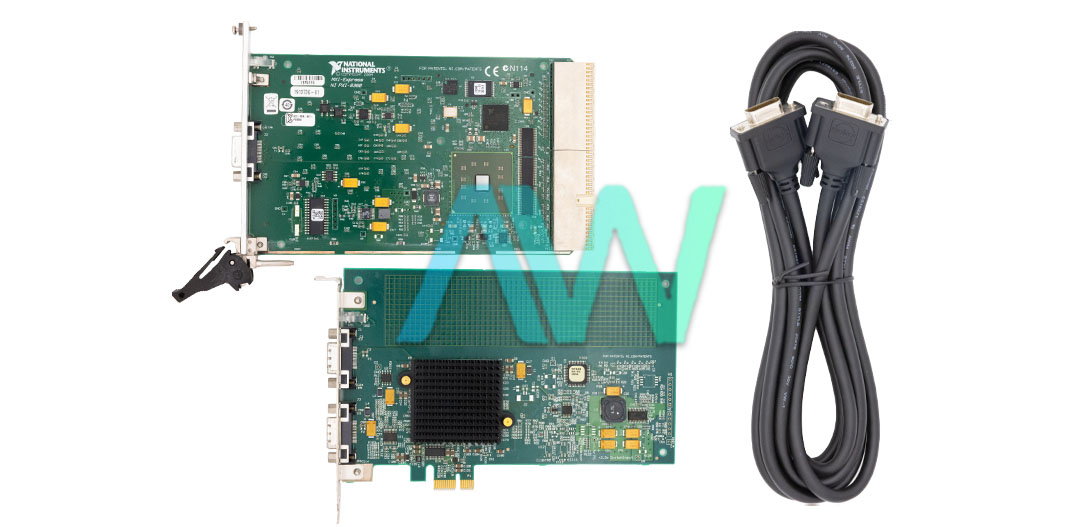

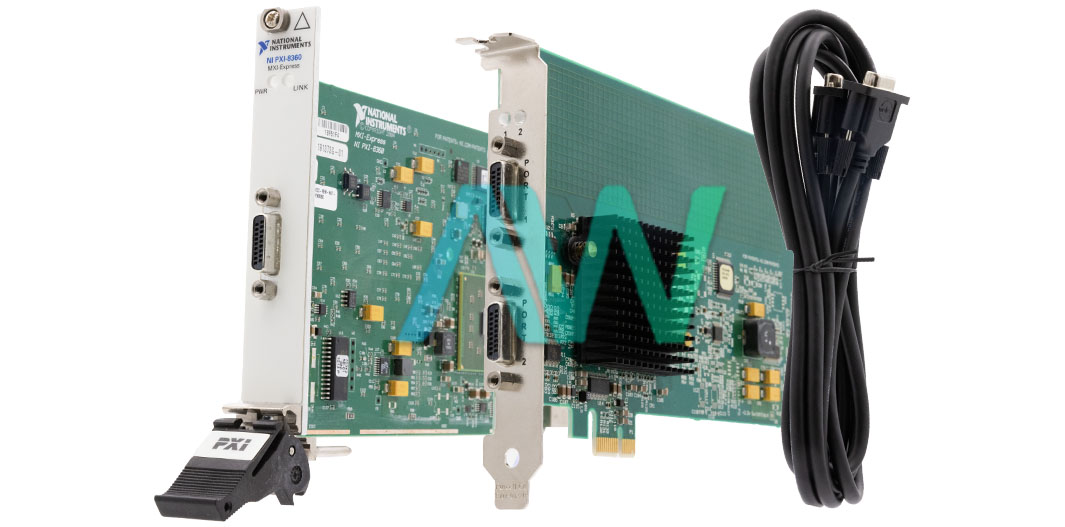

This model comes with an integrated PXI-8360 module, which incorporates a PCI Express-to-PCI bridge. By utilizing the MXI-Express link, the user can access PXI modules as if they are PCI boards, installed directly on the user’s PC. The NI PXI-PCIe8362 MXI-Express Kit allows up to 7 m cable length with screw-in connectors. This kit requires one compatible slot and is fully compatible with Microsoft Windows. In its standard configuration, the NI PXI-PCIe8362 will bring one PCI Express Board (NI PCIe-8362), one PXI Module (PXI-8360), and one 3 m cable. This system allows the user transparent controlling of a PXI system as within the host machine (PC, Server, etc.), where each of the PXI modules will appear as an independent PCI board.

ModelPXI-PCIe8362 (779503-03)
ManufacturerNational Instruments
SeriesMXI-Express x1 Series
TypeMXI-Express Kit
Slot Requirement1
Maximum Cable Lngth7 m
Board Dimensions16 x 10 cm.
Operating SystemWindows
WarrantyOne Year Warranty
PXI-PCIe8362 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-PCIe8362 Frequently Asked Questions



Question: What type of controller does the PXI-PCIe8362 have?



Answer: The PXI-PCIe8362 has a remote controller.



Question: What is the maximum throughput that can be maintained for the NI PXI-PCIe8362?



Answer: When the NI PXI-PCIe8362 is used with one chassis, the maximum throughput that can be maintained is 110 MB/s. For two chassis, the maximum throughput is 160 MB/s.



Question: What type of cable comes with the PXI-PCIe8362 MXI-Express kit?



Answer: The PXI-PCIe8362 MXI-Express kit comes with a 3 m copper cable.



Question: How many ports does the PXI-PCIe8362 have?



Answer: The PXI-PCIe8362 has a 2 port PCIe.
