PXI-6624 In Stock | Ships Today
PXI-6624, 8-Channel, PXI Counter/Timer Module
Need an Official Quote?

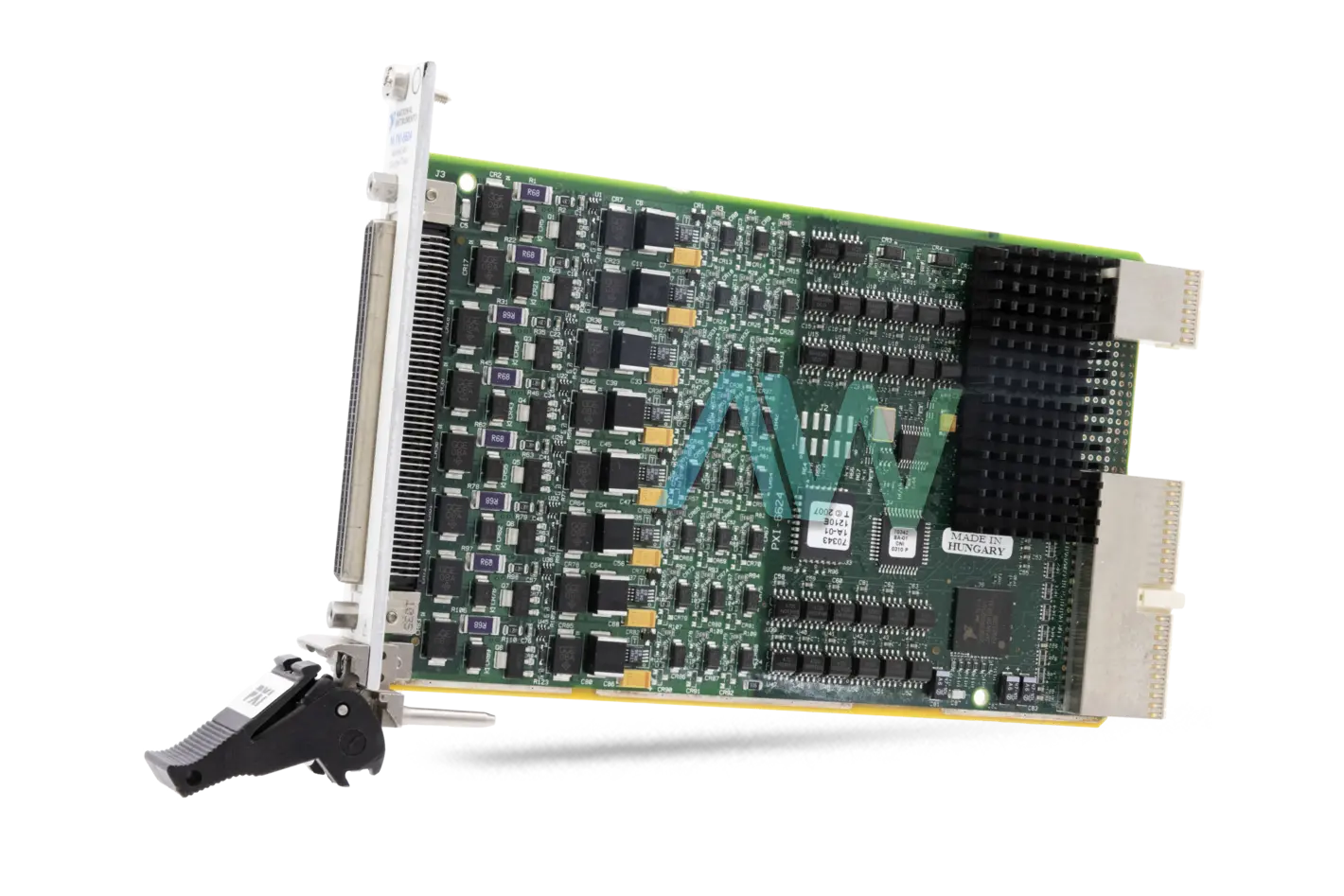

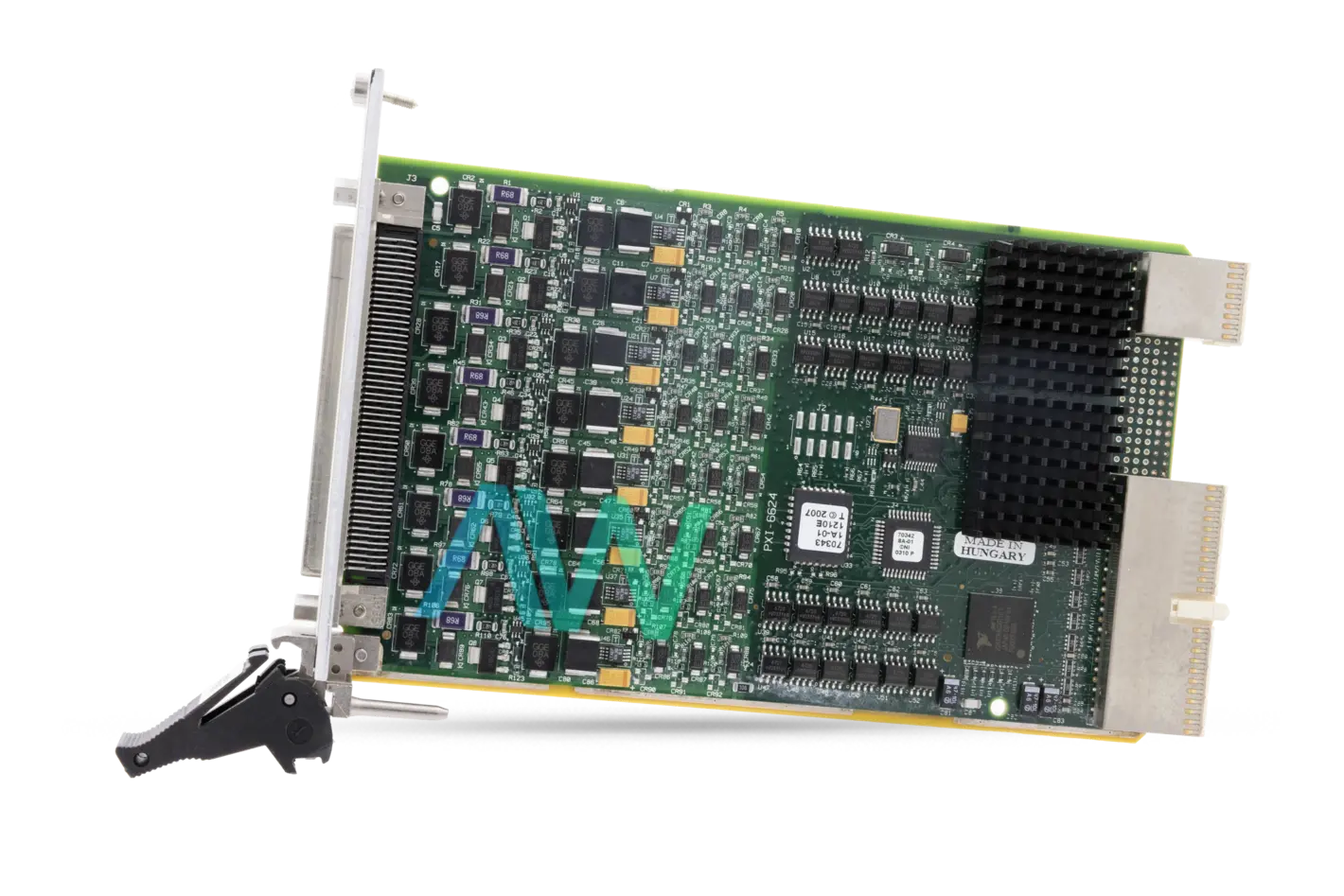

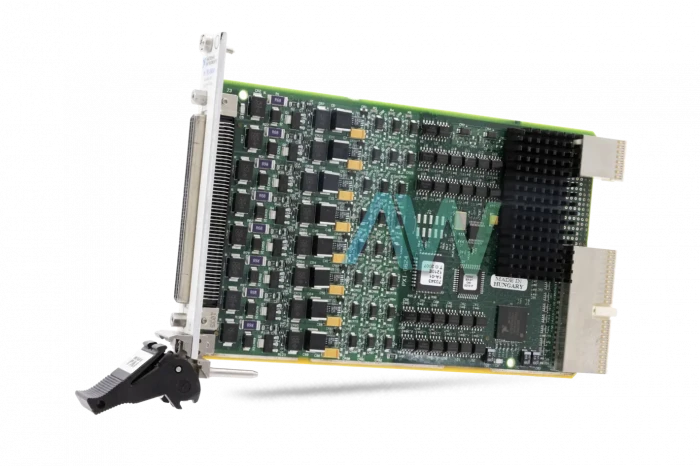

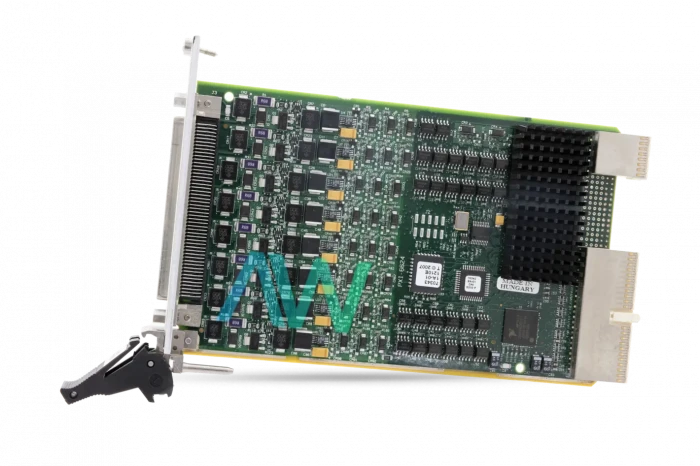

National Instruments PXI-6624 PXI Counter/Timer Module
The 48 VDC, 8 Channel Isolation PXI-6624 (Part Number: 778975-01) Counter/Timer Module performs a wide assortment of counter/clock tasks, including: event counting, frequency/period estimation, quadrature coder position estimation, pulse width estimation, pulse generation, and generation of pulse series. It has I/O with isolation between 48 VDC channels, eight counters/clocks, 26 digital sources of inputs, and eight digital outputs. The National Instruments PXI-6624 also has 60 V Ch-Ch Isolation, a PXI hybrid bus connector, and 400 kHz source and measure frequency.
Example applications additionally incorporate re-separable pulse generation, flange separation estimations of two signals, continuous event count with buffer, and continuous estimations of the buffer train with buffer. The NI PXI 6624 offers superior industrial strength attributes for a wide assortment of uses, such as car/aviation applications, industrial/motion control, and assembling testing.
With the NI PXI-6624, the user can connect sensors directly with Channel-Channel Isolation. This is a type of inherent signal conditioning that provides several advantages. Isolation provides an extended voltage range to direct connection to industrial sensors and actuators. Isolation also enhances signal quality and secures PC hardware. The PXI-6624 Counter/Timer Module provides channel-channel isolation where each channel is physically and electronically separated from the others, which breaks ground loops, enhances regular mode voltage and noise rejection, and permits the two sections of the circuit to be at various voltage levels. Numerous industrial applications require isolation to protect the electronics from transient voltage spikes and give more noteworthy common-mode noise rejection in electrically noisy environments containing apparatus and inductive loads.
Model | PXI-6624 (778975-01) |
---|---|
Manufacturer | National Instruments |
Series | NI-660x Series |
Type | PXI Counter/Timer Module |
Frequency | 400 kHz |
Counters/Timers | 8 |
Dimensions | 6.3 x 3.9 in. |
I/O Connector | 100-pin female SCSI-II type |
Warranty | 2-3 Year Warranty |
PXI-6624 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PXI-6624:
19128.3, 191283A-01, 191283B-01, 191283C-01, 191283D-01, 191283F-01L, 191283G-01L, 191283H-01L, 778975-01
Associated NSNs for the PXI-6624:
5998-01-609-3239 (5998016093239)
National Instruments PXI-6624 Frequently Asked Questions
Question: Does the NI PXI 6624 have an onboard high precision oscillator?
Answer: No, the NI PXI 6624 does not have an onboard high precision oscillator.
Question: What is the resolution of the counters/timers on the PXI-6624?
Answer: The counters/timers on the PXI-6624 have 32-bit resolution.
Question: What is the power requirement for the NI PXI-6624?
Answer: The NI PXI-6624 has a power requirement of 0.75 A from + 5 V rail and 0.15 A from +3.3 V rail.
Question: What is the voltage range of the PXI-6624?
Answer: The PXI-6624 has a voltage range of 48 VDC maximum.
PXI-6624 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PXI PXI EXPRESS.PDF
GUIDE D_INITIATION DAQ POUR PXI PXI EXPRESS.PDF
NI 6624 CALIBRATION PROCEDURE.PDF
NI 66XX PINOUT LABEL FOR THE SCB 100A NOTE TO USERS.PDF
NI 66XX PINOUT LABELS FOR THE SCB 100 NOTE TO USERS.PDF
PXI-6624 LETTER OF VOLATILITY.PDF
PXI-6624 Diagrams
