R1005050
Modular Systems > National Instruments > NI Cables
| Description: | R1005050, 100-Pin, Male D-SUB to 50-Pin, Female IDC, Ribbon Cable |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com
National Instruments R1005050 Ribbon Cable

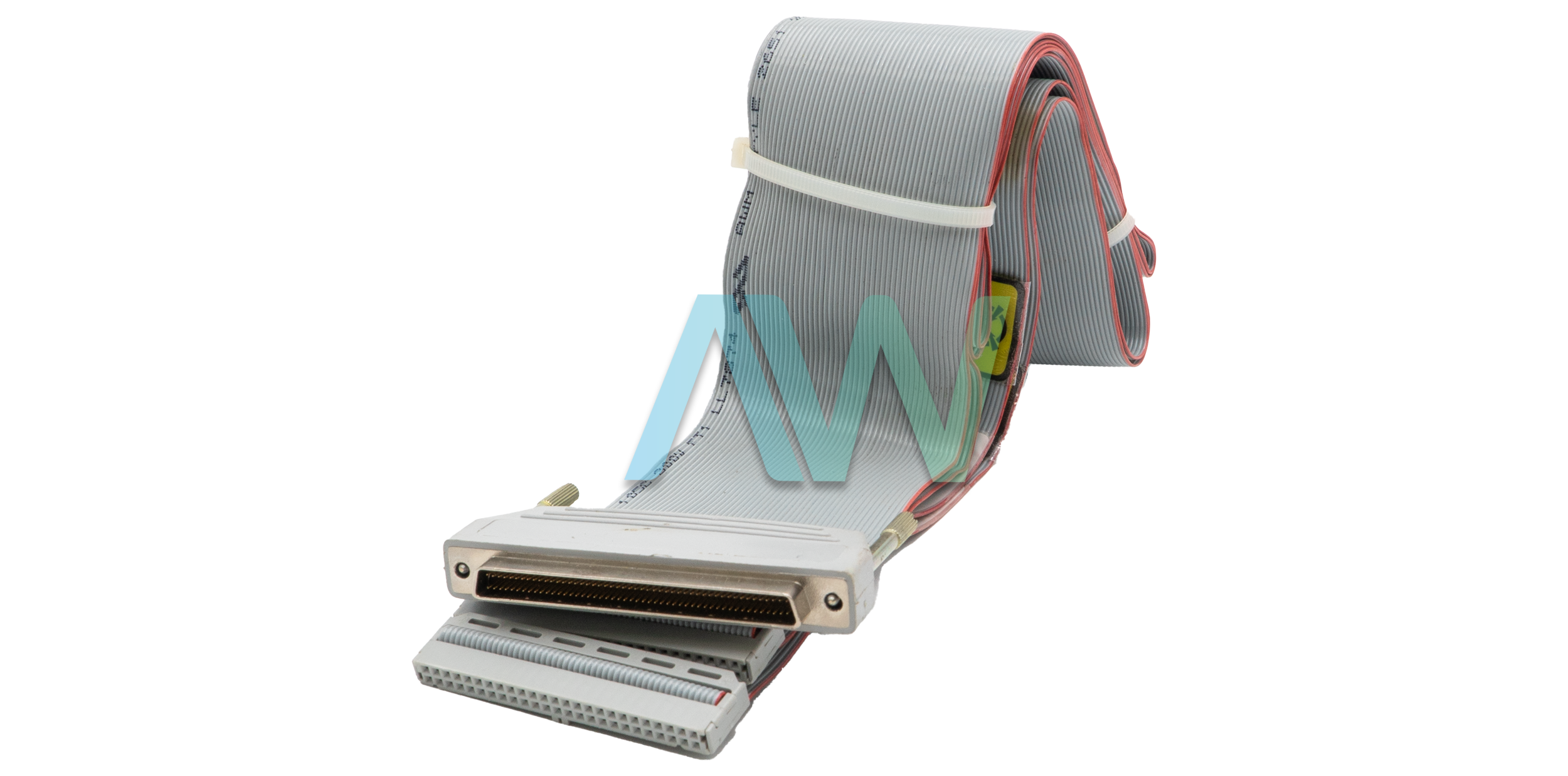

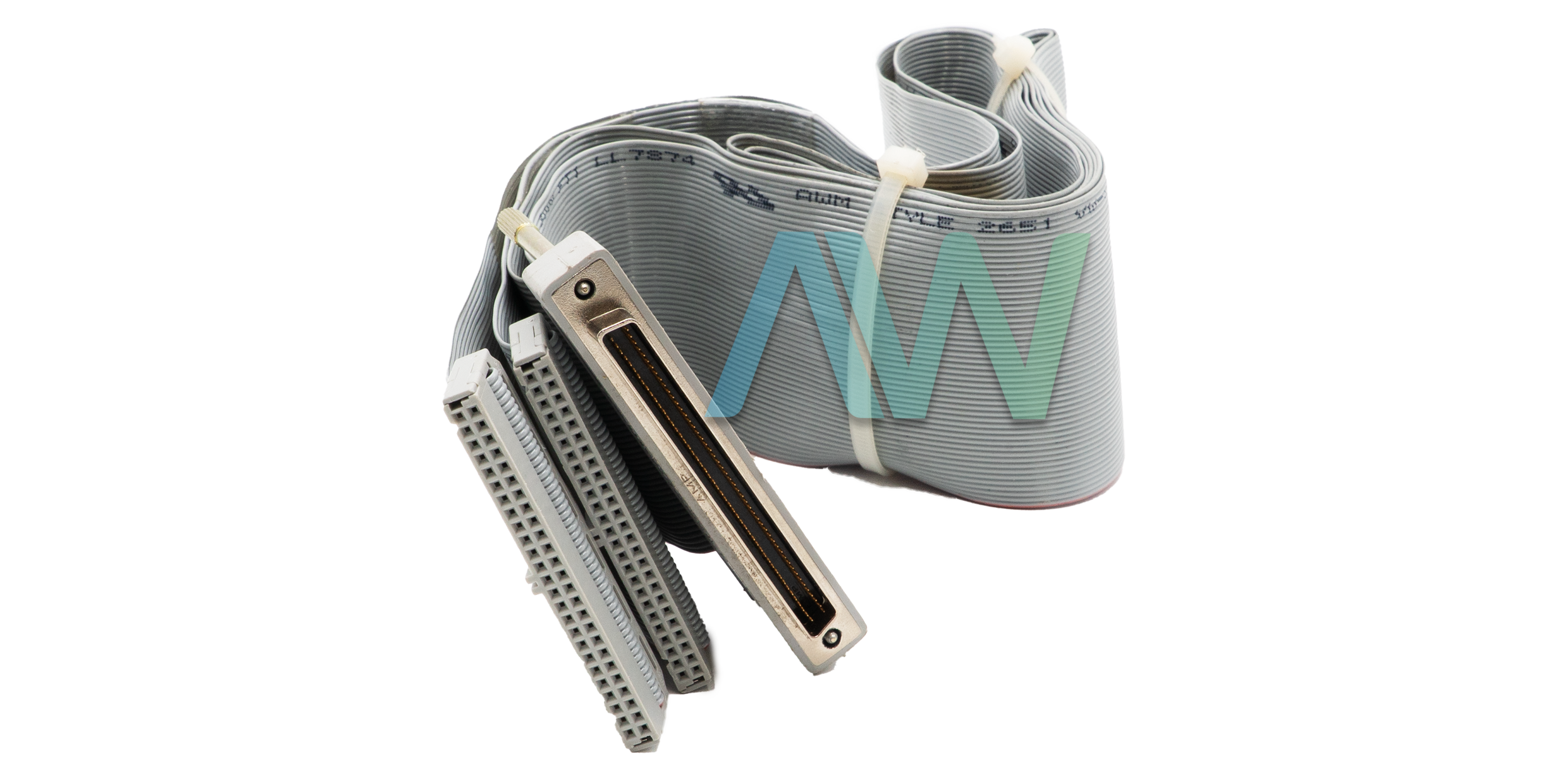

The R1005050 (Part Numbers: 182762-0R5, 182762-01, and 182762-02) is a low-cost, unshielded ribbon cable from National Instruments. This cable has a length of 1 meter and is widely used with 100-pin National Instruments hardware, such as the NI-6527 or NI-6508. The National Instruments R1005050 is a “Y” type cable, which means it is an assembly of three connectors and two 50-pin cables. Both 50-pin cables terminate in a 100-pin single connector on one end. On the free ends, the cable has individual 50-pin connectors.
The 100-pin connector plugs into the 100-pin I/O connector provided on the NI device. The 50-pin connectors can be connected to various 50-pin National Instruments accessories. The two 50-pin connectors on this cable are IDC (insulation-displacement contact) type connectors. These 50-pin IDC connectors are made from a special plastic material to ensure safe operations in elevated operating temperatures.
| Model | R1005050 (R100M-50F-50F) |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 182762-0R5, 182762-01, and 182762-02 |
| Type | Ribbon Cable |
| Shielded | No |
| Connectors | 50-pin |
| Cable Length | 1 m |
| Warranty | 2-3 Year Warranty |
| R1005050 Manual | User Manual and Maintenance Manual Available for Download |
Associated NSNs for the R1005050:
6150-01-517-0100 (6150015170100), 6150-01-567-7821 (6150015677821)
R1005050 PDF Manuals
6023E 6024E 6025E USER MANUAL.PDF
ARCHIVED AT E SERIES USER MANUAL.PDF
ARCHIVED ER 8 16 USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED FLEXMOTION 6C HARDWARE USER MANUAL.PDF
ARCHIVED FLEXMOTION HARDWARE USER MANUAL.PDF
ARCHIVED LABVIEW DATA ACQUISITION BASICS MANUAL.PDF
ARCHIVED SC 2042 RTD USER MANUAL.PDF
ARCHIVED SC 2043 SG USER MANUAL.PDF
ARCHIVED SSR SERIES MODULES AND BACKPLANES USER GUIDE.PDF
CB 100 I O CONNECTOR BLOCK INSTALLATION GUIDE.PDF
NI 6528 6529 USER GUIDE AND SPECIFICATIONS.PDF
NI USB 6509 USER GUIDE AND SPECIFICATIONS.PDF
