Part Number PCIe-6509
Manufacturer/Brand National Instruments
Description: PCIe-6509, 96-Channel, 24 mA, Digital I/O Device
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments PCIe-6509 Digital I/O Device

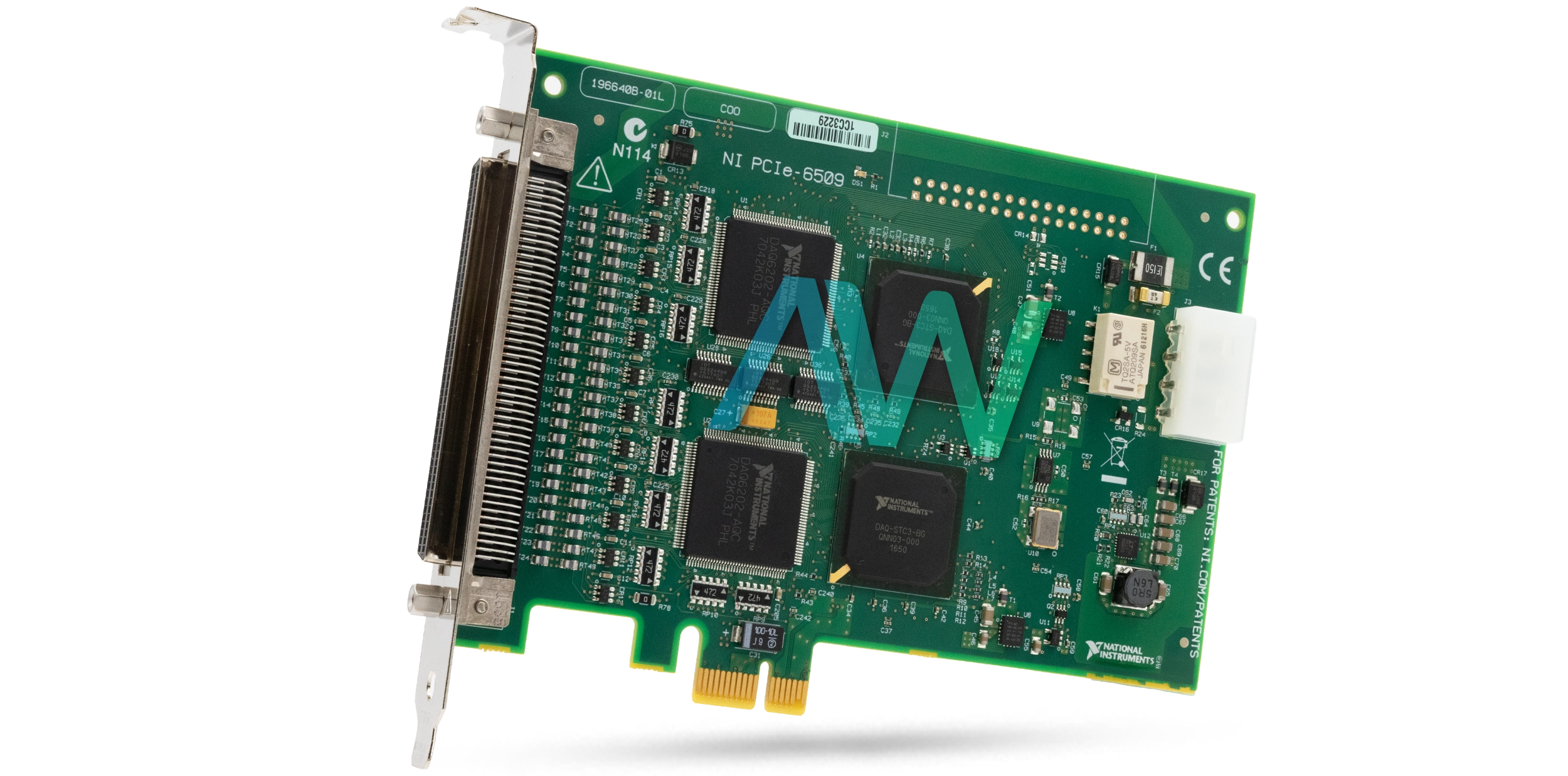

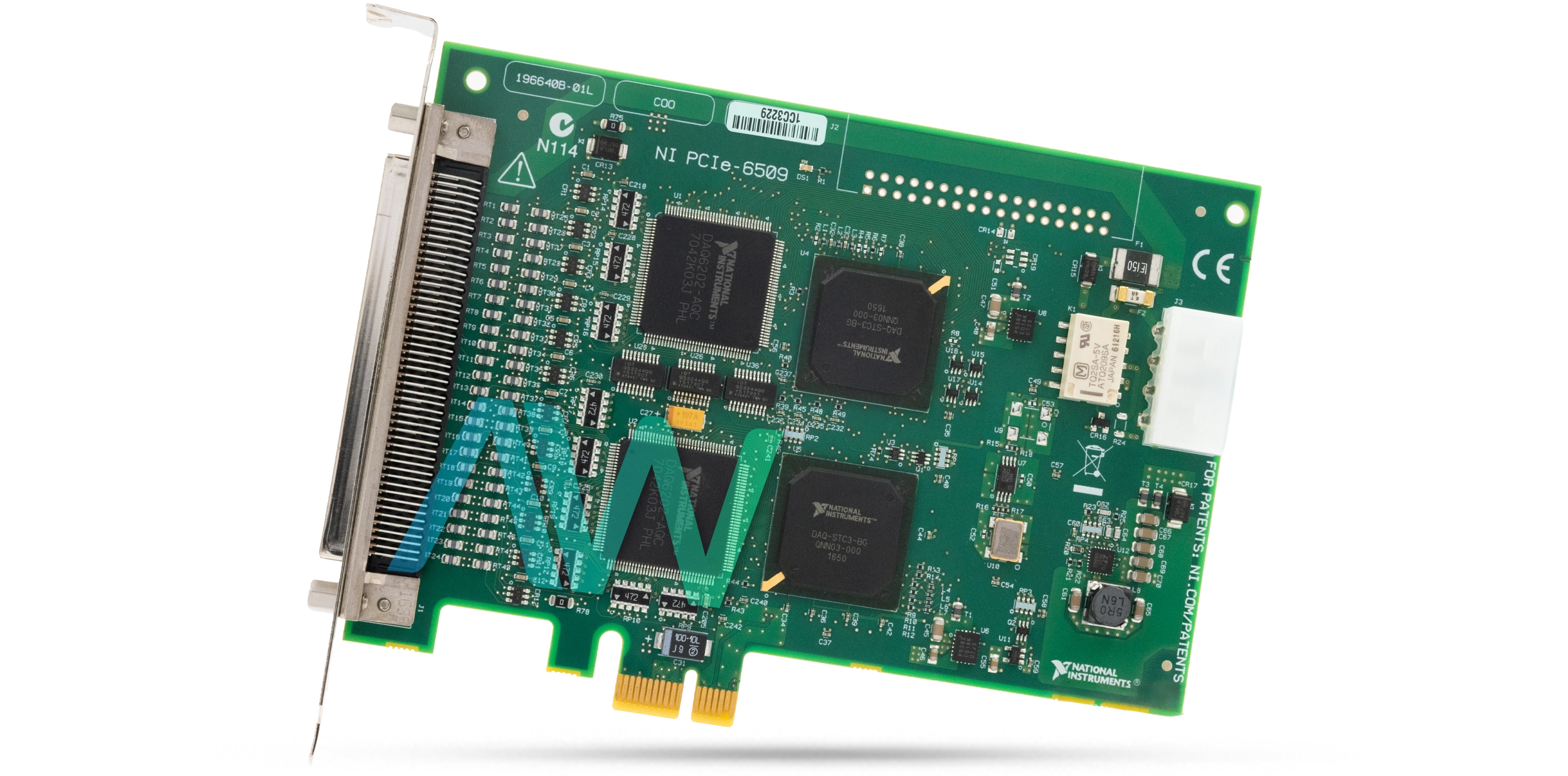

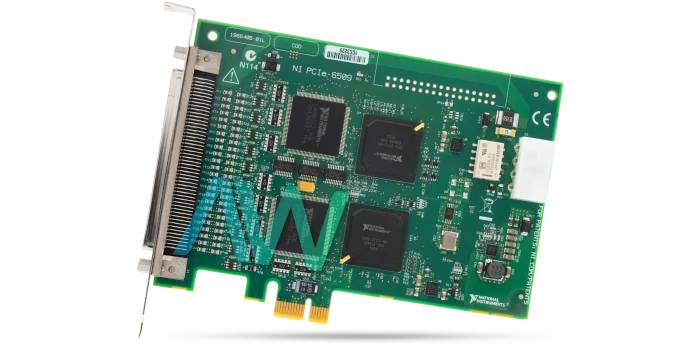

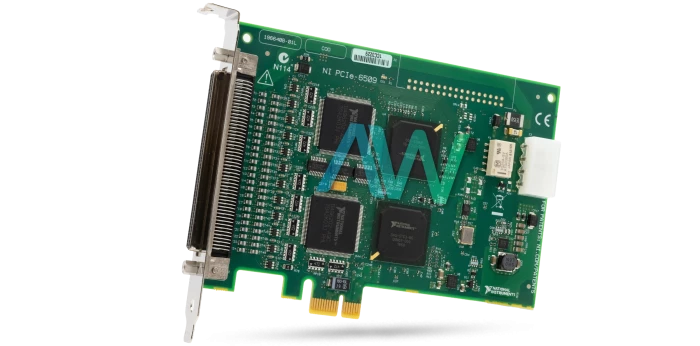

The PCIe-6509 (Part number: 779976-01, 196640C-01L) is an advanced Digital I/O Device from National Instruments. The device comes with 96 digital I/O channels. These channels are bidirectional in nature. The value of the current drive for each channel is 24 mili-amperes. This device comes with the capability to drive external devices directly; this mainly includes the relays that are solid state. It also offers the flexibility to configure any port as an input or output port for the data. The NI PCIe-6509 Digital I/O Device also features programming capabilities, which allows the user to configure output parameters for different operational requirements.

The NI PCIe-6509 Digital I/O Device has multiple accessories available, including cables and connectors of different types. It enables the user to quickly set up the device. The instrument is also compatible with single-ended GND referenced TTL Schmitt Triggers/CMOS. The user can also control the output power of the device with the help of software. The NI PCIe-6509 device also has a protection mechanism against the input voltage. It has the maximum value of ± 20 volts. This value is up to two pins of the NI PCIe-6509 Digital I/O Device.

The NI PCIe-6509 Digital I/O Device has the voltage range of 0 to 5 volts for the digital inputs only. The range for output voltages is from -0.5 to 5.5 volts. This model has a PCI Express bus connector. It also incorporates the in-house watchdogs. It helps enable the mechanism to recover the instrument from fault state. The device is equipped with a 100-pin female 0.050 series SCSI I/O connector.

The PCIe-6509 is run using the NI-DAQmx driver software which is compatible with software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, Measurement Studio, or Visual Basic.

The NI device weighs 0.21 lb, and measures 5.6 x 4.1 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of –20 °C to 70 °C, and an operating and nonoperating random vibration of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 Hz to 500 Hz.

ModelPCIe-6509
ManufacturerNational Instruments
Part Number779976-01, 196640C-01L
TypeDigital I/O Device
Digital I/O96
CompatibilityTTL Schmitt Trigger/CMOS, single-ended GND referenced
I/O Connector100-pin female 0.050 series SCSI
Power Requirements+12 VDC , +3.3 VDC - 20 mA, 550 mA
Dimensions5.6 in. × 4.1 in.
Weight0.21 lb.
Driver SoftwareNI-DAQmx
WarrantyThree Year Warranty
PCIe-6509 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PCIe-6509:

196344A-01, 196344A-01L, 196640A-01, 196640A-01L, 196640A-02L, 196640B-01L, 196640C-01L, 196640D-01L, 779976-01, 779976-02

National Instruments PCIe-6509 Frequently Asked Questions



Question: Is the PCIe 6509 compatible with the Measurement Hardware Driver Development Kit?



Answer: Yes, the PCIe 6509 is compatible with the Measurement Hardware Driver Development Kit.



Question: What is the maximum input sampling rate of the NI PCIe-6509 96 ch. device?



Answer: The NI PCIe-6509 96 ch. device is software timed. Rates will vary based on the computer, the operating system, and your code.



Question: What do I need to set channels for the NI PCIe-6509?



Answer: To program set channels for the NI PCIe-6509, install the DAQmx driver and select the corresponding .NET framework support to begin programming.
