PS-16

4.9/5 | 8 ratings

Modular Systems > National Instruments > NI Power Supplies

Part Number PS-16
Manufacturer/Brand National Instruments
Description: PS-16, 10 A, 24 to 28 VDC, Power Supply
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

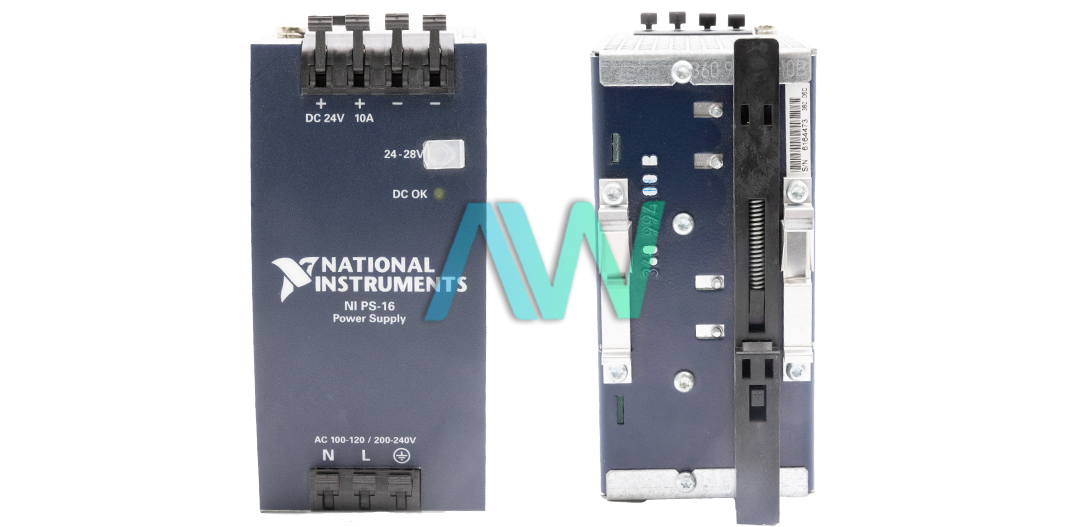

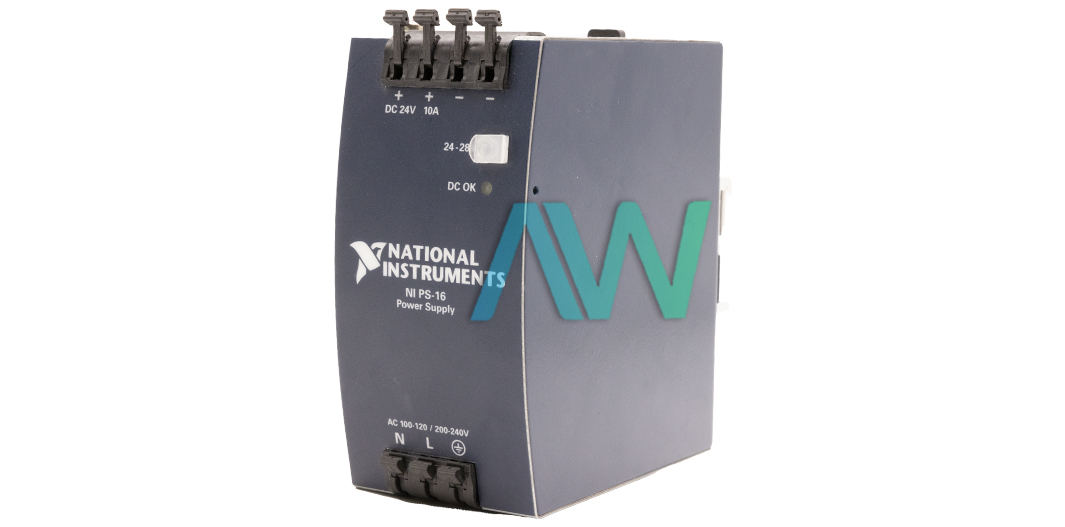

National Instruments PS-16 Industrial Power Supply

The NI PS-16 (Part Number: 781094-01) is an industrial grade Power Supply designed to power any NI Smart Camera, NI touch panel, NI CompactDAQ, NI CompactRIO, or NI Compact FieldPoint System. Moreover, this Power Supply can also be used for powering heavy accessory loads, such as DC motor drives. This model is built to provide 24 to 28 VDC output voltage, 20 A output current, and 480 W output power.

The National Instruments PS-16 can be operated over universal input voltage ranges from 90 VAC to 132 VAC and from 180 VAC to 264 VAC. The combination of a wide range and auto select input voltages eliminates the risk of human error. This Power Supply can operate within a temperature range of -25 to 70 °C without losing efficiency.

In its standard configuration, the PS-16 can be used with DIN-rail mounting clips. However, National Instruments offers optional accessories for side, wall, and panel mounting if the user would like to reduce installation depth. The mounting bracket can easily be coupled with the side mount kit to achieve a low-profile DIN-rail installation.

While operating in typical conditions, the PS-16 can run at up to 91.6% efficiency. The provision of auto-select input makes the Power Supply`s installation quite simple because the unit will sense and select the right voltage level automatically. The NI PS-16 Industrial Power Supply also reserves anywhere from 20 to 50 percent of its output power. This additional current can be utilized continuously for ambient temperatures below 45 degrees Celsius.

The NI device weighs 700 g, and measures 60 x 124 x 117 mm in physical dimensions. It has a recommended storage temperature range of –40 to +85 °C, and a non-condensing relative humidity range of 5 to 95%. The PS-16 is designed to comply with the following electrical safety standards: IEC/EN 60950-1 and UL 508.

ModelPS-16
ManufacturerNational Instruments
Part Number781094-01
TypeIndustrial Power Supply
Output Voltage24 to 28 V
Output Current10 A
Input Voltage90 to 132/180 to 264 VAC
Dimensions60 x 124 x 117 mm.
Weight700 g.
WarrantyThree Year Warranty
PS-16 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PS-16:

195771A-01, 200434A-01, 200816A-01, 781094-01

National Instruments PS-16 Frequently Asked Questions



Question: What is the output power for the PS-16?



Answer: The output power for the PS-16 is 240 W.



Question: When operating the NI PS-16 in series, what is the maximum output voltage?



Answer: When operating the NI PS-16 in series, the maximum output voltage is 150 VDC.



Question: Can the PS-16 be utilized to charge batteries?



Answer: No, the PS-16 should not be utilized to charge batteries.



Question: Which types of loads can the NI PS-16 supply?



Answer: The NI PS-16 can supply any type of load, including unlimited inductive and capacitive loads.
