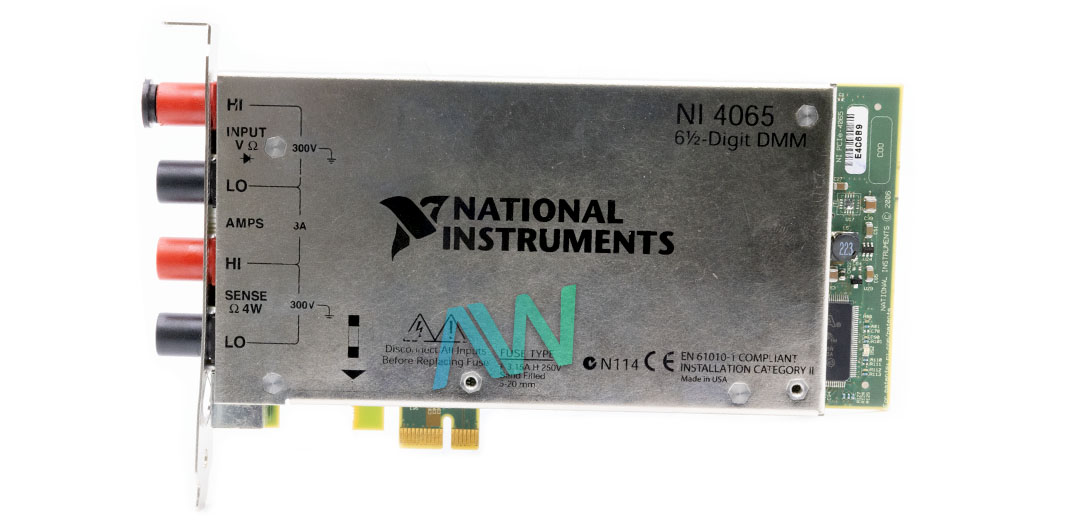

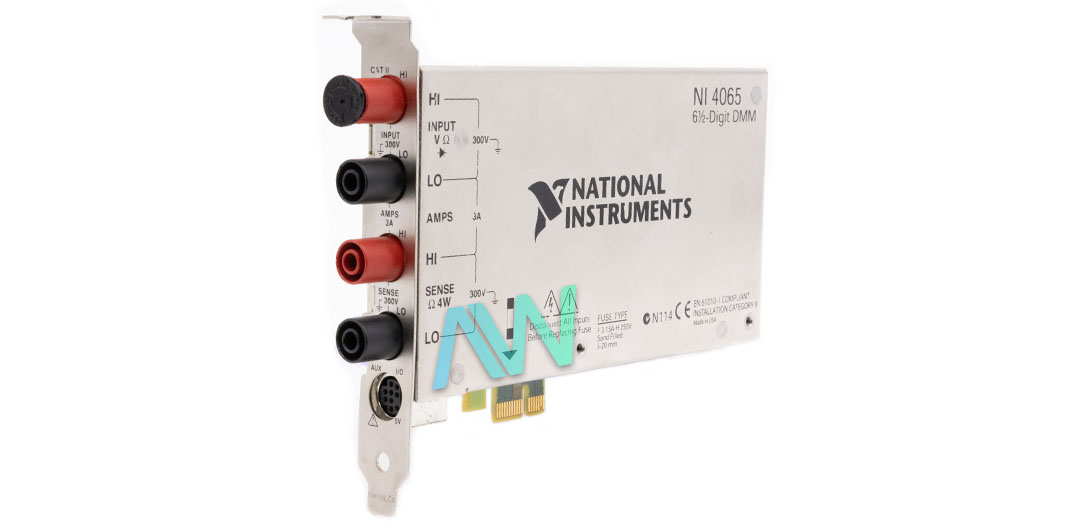

National Instruments PCIe-4065 Digital Multimeter Device
The PCIe-4065 (Part number: 779771-01) is a 6½-digit Digital Multimeter (DMM) Device manufactured by National Instruments. It is the first DMM for PCI Express in the industry. This DMM is used for measurement applications of current and voltage. It can also be used to perform a diode test. Moreover, it is viable for resistance measurements. It is available at an affordable price in the market. The NI PCIe-4065 is applicable to measurement facilities. It can also apply to perform cost-conscious tests. This device is preferable for educational labs and OEMs.
This device implements an isolation mechanism. The value of voltage for it is ±300. It can also measure a current value up to three amperes. The PCIe-4065 features the capability to measure resistance for two types: two or four wire resistance.
The NI PCIe-4065 also offers a multimeter solution. The multimeter part of the model measures the voltages in different formats. The measurements include analog to digital voltage and vice versa. This device also has the capability to measure current. The NI PCIe-4065 has a power consumption less than 3. This power usage is specifically for the PCI Express motherboard. This DMM can provide a maximum 3000 reading per second at 4½ digits. The dimensions of this Digital Multimeter Device are 7.2 × 0.8 × 4.7 in. This model weighs .5 oz.
The NI PCIe-4065 DMM come with small programs called the drivers of the device. Drivers enable the device to operate its hardware through different operating systems.
Model | PCIe-4065 |
---|---|
Manufacturer | National Instruments |
Part Number | 779771-01 |
Type | Digital Multimeter Device |
Maximum Reading Rate | 3000 S/s at 4½ digits (15 bits) |
Minimum Reading Rate | 10 S/s at 6½ Digits (22 bits) |
Built-In Measurement Modes | AC/DC Voltage, AC/DC Current, 2- or 4-Wire Resistance, and Diode Test |
DC Voltage Range | 100 mV- 300V |
DC Current Range | 10 mA - 3 A |
AC Voltage Range | 200 mVrms (±320 mVp)-300 Vrms (±425 Vp) |
AC Current Range | 10 mArms (±15 mAp)- 3 Arms (±4.2 Ap) |
Resistance Range | 100 Ω - 100 MΩ |
Diode Test Range | 10 V, 100 µA- 1 mA |
Input Terminals | Gold-Plated Low-Thermal emf Solid Copper |
Dimensions | 7.2 in. by 4.72 in. |
Software Drivers | NI-DMM, NI-DMM Soft Front Panel, DMM/Switch Express VI |
Warranty | One Year Warranty |
PCIe-4065 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
PCIe-4065 PDF Manuals
NI 4065 6C2BD DIGIT DIGITAL MULTIMETER CALIBRATION PROCEDURE.PDF
NI DIGITAL MULTIMETERS GETTING STARTED GUIDE.PDF
PCI 4065 PCIE 4065 PXI 4065 LETTER OF VOLATILITY.PDF
