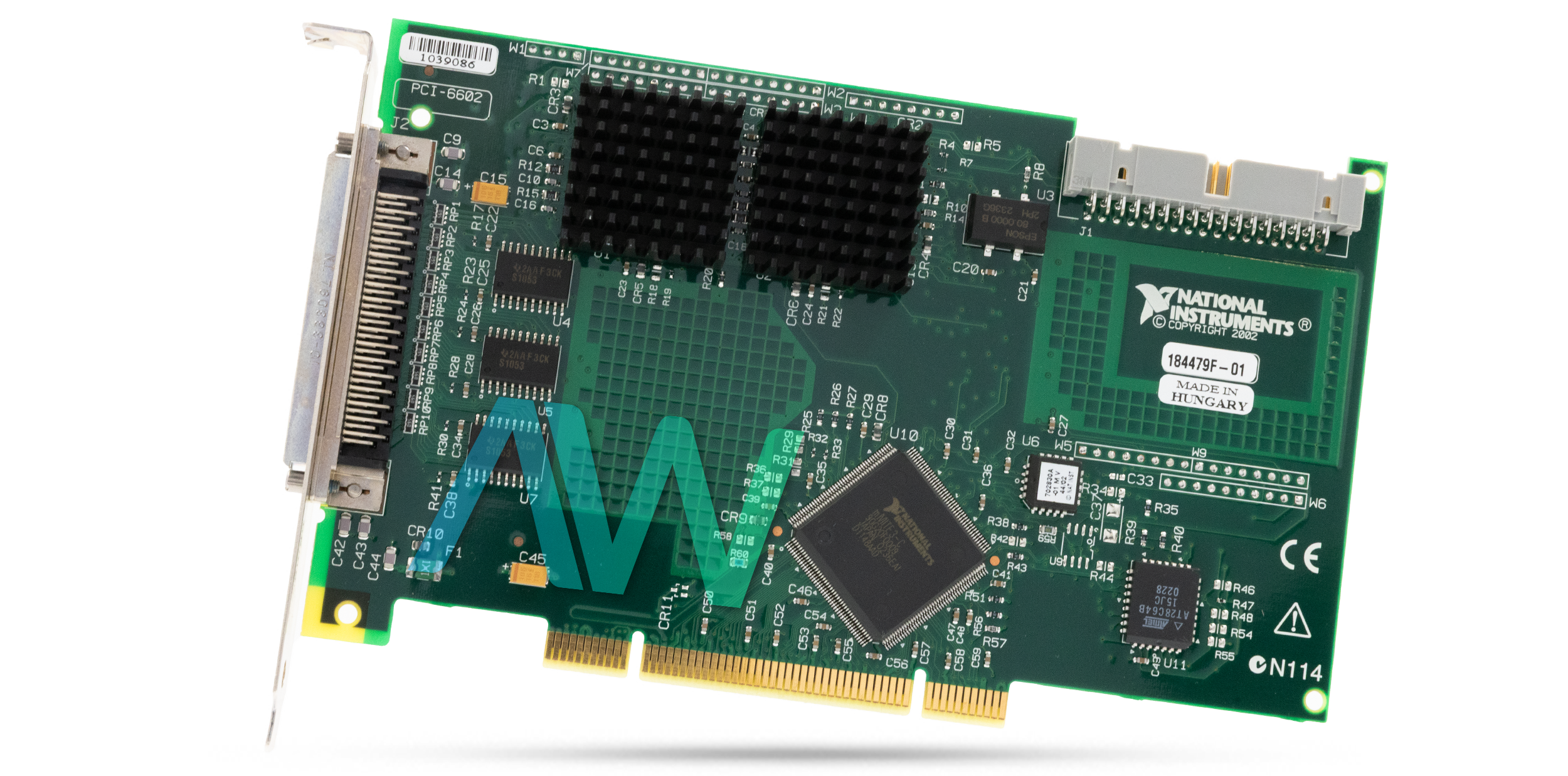

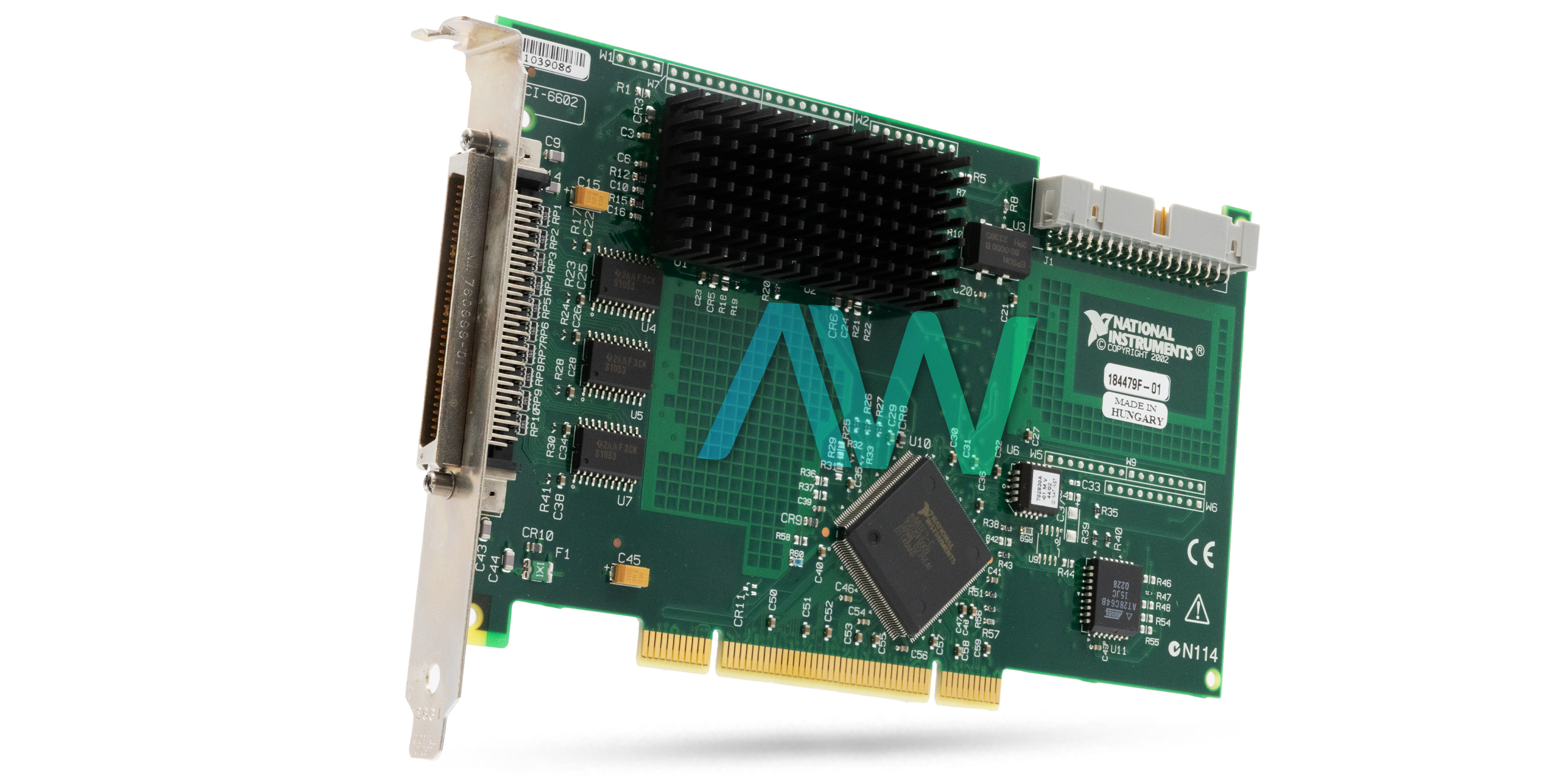

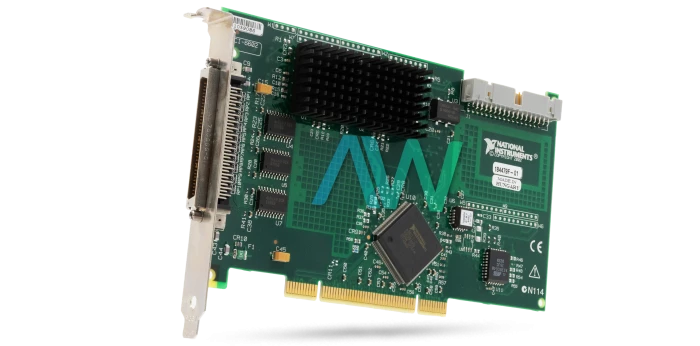

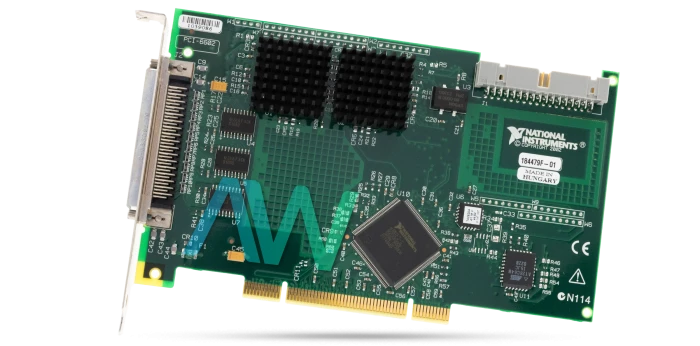

PCI-6602 National Instruments Counter/Timer Device | Apex Waves | Image
❮ ❯

Actual item may vary if no part number is provided on quote request.

PCI-6602 National Instruments Counter/Timer Device | Apex Waves | Image
PCI-6602 National Instruments Counter/Timer Device | Apex Waves | Image
PCI-6602 New
PCI-6602 Refurbished

✔ 2 Year Warranty Included

✔ Free Domestic Ground Shipping

✔ NIST Calibration Available

Get Price & Availability for the PCI-6602

Fast response from an Apex Waves specialist.

Fast Response Avg. 15 min
ISO 9001 Quality 2 Year Warranty
In Stock Ships Today

National Instruments PCI-6602 Counter/Timer Device

The PCI-6602 (Part Number: 777531-01, 184479-01) Counter/Timer Device has 8 counters/timers, 32 bidirectional digital channels, a maximum source frequency of 80 MHz, and 5V, TTL Logic Levels and Range. This device can be utilized to generate many types of measurement solutions, such as monitoring position with quadrature encoders, counting events or totalizing, or measuring an amount of time-related quantities. The NI PCI-6602 Counter/Timer utilizes the NI-TIO, an NI ASIC chip created for the timing and counting requirements of measurement applications above the features of off-the-shelf devices. The device is equipped with a 68-pin male SCSI-II type I/O connector. Part number 184479-01 is the board only kit of the PCI-6602.

Several features of the National Instruments NI PCI-6602 include: debouncing/glitch removal, buffered operations, and pulse generation. This device does not have GPS synchronization. The PCI 6602 National Instruments can be calibrated. The calibration process for this device is timebase calibration, which guarantees the time and frequency measurements are precise.

This device has pad synchronization that is helpful when a few counters are estimating or working off a similar outside signal. For instance, assume counters 0 and 1 are designed for activated pulse generation and each counter uses a similar outer trigger (this outside flag is associated with PFI 38 on the I/O connector and the two counters have PFI 38 chosen as their GATE). After the trigger signal proliferates through the I/O pad, the ideal opportunity for the signal to achieve the GATE of each counter inside the ASIC may contrast by a couple of nanoseconds.

If the user needs to enable the counters to see the adjustments in the flag at a similar occurrence, they should utilize pad synchronization. Amid cushion synchronization, the flag is counterbalanced by one clock cycle.

The PCI-6602 is run using the NIDAQmx driver software which is compatible with software packages or application development environments (ADEs) such as LabVIEW or LabWindows/CVI. The NI device measures 6.9 x 3.9 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 °C to 55 °C and –20 °C to 70 °C respectively.

PCI-6602 Mature Status has been announced by National Instruments, but it will still be available for purchase and repairs by Apex Waves.

ModelPCI-6602
ManufacturerNational Instruments
Part Number777531-01, 184479-01
TypeCounter/Timer Device
Counters/Timers8
Counter Size/Number of bits32 bits
Maximum Source Frequency80 MHz
Dimensions6.9 by 3.9 in.
I/O Connector68-pin male, SCSI-II type
PCI-6602 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PCI-6602:

National Instruments PCI-6602 Frequently Asked Questions



Question: What is the PCI-6602 driver called?

Answer: The PCI-6602 driver is NI-DAQ 7.



Question: Which accessories are required for the NI PCI-6602 Counter/Timer?

Answer: The NI PCI-6602 Counter/Timer requires these accessories: the BNC-2121 Connector Block and the 2 m SH68-68-D1 Shielded Cable.



Question: What is the minimum pulse width for trigger and clock on the PCI 6602 National Instruments?

Answer: On the PCI 6602 National Instruments, the minimum pulse width for trigger and clock is 25 ns.



Question: What is the power requirement for the National Instruments NI PCI-6602?



Answer: The power requirement for the National Instruments NI PCI-6602 is 0.5 A to 1.5 A.
