PCI-5402

4.8/5 | 10 ratings

Modular Systems > National Instruments > PCI Waveform Generators

Part Number PCI-5402
Manufacturer/Brand National Instruments
Description: PCI-5402, 20 MHz, Waveform Generator Device
In Stock | Ships in 5-10 Days
(expedited shipping options available)
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

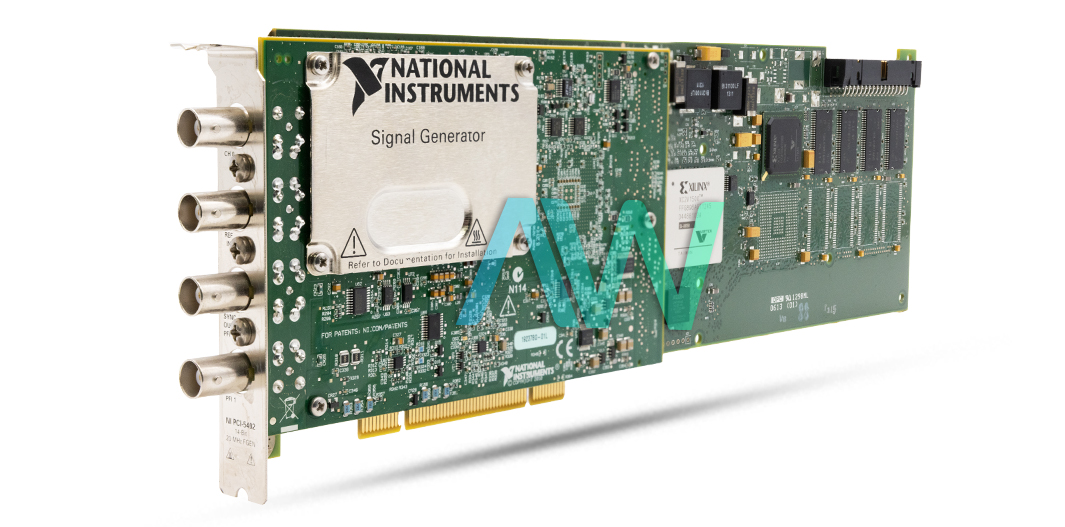

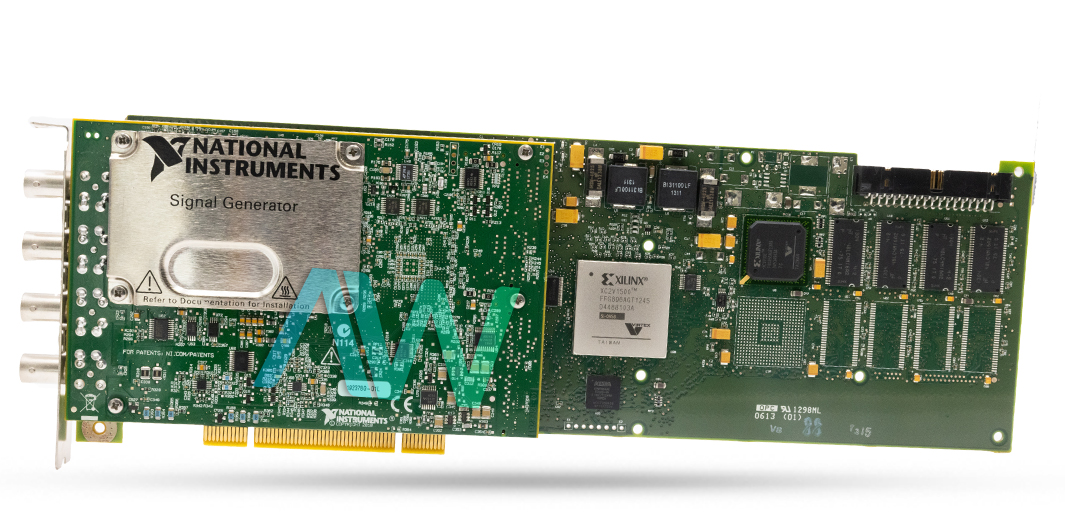

National Instruments PCI-5402 Waveform Generator Device

The PCI-5402 (Part number: 779656-01) is a Waveform Generator Device by National Instruments. In addition to standard signals, this device can also generate other signals, such as pseudorandom noise and DC signals. The PCI-5402 Waveform Generator Device generates the signals with an amplitude of -5 V to +5 V range. The PCI-5402 features the direct digital synthesis (DSS) method for signal generation. The NI PCI-5402 is used in applications where fast analog signal generation is required.

The PCI-5402 Waveform Generator Device has one analog output channel. The connector type of the output channel is BNC and the analog output resolution is 14 bits. The channels are selectable as a trigger (input) or event (output). These channels can bear overload of -2 V to +7 V voltage without any damage to the generator device. The device has an amplitude resolution of <0.06% of the amplitude range. The PCI-5402 has a selectable output impedance of 50 Ω or 75 Ω. The output channel is also selectable and can be disabled. The PCI-5402 Waveform Generator Device has a selectable FIR filter, which can only be used if the sample clock rate is above 10 MS/s.  The frequency resolution of the PCI-5402 generator is 0.355 μHz. The maximum bandwidth of the PCI-5402 generator is 20 MHz with a maximum sampling rate of 400 MS/s. However, for ramp and triangle signals, the values reduce to 1 MHz and 100 MS/s.

The PCI-5402 Waveform Generator Device supports NI-FGEN driver software. NI-FGEN is used to configure and calibrate the PCI-5402. It is supported by various applications for the programming interface. MAX is also included in the NI-FGEN.

PCI-5402 Obsolete Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.

ModelPCI-5402
ManufacturerNational Instruments
Part Numbers779656-01
TypeArbitrary Function/Waveform Generator
Channels1
Channel Resolution14 bit
Frequency Range20 MHz Sine and Square Wave Generation
1 MHz Ramp and Triangle Wave Generation
Frequency Resolution355 μHz
Maximum Sample Rate400 MS/s
Output Voltage10 Vpp into 50 ohm
Power Dissipation17.6 W
Driver SoftwareNI-FGEN, FGEN Soft Front Panel
Dimensions13.4 × 0.8 × 4.2 in
Weight0.93 lb, 14.8 oz
Warranty2-3 Year Warranty
PCI-5402 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PCI-5402:

188076J-18, 188076K-19L, 188524D-15, 192888A-01, 192888B-01, 192888C-01, 192888D-01L, 192888E-01L, 195177A-01, 779656-01

National Instruments PCI-5402 Frequently Asked Questions



Question: Are any accessories required for the NI PCI-5402?



Answer: A BNC Male to BNC Male Cable is required for the NI PCI-5402.



Question: How many BNC connectors are on the PCI-5402?



Answer: There are four BNC connectors are on the PCI-5402.



Question: How often should the PCI 5402 be externally calibrated?



Answer: The PCI 5402 should be externally calibrated every two years.



Question: Does the NI PCI-5402 support arbitrary waveforms?



Answer: No, the NI PCI-5402 does not support arbitrary waveforms.
