National Instruments PXI-4022 PXI Amplifier Module

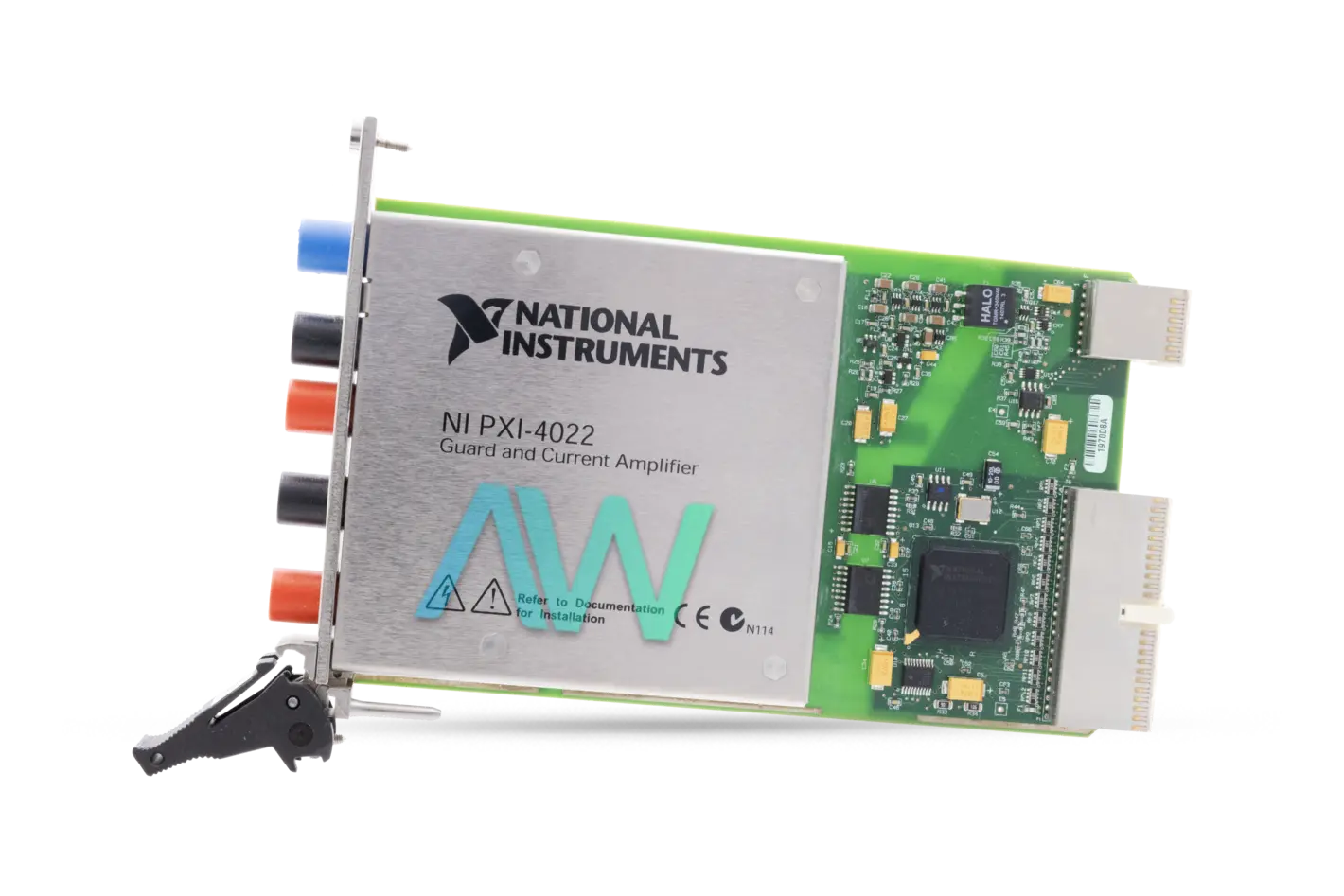

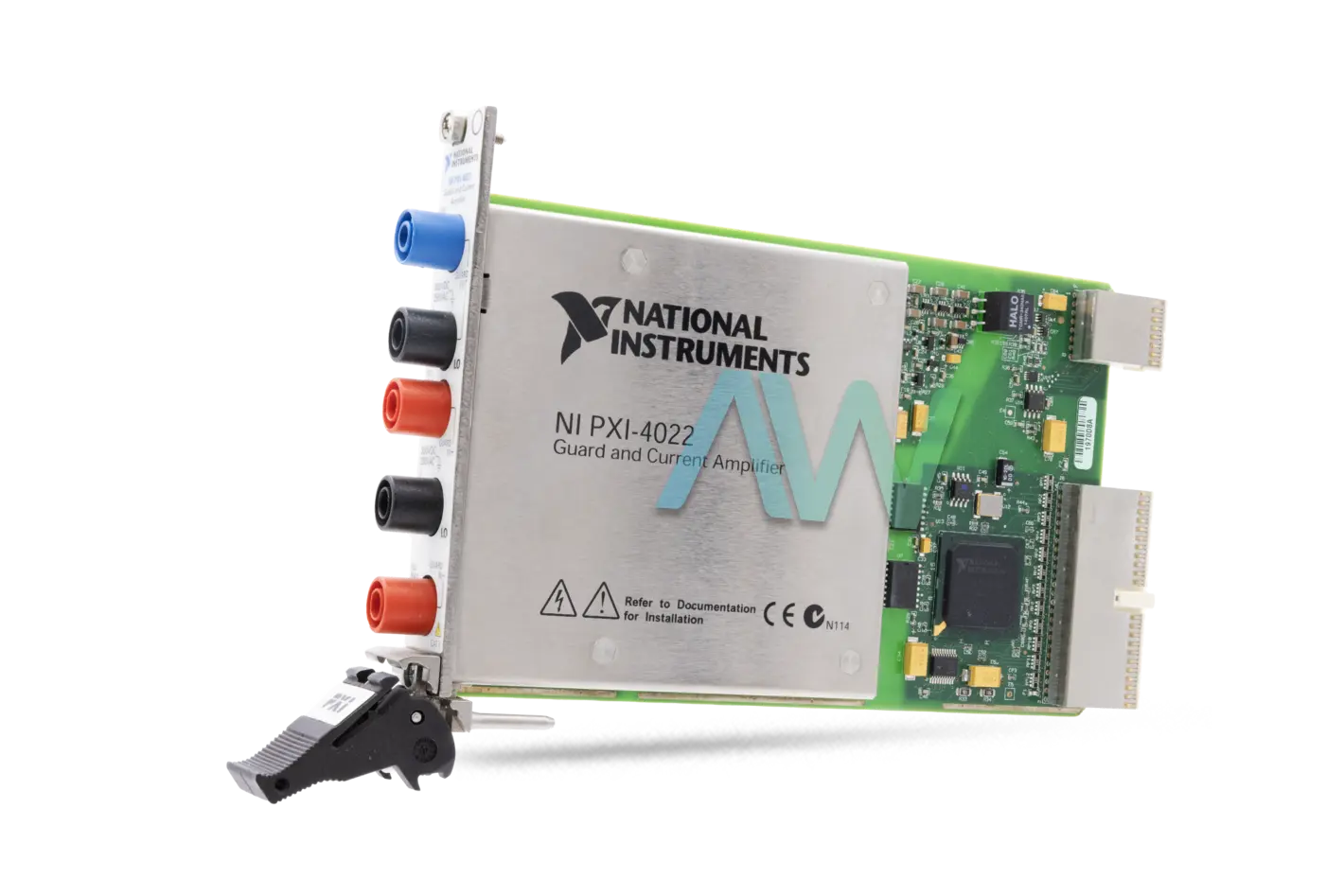

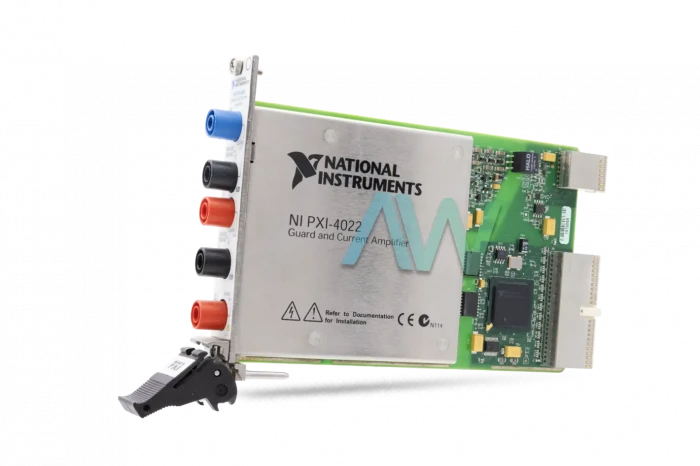

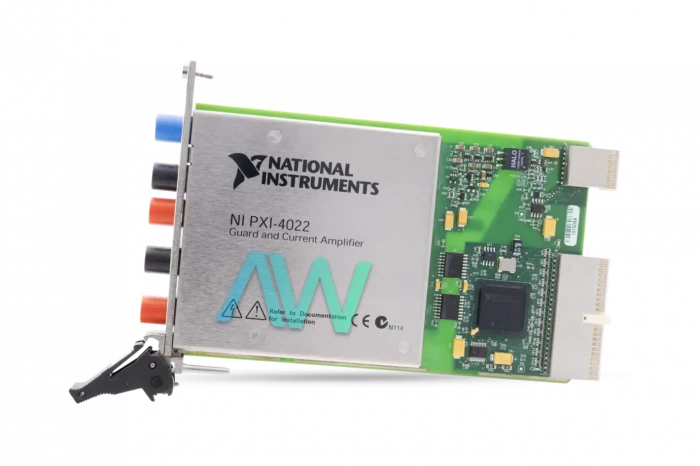

Featured with a high-speed, high-precision amplifier, the National Instruments PXI-4022 (Part Number: 779614-01) is a 6-Wire, Guard and Current PXI Amplifier Module meant for use with Digital Multimeters. The high-precision, high-speed amplifier helps fine tune signals for acquisition. For resistors connected in parallel on complex PCBs or for cable test applications, the guarding functionality of the PXI-4022 allows the user to make 6-wire based resistance measurements.

This module has low-EMF, low-leakage, gold plated, solid copper input terminals. The National Instruments PXI-4022 is a Measurement Category II rated device, which is designed to carry signal voltages less than or equal to 250V. However, this module can safely withstand up to 2,500 V surge voltage. As far as its input and output characteristics are concerned, the PXI-4022 operates at >1010 Ω input impedance, < 5 pA input bias current, ±12 V max output voltage range, and ±15 mA max output drive current. This PXI Amplifier Module has integrated overvoltage protection for Guard out, Guard In "+", and Guard In "-" terminals.

The front panel of this module has five connectors, with two electrically equivalent connectors are provided on the back side. The five front panel signal connectors include: a Guard/amplifier output, Guard/amplifier positive input, Guard-Sense/amplifier negative input, and two Floating common (LO). The two back mounted connectors represent the module`s floating ground.  The user can install the NI PXI-4022 module in an empty slot (compatible) in a PXI chassis. This module can easily be configured with the help of MAX, I.e. Measurement & Automation Explorer.

ModelPXI-4022 (779614-01)
ManufacturerNational Instruments
TypePXI Amplifier Module
Bandwidth1 MHz minimum
Size3U
Dimensions8.5 x 5.1 x 0.8 in.
Weight9.7 oz.
WarrantyOne Year Warranty
PXI-4022 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-4022 Frequently Asked Questions



Question: Which software is required for the NI PXI-4022?



Answer: The NI PXI-4022 must be used with LabVIEW 7.1 or later and NI-DMM software.



Question: What is the current range of the PXI-4022 Amplifier Module?



Answer: The PXI-4022 Amplifier Module has three current ranges: 1 mA, 10 μA, and 100 nA.



Question: Which cabling accessories are meant to be used with the PXI-4022?



Answer: The PXI-4022 can be used with the following cabling accessories: the Low-Leakage, Low-Thermal Cable Set (Part number: 779410-01) and the Low-Leakage, Low-Thermal Connectivity Set (Part number: 779499-01).



Question: What is the slew rate of the PXI-4022?



Answer: The PXI-4022 has a slew rate of 40 V/μS minimum.
