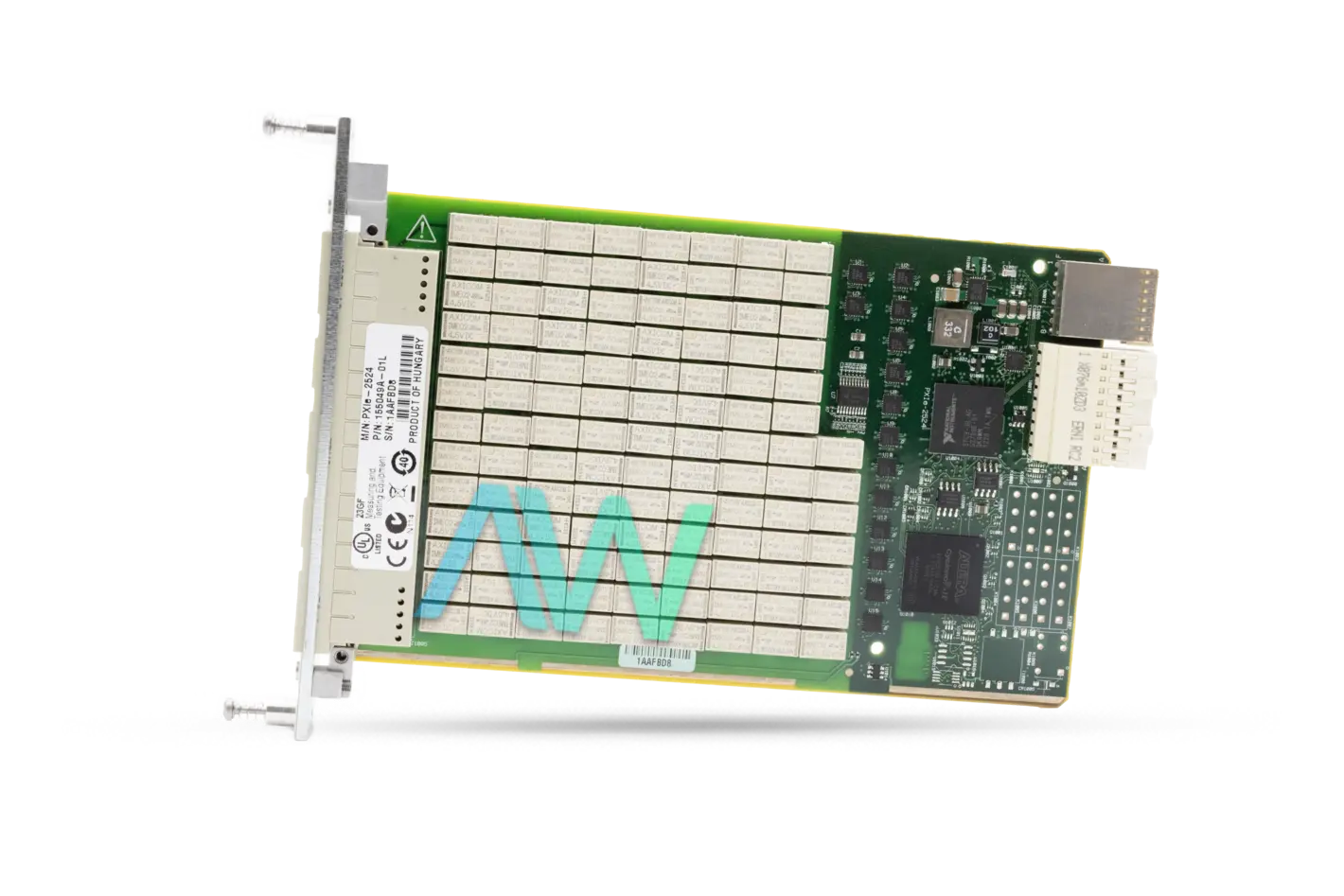

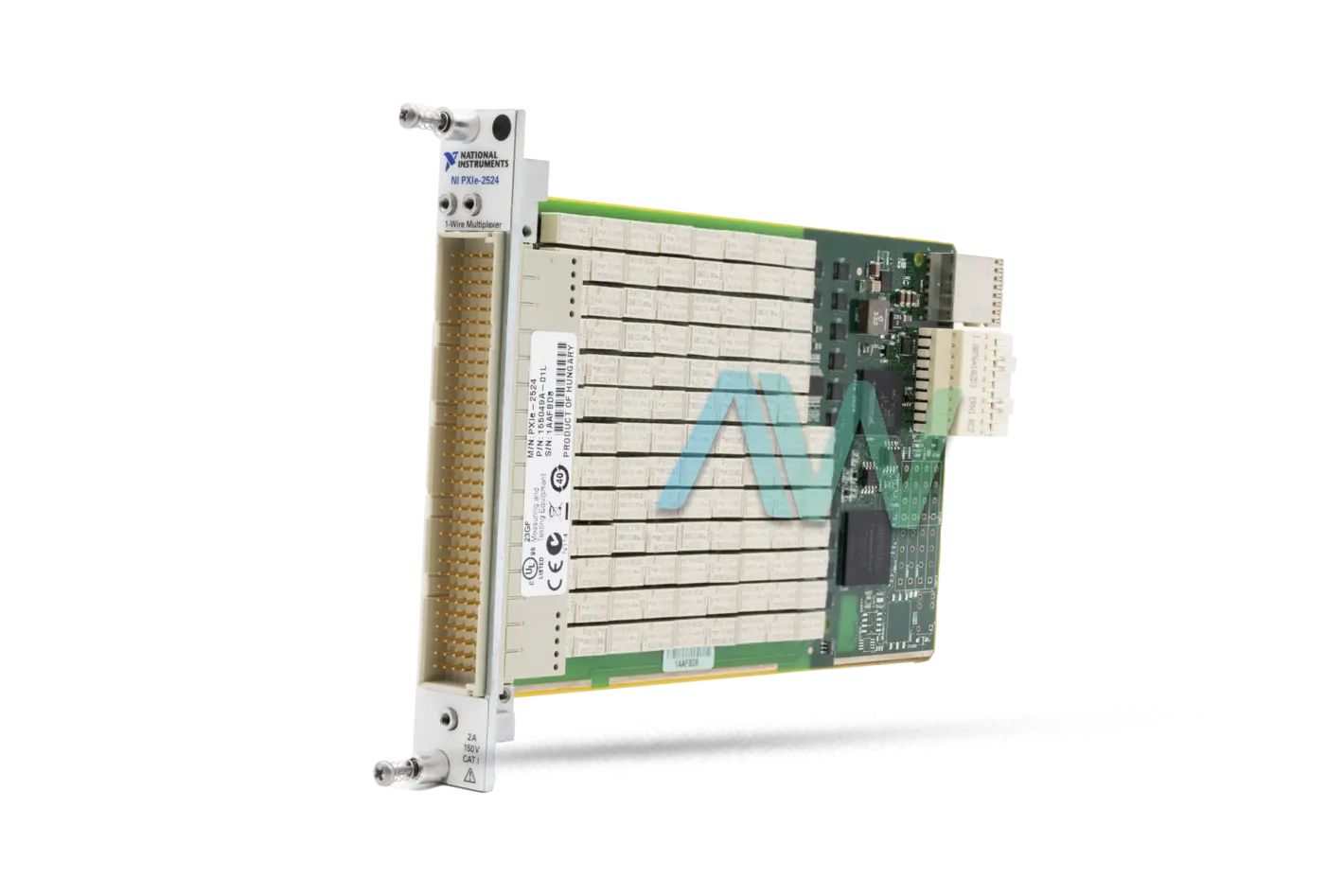

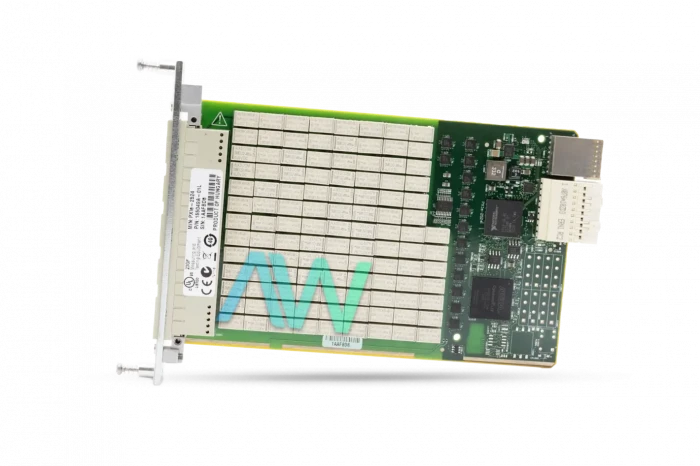

PXIe-2524 National Instruments Multiplexer Switch Module | Apex Waves | ImagePXIe-2524 National Instruments Multiplexer Switch Module | Apex Waves | ImagePXIe-2524 NewPXIe-2524 | Legacy, Refurbished and New Surplus
PXIe-2524 National Instruments Multiplexer Switch Module | Apex Waves | Image
PXIe-2524 National Instruments Multiplexer Switch Module | Apex Waves | Image
PXIe-2524 New
PXIe-2524 | Legacy, Refurbished and New Surplus

PXIe-2524

5/5 | 11 ratings

Modular Systems > National Instruments > PXI Multiplexer Modules

Part Number PXIe-2524
Manufacturer/Brand National Instruments
Description: PXIe-2524, 128-Channel, PXI Multiplexer Switch Module
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments PXIe-2524 PXI Multiplexer Switch Module

The PXIe-2524 (Part Number: 780587-24) is a high-density Multiplexer Switch Module from National Instruments with the capability to offer an input switching current of 2 amperes. The maximum switching power of the NI PXIe-2524 Switch Module is 60 W or 62.5 VA. It has applications in automated test systems for routing the signals. The instrument also offers various 1-wire multiplexer configurations, such as 16 bank 8x1, octal 16x1, quad 32x1, dual 64x1, and 128x1. These configuration schemes play a pivotal role in switching operations of the equipment. The PXIe-2524 Multiplexer Switch Module makes use of electromechanical relays for these operations.

The NI PXIe-2524 has incredible RF performance characteristics. It offers the bandwidth of less than 10 MHz. The DC path resistance of the equipment is less than 0.8 Ohms. The value for thermal EMF of the instrument is less than 10 micro-volts. The typical relay operation time of the instrument is one millisecond, with a maximum value of 3.2 milliseconds. The expected life cycle of the mechanical relays is 1 x 108 cycles. The front panel of the NI PXIe-2524 Switch Module incorporates various types of connectors, which includes 160 DIN 41612, 160 positions, and male connector.

The NI PXIe 2524 module enables users to perform measurements quickly. The user can get highly accurate results. The module is portable and weighs around 241 grams. It has the dimensions of 21.6 x 2 x 13 cm. The power requirement for the PXI Express module is 24 watts at 12 volts and 3.4 W at 3.3 volts.

ModelPXIe-2524
Part Number780587-24
ManufacturerNational Instruments
TypePXI Multiplexer Switch Module
Banks1, 16, 2, 4, 8
Maximum Switching Voltage DC150 V
Maximum Switching Current DC2 A
Dimensions8.5 x 0.8 x 5.1 in.
Weight8.5 oz.
Warranty2-3 Year Warranty
PXIe-2524 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXIe-2524:

155049A-01L, 155049A-02L, 155049B-01L, 155049C-01L, 780587-24

National Instruments PXIe-2524 Frequently Asked Questions



Question: How many channels does the PXIe-2524 have?



Answer: The PXIe-2524 has 128, 16, 32, 64, or 8 channels.



Question: What is the scan rate of the NI PXIe-2524?



Answer: The scan rate of the NI PXIe-2524 is 1,000 cycles/s.



Question: What is the relay operating time for the PXIe-2524?



Answer: The PXIe-2524 has a typical relay operating time of 1 ms and a maximum relay operating time of 3.2 ms.



Question: What is the mode (n-wire) for the NI PXIe-2524?



Answer: The NI PXIe-2524 has a 1-wire mode.
