PXI-5690

4.5/5 | 14 ratings

Modular Systems > National Instruments > PXI Amplifiers

Part Number PXI-5690
Manufacturer/Brand National Instruments
Description: PXI-5690, 2-Channel, PXI RF Amplifier
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

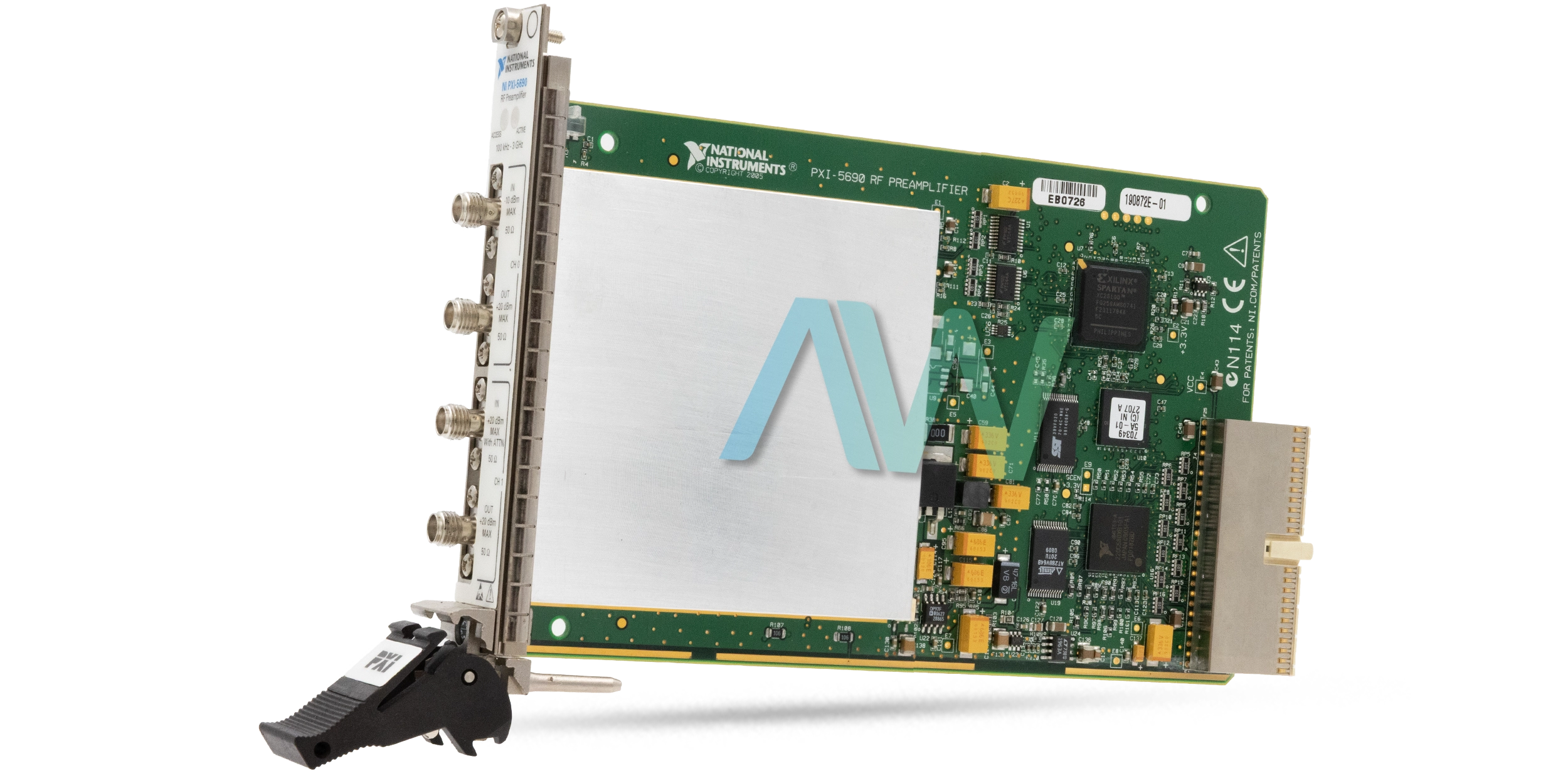

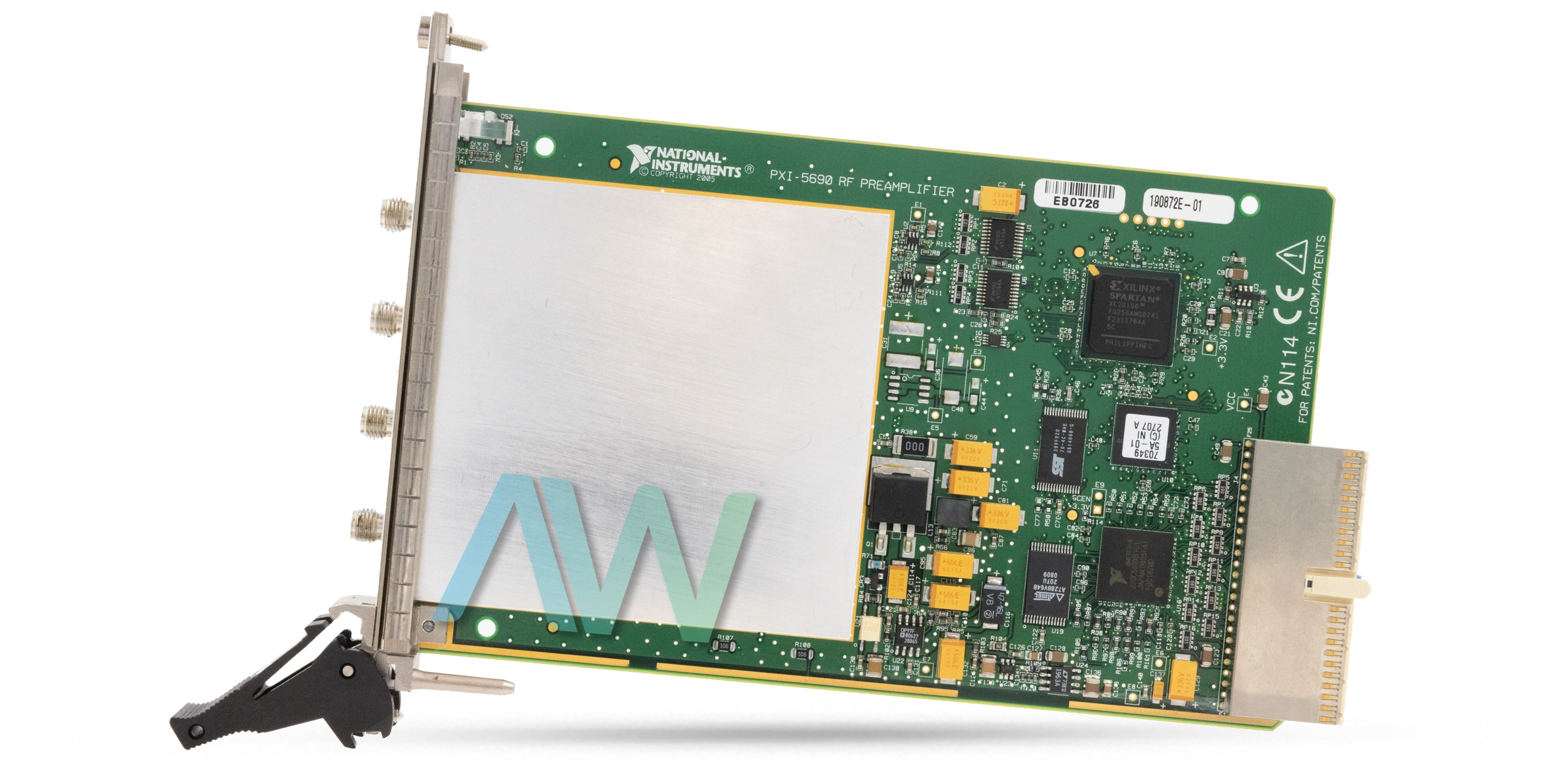

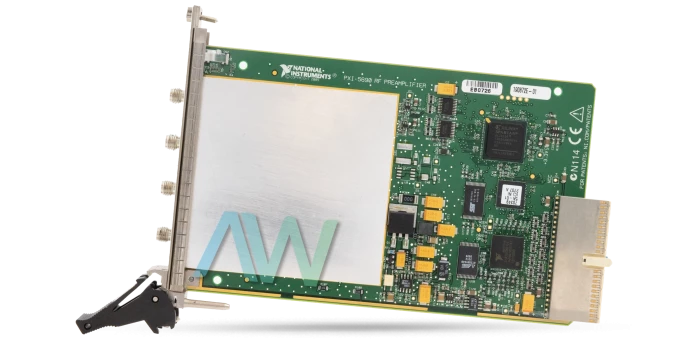

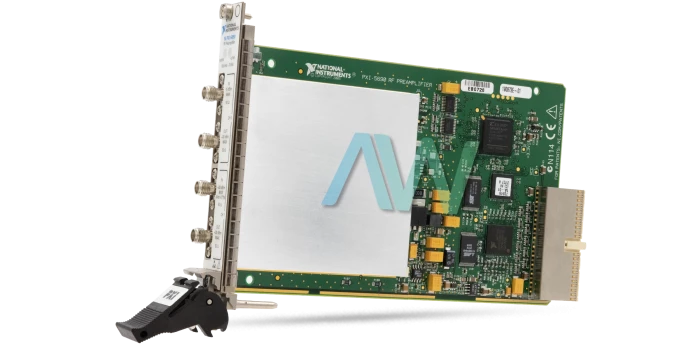

National Instruments PXI-5690 PXI RF Amplifier

The National Instruments PXI-5690 PXI RF Amplifier (Part Number: 779465-01), is a 2-channel, 3 GHz programmable module that offers fixed gain and configurable gain in a 3U PXI single-slot module. The NI PXI-5690 has gain and noise qualities that upgrade the dynamic range and affectability of PXI RF Signal Vector Analyzers. The PXI-5690 can automatically omit its gain by associating with a direct path. This usefulness enhances the testing and checking execution of the NI PXI-5690 PXI RF Signal Analyzer by changing the dynamic range to easily monitor extremely weak and strong signals.

The PXI-5690 is intended to be associated with RF vector signal analyzers, such as, the NI PXI-5660. The National Instruments PXI-5690 is a simple gadget that enhances or constricts its input signal as indicated by the predetermined path and gain settings. No triggering plan is required.

In this model, (CH 0) works as a settled gain preamplifier with a range gain of 30 dB. This channel offers a low noise figure and a level frequency reaction, so the user can utilize CH 0 as they would use a customary fixed gain preamplifier. On the other hand, (CH 1) works as a programmable preamplifier containing two client selectable paths.

On the NI PXI-5690, the main path is the primary path and consists of fixed gain enhancement preceded by a step attenuator that is movable by programming in 1 dB nominal steps according to client specified gain settings. The operating gain of the output is between - 10 and +20 dB. The direct path, on the other hand, gives you the alternative of bypassing the attenuator-intensifier hardware. This path is valuable for taking care of higher power inputs that may cause distortion in the RF preamplifier.

ModelPXI-5690 (779465-01)
ManufacturerNational Instruments
TypePXI RF Amplifier
Channels2
Frequency Range100 kHz to 3.0 GHz
Maximum Output Power+20 dBm
Dimensions8.5 x 0.8 x 5.1 in.
Weight9.2 oz.
WarrantyOne Year Warranty
PXI-5690 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-5690 Frequently Asked Questions



Question: What type of front panel connector does the PXI-5690 have?



Answer: The PXI-5690 has SMA female front panel connectors.



Question: What is the maximum output power of the NI PXI-5690?



Answer: The maximum output power of the NI PXI-5690 is +20 dBm.



Question: What is the warm-up time for the PXI-5690?



Answer: The PXI-5690 has a warm-up time of 15 minutes.



Question: What type of input coupling does the PXI-5690 have?



Answer: The PXI-5690 has AC input coupling.
