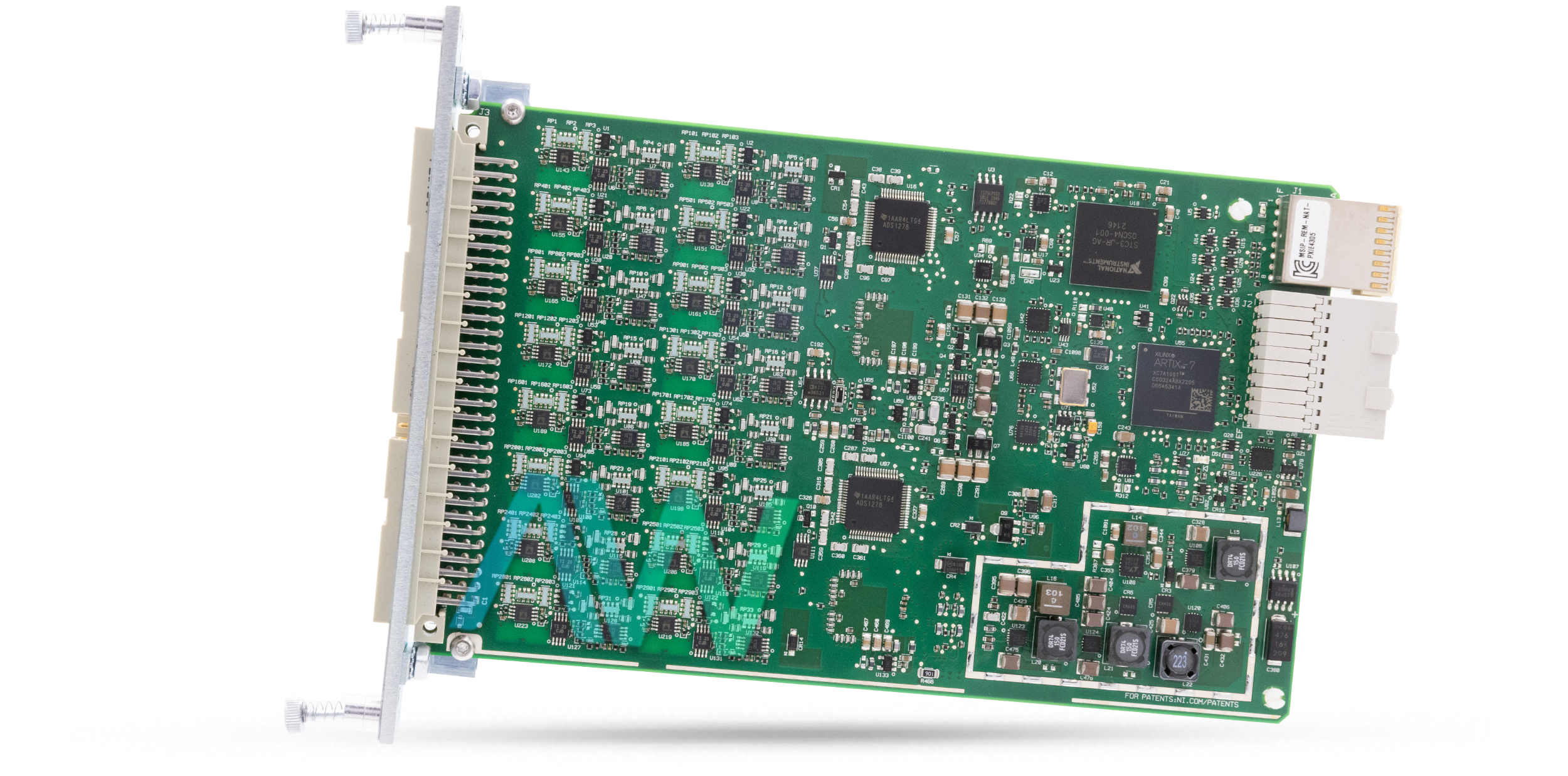

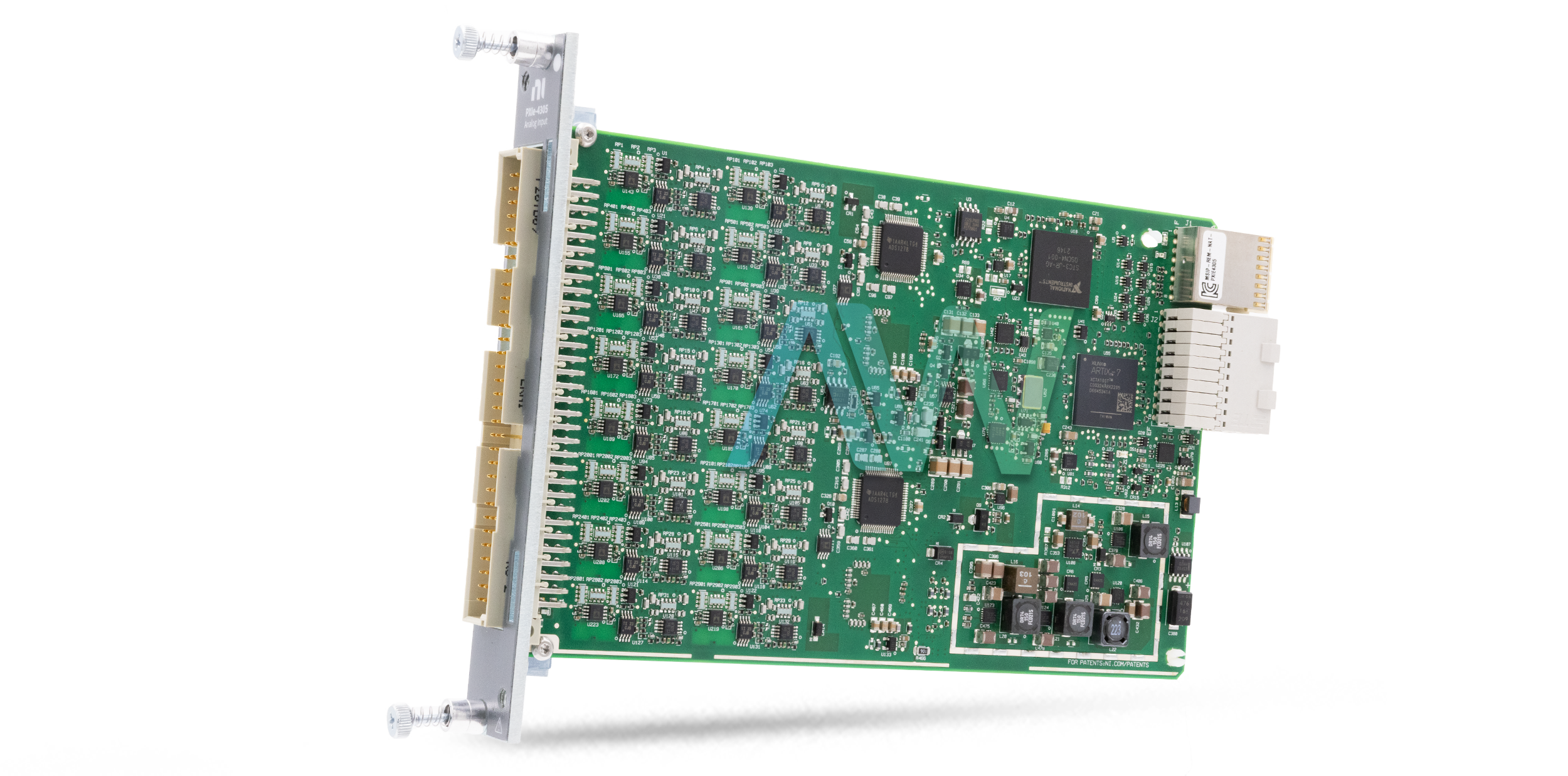

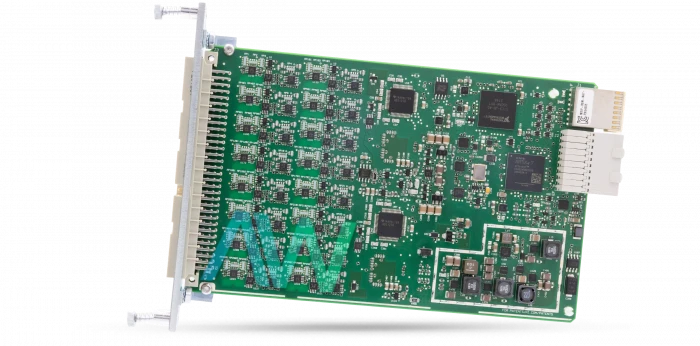

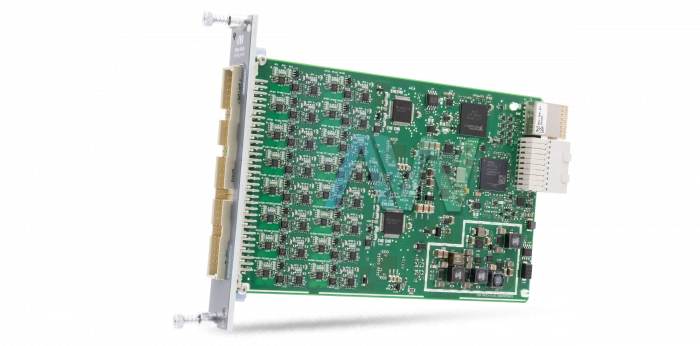

PXIe-4305, 32-Channel, 24-Bit, PXI Analog Input Module
Need an Official Quote?
National Instruments PXIe-4305 PXI Analog Input Module
The PXIe-4305 (Part Number: 783868-01) is a 32-Channel Analog Input Module from National Instruments. This module comes with a built-in analog to digital converter. The resolution of the ADC is 24-bit. The range for sample rate frequency is from 1 S/s to 51.2 kS/s. The NI PXIe-4305 module offers gain error and offset errors of 0.027% and 2.2 mV respectively. These values are given for the typical temperature of 23℃ ± 5℃. The PXIe 4305 also exhibits an exceptional temperature stability.
The National Instruments PXIe-4305 Analog Input Module has a built-in reference clock source, which enables the synchronization mechanism. The frequency of the clock is 106.25 MHz. It is a highly accurate clock; the accuracy value for the clock is ±50 ppm. This module also offers task resources, which allow the user to make use of four timing engines simultaneously. These task resources are independent of each other. It also allows utilizing four buffered mode streams and hardware-timed single point streams. The maximum channels allowed per stream are eight.
The NI PXIe-4305 PXI Analog Input Module offers various BUS interfaces, which includes one PXI Express peripheral module. This module complies to the rev 1.0 specifications. The slots on the module are PXI Express or PXI Express hybrid compatible. This module incorporates four analog inputs for DMA channels. The PXIe 4305 module additionally has a standard calibration interval of one year. The recommended warm-up time for the module is approximately fifteen minutes.
Model | PXIe-4305 |
---|---|
Part Number | 783868-01 |
Manufacturer | National Instruments |
Type | PXI Analog Input Module |
Differential Analog Input Channels | 32 |
Maximum Sample Rate | 51.2 kS/s |
Analog Input Resolution | 24 bits |
Dimensions | 6.3 x 3.9 in. |
Weight | 5.5 oz. |
Warranty | 2-3 Year Warranty |
PXIe-4305 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-4305:
158138A-02L, 158138A-22L, 158138B-22L, 783868-01
National Instruments PXIe-4305 Frequently Asked Questions
Question: What is the input FIFO buffer size of the PXIe-4305 module?
Answer: The input FIFO buffer size of the PXIe-4305 module is 1,023 samples.
Question: What is the minimum acquisition rate for the NI PXIe-4305?
Answer: The NI PXIe-4305 has a minimum acquisition rate of 1 S/s.
Question: Which trigger modes are available on the PXIe-4305?
Answer: The trigger modes available on the PXIe-4305 are leaving window, rising-edge, entering window, rising-edge with hysteresis, falling-edge with hysteresis, and falling edge.
Question: Which terminal block can be used with the NI PXIe-4305?
Answer: The TB-4304 terminal block can be used with the NI PXIe-4305.
PXIe-4305 PDF Manuals
NI PXIE 4304 4305 CALIBRATION PROCEDURE.PDF
NI PXIE 4304 4305 DEVICE SPECIFICATIONS.PDF
NI PXIE 4304 4305 LETTER OF VOLATILITY.PDF
NI PXIE 4304 4305 USER MANUAL.PDF
NI PXIE 4304 4305 AND TB 4304 USER GUIDE AND TERMINAL BLOCK SPECIFICATIONS.PDF
PXIE 4304 4305 RM 4304 USER GUIDE AND RM 4304 SPECIFICATIONS.PDF
