TB-4304
Test & Measurement Misc > National Instruments > Terminal Blocks
| Description: | TB-4304, Front Mounting, Terminal Block |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

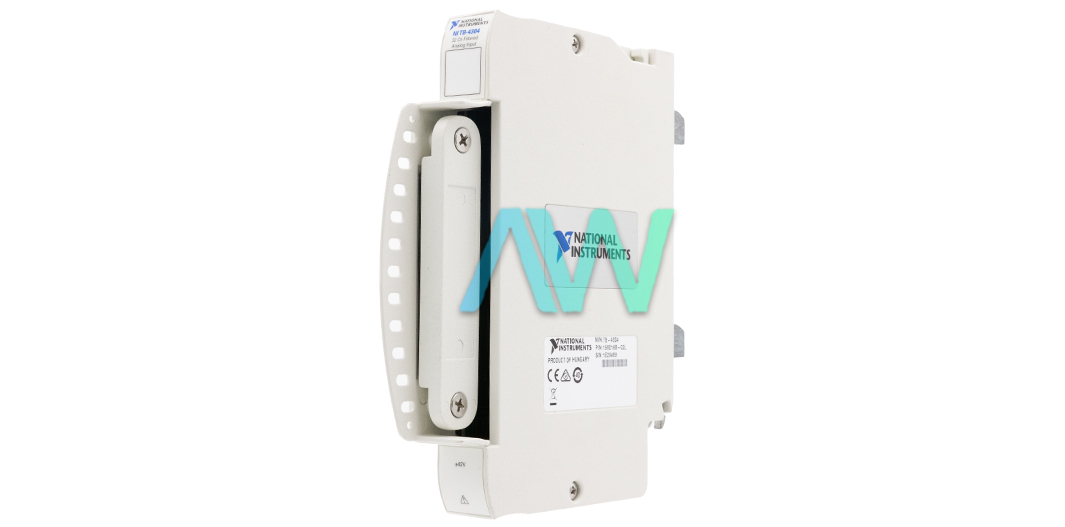

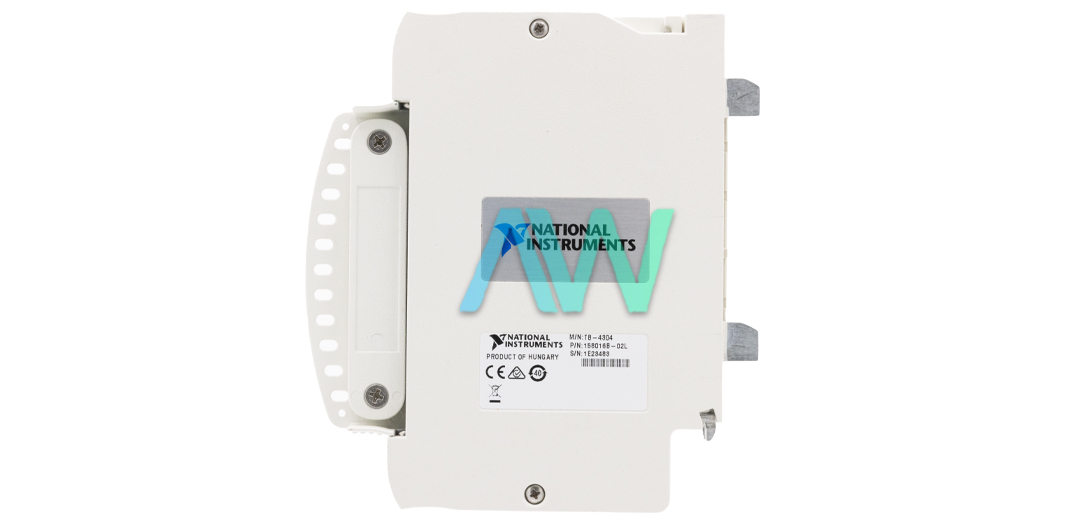

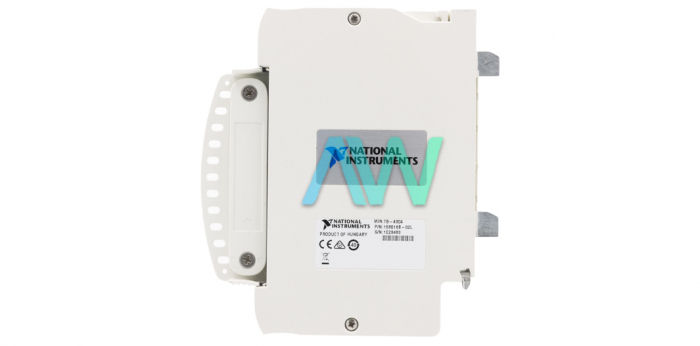

NI TB-4304 Terminal Block
The TB-4304 (Part Number: 158016-02L) Terminal Block is designed for the PXIe-4304 and PXIe-4305. This front-mountable Terminal Block comes featured with a spring mechanism that works as a mechanical interlock between the host module and the Terminal Block. For further tightening, a mounting screw is also provided on the top of the NI TB-4304. This Terminal Block enables the data acquisition module to measure up to 42 V analog input voltages and has 32 channels.
The I/O connector of this accessory contains RSVD (reserved pins), which are used for communication with the TB-4304. The PFI lines of this Terminal Block can be used to receive or send synchronization signals. The digital ground DGND pin included in the I/O connector provides access to the digital ground of the module. This Terminal Block is intended to be used within Measurement Category I applications only and can be deployed at 0 °C to 55 °C ambient temperature range.
| Model | TB-4304 |
|---|---|
| Manufacturer | NI |
| Part Number | 158016-02L |
| Type | Terminal Block |
| Compatible Models | PXIe-4304 and PXIe-4305 |
| Mounting Type | Front Mounting |
| Calibration Interval | N/A |
| Screw Terminal Wire Gauge | 1.5 mm 2 (16 AWG), max |
| Weight | 1 lb. |
| Warranty | 2-3 Year Warranty |
| TB-4304 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for the TB-4304:
158016A-02L, 158016B-02L, 158016C-02L, 200229A-01, 783870-01
Driver Downloads for TB-4304
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
