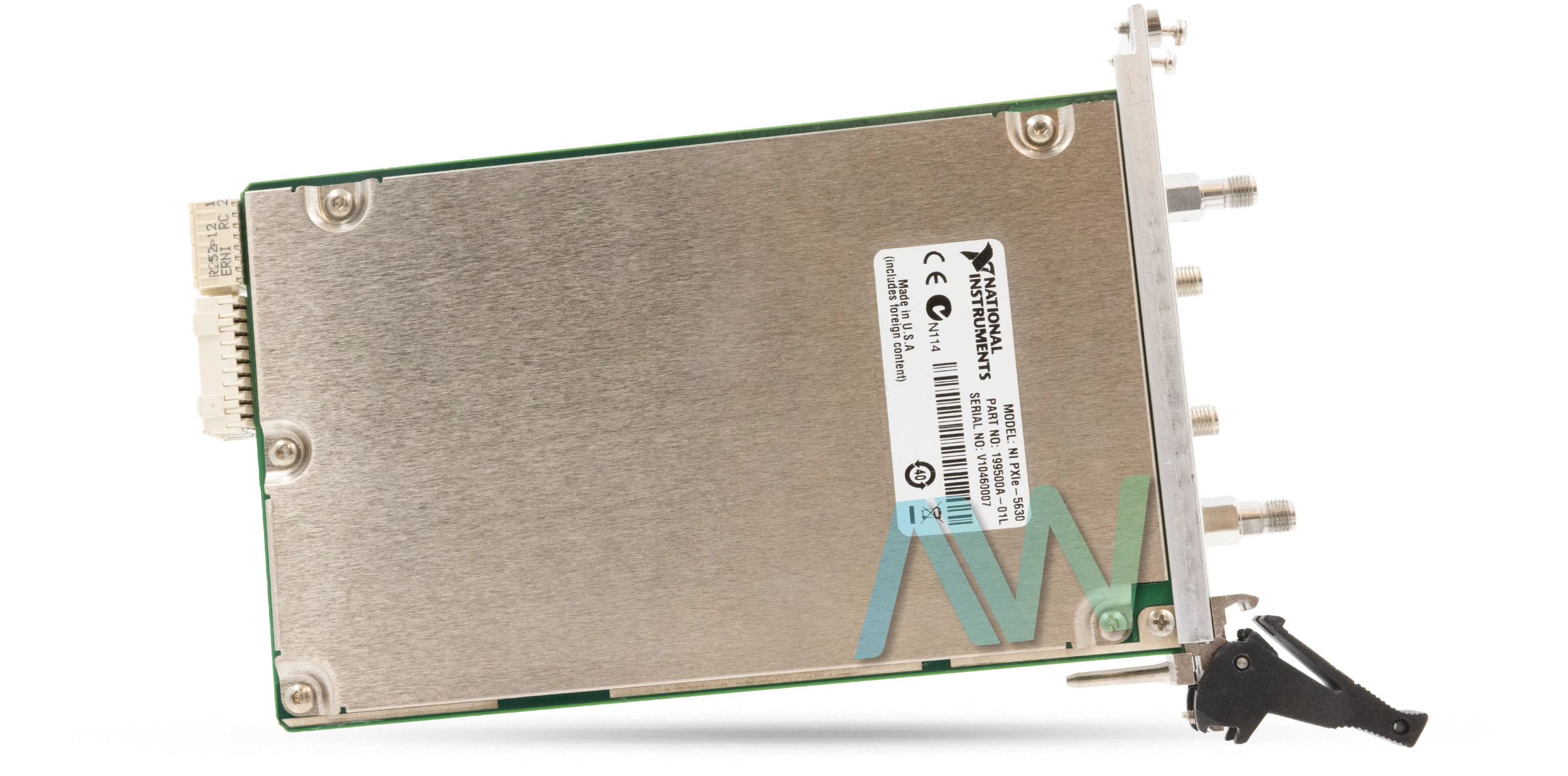

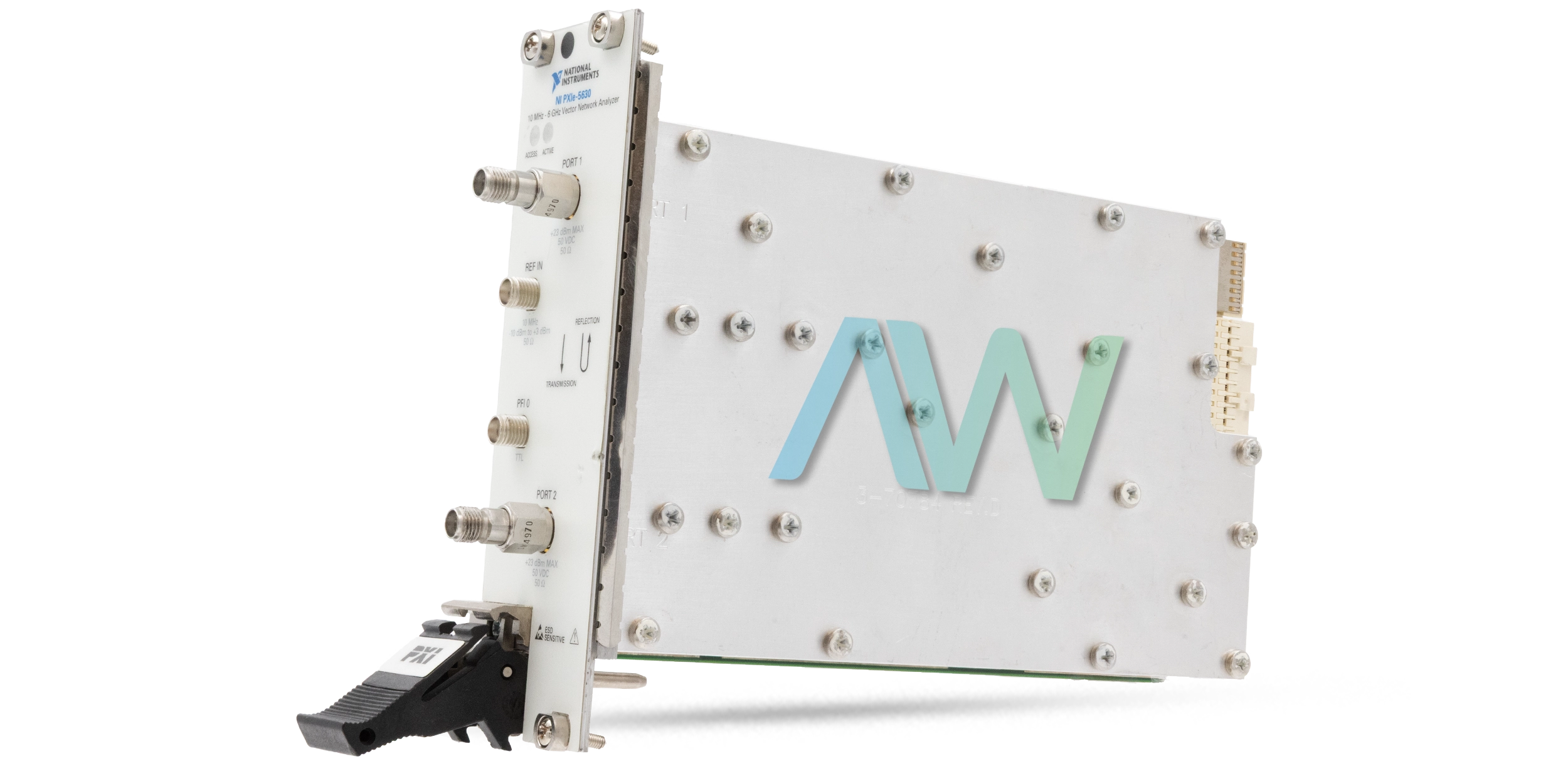

National Instruments PXIe-5630 PXI Vector Network Analyzer

The PXIe-5630 (Part Numbers: 781219-01 and 781219-02) Vector Network Analyzer (VNA) has the following features:

·         10 MHz to 6 GHz frequency range

·         >100 dB dynamic range

·         <-123 dBm/Hz noise floor

·         -30 dBm to +5 dBm power range

·         <400 s/point sweep speed over 3,201 points

·         Configure Complete PXI System

·         Automation precision calibration

The National Instruments PXIe-5630 is designed to address the demands of engineers to integrate the analysis of a vector network into their systems without incurring the costs of regular bench top VNAs. This model is a 2-port VNA that provides exceptional phase noise and sample jitter.

Using its soft front panel which provides a fully-featured interface, the NI PXIe-5630 VNA can be controlled interactively. This model can also be programmed for NI LabVIEW software and NI LabWindows/CVI ANSI C development environments by using APIs.

The NI PXIe 5630 features a frequency resolution of 10 Hz and a power step resolution of 0.5 dB on the port 1 source. For this device, the input impedance is at 50W and the input range is +3 dBm to –10 dBm sine wave. The ambient temperature range of this device is from 0 °C to 55 °C in an operating environment, whereas it is –41 °C to +71 °C in a storage environment. The NI PXIe-5630 VNA is a 3U, two slot, PXI Express module, with dimensions of 8.5 in. × 1.6 in. × 5.1 in. This VNA weighs 24.0 oz.

ModelPXIe-5630
Part Numbers781219-01 and 781219-02
ManufacturerNational Instruments
TypePXI Vector Network Analyzer
Sources Supported1
Maximum Source Power5 dBm
Frequency Range10 MHz to 6 GHz
Dimensions8.5 x 1.6 x 5.1 in.
Weight24.0 oz.
WarrantyOne Year Warranty
PXIe-5630 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-5630 Frequently Asked Questions



Question: Which S parameter measurements are supported by the NI PXIe-5630 VNA?



Answer: The NI PXIe-5630 VNA supports S11 and S21 measurements.



Question: Why does the NI PXIe-5630 have two part numbers?



Answer: The two part numbers for the NI PXIe-5630 have the same specifications, but part number 781219-02 supports time domain analysis and part number 781219-01 does not.



Question: Is using the AutoCal kit for the PXIe-5630 more accurate/faster than using the manual calibration kit?



Answer: The AutoCal kit for the PXIe-5630 automates the calibration process, unlike the manual calibration kit. Therefore, the AutoCal kit ensures swifter calibration and a reduced chance for human mistakes.



Question: Which types of connectors are used on the PXIe-5630?



Answer: The PXIe-5630 uses Type-K, 50 Ohm connectors.

  PXIe-5630 PDF Manuals


Why Buy From Apex Waves:

Apex Waves Youtube Video


Delivery:
UPS, FedEX and DHL – Free Fedex Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All of our products are covered by our Apex Waves Warranty.
3 Year Warranty - New Surplus Parts
2 Year Warranty - Refurbished Parts
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Repair Evaluation: $150
Share this page:
Common Typos: PXUE-5630, PXLE-5630, PXID-5630, PXIE-5U30, PXIE-56R0

PXIe-5630


PXIe-5630

PXIe-5630, 2-Port, 6 GHz, PXI Vector Network Analyzer

Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing













Call now for best pricing
1-800-915-6216

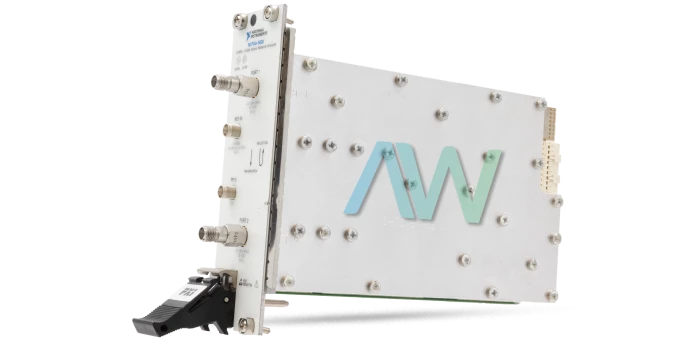

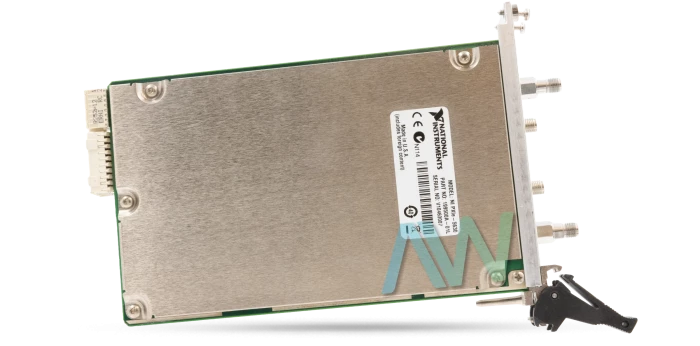

National Instruments PXIe-5630 PXI Vector Network Analyzer
