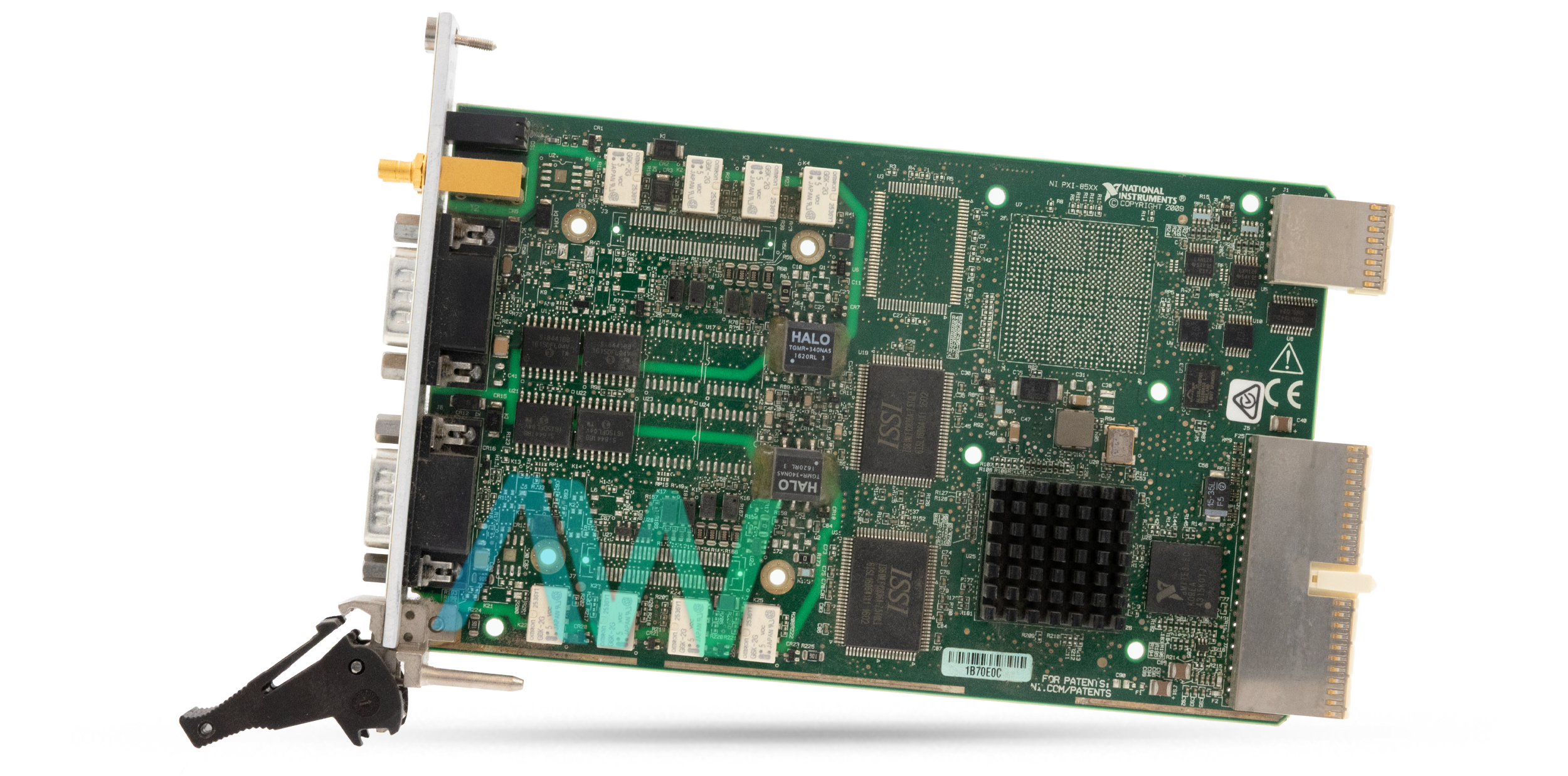

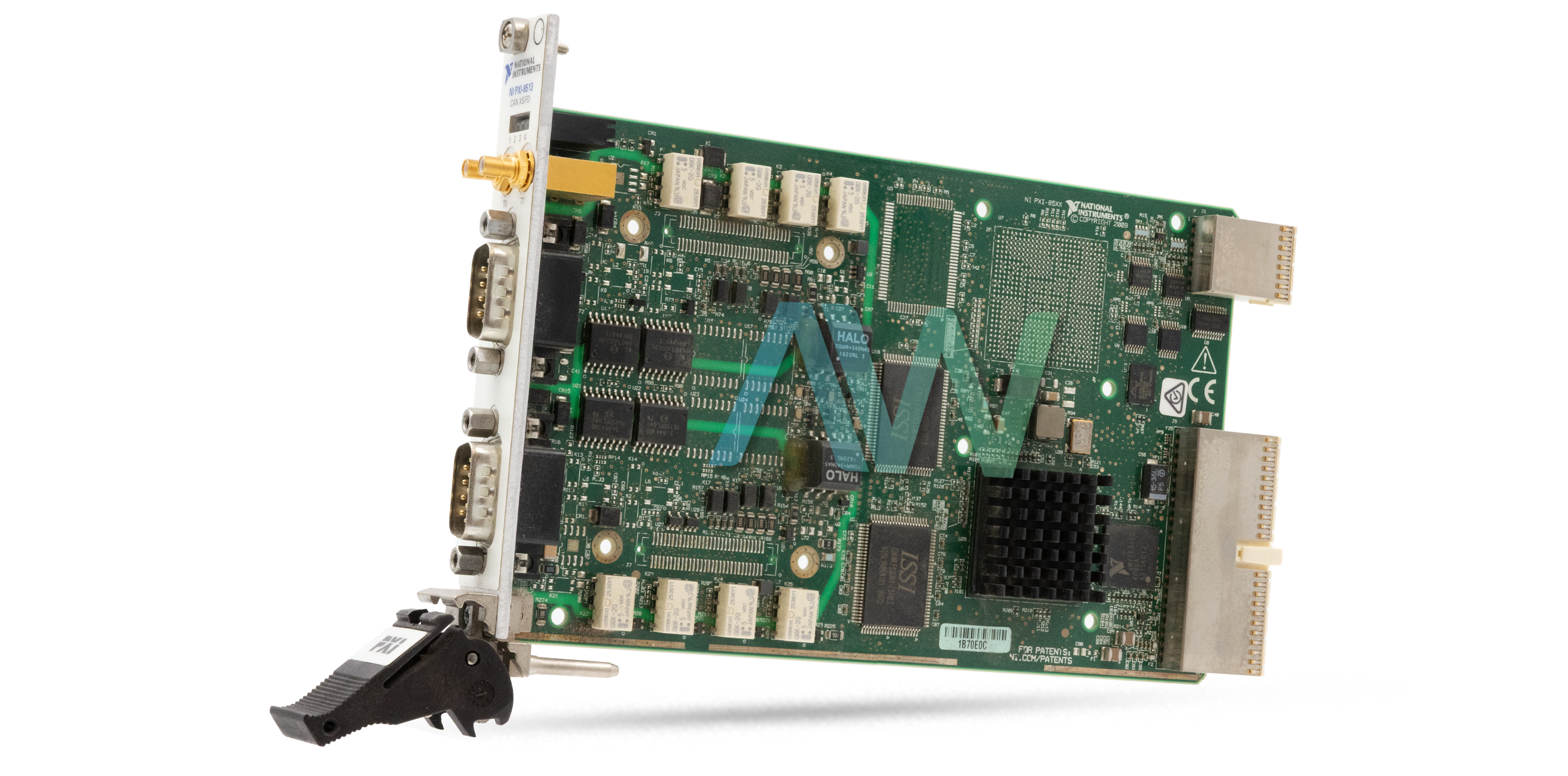

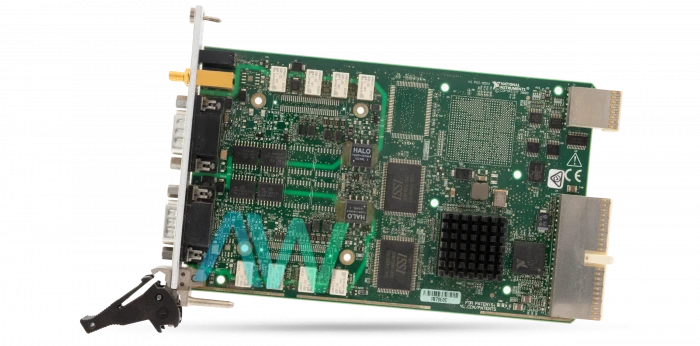

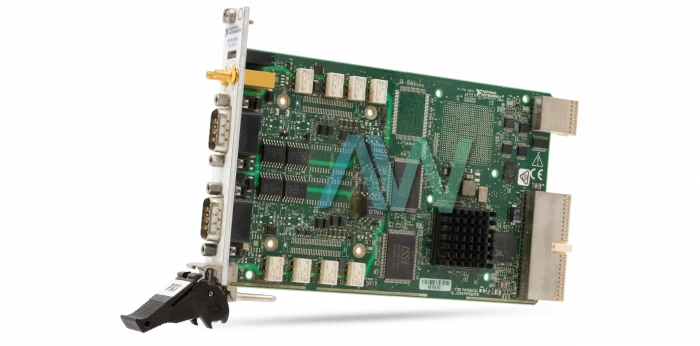

National Instruments PXI-8513 PXI CAN Interface Module

The PXI-8513 (Part Number: 780688-01), Software Selectable, 1 Port CAN Interface Module has a microsecond time stamp and outside time base support. The NI PXI-8513 has 1 port. The NI PXI 8513 CAN Interface Module also has PXI/RTSI activation that permits NI-XNET interfaces to integrate with many NI PCI gadgets and PXI for a wide assortment of altered applications, going from synchronized data acquisition and bus level estimations to the insertion of issues and large distributed frameworks. For National Instruments NI-XNET interfaces utilized as a part of the NI CompactDAQ and NI CompactRIO chassis, the user can achieve triggering and synchronization with different modules through sharing a similar clock on the hardware backplane. The device is equipped with a 9-pin male D-SUB for its port. It has 7 I/O trigger lines.

The NI PXI-8513 has a DMA motor with NI-XNET gadget, patent pending, that lessens framework latency, a typical point for PC-based CAN interfaces, from milliseconds to microseconds. The engine enables the installed processor to move frames and signals between the interface and the client program without interfering with the CPU, freeing up processing time from the host for processing complex models and applications.

The NI PXI 8513 includes a NI-XNET Database Editor, which is a standalone tool for creating and maintaining integrated network databases that contain signals, frames, and network parameters. NI-XNET Products use the ASAM FIBEX (Field Bus Exchange) standard as the database essential storage format. In addition to FIBEX, the NI-XNET Database Editor can import NI-CAN database format (. NCD) and CANdb format (. DBC) and convert them to FIBEX. The device has NXP TJA1041 or TJA1043, NXP TJA1054A or TJA1055T, and NXP AU5790 or ON Semiconductor NCV7356 transcievers.

The NI device weighs 3.5 oz, and measures 6.3 x 3.9 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 °C to 55 °C and -20 °C to 70 °C respectively, non-condensing operating and storage humidity ranges of 10% to 90% RH and 5% to 95% RH respectively, operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz.

ModelPXI-8513
Part Number780688-01
ManufacturerNational Instruments
TypePXI CAN Interface Module
Ports1 or 2
Trigger Lines7 input/output
I/O Connector9-pin male D-SUB for each port
Dimensions6.3 x 3.9 in.
I'O CompatibilityTTL
WarrantyThree Year Warranty
PXI-8513 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.
