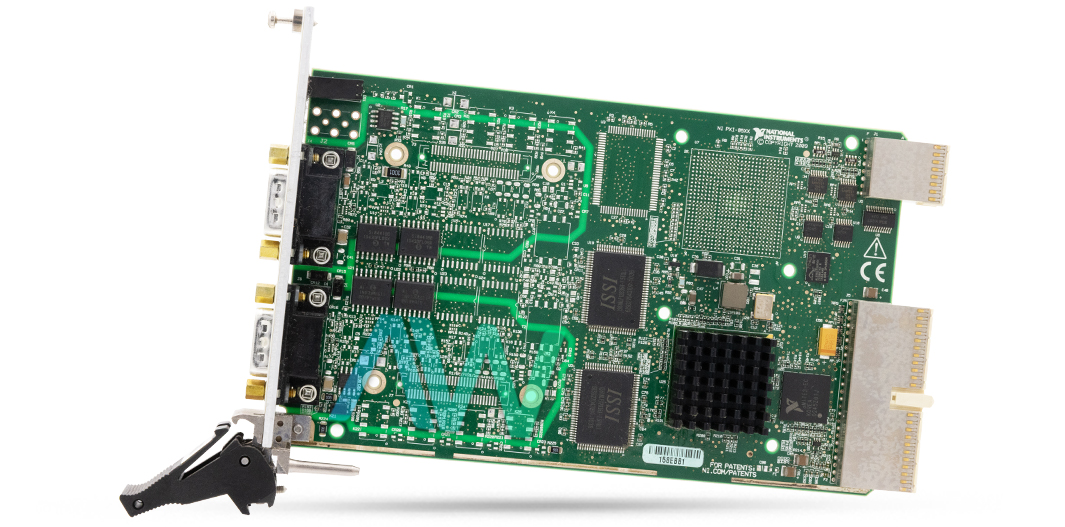

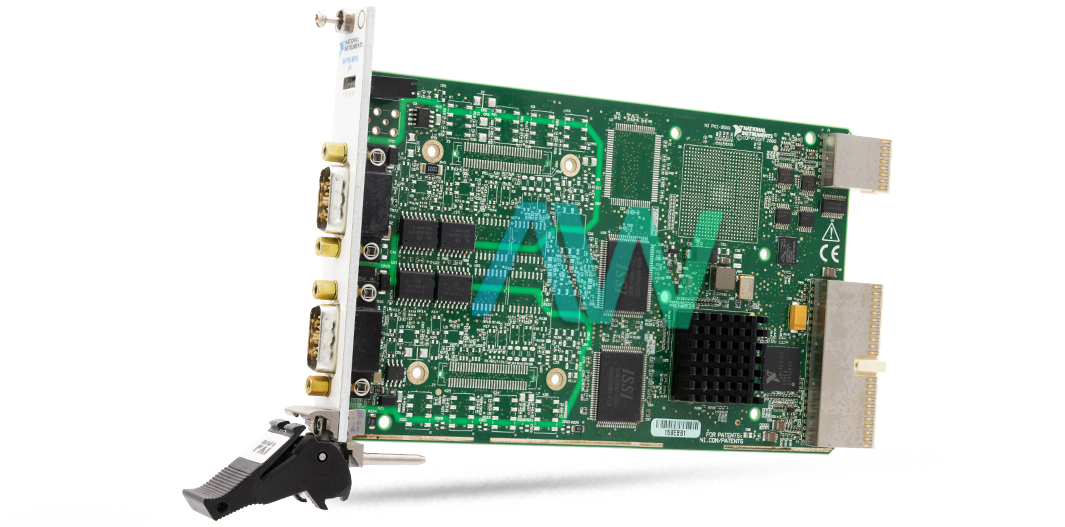

National Instruments 781366-01 PXI LIN Interface Module.
The part number 781366-01 from National Instruments is the identifying part number for the PXI-8516 PXI LIN Interface Module. This PXI module features 2 LIN channels permitting many LIN devices to communicate simultaneously, which is essential for intricate system configurations. This module uses a transceiver of model number ATMEL ATA6620 supporting a maximum baud rate of 20 kbps and minimum baud rate of 2.4 kbps, thus facilitating high speed data transmission. This PXI module requires a bus power of +8 Volts to +18 Volts, ensuring safe operation with a wide range of power conditions.
This 781366-01 PXI LIN Interface Module is designed to operate at an ambient temperature of 0 degrees Celsius to 55 degrees Celsius and storage temperature of -20 degrees Celsius to 70 degrees Celsius. Its operating relative humidity is 10% to 90% RH, noncondensing while its storage relative humidity is 5% to 95% RH, noncondensing. It can be mounted at maximum height of 2000 meters and has pollution rating of 2 that makes it suitable for indoor use where their is non conductive pollution. This module is compatible with any safety standards including the IEC 61010-1, EN 61010-1, UL 61010-1, and CSA 61010-1 standard with ECM compatibility as well, thus making it suitable for measurment, control and laboratory use.
Physically, this module has compact structure with dimensions 10.67 cm x 16.76 cm (4.2 in. x 6.6 in.) and weighs 102 g (3.6 oz). This module consist of RTSI/Front Panel Sync Connectors with 7 input output trigger lines and 1 input output clock lines with TTL compatibility that responds to the Rising edge triggers ensuring precise synchronization.
The 781366-01 module is made to endure harsh working condition with operating shocks of 30 g peak, half-sine, 11 ms pulse tested in accordance with IEC-60068-2-27 standard and operating vibrations of 5 Hz to 500 Hz, 0.3 grms with nonoperating vibrations of 5 Hz to 500 Hz, 2.4 grms tested in accordance with IEC-60068-2-64 standard. This module has a maximum isolating voltage of 500 Vrms withstand and 60 VDC that is port to port and port to ground.
| Model | 781366-01 |
|---|---|
| Part Number | 781366-01 |
| Model Name | PXI-8516 |
| Part Type | PXI LIN Interface Module |
| Dimensions | 10.67 cm x 16.76 cm (4.2 in. x 6.6 in.) |
| Weight | 102 g (3.6 oz) |
| Transceiver | ATMEL ATA6620 or ATA6625 |
| Max Baud Rate | 20 kbps |
| Min baud rate | 2.4 kbps |
| Bus Power Required | 8 V to +18 V |
| Operating Temperature | 0 °C to 55 °C |
