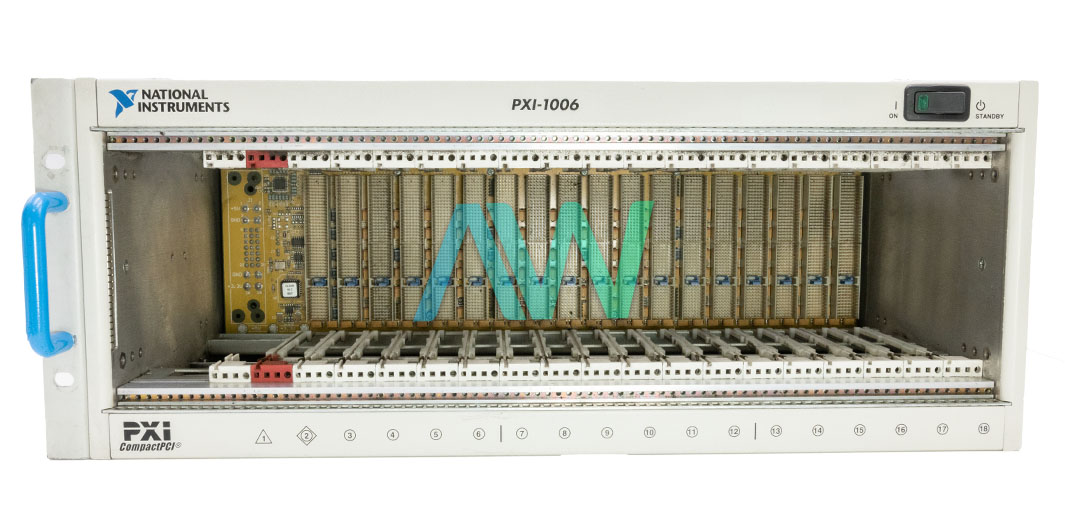

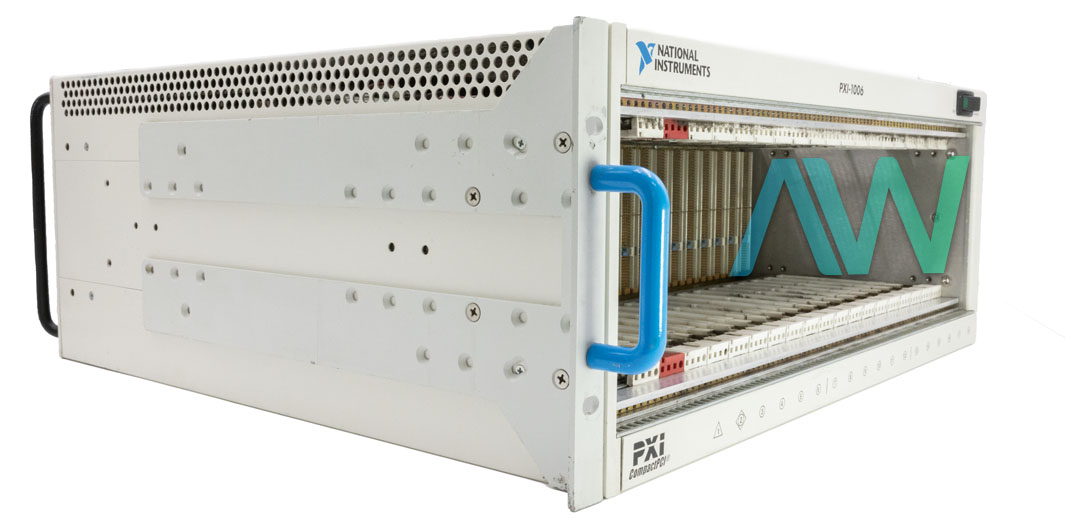

National Instruments PXI-1006 Chassis

Featured with rack mount compatibility, a removable modular power supply, and over-current protection, the National Instruments PXI-1006 (Part number: 778303-01) is a 3U-sized, 18-slot Chassis. This model offers up to 600 W usable power. The NI PXI-1006 comes equipped with a remote power monitoring interface. Thus, this Chassis supports remote power inhibiting and monitoring. The user can configure this option by employing the 9-pin D-sub connector provided on the rear panel of the Chassis.

This Chassis supplies a system clock signal to each peripheral slot independently and an independent buffer drives the clock signal to every peripheral slot. Thus, the user can have this common reference clock signal for the synchronized operation of multiple modules in a control or measurement signal. In addition, the PXI_CLK10 system clock signal can also be derived by means of an external source through the PXI_CLK10_IN pin provided on the star trigger slot`s P2 connector. The NI PXI-1006 offers three PXI segments with the vertical bars representing segment divisions on the Chassis’ front panel. The PXI trigger bus is also divided into three different and separate trigger buses. In this arrangement, users can utilize the trigger line in various ways. As an example, consider the synchronized operation of multiple PXI peripheral modules.

 The PXI-1006 Chassis offers a local bus connection with a couple of exemptions: slot 1 and slot 2. These two slots are not connected through local bus connections as it is restricted in the PXI specifications.  Slot 1 of this Chassis is known as the system controller slot.

ModelPXI-1006 (778303-01)
ManufacturerNational Instruments
TypePXI Chassis
Maximum Usable Power600 W
Size3U
Input Voltage Range90-264 VAC
PXI Slots18
Compatible ModelsCompactPCI and PXI Modules
Weight29.2 lb.
WarrantyOne Year Warranty
PXI-1006 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-1006 Frequently Asked Questions



Question: Which modules are compatible with the PXI-1006 Chassis?



Answer: Standard CompactPCI and PXI modules are compatible with the PXI-1006 Chassis.



Question: Does the PXI-1006 have over-current protection?



Answer: Yes, the PXI-1006 has a 10 A circuit breaker over-current protection for the AC input and 105-140% of rated output current with automatic recovery for the DC output.



Question: What is the maximum module weight for the NI PXI-1006 modules?



Answer: The modules used in the NI PXI-1006 can have a maximum weight of 4 lb.



Question: Where can I find the manual for the PXI-1006?



Answer: The PXI-1006 manual can be downloaded from the apexwaves.com website.
