PXI-1033
Modular Systems > National Instruments > PXI Chassis
Description: | PXI-1033, 5-Slot, PXI Chassis |
Need an Official Quote?
Or speak to a sales representative for pricing & lead time:

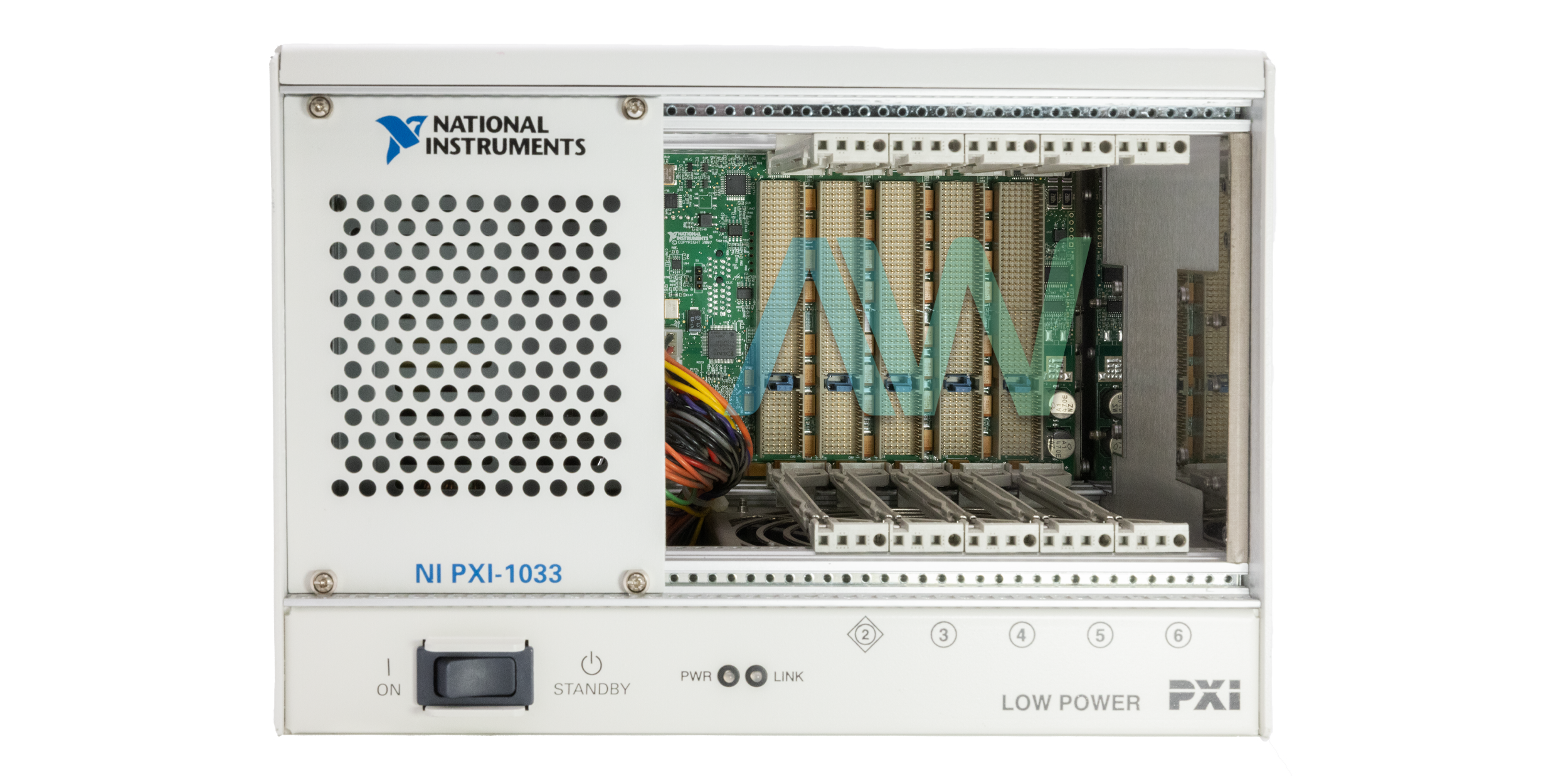

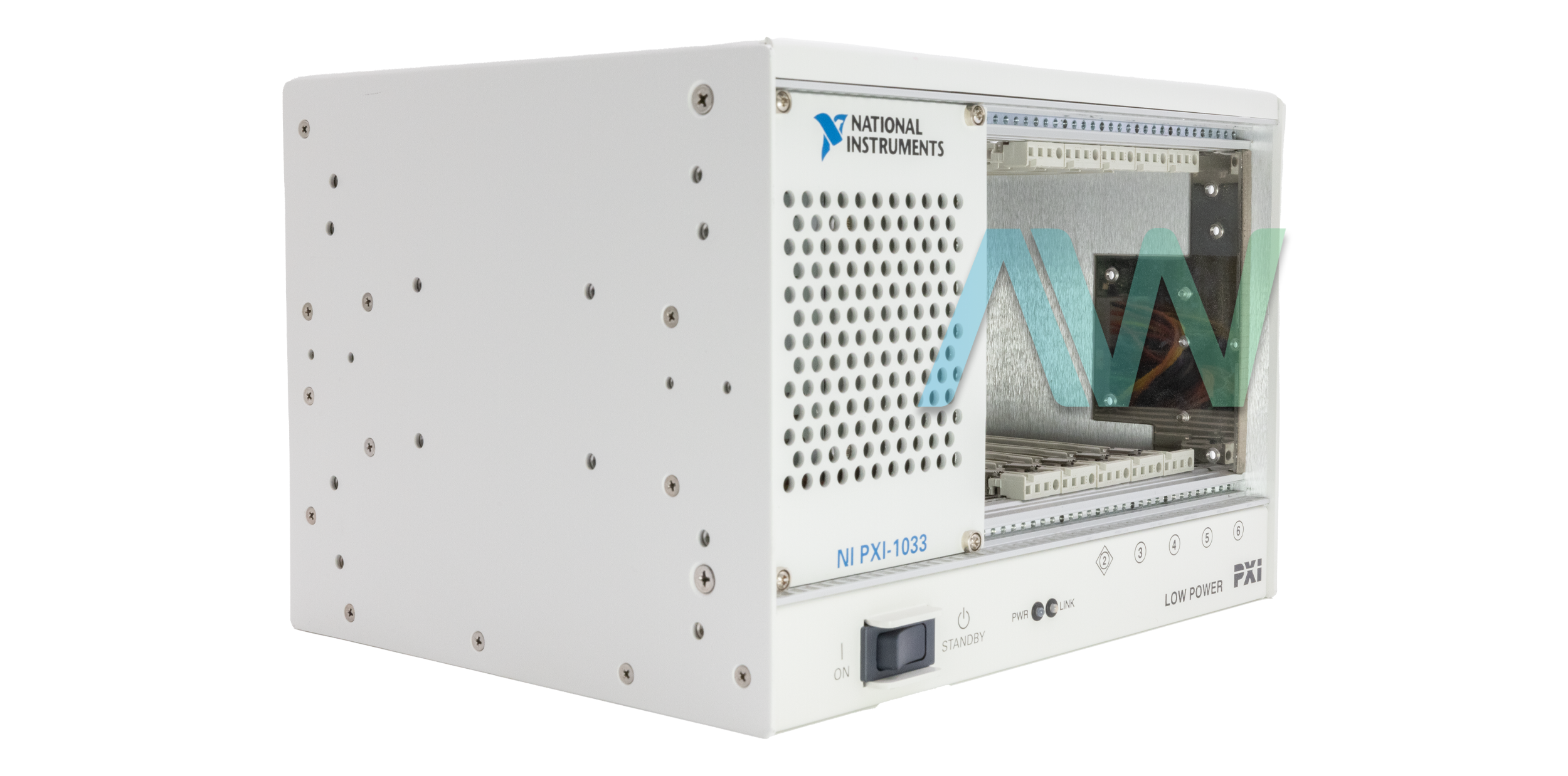

National Instruments PXI-1033 PXI Chassis
The NI PXI-1033 (Part Number: 779760-01) is a low-cost PXI Chassis from National Instruments, which is created for remote control applications. The PXI-1033 is a host PCI Express board for desktops. This model offers services as a host express card for laptops and a cable, as well as enhanced usability in a wide range of applications. The NI PXI-1033 Chassis accepts 3U PXI and Compact PCI (PICMG 2.0 R 3.0) modules. This PXI Chassis can have a carrying handle added and/or it can be rack mounted.
The National Instruments PXI-1033 Chassis has a built-in MXI-Express controller, with the capability to offer a transparent, remote link with up to 110 MB/s throughput. The NI PXI-1033 meets the cooling and power requirements of the automotive, automated test, and electronics industries. The PXI 1033 comes with five peripheral slots for I/O modules, a compact design, universal AC input, and quiet operation. These features make the PXI-1033 an ideal option for desktop ATE systems. The PXI-1033 economical cost help reduce the PXI setup price.
The NI PXI-1033 Chassis also offers an AUTO/HIGH fan-speed selector. The HIGH fan setting helps offer more cooling. The PXI-1033 AUTO fan selector reduces the noise level. This AUTO selector also checks the air intake temperature and adjusts the fan speed. The NI PXI 1033 Chassis comes with a sound pressure level of 37.4 dBA for the AUTO fan setting and a sound pressure level of 51.5 dBA for the HIGH fan setting. This model also comes with a system reference clock of 10 MHZ and a built-in clock accuracy of ±25 ppm.
PXI-1033 Mature Status has been declared by National Instruments, but this PXI Chassis will still be available for purchase and repairs at Apex Waves.
Model | PXI-1033 |
---|---|
Manufacturer | National Instruments |
Part Number | 779760-01 |
Type | PXI Chassis |
Slots | 5 |
Slot Cooling Capacity | 25 W |
Chassis Power Supply Type | AC |
Dimensions | 6.97 in. x 10.12 in. x 8.38 in. |
Weight | 11.0 lb. |
Warranty | One Year Warranty |
PXI-1033 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
National Instruments PXI-1033 Frequently Asked Questions
Question: Which accessories are required for the PXI-1033 Chassis?
Answer: The PXI 1033 Chassis requires an IEC power cord, a Device for PXI Remote Control, and an MXI cable.
Question: Does the NI PXI-1033 have external clocking?
Answer: No, the NI PXI-1033 does not have external clocking.
Question: Can the fan filter in the NI PXI 1033 be replaced?
Answer: Yes, the replacement for the fan filter in the NI PXI 1033 is part number 150139-C from Air Filtration Products, Inc.
Question: What type of power supply cooling does the PXI-1033 have for the system?
Answer: The PXI-1033 has forced air circulation via an integrated fan for the system.
PXI-1033 PDF Manuals
4 6 SLOT PXI CHASSIS HANDLE FEET KIT INSTALLATION GUIDE.PDF
FAN REPLACEMENT FOR 4 6 AND 9 SLOT CHASSIS.PDF
NI PXI-1033 USER MANUAL AND SPECIFICATIONS.PDF
PXI-1033 LETTER OF VOLATILITY.PDF
PXI CHASSIS HANDLE FEET KIT INSTALLATION GUIDE.PDF
PXI AND PXI EXPRESS CHASSIS FAN REPLACEMENT GUIDE.PDF
PRODUCT NOTIFICATION POSSIBLE SYSTEM HANG WITH THIRD PARTY PXI MODULES.PDF
PXI-1033 Diagrams
Why Buy From Apex Waves:
PXI-1033
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- PDFs & Diagrams

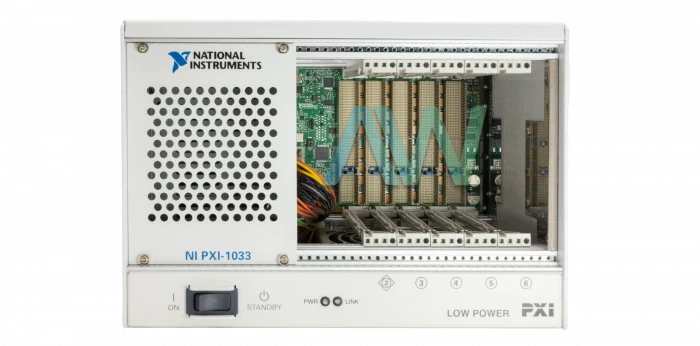

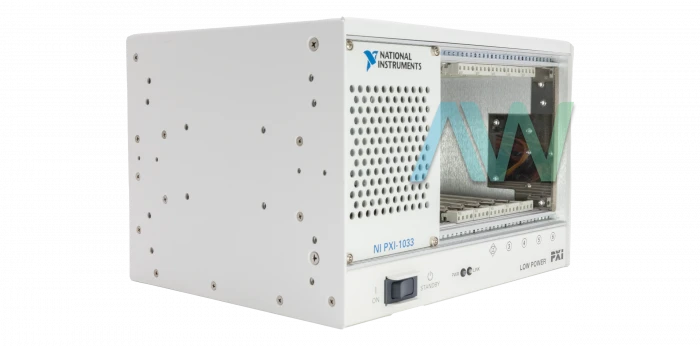

National Instruments PXI-1033 PXI Chassis
