778824-01, 850 MHz, Windows XP FES, PXI-8184 Embedded PXI Controller

Rated 4.7/5 | 8 ratings

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments 778824-01 PXI/CompactPCI Embedded controller

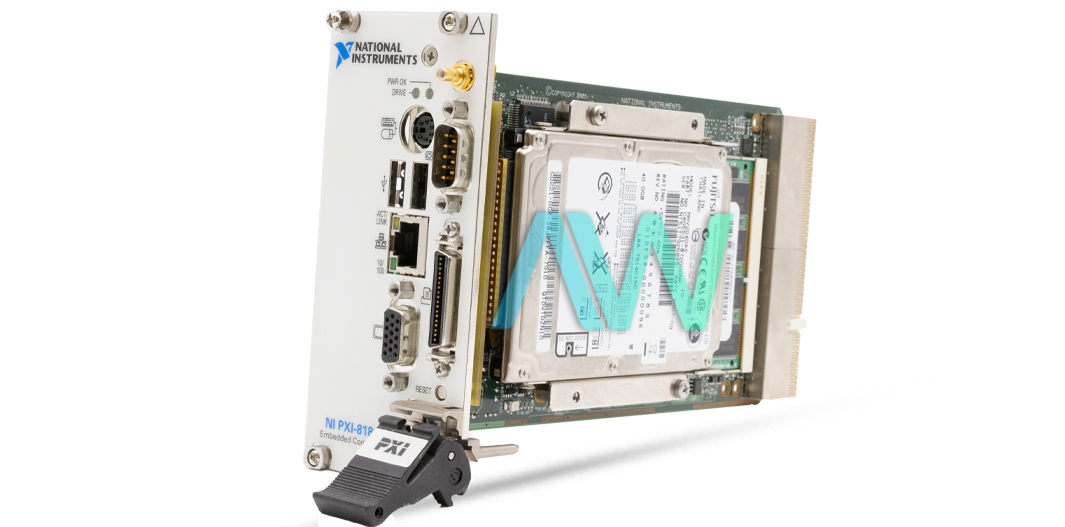

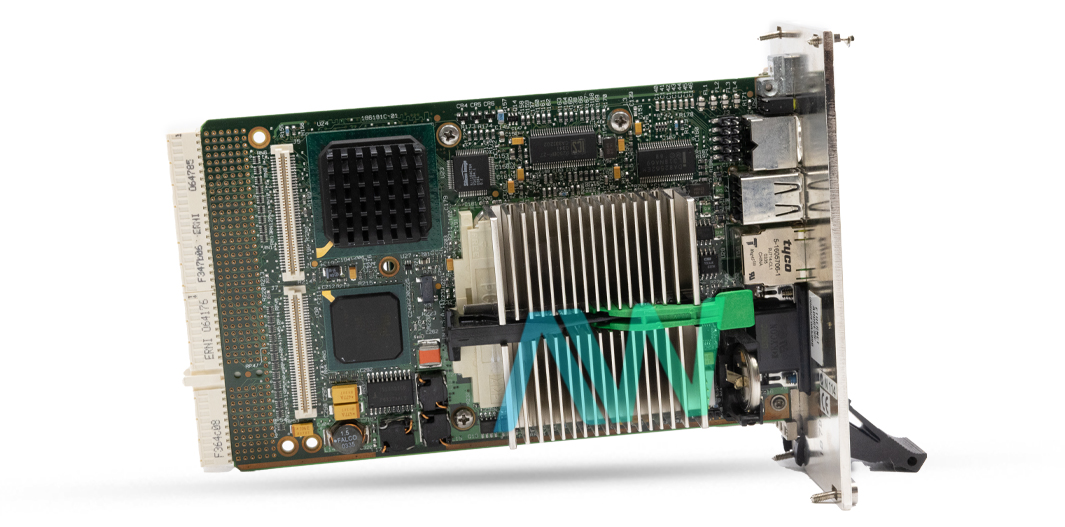

The part number 778824-01 from National Instruments is the identifying part number for the PXI-8184 PXI/CompactPCI Embedded controller. This embedded controller is equipped with various I/O ports such as video, RS-232 serial ports, a parallel port, two USB ports, a 10/100 Ethernet port, and PS/2 ports for keyboard and mouse. It also features a reset button and PXI trigger functionality. The 7788224-01 is powered by an 850 MHz processor and includes a 30 GB or larger hard drive which can be expanded to store and process big amounts of data.

This embedded controller module is compatible with the PXI 3U-size module standard size and measures 6.1 x 13 x 21.6 cm (2.4 x 5.1 x 8.5 inches) requiring only one system slot and two controller expansion slots in the chassis. It has an ambient temperature range from 5 degrees Celsius to 50 degrees Celsius when installed in compatible chassis such as the PXI-1000B, PXI-1006, and others and can operate at altitudes up to 2,000 meters maximum. The relative humidity conditions range is from 10% to 90% non-condensing and for storage, the ambient temperature range is -20 degrees Celsius to 65 degrees Celsius, and it can handle relative humidity from 5% to 95% non-condensing when stored.

The 778824-01 is designed to withstand operational shocks of up to 30 g peak, half-sine, 11 ms pulse, and random vibrations from 5 to 500 Hz at 0.3 grams when equipped with a solid-state hard drive. It is compliant with various safety and electromagnetic compatibility standards, including IEC 61010-1, EN 61010-1, UL 61010-1, and CAN/CSA C22.2 No. 61010-1, ensuring safe and reliable operation in industrial environments.

This module does not feature an Ingress protection rating to protect the device from dust particles or any kind of liquid. It is recommended to keep this embedded controller in a clean and neat environment for high performance and long-term operation without facing any major performance downgrade. The 778824-01should always be connected inside an enclosure to avoid harsh industrial condition from affecting its circuitry resulting in a short.

Part Number778824-01
Model NamePXI-8184
Part TypePXI/CompactPCI Embedded controller
Processor850 MHz
Hard Drive30 GB or larger
Standard I/OVideo, RS-232, Parallel, 2x USB, 10/100 Ethernet, PS/2
Dimensions (W x H x D)6.1 x 13 x 21.6 cm (2.4 x 5.1 x 8.5 in)
Operating Temperature5 to 50 °C
Storage Temperature-20 to 65 °C
Operational Shock30 g peak, half-sine, 11 ms pulse
