PXI-8184 National Instruments PXI Controller | Apex Waves | Image PXI-8184 National Instruments PXI Controller | Apex Waves | ImagePXI-8184PXI-8184 | Legacy, Refurbished and New Surplus
PXI-8184 National Instruments PXI Controller | Apex Waves | Image
PXI-8184 National Instruments PXI Controller | Apex Waves | Image
PXI-8184 New
PXI-8184 | Legacy, Refurbished and New Surplus

PXI-8184

4.9/5 | 10 ratings

Modular Systems > National Instruments > PXI Controllers

Part Number PXI-8184
Manufacturer/Brand National Instruments
Description: PXI-8184, 850 MHz Celeron, PXI Controller
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

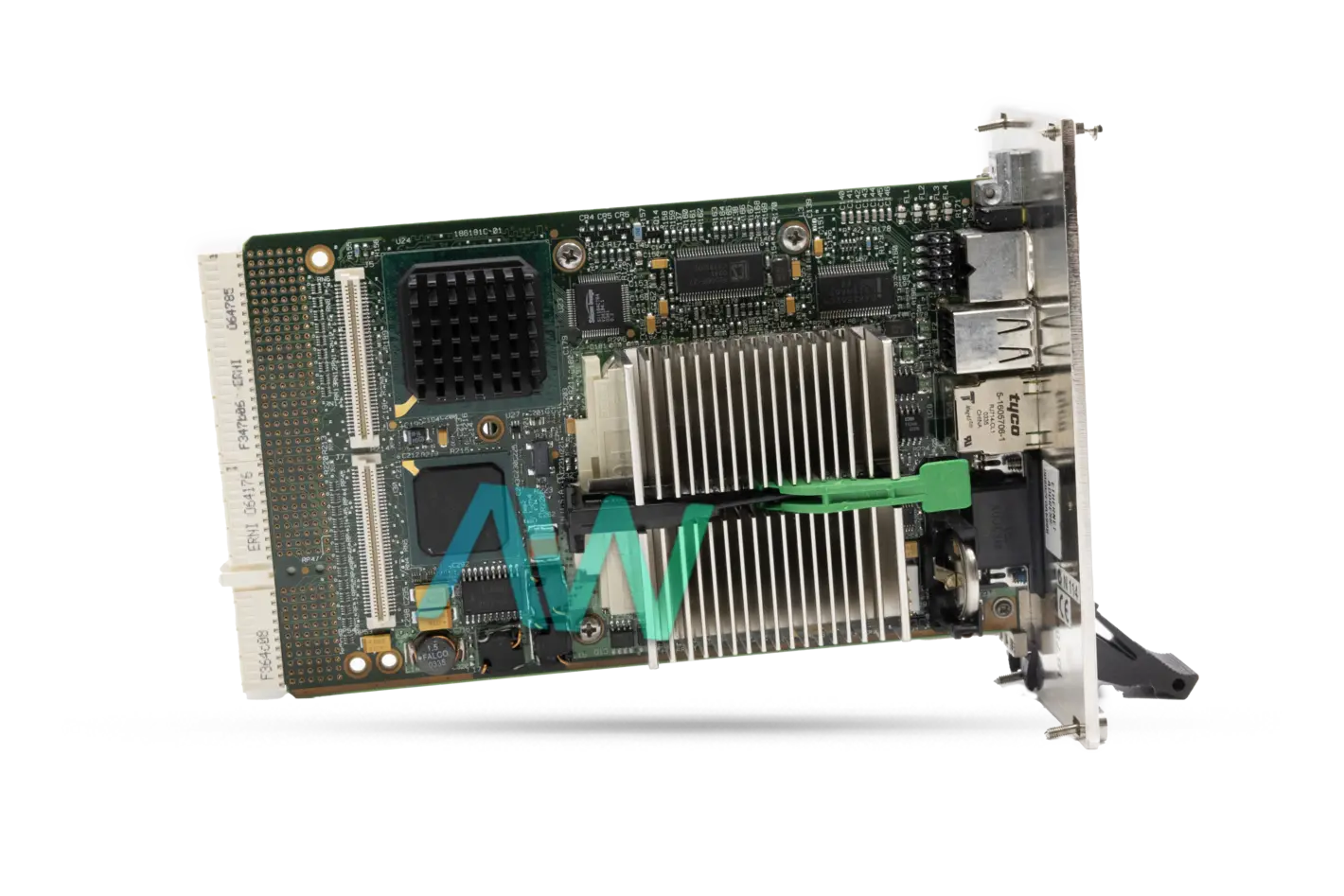

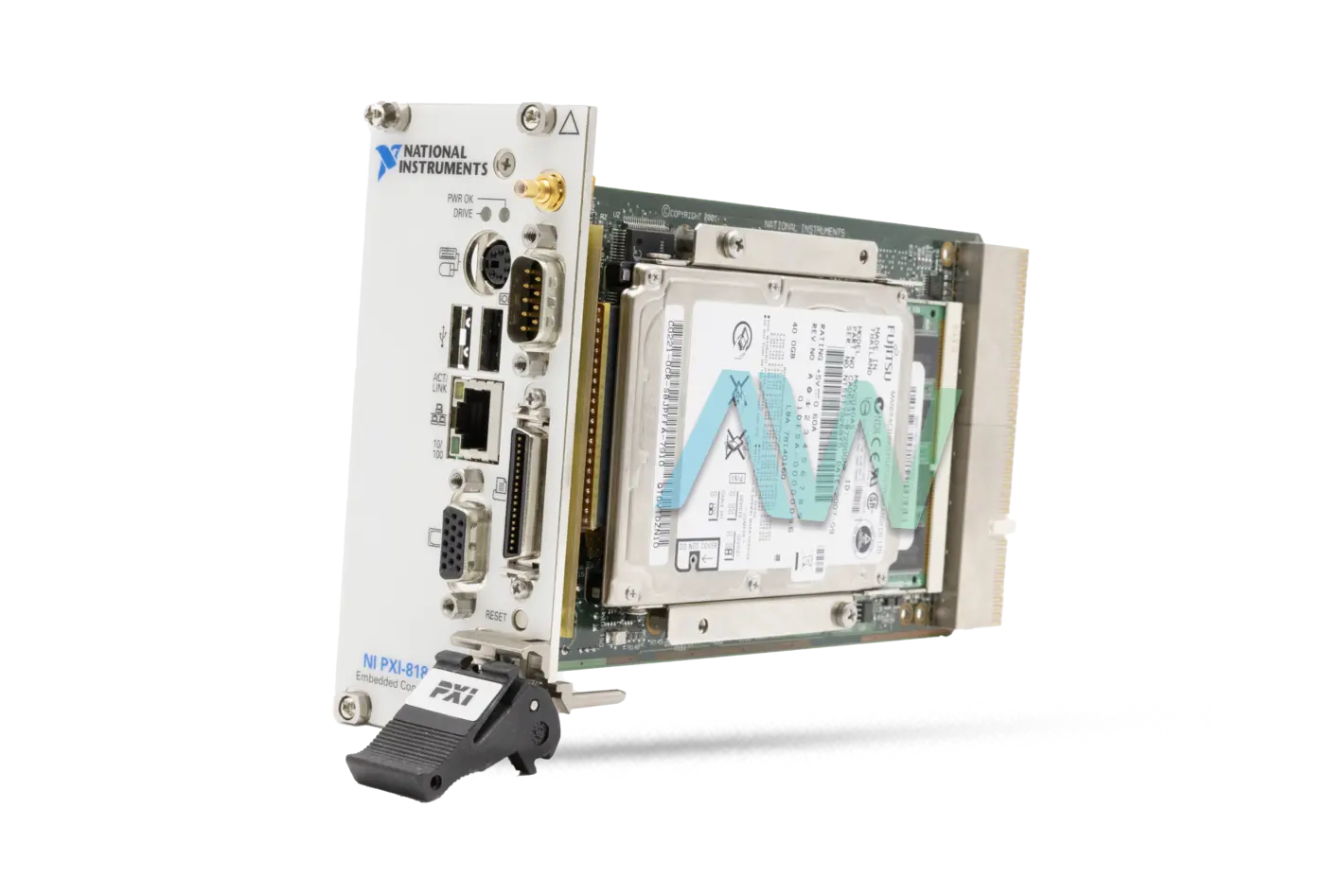

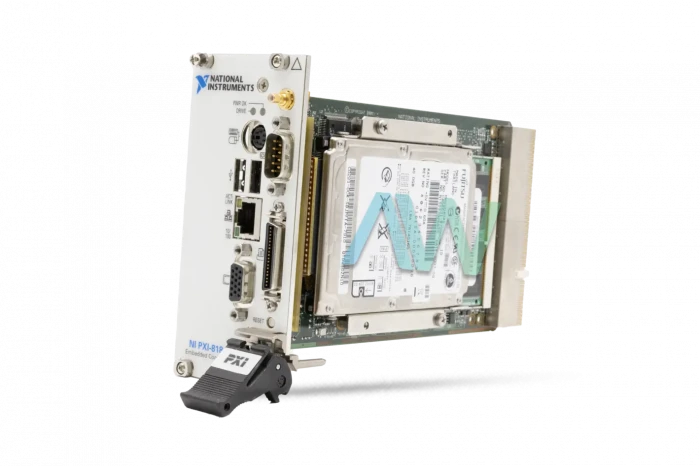

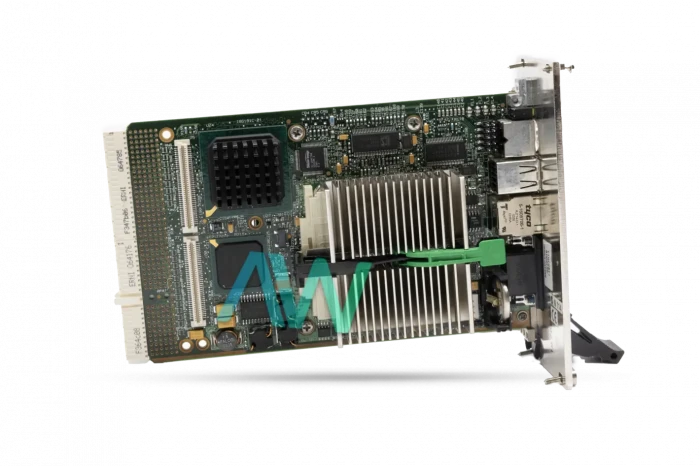

National Instruments PXI-8184 PXI Controller

Featured with a Watchdog Timer, an 850 MHz Intel Celeron Processor, and 128 MB RAM, the National Instruments PXI-8184 (Part Numbers: 778824-01, 778824-02, 778824-00) is an Embedded PXI Controller designed to be used in any CompactPCI or PXI system. This Controller offers a high-performance, compact PC platform for modular instrumentation. This Controller can be considered for a broad range of applications. With its industrial, rugged packaging, the NI PXI-8184 is ideally suited for deployment in severe environments. In addition, the low cost of this Controller makes it a suitable option for the deployment of multiple run-time PXI systems.

The National Instruments PXI-8184 comes equipped with a collection of various standard and extended PC peripherals in one unit. Thus, it can preserve active PXI slots for other measurement modules. This one-piece, rugged Controller’s design eliminates the need for complicated cabling to peripheral boards and minimizes integration issues. The NI PXI 8184 comes equipped with an external SMB connection that can be used as a watchdog timer, trigger input, or trigger output. The user can utilize the external SMB to pass timing and trigger signals to and from the PXI trigger bus in a PXI based system.

This Controller incorporates Intel`s Dynamic Memory Video Technology to provide the user with an excellent graphics and memorable experience through Direct AGP and highly efficient memory. The Super VGA provided with this Controller can deliver up to 11 MB of SDRAM when operated with polygon intensive applications and offers resolutions of 1280 x 1024 at 24-bit color or 1600 x 1200 at 256 colors.

PXI-8184 Obsolete Status has been announced by National Instruments, but the Controller will still be available for purchase and repairs by Apex Waves.

ModelPXI-8184
Part Numbers778824-01, 778824-02, 778824-00
ManufacturerNational Instruments
TypePXI Controller
Slots Required1 system slot, 2 controller expansion slots (to the left of the system slot)
CPU850 MHz Intel Celeron
Standard RAM128 MB
Dimensions2.4 x 5.1 x 8.5 in.
Weight1.14 lb.
WarrantyOne Year Warranty
PXI-8184 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-8184 Frequently Asked Questions



Question: What is the size of the hard drive on the PXI-8184?



Answer: The hard drive on the PXI-8184 is 30 GB minimum.



Question: Why are there three part numbers for the NI PXI-8184?



Answer: The NI PXI-8184 can be purchased with different types of operating systems installed. For example, part number 778824-01 has Windows XP (English) installed, part number 778824-02 has Windows 2000 (English) installed, and part number 778824-00 can have a Localized Operating System installed.



Question: What is the part number for the replacement Y-splitter cable (the connector for the PS/2 mouse and PS/2 keyboard) on the PXI-8184?



Answer: The part number for the replacement Y-splitter cable (the connector for the PS/2 mouse and PS/2 keyboard) on the PXI-8184 is part number 778713-01.



Question: What do the LEDs on the front panel of the NI PXI-8184 indicate?



Answer: The green LED on the front panel of the NI PXI-8184 shows the power supplies to/on the Controller are within the specifications. In addition, the hard drive LED lights when there is hard drive activity on the Controller.
