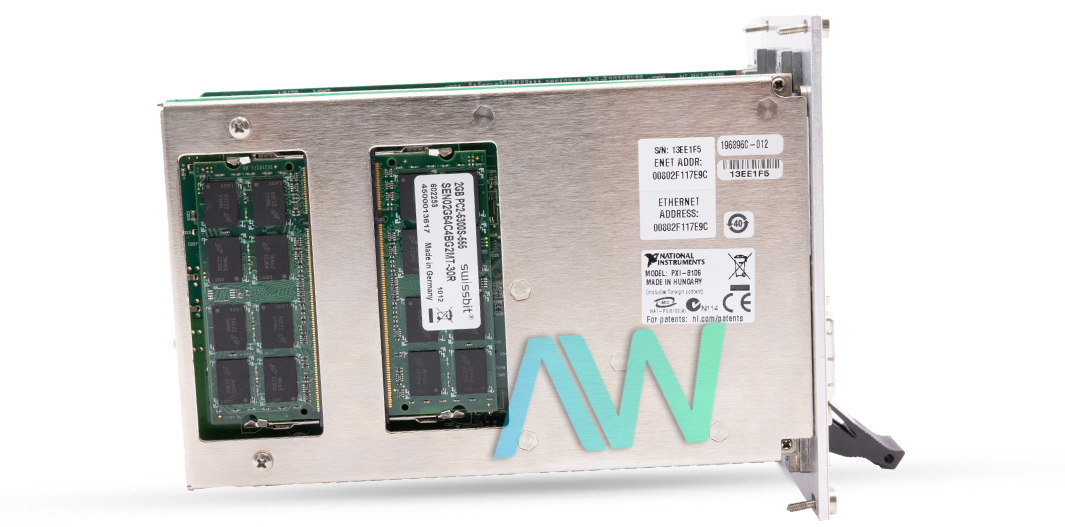

National Instruments 779886-00 Embedded PXI Controller
Part number 779886-00 from National Instruments is the part number for the PXI-8106 Embedded PXI Controller with a Localized OS. This local operating system improves both the accessibility and the efficiency of the controller by simplifying integration with existing local infrastructure.

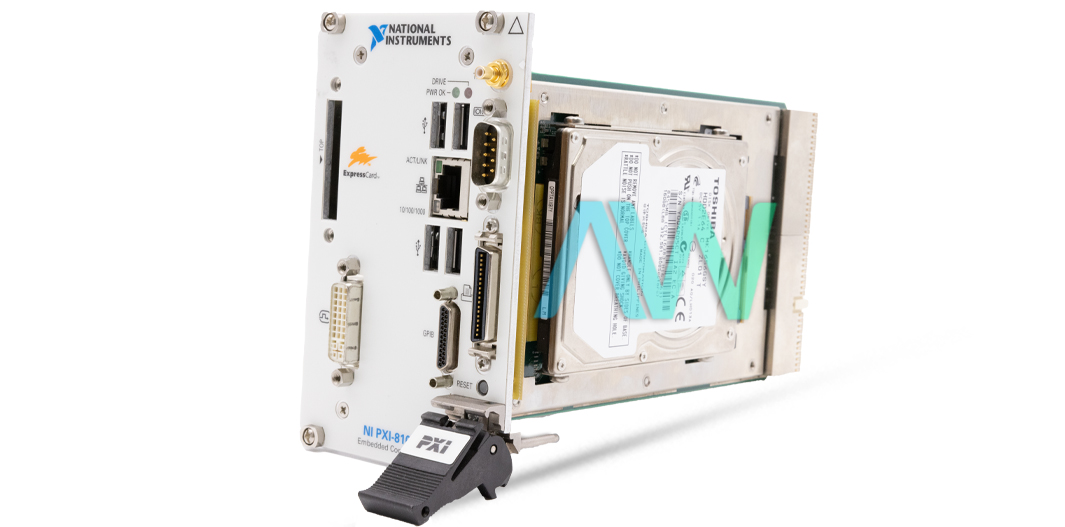

Featuring a T7400 Intel Core 2 Duo processor with a clock speed of 2.16 GHz, the 779886-00 offers excellent performance for any test setup. Versatile and reliable, the controller boasts multiple front panel connectors to accommodate a variety of functions. These include two DSUB connectors, one with 24 pins for video use and one with 9 pins for serial connections. There is an RJ45 connector for Ethernet LAN, as well as a 36 pin champ Parallel Port connector for parallel I/O interfaces. A SMB trigger connector, 25 Pin GPIB connector, and ExpressCard/34 slot round out the 779886-00’s front panel connectivity capabilities.
While the 779886-00 is only suitable for indoor use, it is designed with diverse environmental conditions in mind. It is able to function efficiently at altitudes up to 2,000 m, and has an operating temperature range from 5 °C to 50 °C (41 °F to 122 °F). When it comes to storage, the 779886-00 is able to be safely stored in an impressive ambient temperature range of -20 to 65 °C (-4 °F to 149 °F).
The 779886-00 has a standard memory of 512 MB of RAM, which is capped at a maximum of 2 GB. The dimensions of the device measure 8.1 cm × 13 cm × 21.6 cm (3.2 in. × 5.1 in. × 8.5 in.), and it weighs 0.94 Kg (2.1 lb).
| Model | 779886-00 |
|---|---|
| Model Name | PXI-8106 |
| Part Type | Embedded PXI Controller |
| OS | Localized OS |
| Processor | T7400 Intel Core 2 Duo |
| Storage Temperature Range | -20 to 65 °C (-4 °F to 149 °F) |
| Operating Temperature Range | 5 °C to 50 °C (41 °F to 122 °F) |
| Dimensions | 8.1 cm × 13 cm × 21.6 cm (3.2 in. × 5.1 in. × 8.5 in.) |
| Weight | 0.94 Kg (2.1 lb) |
| Manufacturer | National Instruments (NI) |
Associated part numbers for 779886-00:
