National Instruments 780690-04 PXI Embedded Controller

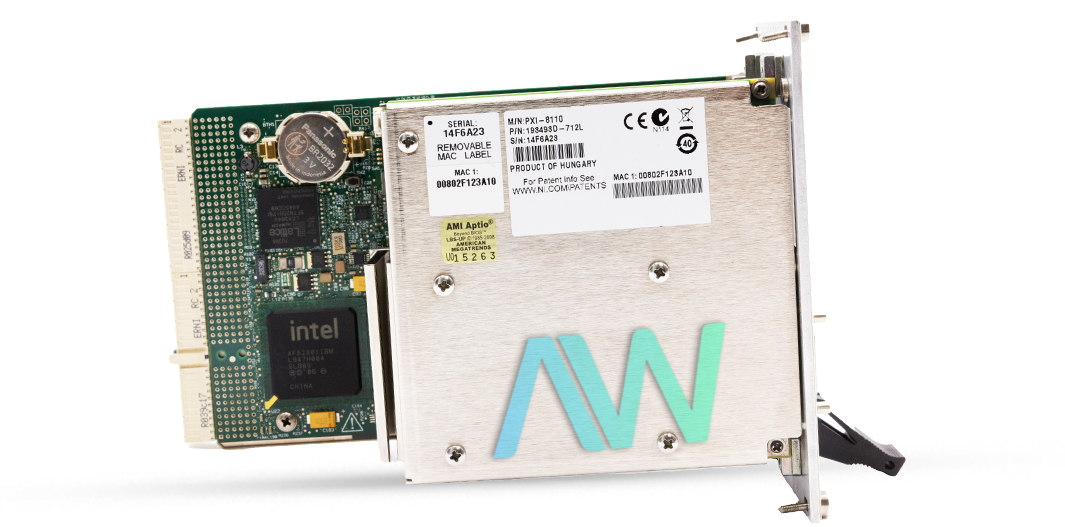

National Instruments 780690-04 is the part number for the PXI-8110 Embedded Controller with a 32 Bit Windows 7 OS. When compared to it’s 64 Bit counterpart, this operating system requires less processing power- making it an excellent choice for embedded devices with resource constraints. The controller boasts an internal 2.5 inch SATA notebook hard drive that provides convenient and reliable support for USB data storage. With a clock speed of 2.26 GHz, the quad-core Q9100 processor of the device demonstrates incredible multitasking capability. In addition, the front side bus of the CPU features 1,066 MHz.

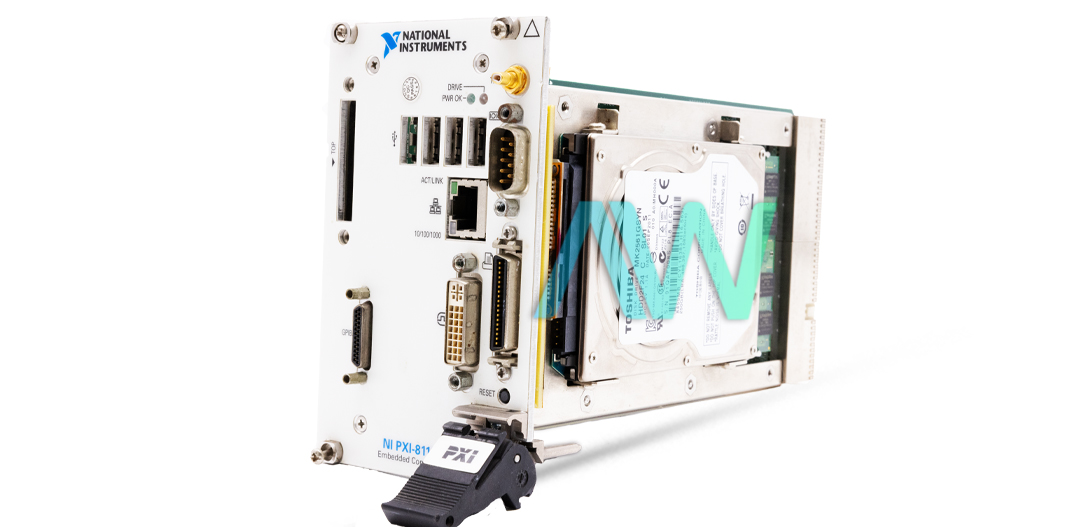

The interoperability of the 780690-04 makes it an excellent option for all kinds of testing setups. The controller comes equipped with a variety of external connectors on it’s front panel- including four Hi-Speed USB ports, a 24-Pin DSUB connection for video, a 9-Pin DSUB connection for serial interfaces, and a parallel port. It also features an RJ45 LAN connector for an easily accessible 10/100/1000 Ethernet connection.
The 780690-04 controller has been thoroughly tested for both shock and vibration at a range from 5 to 500 Hz. When it comes to the specifications of the operational shock, the controller has a resistance that peaks at 30 g and has an 11 ms pulse. The 780690-04 encounters random vibrations at a level of 0.3 grms during operation with a solid-state hard drive. This level increases to 2.4 grms when the controller is not operating.
Built to operate effectively even under rigorous conditions, the 780690-04 functions in altitudes all the way up to 2,000m. It operates within an operating temperature range of 5 to 50 °C (41 to 122 °F), and can be securely stored in temperatures ranging from -40 to 65 °C (-40 to 149 °F). The 780690-04 is specifically designed to satisfy the requirements outlined in the IEC / EN 61010-1, and UL / CSA 61010-1 standards. The controller weighs a light 0.914 kg (2.02 lb) and measures 8.1 cm × 13 cm × 21.6 cm (3.2 in. × 5.1 in. × 8.5 in.).
| Part Number | 780690-04 |
|---|---|
| Model Name | PXI-8110 |
| Part Type | PXI Embedded Controller |
| Operating System | Windows 7 |
| CPU Clock Speed | 2.26 GHz |
| Operational Shock Peak | 30 g |
| Random Vibration | 0.3 grms (Operating), 2.4 grms (nonoperating) |
| Dimensions | 8.1 cm × 13 cm × 21.6 cm (3.2 in. × 5.1 in. × 8.5 in.) |
| Weight | 0.914 kg (2.02 lb) |
| Warranty | Three Year Warranty |
| Manufacturer | National Instruments (NI) |
