PXIe-8102 In Stock | Ships in 5-10 Days

PXIe-8102, 1.9 GHz, Intel Celeron Processor, PXI Embedded Controller

Rated 4.6/5 | 5 ratings

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

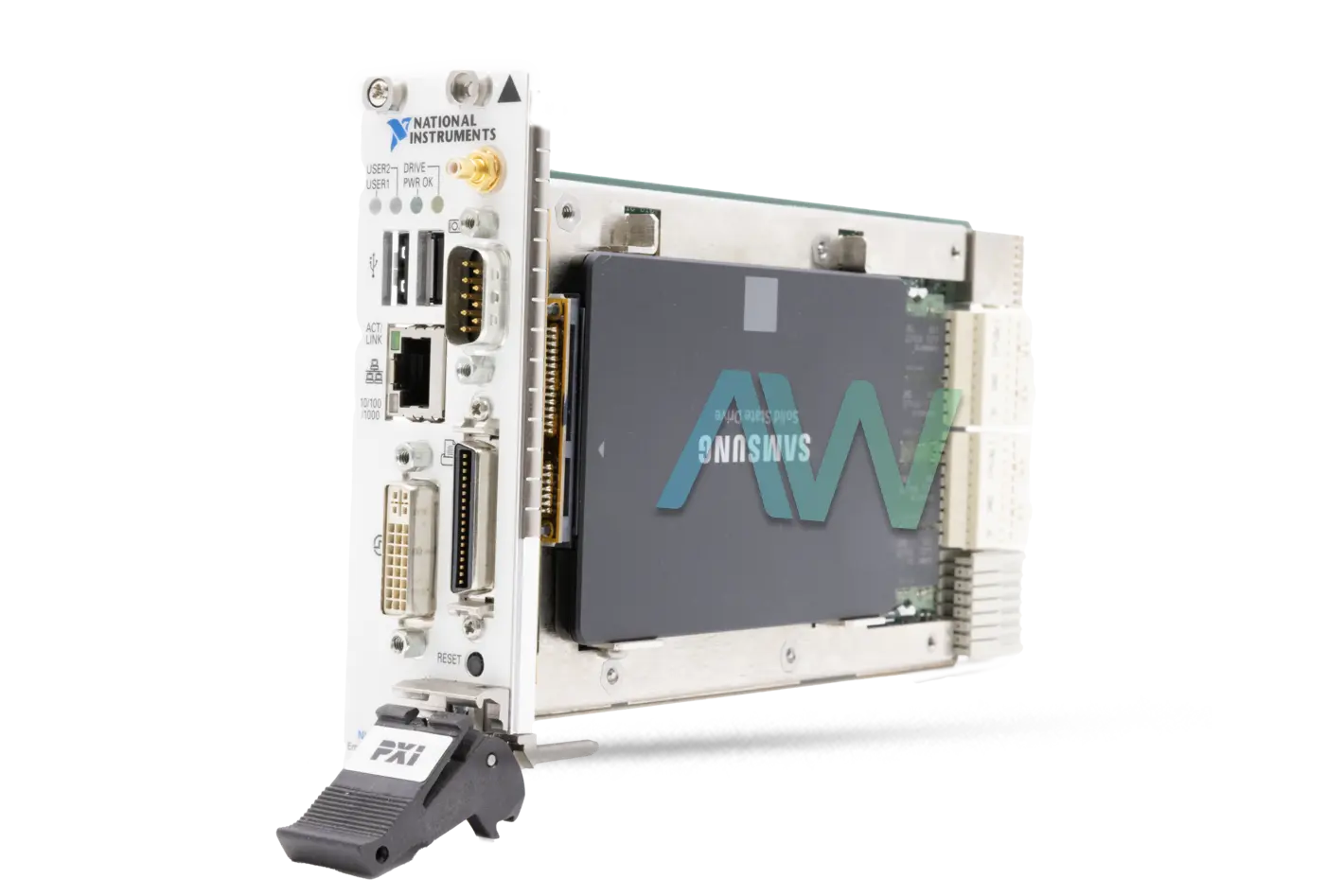

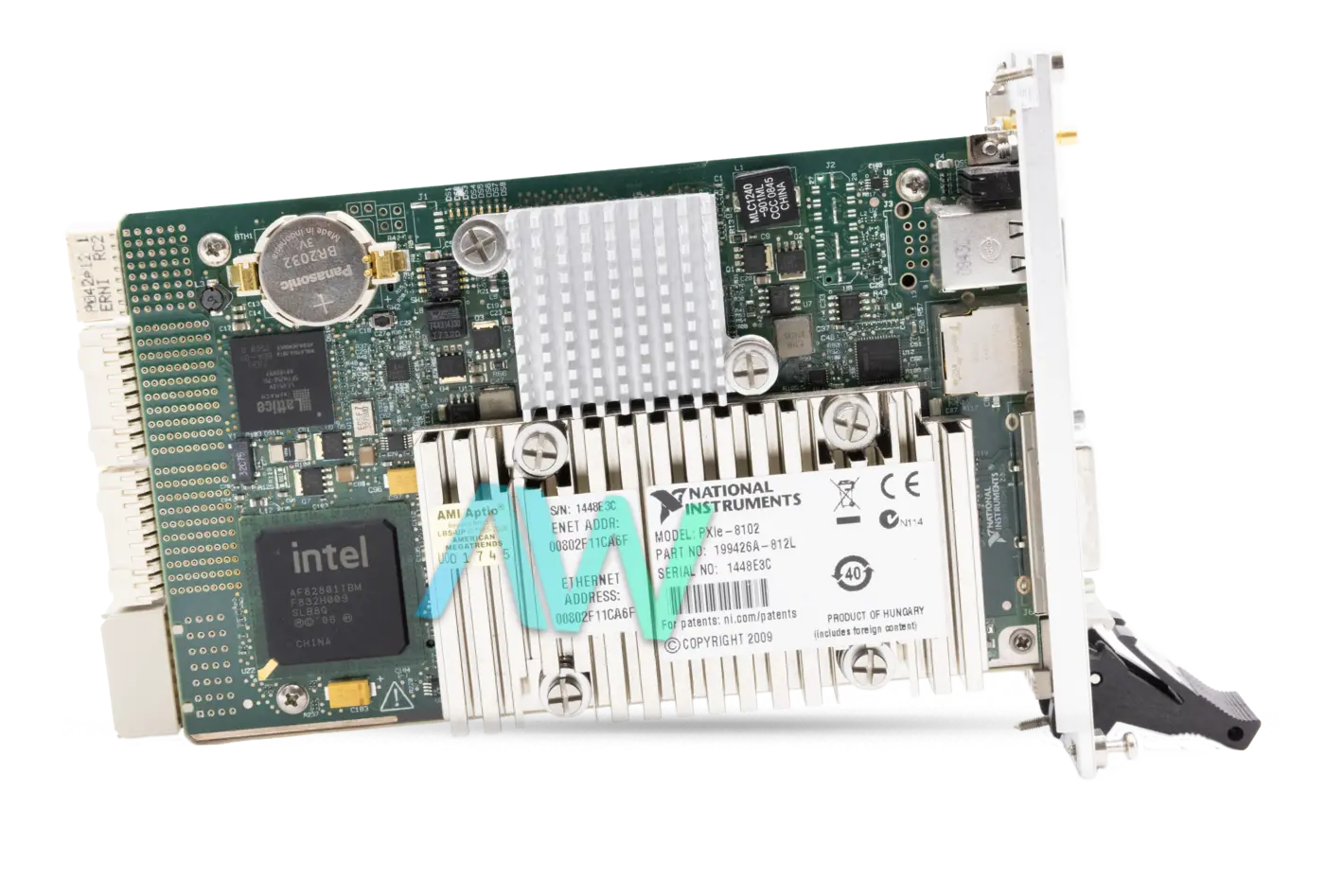

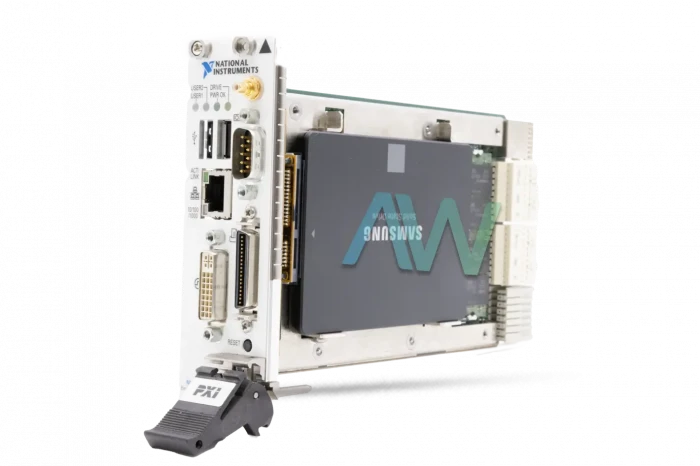

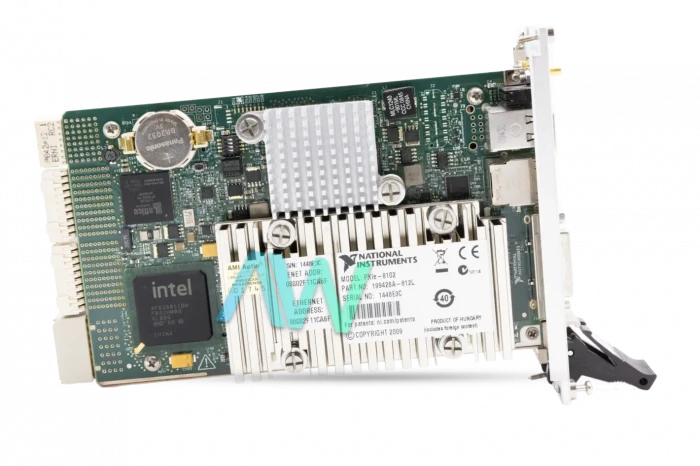

National Instruments PXIe-8102 PXI Controller

The PXIe-8102 (Part Numbers: 781184-00781184-01, 781184-02781184-33) is a PXI Controller manufactured by National Instruments. The NI PXIe-8102 is an Embedded Controller designed for PXI and CompactPCI systems. The PXIe-8102 delivers high performance. The NI PXIe-8102 comes within a rugged packaging that incorporates standard I/O terminals. When the PXIe-8102 is combined with a PXIe-compatible chassis, it forms a fully functional PC-compatible computer. The difference between the part numbers of the PXIe-8102 are the operating systems they are compatible with. Part number 781184-00 uses local OS, part number 781184-01 uses Windows XP, part number 781184-02 uses Windows Vista, and part number 781184-33 uses Real-Time Embedded Software.

The National Instruments PXIe-8102 PXI Controller features a 1.9 GHz, dual-core processor. The processor used in the PXIe-8102 is an Intel Celeron Dual-Core T3100 processor. The minimum storage memory of the NI PXIe-8102 is 80 GB. The standard RAM memory is 1 GB. However, the RAM memory of the PXIe-8102 can be extended up to 4 GB. The NI PXIe-8102 incorporates a DVI-I analog/digital video channel.

The different communication ports that are available in the PXIe-8102 PXI Controller include a serial port, a parallel port, and an Ethernet port. Moreover, 2 USB ports are also incorporated in the NI PXIe-8102. These USB ports are capable of high-speed data transfer. The serial port used in the PXIe-8102 is an RS-232 port. The NI PXIe-8102 PXI Controller also features a PXI trigger and a reset button.

The PXIe-8102 PXI Controller can work with application software such as Measurement Studio, LabVIEW, and LabWindow/CVI. The driver software of the NI PXIe 8102 PXI Controller is NI-DAQmx. The PXIe 8102 also supports Microsoft VB, Visual Studio .NET, and Visual C++. The supported operating systems of the NI PXIe 8102 Controller are Windows Vista and Windows 7 Professional.

The NI device weighs 1.42 lb, and measures 1.59 x 5.14 x 8.51 in. in physical dimensions. It has a recommended operating temperature range of 5 to 50 °C, a storage temperature range of –40 to 65 °C, an operating and storage humidity range of 10% to 90% and 5% to 95% respectively, and an operating and non-operating random vibration of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz.

PXIe 8102 Obsolete Status has been announced by National Instruments, but the Controller will still be available for purchase and repairs by Apex Waves.

ModelPXie-8102
ManufacturerNational Instruments
Part Numbers781184-00, 781184-01, 781184-02, 781184-33
TypePXI Controller
Processor1.9 GHz, Dual-Core
Ethernet Ports10/100/1000BASE-TX (Gigabit)
Hard Drive80 GB Serial ATA, minimum
On-Die L2 Cache1 MB
Dimensions1.59 in. × 5.14 in. × 8.51 in.
Weight1.42 lb.
Slot RequirementsOne system slot plus
one controller expansion slot
WarrantyThree Year Warranty
PXIe-8102 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXIe-8102:

National Instruments PXIe-8102 Frequently Asked Questions



Question: How do I clean the PXIe-8102?



Answer: The PXIe-8102 can be cleaned of debris by using a soft, nonmetallic brush. The device must be completely dry and contaminant-free before use.



Question: What is the operating temperature of the PXIe-8102



Answer: The operating temperature of the PXIe-8102 is 5 to 50 degrees celsius. This temperature must not be exceeded.



Question: What is the operating shock of the PXIe-8102



Answer: The operating shock of the PXIe-8102 peaks at 30 g, is half-sine, and has a pulse of 11 ms.
