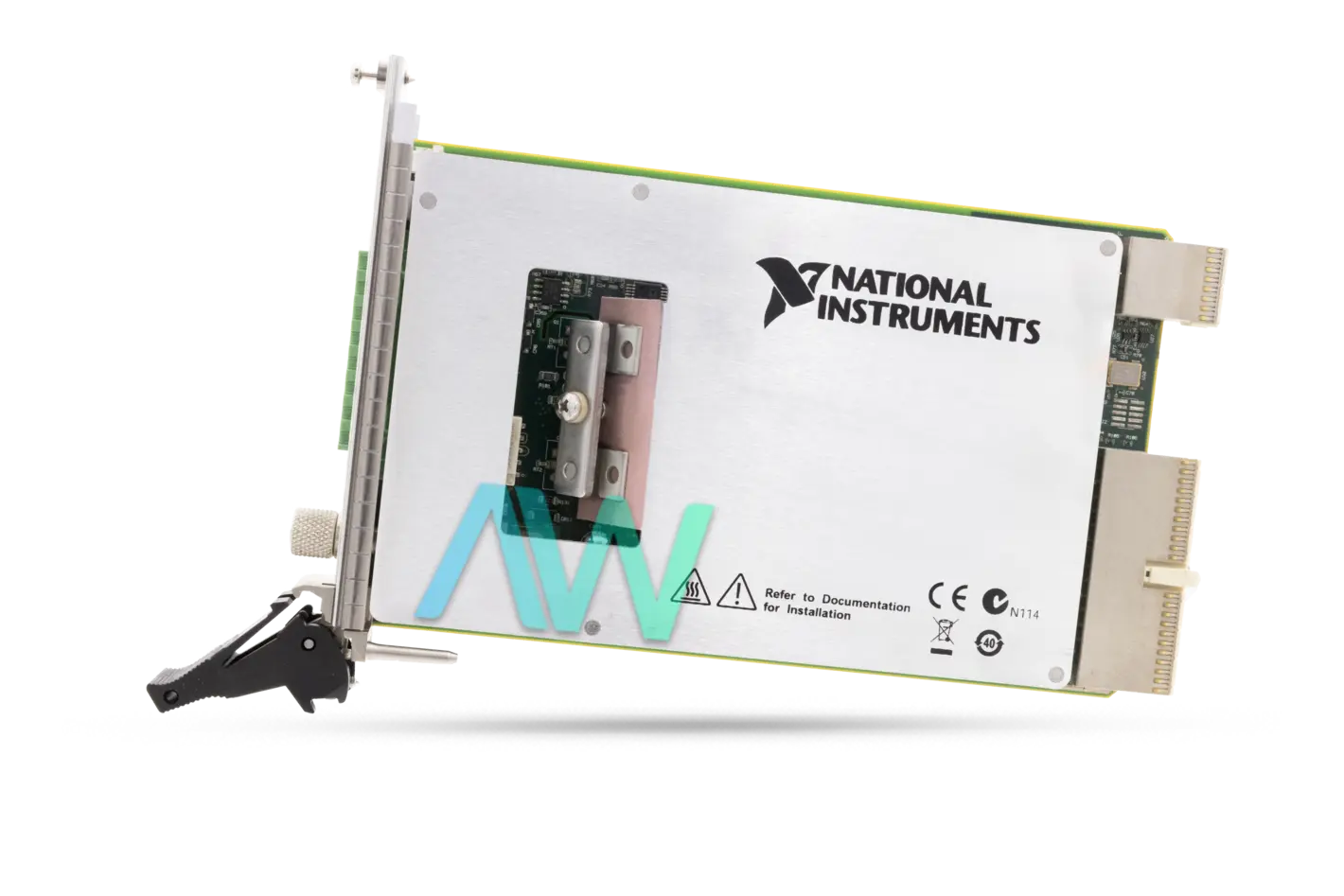

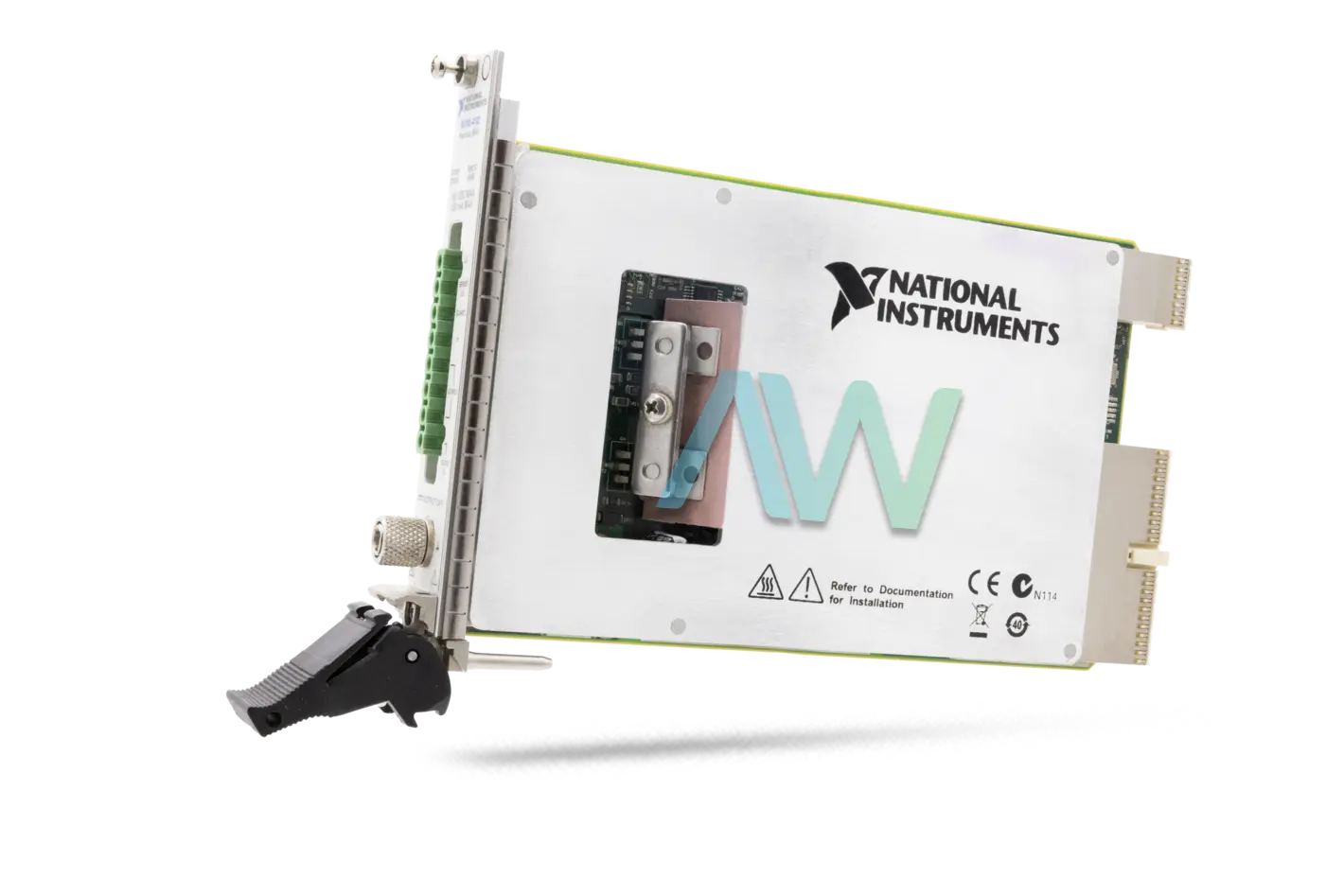

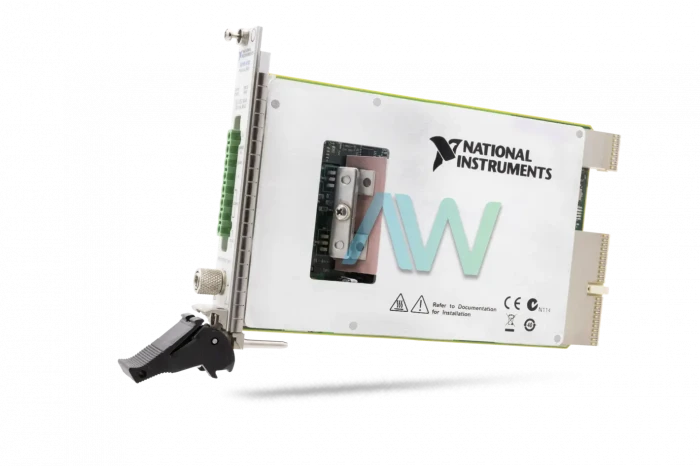

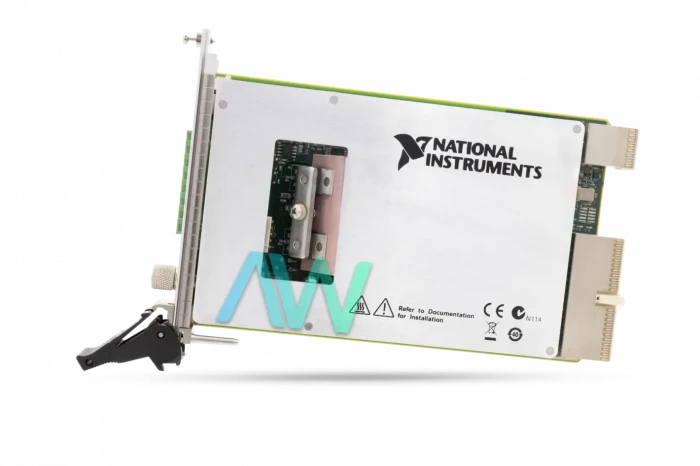

National Instruments PXI-4132 PXI Source Measure Unit
The National Instruments PXI-4132 (part numbers 780558-01 and 190463E-01L) is a 10 pA, ±100 V PXI Source Measure Unit, or SMU. This high-precision, programmable SMU has a single isolated SMU channel featuring a four-quadrant output that comes integrated with external guarding as well as four-wire sense. The PXI-4132 is considered a viable solution for precise leakage measurements on ICs, PCBs, cables, and other discrete components because it comes featured with better integrated guarding. With the PXI-4132 Precision SMU, the user can proceed with various high-speed current-voltage measurements on a broad range of components, including organic LEDs and diodes. In addition, the user can also synchronize and operate multiple PXI-4132 modules with the help of the PXI backplane. This arrangement provides better high-speed I-V measurements on complex devices such as transistors.
As far as its measurement capabilities are concerned, the NI PXI-4132 offers a 4,200 updates/s maximum source update rate and a 500 ns trigger-to-source delay. This Source Measure Unit supports various types of input triggers, such as start, sequence, advance, source, measure, etc. This model utilizes PXI trigger lines <0...7> as sources and destinations for triggers.
The National Instruments PXI-4132 SMU can generate different output triggers (events), including source complete, sequence engine done, sequence iteration complete, and measure complete. By design, this PXI Source Measure Unit is a 3U type, one-slot, PXI module with nominal dimensions of 2.0 cm × 13.0 cm × 21.6 cm, which weighs around 295 g. This module comes equipped with 8-position, 5.08 mm COMBICON front panel connectors.
Apex Waves will continue to buy, sell, and repair EOL NI hardware in perpetuity. While the PXI-4132 entered the NI Maintenance phase on December 30, 2022, it will remain available with Apex Waves. Request your quote today!
| Model | PXI-4132 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 780558-01, 190463E-01L |
| Type | PXI Source Measure Unit (SMU) |
| SMU Channels | 1 |
| Voltage Range | -100 V to 100 V |
| Current Range | -100 mA to 100 mA |
| Front Panel Connectors | 8-Position COMBICON |
| Trigger Pulse Width | 100 ns Minimum |
| Input Trigger Polarity | Configurable |
| Operating Temp Range | 0 °C to 55 °C |
| Storage Temp Range | -40 °C to 70 °C |
| Dimensions | 8.5 x 0.8 x 5.1 in. (2.0 cm × 13.0 cm × 21.6 cm) |
| Weight | 10.4 oz. (295 g) |
| PXI-4132 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a quote. |
Associated part numbers for PXI-4132:
National Instruments PXI-4132 Frequently Asked Questions
Question: What is the current sensitivity of the PXI-4132 Precision SMU?
Answer: The PXI-4132 Precision SMU has a current sensitivity of 10 pA.
Question: What type of front-panel connectors are on the NI PXI-4132?
Answer: There are COMBICON 5.08 mm 8-position nominal front panel connectors on the NI PXI-4132.
Question: What is the power requirement for the PXI-4132?
Answer: The power requirement for the PXI-4132 is 10 W at 5 V, 1 W at 3.3 V, and 2 W at 12 V, typical.
Question: What types of output triggers does the PXI-4132 have?
Answer: The PXI-4132 has the following output triggers: Measure Complete, Source Complete, Sequence Engine Done, and Sequence Iteration Done.
| Accessory Type | Part Number |
|---|---|
| Screw Terminal Connector Kit | 781175-01 |
PXI-4132 PDF Manuals
