National Instruments 784232-01 PXI High-Speed Serial Instrument

Part number 784232-01 from National Instruments is the descriptive part number for the PXIe-7902 PXI High-Speed Serial Instrument. Designed to verify, test, and interact with serial protocols, the 784232-01 boasts a Xilinx Virtex-7 XC7VX485T FPGA. This high-performance instrument is an excellent choice for applications that require co-processing capabilities. Featuring 2 GB of onboard DRAM from a single bank, this device has a theoretical maximum data rate of 10.5 GB/s.

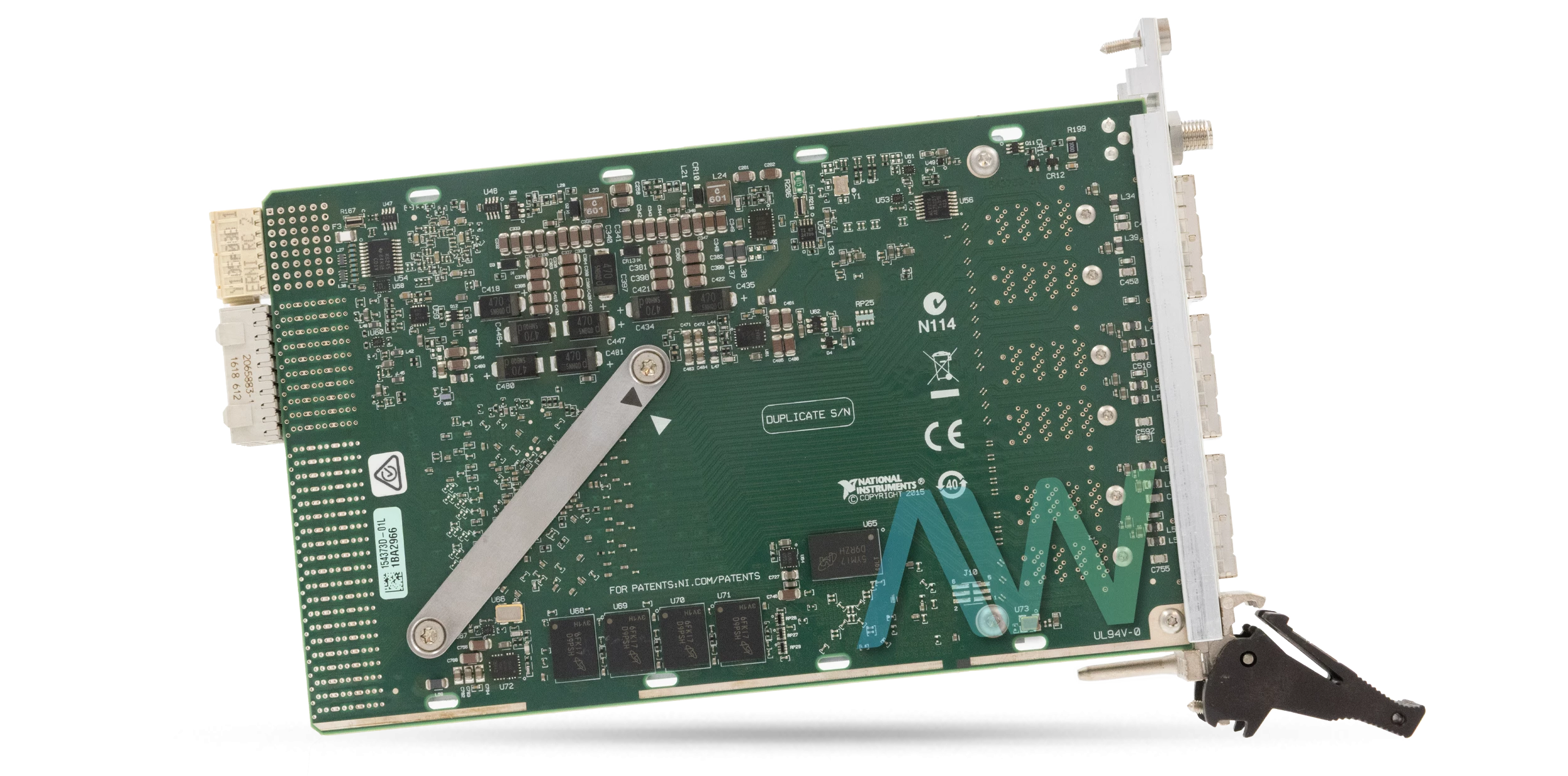

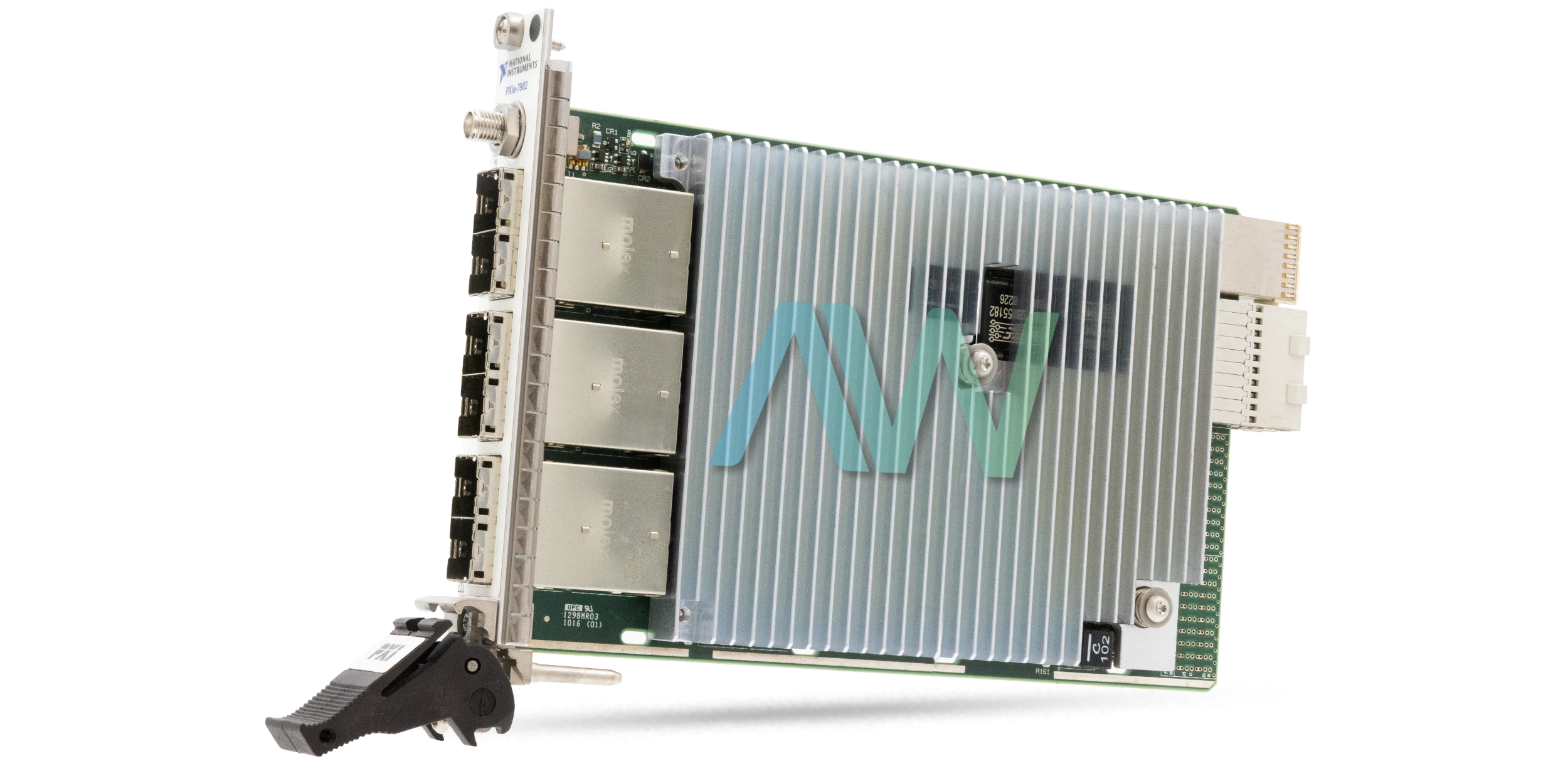

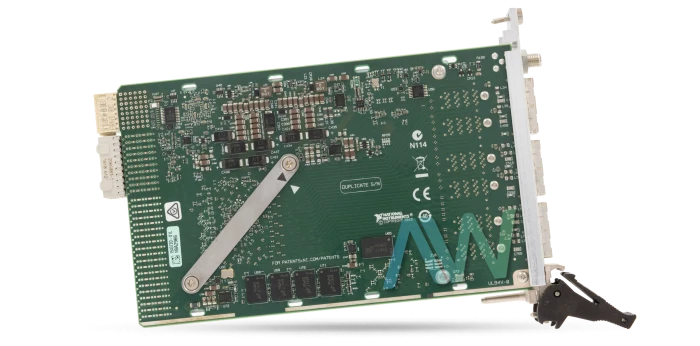

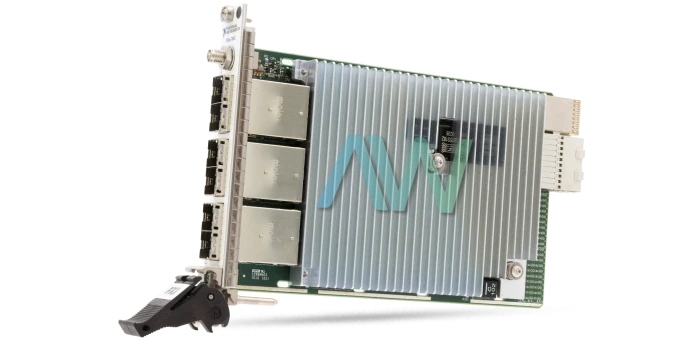

The front panel of the 784232-01 is equipped with a range of connectors for optimal connectivity. These connectors include Port (0 through 5), TX Channel, RX Channel, and CLK IN. The Gen 2×8 PXIe form factor of the device enables it to be compatible with ×1, ×4, ×8, and ×16 PXIe or PXIe hybrid slots. The maximum power requirement for the 784232-01 is 3 A for voltages of both +3.3 V and +12 V.

Built for indoor use only, the 784232-01 has an operating temperature range of 0 °C to 40 °C with a noncondensing relative humidity range of 10% to 90%. When not in use, the instrument is able to be stored within temperatures ranging from 40 °C to 71 °C with a noncondensing relative humidity range of 5% to 95%. During operation, the device can withstand a peak operating shock of 30 g. In addition, it can tolerate random vibrations ranging from 5 Hz to 500 Hz during operation.

Not including connectors, the 784232-01 has dimensions of 18.3 cm × 13.0 cm × 2.0 cm (7.4 in. × 5.1 in. × 0.8 in.). It weighs in at only 350 g (12.3 oz).
